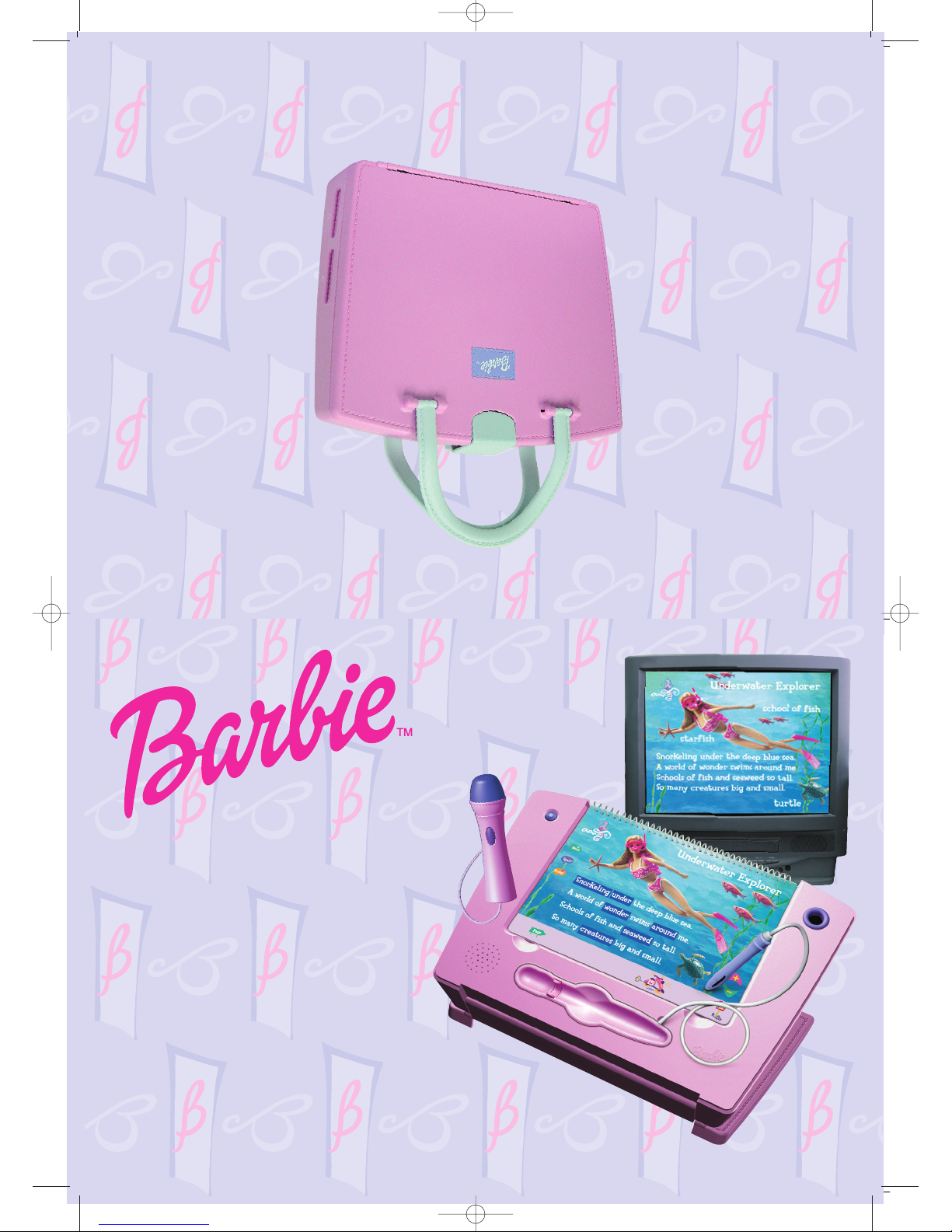

Oregon Scientific LS68 Manuel utilisateur

Electronic Learning Aid

B-Creative

Education Center

TV not included

Product does not have internet capabilities

Product specifications and colors may vary from photo

For Ages 3 to 8

LS68 manual(US) 12/28/05 12:28 Page 1

Chapter 1

Unpacking

Installing/Replacing the Batteries

AC Adaptor

Chapter 2

Setting Up

TV Connection

Inserting a Book

Using the Pen

Choosing a Page

Adjusting the Volume

Chapter 3

Other Features and Controls

Using the Microphone

Book/RAM Cartridges

Chapter 4

Welcome to Barbie Town™

Games and Instructions

Icons

General Rules

Ages 3-5

Table of Contents (Page 1)

Find and Seek (Page 2)

Dress-Up (Page 3)

Flower Power (Page 4)

Dear Parent/Guardian,

Thank you for choosing the Barbie™B-Creative™Education Center™.

With fantastic pen-touch technology and wonderful TV animations,

Barbie®interacts with your child like never before. Amazing graphics and

audio keep your child entertained for hours. The B-Creative™Education Center™

is expandable with cartridges covering every subject under the sun.

There is so much to learn with the Barbie™B-Creative™Education Center™.

BARBIE and associated trademarks and trade dress are owned by, and used under license from, Mattel, Inc.

In the Garden (Page 5)

Fantastic Flowers (Page 6)

Garden Fun (Page 7)

Shape-Up (Page 8)

Color-In (Page 9)

Rhyme Time (Page 10)

At the Stables (Page 11)

Horsing Around (Page 12)

Sing-Along (Page 13)

Ages 6-8

Table of Contents (Page 14)

Underwater Explorer (Page 15)

Ocean Fun (Page 16)

Fashionably French (Page 17)

Fashion Statements (Page 18)

Shoe Review (Page 19)

Song Writer (Page 20)

Tune Time (Page 21)

Practice Makes Perfect (Page 22)

Perfect Performance (Page 23)

On Stage (Page 24)

Play Time (Page 25)

Using This Book (Page 26)

Chapter 5

Troubleshooting

Cleaning and Maintenance

Table of Contents

able of Contents

LS68 manual(US) 12/28/05 12:28 Page 2

Caution

• Do not mix different types of batteries or old and new batteries.

• Only use batteries of the same or equivalent type as recommended.

• Remove all batteries when replacing.

• Remove batteries from the unit if the unit is not going to be used for a long period of time.

• Do not dispose of batteries in fire.

• Do not recharge non-rechargeable batteries.

• Rechargeable batteries are to be removed from the toy before being charged.

• Rechargeable batteries are only to be charged under adult supervision.

• Remove exhausted batteries from the toy.

• Do not short-circuit the supply terminals.

AC Adaptor Connection

1) Plug the adaptor into the adaptor jack on the left side of the unit.

2) Plug the adaptor into a wall outlet.

3) Please turn off the unit before plugging in the AC adaptor.

Otherwise the unit may be damaged.

Caution

• Only use the recommended adaptor.

• The adaptor is not a toy. The unit will only work with a 9V 300mA adaptor(sold separately).

Do not use any other adaptor with this product as it may damage the product.

• Do not short-circuit the supply terminals.

• Toys liable to be cleaned with liquid are to be disconnected from the power source before cleaning.

Installing/Replacing the Batteries

The Barbie

™

B-Creative™Education Center™operates on 4 C-size batteries (not included).

1) Remove the microphone compartment lid on the under side of the unit by pulling

the clips back and lifting it out.

2) You can now see the battery cover underneath the microphone compartment.

3) Use a Phillips screwdriver to remove the screw that holds the battery cover in place.

The screw will stay in the battery cover.

4) Lift the cover up and pull it out.

5) Discard the old batteries carefully.

6) Insert new batteries, taking careful note of the correct polarity.

7) Replace the battery cover by inserting the tabs first and then tightening the screw.

8) Replace the storage compartment lid by inserting the tabs first and then pushing

the clip side back into place.

Instruction

manual

Unit

Unpacking

In this box you will find:

Microphone TV Cable Game book

Chapter 1

LS68 manual(US) 12/28/05 12:28 Page 3

Inserting a Book

1) The books are reversible. Choose the side you want to play first and position it with

that side face up.

2) With the cover closed place the book face up onto the B-Creative™Education Center™.

3) Make sure that the book sits neatly in the book area and is not overlapping the edges

anywhere. If you do not place the book correctly then the pen will not be able to

accurately recognize the book.

4) Push the spiral binding of the book into the retention clips at the top of the unit.

This will prevent the book from moving around while you play.

Using the Pen

1) Hold the pen lightly in your hand. Do not hold it too close to the tip and do not let

your hand touch the page while using the pen.

2) You only need to gently touch the page with the pen. Do not push the pen into the

page with any force. Moving the pen very gently from side to side can help the

response

3) Please note: The pen may not function properly if your TV is not FCC or EMC

compliant.

Choosing a Page

1) Turn the unit on.

2) Flip the book open to the page you want to play. The flipped pages will hang

behind the unit.

3) To let the B-Creative™Education Center™know which page you are looking at,

touch the Page Icon then touch the Page Number Icon.

4) The Page Icon is at the bottom left of the Page and the page numbers are along

the bottom edge.

Setting Up the B-Creative™Education Center™

for Play

1) Stand the unit upright with the Barbie

™

logo facing you.

2) Lift up the catch holding the unit shut.

3) Open up the front lid all the way and fold it back on itself.

4) Place this side flat on the table.

5) Swivel the catch around and lean the handle of the top part against

the catch.

6) The unit will now stand up at an angle.

TV Connection

1) Make sure the unit is turned off.

2) Slide back the jack cover on the left side of the unit.

3) Insert the small white end of the TV connection lead into the TV jack.

4) Connect the yellow end of the lead to the Video-in jack on your TV.

5) Connect the red end of the lead to the mono Audio-in jack on your TV. On most TVs,

this is the left channel.

6) Make sure your TV is tuned to the Video-in channel.

NOTE: When using the B-Creative™Education Center™independently from the TV,

make sure the TV connection lead is unplugged from the unit.Otherwise, no sound

will be heard from the unit's speaker. 3

Chapter 2

LS68 manual(US) 12/28/05 12:28 Page 4

Book/RAM Cartridges

Note: You do not need to insert a book cartridge for the Welcome to Barbie Town™book.

1) Make sure the unit is turned off before you insert the cartridges.

2) The two cartridge slots are located on the right side of the unit. The book cartridge

slot is the one near the book, closer to the top of the unit.

3) Make sure the label faces up and push it firmly but gently into place.

4) If you have a RAM cartridge, place it into the slot close to the bottom of the unit with

the label facing up. Use a RAM cartridge if you want to save and store your creations.

5) The RAM cartridge can retain data for up to 6 months. This period can be extended

if the cartridge is always plugged into the memory cartridge slot.

6) The RAM and book cartridges are of different sizes so it is not possible to put them

in the wrong slots. Do not force the cartridges into place.

Icons

Throughout the Welcome to Barbie Town™book you will find many different icons.

Most of them are found on the left hand side of the page.

Page and Page Number – After you have chosen a page to play, let the

B-Creative™Education Center™know which page it is by touching this icon followed

by the Page Number Icon.

Word – Touch the Word Icon to go into Word Mode. In Word Mode, you can touch any

word on the page to hear how it is pronounced. Touch the Word Icon again to go back

to normal mode (Barbie®will read the whole sentence).

Adjusting the Volume.

1) On each page there is a volume up and a volume down icon.

2) Touch them with the pen to adjust the volume.

3) You can also adjust the volume on the TV if you are using the TV speaker.

Using the Microphone

1) For Sing Along activities you can use the microphone to sing with Barbie®.

2) The microphone is stored in the microphone compartment on the bottom

of the unit.

3) Remove the microphone compartment lid by pulling the clips back and

lifting it out.

4) Take out the microphone and replace the lid.

5) With the unit turned off, connect the microphone to the microphone jack

on the left of the unit.

6) The microphone works when you hold the button down.

7) You must have the unit connected to the TV to hear your voice.

The microphone does not use the internal speaker.

8) If you have a second microphone you can connect it to the bottom of

the first microphone so that you can sing along with your friends too.

9) If you hear feedback when using the microphone, lower the volume

setting on the TV or move the microphone away from the TV.

Chapter 3

Chapter 4

LS68 manual(US) 12/28/05 12:28 Page 5

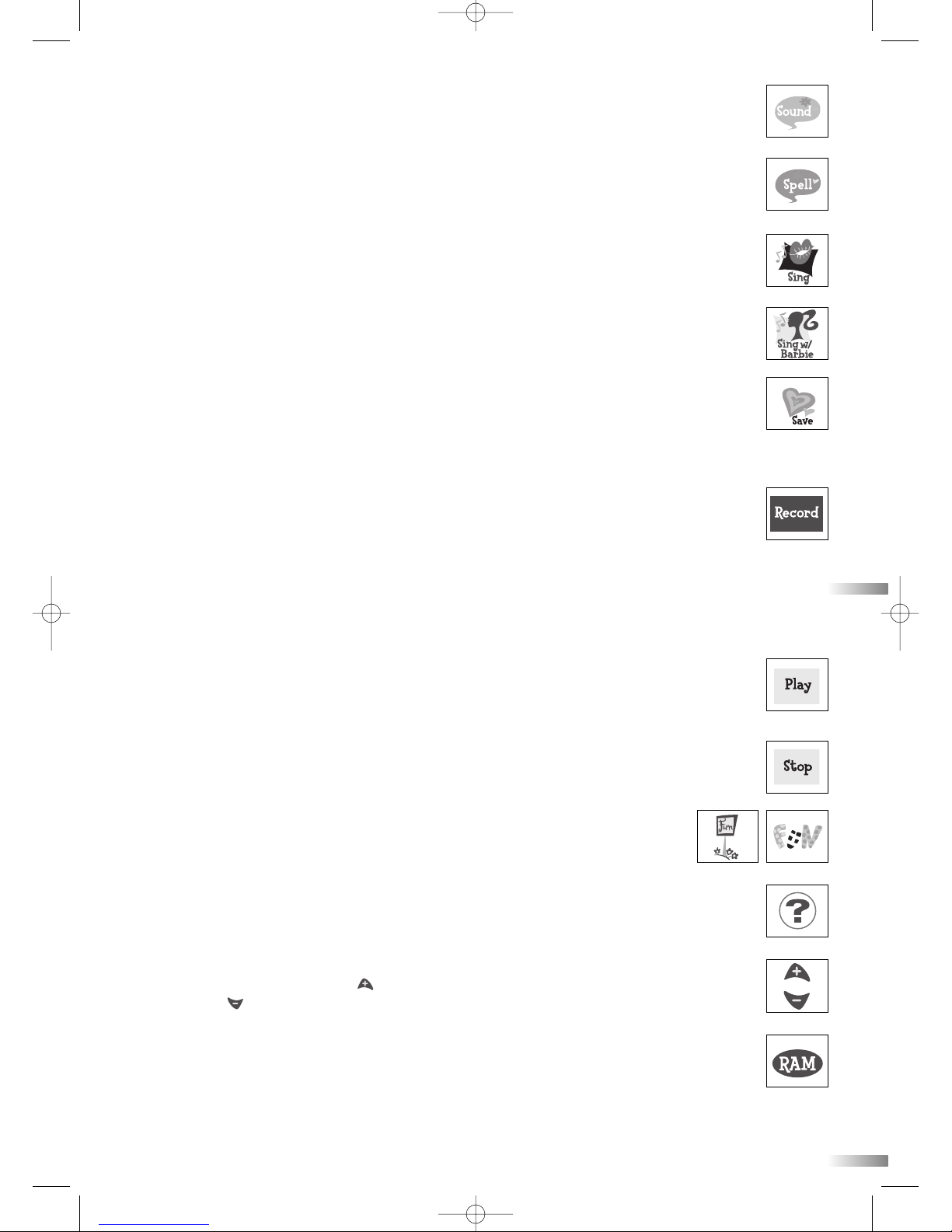

Sound – Touch the Sound Icon to go into Sound Mode. In Sound Mode, you can touch

any of the highlighted words on the page to hear and see the phonics of the word.

Touch the Sound Icon again to go back to normal mode.

Spell – Touch the Spell Icon to go into Spell Mode. In Spell Mode you can touch any

word on the page to hear and see it spelled. Touch the Spell Icon again to go back to

normal mode.

Sing – You will find this icon on the Sing Along page. When you touch this icon the

Barbie Town™theme song will play. If you have your microphone plugged in you can

sing along with the music.

Sing w/ Barbie – You will find this icon on the Sing Along page. When you touch this

icon the Barbie Town™theme song will play and Barbie®will sing the lyrics. If you

have your microphone plugged in you can sing along with Barbie®and the music.

Save – You will find the Save Icon on the Dress-Up and Color-In pages. When you

touch this icon during Game Mode it will save your creation to the RAM cartridge.

When you touch it, Barbie®will ask if you really want to save. Touch the icon again to

confirm that you want to save. This will save over anything that you have previously

saved in the current activity.

Record – The Record Icon appears in Tune Time. This only works if you have a RAM

cartridge inserted. When you touch this icon in Game Mode anything you play on the

keyboard will be saved to memory. See the Tune Time instructions for more details.

Play – The Play Icon appears in Tune Time. When you touch this icon any song that is

stored in the memory is played back.

Stop – The Stop Icon appears in Tune Time. It will stop the recording or stop the

playback of the melody.

Fun – Each page has a Fun Icon. After you have explored the page you can touch the

Fun Icon to play a game.

Help Icon – The Help Icon is used on some pages. When you touch it Barbie ®will give

you some information that will help you with that page.

Volume – The Volume Icons appear on every page at the bottom right corner. You can

increase the volume by touching the arrow at the top. You can decrease the volume

by touching the arrow at the bottom.

RAM – The RAM icon is found on the Using This Book page, (page 26). When you

touch the icon you can see a list of all the saved activities in the memory. You must have

a RAM cartridge inserted to use this icon. For more details see page 18.

LS68 manual(US) 12/28/05 12:28 Page 6

Game Instructions

General Rules

Touch the title of an activity to reset the activity.

The activities have two modes. When you first start the activity it will be in normal mode.

When you touch the Fun Icon it will go to fun mode.

Icons like Word, Spell and Sound only work in normal mode, not while you are playing

a game.

Table of Contents (Page 1)

This page gives you an introduction to the places and activities for ages 3 to 5 in

Barbie Town™. Just touch anything on the page to hear Barbie®tell you about the

activities available in the first half of the book.

Find and Seek (Page 2)

Normal Mode: The Chic Boutique store is a bit messy. First touch an object that is

out of place and then touch the place where you think it should go.

Fun Mode: Touch the Fun Icon to play a clue game. Barbie®will describe something in

the store and you have to touch the object that you think she is describing.

Dress-Up (Page 3)

To play this game you must have the B-Creative™Education Center™connected to

the TV.

Normal Mode: Help Barbie®to choose a pretty outfit. Touch the different clothes to

hear what Barbie®thinks about them.

Fun Mode: Touch the Fun Icon when you want to play the dress-up game. During the

game Barbie®will stay behind the curtains while you choose an outfit. Touch an item

hanging on the racks or on the shelves. Then touch the curtains to see Barbie®dressed

up in the chosen outfit.

Touch the Save icon if you like the outfit and the next time you play the game Barbie®

will appear in that outfit. You must have a RAM cartridge inserted if you want to save.

Flower Power (Page 4)

Normal Mode: Barbie®will challenge you to play a matching game. Touch a letter to

begin. If you touch a lowercase letter, for example, "a", then you have to touch the

same letter in uppercase, for example, "A". You can also touch the uppercase letter first,

and then touch the same letter in lowercase to make a match.

Fun Mode: If you touch the Fun Icon you can play a spelling game. A word will appear

on the TV screen and Barbie®will ask you to spell the word by touching the letters in the

flowers. Remember to start the word with an uppercase letter.

In the Garden (Page 5)

Normal Mode: Use the Word, Spell and Sound icons to explore the words on the page

and touch any objects to learn their names.

Fun Mode: When you touch the Fun Icon Barbie®might ask you to find a word or she

might ask you to find a word that begins with a certain letter.

LS68 manual(US) 12/28/05 12:28 Page 7

Fantastic Flowers (Page 6)

Normal Mode: Use the icons to examine the words on the page or touch the flowers to

play a tune.

Fun Mode: Touch the Fun Icon to play a reading game. You must have the

B-Creative™Education Center™connected to the TV to play this game. A word with

missing letters will appear in the flowers. See if you can find the word on the page

and then touch it.

Garden Fun (Page 7)

Normal Mode: Touch the objects to learn their names.

Fun Mode: Barbie®will ask you some questions about gardening. She might ask you to

find an object that does something special, she might ask you to simply find an object,

or she might ask you to find an object that starts with a certain letter. In each case simply

touch the gardening object to give your answer.

Shape-Up (Page 8)

Normal Mode: Touch a shape on the page and Barbie®will tell you about it.

Fun Mode: When you touch the Fun Icon Barbie®will ask you to find a certain shape.

Give your answer by touching a shape in the picture on the easel.

Color-In (Page 9)

You need to have the B-Creative™Education Center

™

connected to a TV to play this page.

Normal Mode: If you touch the different parts of the page Barbie will tell you how to

play the game in Fun Mode.

Fun Mode: You can color in the different parts of the picture and even change the color

of the dress Barbie®is wearing. Touch a color from the choices on the left of the page,

and then touch an area to color it in.

You can save your creation using the Save Icon but you must have a RAM cartridge

inserted.

Rhyme Time (Page 10)

Normal Mode: Touch the paint tubes and paint splatters on the page to hear the rhyming

words.

Fun Mode: Touch the Fun Icon to play the game. Barbie®will ask you to find words that

rhyme or words that start with a certain letter. Touch the paint tubes or paint splatters to

give your answers.

At the Stables (Page 11)

Normal Mode: Touch any of the objects to learn its name and something about it.

Fun Mode: There are two counting games. In one of them you have to count the number

of times that Nibbles the horse will stamp his feet. Count the number of times he does

that and then touch the numbers along the bottom to give your answer.

In the second counting game Barbie®will ask you to count some of the objects that are in

the stables. Find all the objects she is looking for and then touch the numbers to give

Barbie®your answer.

Ye l l o w

Purple

Orange

Blue

Green

Red

top

how

flow

mop

step

hot

bop

flip

LS68 manual(US) 12/28/05 12:28 Page 8

Horsing Around (Page 12)

Normal Mode: Use the Word, Spell and Sound icons to explore the text. If you touch the

clock face Barbie®will show you how to tell the time.

Touch one of the small photographs to play the matching game. Barbie®will ask you to

find the sentence that best describes the action in the photograph. Touch the sentence to

give Barbie®your answer.

Fun Mode: If you touch the Fun Icon Barbie®will ask you to show her where the little

hand on the clock should point at different times of the day. Just touch the number on

the clock face to give your answer.

Sing-Along (Page 13)

Plug your microphone into the unit to join in this game with Barbie®.

Normal Mode: Touch the lyrics (the words of the song), to hear Barbie®read them out.

When you are ready to sing, touch one of the two Sing icons. If you touch the Sing Icon

the music will start and a bouncing ball on the screen will show you when to sing each

word. If you touch the Sing with Barbie®Icon then Barbie®will sing along with you.

Remember to hold the button on the microphone down to hear yourself through the

speaker.

Fun Mode: If you touch the Fun Icon you can touch different lines from the song to see a

cool animation.

Table of Contents (Page 14)

This page gives you an introduction to the places and activities for ages 6 to 8 in

Barbie Town

™

. Just touch anything on the page to hear Barbie®tell you about the

activities available in the second half of the book.

Underwater Explorer (Page 15)

Normal Mode: You can use the Word, Spell and Sound icons to explore the words on

the page. When you touch the different sea creatures Barbie®will tell you something

about them.

Fun Mode: Touch the Fun Icon to play a game. Barbie®will ask you questions about

the words on the page. Find the word that matches the definition Barbie®read to you.

Touch a word on the page to give your answer.

Ocean Fun (Page 16)

Normal Mode: Discover even more about the underwater world. Touch any of the sea

creatures to find out more about them.

Fun Mode: When you touch the Fun Icon Barbie®will ask you to answer a riddle.

Touch one of the animals to give your answer.

Fashionably French (Page 17)

Normal Mode: Touch the objects and labels in the cafe to learn the French names.

Fun Mode: Touch the Fun Icon for a riddle game. Barbie®will ask you a riddle,

the answers are objects in the cafe. Touch the object to give your answer.

LS68 manual(US) 12/28/05 12:28 Page 9

Fashion Statements (Page 18)

You must have the B-Creative

™

Education Center

™

connected to the TV to play this game.

Normal Mode: A value statement will appear on the TV in the top row but the value

sign will be missing. Touch one of the value signs on the left side of the page to give

your answer. When you get the statement correct a new statement will appear in the row

underneath. Keep answering statements until the Sold Out signs appear in the boxes.

You can touch the Help Icon to see how value statements work.

Fun Mode: If you touch the Fun Icon you can play a memory game. Numbers and

symbols will appear in the boxes for a short amount of time. Try to remember where

they are. They will then disappear. You have to find the matching pairs by touching

the boxes to uncover the symbols. When you find a pair they will stay on the screen.

When you find the second to last pair, the last pair will appear automatically.

Shoe Review (Page 19)

Normal Mode: Touch anywhere to look around the shop and touch the "Sale" sign to

play a game. Barbie®will ask you to choose a pair of shoes. She will then ask you

one of two questions.

1) Barbie®might ask you to touch the dollar bills to pay for the shoes. Touch the

different amounts on the right of the page to add up to the cost of the shoes.

When you are done touch the Enter box at the bottom right of the page.

2) Barbie®might tell you how much money you have and then she will ask you how

much change you would get back if you bought those shoes with that money. Touch

the different amounts on the right of the page to add up to the amount of change you

would get. When you are done touch the Enter box at the bottom right of the page.

Fun Mode: If you touch the Fun Icon you can play a search game. There is a 100 dollar

bill hidden behind a pair of shoes. You have to guess which shoes it is hidden behind.

Barbie®will give you some clues to help you. After each clue you can make a guess by

touching the shoes.

Song Writer (Page 20)

Normal Mode: Touch anywhere to explore the page.

Fun Mode: If you touch the Fun Icon you can create your own song. Bubble 1 will

highlight, simply select one of the three objects. Bubble 2 will highlight and then

Bubble 3. After you have selected three objects you can see the song you created.

Tune Time (Page 21)

Normal Mode: Touch anywhere to explore the page and hear all the instructions.

Fun Mode: If you touch the Fun Icon you can create your own tune. When you touch

the piano keyboard at the bottom of the page you can hear the notes played.

If you touch the instruments you can change the sound to a different instrument.

Touch the Record Icon to record your performance. You must have a RAM cartridge

inserted to do this. When you touch the Record Icon each note you play will be saved

into the memory. Touch the Stop Icon when you have finished. When you touch the

Play Icon you can hear the recorded melody played back. During playback you can

change the tempo (the speed) with the Tempo icon above the Record Icon.

LS68 manual(US) 12/28/05 12:28 Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Oregon Scientific Jouet

Oregon Scientific

Oregon Scientific 14894 Manuel utilisateur

Oregon Scientific

Oregon Scientific Barbie B-Book Manuel utilisateur

Oregon Scientific

Oregon Scientific Superman Junior Laptop Manuel utilisateur

Oregon Scientific

Oregon Scientific 18029 Manuel utilisateur

Oregon Scientific

Oregon Scientific HOT WHEELS FAST TRACK LAPTOP Manuel utilisateur

Oregon Scientific

Oregon Scientific BARBIE LERNCOMPUTER DUO Manuel utilisateur

Oregon Scientific

Oregon Scientific 17006 Manuel utilisateur

Oregon Scientific

Oregon Scientific SmartGlobe Explorer AR Manuel utilisateur

Oregon Scientific

Oregon Scientific BARBIE LITTLE LEARNING LAPTOP Manuel utilisateur

Oregon Scientific

Oregon Scientific SmartGlobe 3 Manuel utilisateur

Oregon Scientific

Oregon Scientific 18023 Manuel utilisateur

Oregon Scientific

Oregon Scientific Smart Globe Discovery SG268 Manuel utilisateur

Oregon Scientific

Oregon Scientific 14924 Manuel utilisateur

Oregon Scientific

Oregon Scientific SmartGlobe AC/DC Adapter Manuel utilisateur

Oregon Scientific

Oregon Scientific 16018 Manuel utilisateur

Oregon Scientific

Oregon Scientific School Writing Tablet 086-003875-034 Manuel utilisateur

Oregon Scientific

Oregon Scientific Electronic Learning Aid Tote N' Teach Manuel utilisateur

Oregon Scientific

Oregon Scientific Barbie B-Creative Education Center Electronic Learning... Manuel utilisateur

Oregon Scientific

Oregon Scientific SG18 Manuel utilisateur

Oregon Scientific

Oregon Scientific 17015 Manuel utilisateur

Oregon Scientific

Oregon Scientific SUPERMAN LERNCOMPUTER DUO Manuel utilisateur

Oregon Scientific

Oregon Scientific Accelerator Junior Laptop Manuel utilisateur

Oregon Scientific

Oregon Scientific CF31 Manuel utilisateur

Oregon Scientific

Oregon Scientific B-SMART LEARNING LAPTOP Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
