RadioControlledProjectionAlarm

Model:EW96

USER MANUAL

C8314A(DCF MSF)

Size: 148 x 105(mm)

CONTENTS

Brief Introduction ............................................2

Overview ..........................................................2

Receiver .....................................................2

LCD Display ................................................3

Operating the Main Unit ..................................4

Reception of Radio Controlled Time Signal.....4

Signal Reception Indicator ...........................4

Time and Calendar Manual Setting ............... 4

Alarm Time Setting ..........................................5

Using Alarm Function ....................................5

To Silence the Alarm ........................................6

Using the Projector .......................................6

Battery Replacement ......................................6

Precautions ................................................7

Specifications ................................................8

About Oregon Scientific .................................8

EU-Declaration of Conformity.......................8

FCC Statement ..............................................9

Declaration of Conformity ..............................9

Radio Controlled Projection Alarm

Model: EW96

USERMANUAL

BRIEF INTRODUCTION

Thank you for your purchase of this Radio Controlled

Projection Alarm. Please read these instructions

carefully and keep the manual well for future

reference.

The receiver unit has a clear display that shows the

indoor temperature, time and date.

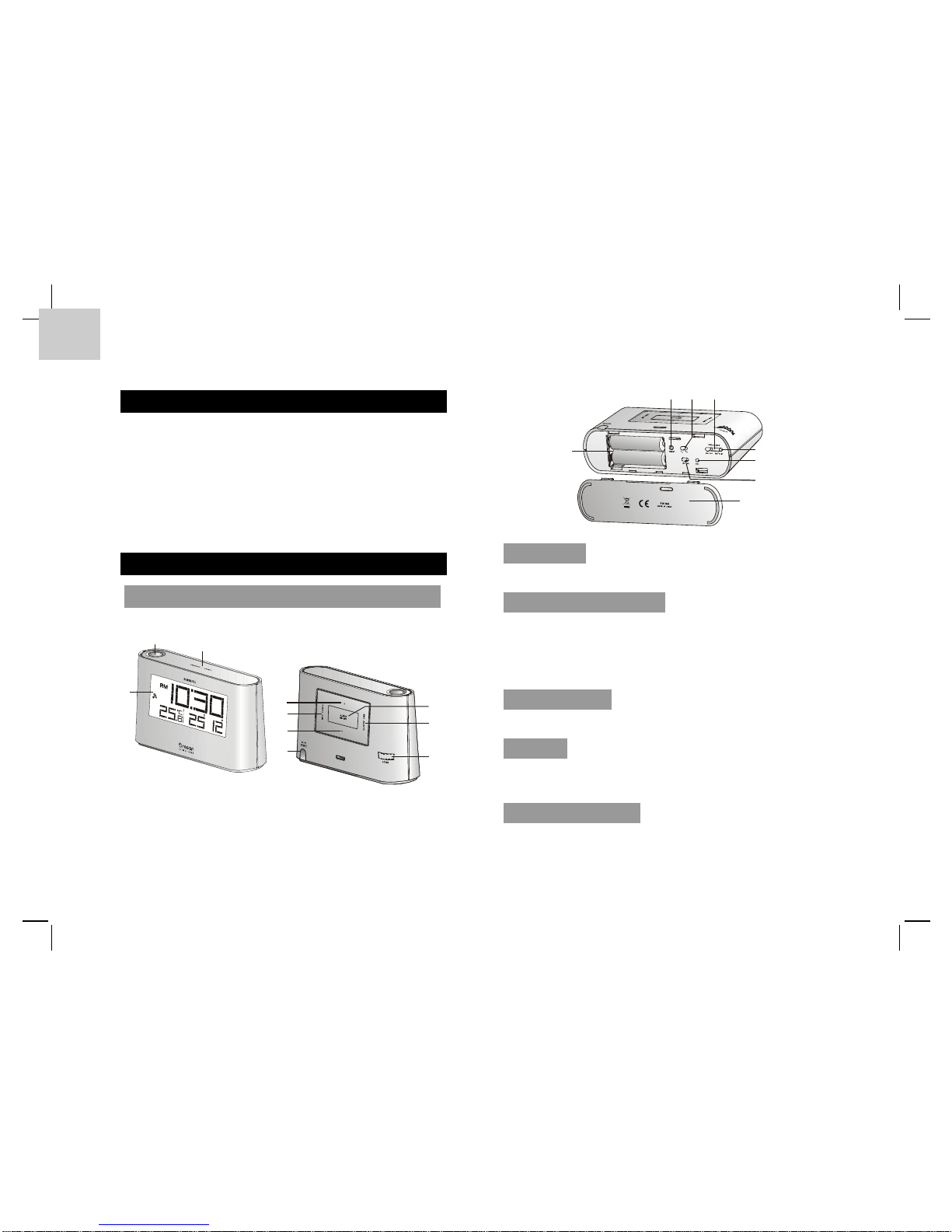

OVERVIEW

RECEIVER

1.Projector:

• Use it to project the time.

2.SNOOZE/LIGHT key:

• In normal time mode, press it once to turn on

the backlight for 5 seconds.

• Press it to silence the current alarm when it is

goingandenterthesnoozemodefor8minutes.

3.LCD display:

• Display time, indoor temperature and date.

4.+ key:

• In time setting mode, press it to increase the

setting values.

5.SET CLOCK key:

• In normal time mode, press it once to enter

the normal time mode.

• In normal time setting mode, press it to step

the setting items. Press and hold it to exit the

setting mode in any step.

6.- key:

• In time setting mode, press it to decrease the

setting values.

7.DC jack:

• Plug DC adaptor to power the clock.

8.ALARM ON/OFF key:

• Press it once to turn on the backlight and

display the alarm time for 5 seconds.

• Press it again to turn on/off the alarm.

9.SET ALARM key:

• Press it once to turn on the backlight for 5

seconds, and at the same time to enter the

alarm time setting mode.

• In alarm time setting mode, press it to step

the setting items.

10.FOCUS turning knob:

• Focus the projected image.

11.BATTERYCOMPARTMENT:

• Accommodates 2 AA size batteries.

12.RESET key:

• Press it to return all values to default values.

• In case of malfunction, the unit may be required

to reset.

13.°C/°F slide switch:

• Slideit toswitchbetweenCelsiusandFahrenheit.

14.PROJECTION ON/OFF slide switch:

• Slide it to turn on/off the projector.

15.180° FLIP key:

• Press it to rotate the projected image by 180°.

16.RCC key:

• In normal time mode, press it once to receive

the RC signal for reception testing.

• During the reception period, press and hold it

for 8 seconds to stop the reception.

17.UK/EU slide switch:

• Slide it to select the country version between

EU (Germany) and UK (England).

18.BATTERY DOOR

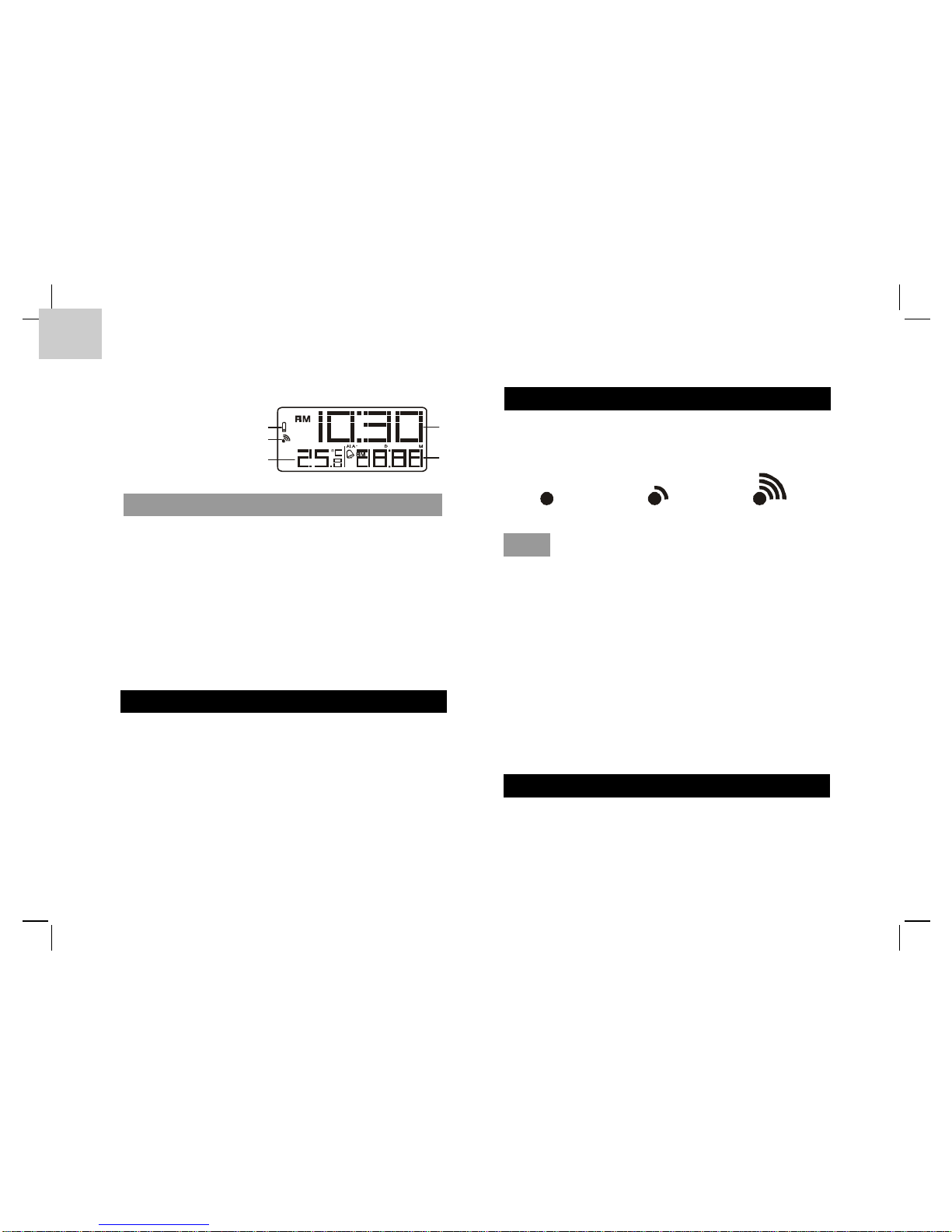

LCD DISPLAY

1. Low battery indicator

2. Signal reception indicator

3. Indoor temperature

4. Time

5. Alarm time & Date

OPERATING THE MAIN UNIT

1. Remove the battery door and slide “UK/EU”

switch to select the desired country version.

2. Insert2newAAsizebatteriesasperthepolarity

information marked on the battery

compartment.

3. Press “RESET” key to restart the clock.

4. Slide “°C/°F” switch to select between Celsius

and Fahrenheit.

5. Replace the battery door.

RECEPTIONOFRADIOCONTROLLEDTIMESIGNAL

The time and calendar are radio-controlled. The

current time and calendar are automatically

synchronized with time signal transmitted from

Germany/England.

When used for the first time (after inserting batteries

or pressing “RESET” key), the clock will start to

receive the time signals and the signal reception

indicator will be flashing for 5 minutes.

SIGNAL RECEPTION INDICATOR

The wave segment flashing means time signals are

being received. The signal quality could be classified

into 3 types:

Note

1. The unit will automatically search for the time

signal at 2:00 (3:00 or 4:00 is also available if

the signal is not received at 2:00), 8:00, 14:00

and 20:00 each day.

2. Always place the unit away from interfering

sources such as TV set, computer, etc.

3. Avoid placing the unit on or next to metal

plates.

4. Closed area such as airport, basement, tower

block or factory is not recommended.

5. Do not start reception in moving articles such

as vehicles or trains.

TIME AND CALENDAR MANUAL SETTING

If you are out of reach of the Radio Controlled

sensor or if the reception is not reachable, the time

No signal Weak signal

Excellent signal

and calendar can be set manually. As soon as the

signal of sensor is received again, the clock will

automatically synchronize with the exact time and

calendar.

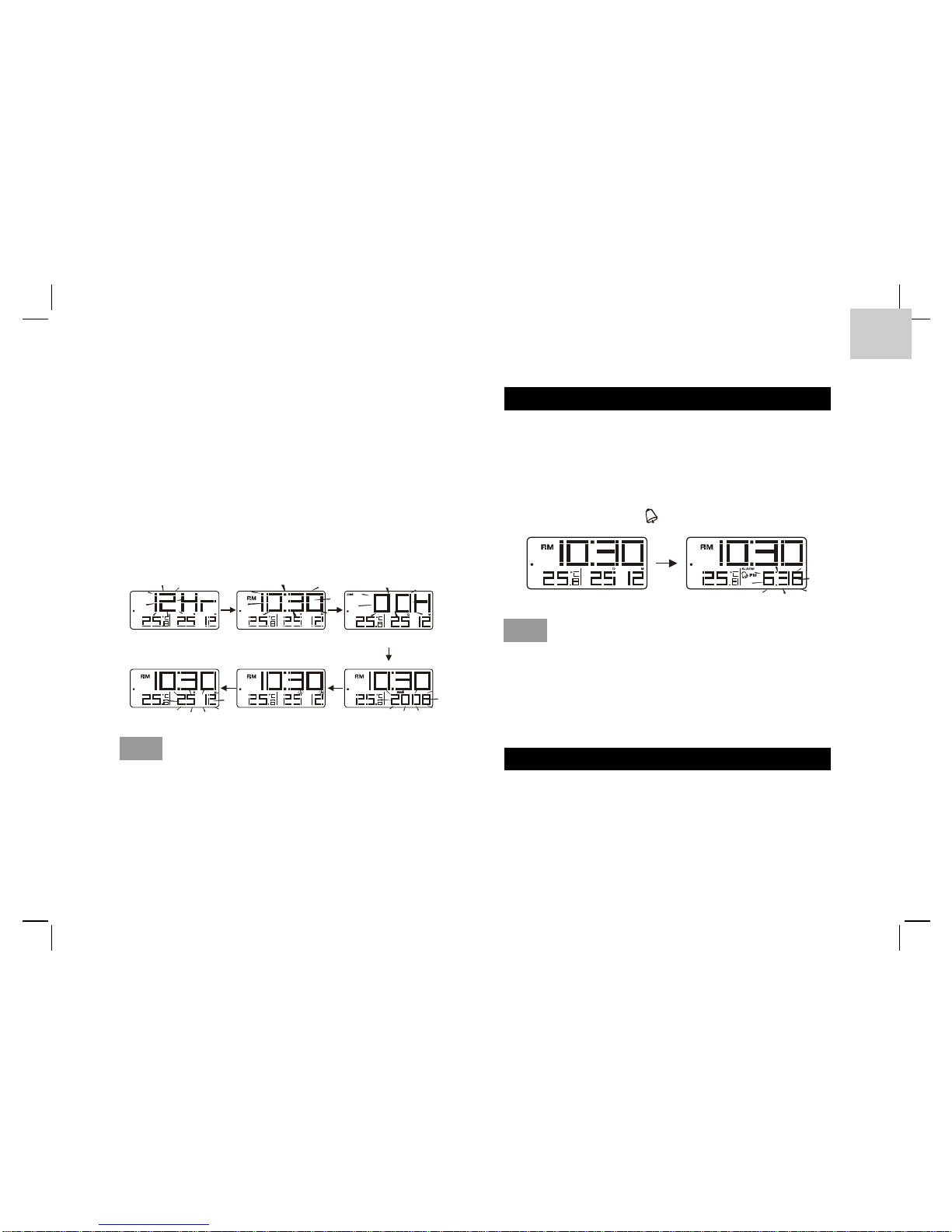

1. In normal time mode, press “SET CLOCK”

key once to enter the time setting mode.

2. Press “+” or “-” key to change the settings.

3. Press “SET CLOCK” to confirm. The setting

order is: 12/24-hr format, time, +/-23 hours

time difference, year, day/month format, date.

4. Press “SET CLOCK” key to save and exit the

setting mode.

Note

1. Duringthe setting period, press and hold “+” or

“-” key to speed up the change of settings.

2. Through “+/-23 hours time difference” setting,

the precise time of another area will be shown.

ALARM TIME SETTING

1. In normal time mode, press “SET ALARM”

key once to enter the alarm time setting

mode.

2. Press “+” or “-” key to set hour/minute.

3. Press “SET ALARM” key to save and exit the

setting mode. “” indicates alarm is ON.

Note

1. Thealarmwillbeautomaticallyturnedonwhen

you set the alarm time.

2. During the alarm time setting period, press

and hold “+” or “-” key to speed up the change

of settings.

USING ALARM FUNCTION

1. Set the alarm time as the above section.

2. Innormaltimemode,press“ALARM ON/OFF”

key once to display the current alarm time.

3. Press it again to turn alarm ON/OFF.

12/24 Hr setting Time setting

Time difference setting

Year settingMD/DM settingMonth-Date setting

Normal time mode

Alarm time setting

TO SILENCE THE ALARM

1. Press “SNOOZE/LIGHT” to silence the alarm

for 8 minutes. The “ ” will be flashing.

2. Press “ALARM ON/OFF” key to turn the alarm

off and activate it again after 24 hours.

3. If no key is pressed within 120 seconds, the

alarm will be turned off and be activated

again after 24 hours.

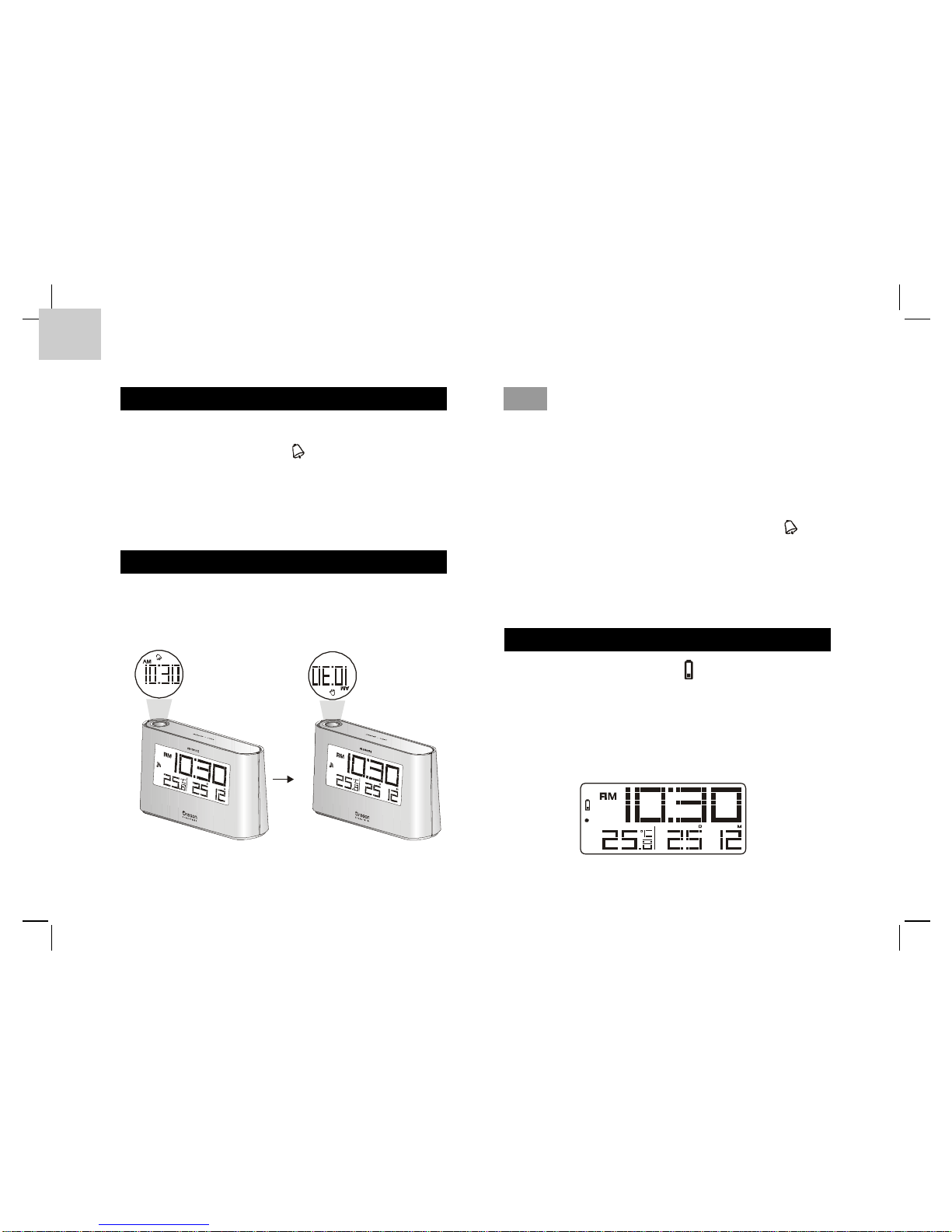

USING THE PROJECTOR

Slide “PROJECTION ON/OFF” to turn on/off the

projector, and project to a dark background within

1-4 meters so that the time will be shown as below:

Note

1. Slide “PROJECTION ON/OFF” to turn on the

projection function.

2. Press “SNOOZE/LIGHT” to turn on the

projector for 5 seconds.

3. When using DC power adapter, the projector

will be turned on all the time.

4. If alarm is turn on, the alarm icon “” will

also be projected.

5. Press “180 FLIP” to rotate the projected image

by 180°.

6. Turn “FOCUS” knob to focus the projected

image.

BATTERY REPLACEMENT

If the low battery indicator “” displays beside the

time, it indicates that battery power of main unit is

not enough and you should replace with 2 new AA

size batteries at once.

Low battery indicator

Note: Attention! Please dispose of the used unit

or batteries in an ecologically safe manner.

PRECAUTIONS

This product is engineered to give you years of

satisfactory service if you handle it carefully. Here

are a few precautions:

•Do not cover the ventilation holes. Make sure

items that are nearby such as newspapers,

tablecloths, curtains etc cannot accidentally

cover the ventilation holes.

•Do not subject the unit to excessive force,

shock, dust, temperature or humidity, which

may result in malfunction, shorter electronic

life span, damaged battery and distorted parts.

•Placement of this product on wood surfaces

with certain types of ûnishes, such as clear

varnish, may result in damage to the ûnish.

Consult the furniture manufacturer’s care

instructions for direction as to the types of

objects that may safely be placed on the

wood surface. Oregon Scientiûc shall not be

responsible for any damage to wood surfaces

from contact with this product.

•Do not immerse the unit in water. If you spill

liquid over it, dry it immediately with a soft,

lint-free cloth.

SPECIFICATIONS

•Do not clean the unit with abrasive or corrosive

materials.

•Do not tamper with the unit’s internal

components. Doing so will invalidate the

warranty on the unit and may cause

unnecessary damage. The unit contains no

user-serviceable parts.

•Only use fresh batteries as speciûed in the

user’s instructions. Do not mix new and old

batteries.

•Due to printing limitations, the displays shown

in this manual may differ from the actual

display.

•The contents of this manual may not be

reproduced without the permission of the

manufacturer.

•Do not dispose this product as unsorted

municipal waste. Collection of such waste

separately for special treatment is necessary.

Note

The technical speciûcations for this product and the

contents of the user manual are subject to change

without notice.

SPECIFICATIONS

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn

more about Oregon Scientific products such as digi-

talcameras;MP3players;children’s electronic learing

products and games; projection clocks; health and

fitness gear; weather stations; and digital and con-

ference phones. The website also includes contact

information for our Customer Care department in

case you need to reach us, as well as frequently

asked questions and customer downloads.

We hope you will find all the information you need

on our website, however if you’re in the US and

would like to contact the Oregon Scientific Customer

Care department directly, please visit:

http://www2.oregonscientific.com/service/default.asp

Call1-800-853-8883.

For international inquiries, please visit:

www2.oregonscientific.com/about/international.asp

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientific, Radio Controlled Projec-

tion Alarn Clock (Model EW96) is in compliance with

the essential requirements and other relevant provi-

sions of Directive 1999/5/EC.

A copy of the signed and dated Declaration of

Conformity is available on request via our Oregon

Scientific Customer Service.

COUNTRIES RTTE APPROVAL COMPLIED

ALL EU countries, Switzerland CH

and Norway N

DESCRIPTION

138 x 42 x 82 mm

(5.43 x 1.65 x 3.23 in)

-5°C to 50°C (23)°F to 122°F

0.1°C (0.2)°F

2 x AA 1.5V batteries

TYPE

MAIN UNIT

L x W x H

Temperature

range

Temperature

resolution

Power

Weight 183g

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) This device must accept any interference

received, including interference that may cause

undesired operation.

WARNING Changes or modificationsnot expressly

approved by the party responsible for complance could

void the user’s authority to operate the equipment.

NOTE This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protectionagainst

harmful interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However,

there is no guarantee that interference will not occur

in a particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try

to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increasetheseparationbetweentheequipment

and receiver.

•Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

•Consult the dealer or an experienced radio /

TV technician for help.

DECLARATION OF CONFORMITY

The following information is not to be used as

contact for support or sales. Please call our

customer service number (listed on our website at

www.oregonscientific.com or on the warranty card

for this product) for all inquiries instead.

Name: Oregon Scientific, Inc.

Address: 19861 SW 95th AVe., Tualatin,

Oregon 97062 USA

Telephone No.: 1-800-853-8883

Declare that the product

Product No.: EW96

Product Name: Radio Controlled Projection

Alarm

Manufacturer: IPM Concepts Limited

Autres manuels pour EW96

Table des matières

Langues :

Autres manuels Oregon Scientific Réveil

Oregon Scientific

Oregon Scientific EW98 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM313PNA Manuel utilisateur

Oregon Scientific

Oregon Scientific RM926 Manuel utilisateur

Oregon Scientific

Oregon Scientific AS-688NE Manuel utilisateur

Oregon Scientific

Oregon Scientific RM313PNA Manuel utilisateur

Oregon Scientific

Oregon Scientific AS-316NE Manuel utilisateur

Oregon Scientific

Oregon Scientific RM106A Manuel utilisateur

Oregon Scientific

Oregon Scientific RM938 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM913TCN Manuel utilisateur

Oregon Scientific

Oregon Scientific RESONANCE CIR600 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM313PNA Manuel utilisateur

Oregon Scientific

Oregon Scientific EW98 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM818P Manuel utilisateur

Oregon Scientific

Oregon Scientific World Time Alarm Clock with USB Hub RAS200 Manuel utilisateur

Oregon Scientific

Oregon Scientific RMB383A Manuel utilisateur

Oregon Scientific

Oregon Scientific RRM116 Manuel utilisateur

Oregon Scientific

Oregon Scientific EW98 Manuel utilisateur

Oregon Scientific

Oregon Scientific VR101 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM932A Manuel utilisateur

Oregon Scientific

Oregon Scientific RA308PH Manuel utilisateur

Oregon Scientific

Oregon Scientific WS902 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM510 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM106A Manuel utilisateur

Oregon Scientific

Oregon Scientific RMB383 Manuel utilisateur

Manuels Réveil populaires d'autres marques

Steren

Steren CLK-210 Manuel utilisateur

COP-USA

COP-USA ALCDVR32-SL Manuel utilisateur

Philips

Philips HF3505/70 Manuel technique

Casio

Casio PQ-70 Manuel utilisateur

iHome

iHome IA63 Manuel utilisateur

Coopers

Coopers 9765 Manuel utilisateur

ANJANK

ANJANK AC-190 Mode d’emploi

TFA

TFA 98.1075 Manuel utilisateur

Sharper Image

Sharper Image 204050 Manuel utilisateur

Lumie

Lumie Zest Manuel utilisateur

Dexford

Dexford RCT200 Manuel utilisateur

Philips

Philips AJL303/37B Manuel utilisateur

RST

RST Q754 Manuel utilisateur

iHome

iHome iKT50 Manuel utilisateur

Sony

Sony dash HID-B7 Manuel utilisateur

SVINZ

SVINZ SCC009 Manuel utilisateur

Clas Ohlson

Clas Ohlson 918863 Manuel utilisateur

IKEA

IKEA FNURRA Manuel utilisateur
