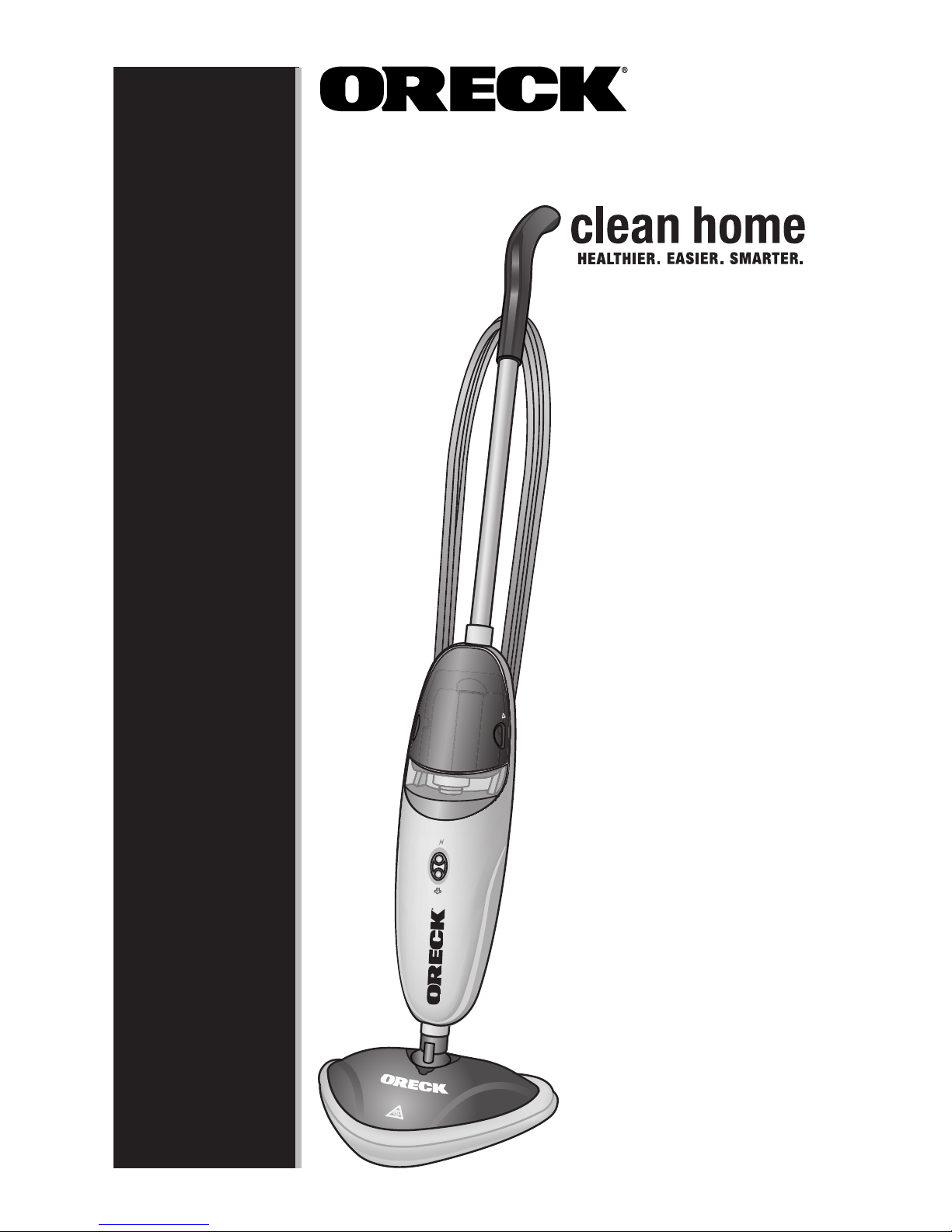

Oreck STEAM 75 Manuel utilisateur
Steam 75
®
®
Important!
Read this manual carefully,
and keep for future reference.
User’s
Guide
2
*The Steam 75 is practical for any surface with the exception of those surfaces that
are extremely heat sensitive. We recommend NOT using it on ne silks, delicate
materials such as velour, some very thin plastics, unsealed hardwood, ceilings, drywall,
and exterior paint of automobiles, electronics or items using electricty. If ever in doubt,
test a small area before beginning extensive cleaning.
Other Oreck accessories available at:
Other Oreck accessories available at:
Other Oreck accessories available at:
Thank You for purchasing one of our top-of-the-line Oreck®
Steam 75 Steam Cleaners. This powerful, environmentally
friendly cleaner will help you clean both hard oors and refresh
carpets*.
At Oreck, we understand that our customers are unique
and expect superior service. To meet your needs, we offer
different customer service options to accommodate your
lifestyle and preference.
Welcome to our Call. Click. Visit. customer service
program. To speak with an Oreck representative call, click or
visit using the information below.
Enjoy
Click
Call
Visit
USA: 1•800•989•3535
Canada: 1•888•676•7325
On the web, point and click at: www.oreck.com
and click locate a store on the top right.
Visit us in person at one of over 450 store
locations. To nd the nearest store, please call
888•oreck (1•888•673•2578).
3
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
GeneralWarnings..........................4
Grounded Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Parts......................................7
Product Components & Accessories . . . . . . . . . . . . .7
Features....................................9
Assembly..................................10
Use ......................................11
Before you begin Cleaning . . . . . . . . . . . . . . . . . . . 11
Attaching the Microfiber Cleaning Pad
andCarpetGlider .........................12
Cleaning Hard Floors and Refreshing Carpets . . . . .13
Clean-up after Use . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Empty the Water Tank . . . . . . . . . . . . . . . . . . . . . . 15
Remove the Microfiber Cleaning Pad . . . . . . . . . . . 16
Cleaning the Microfiber Cleaning Pad . . . . . . . . . . . 16
Maintenance................................17
Replacing the Hard Water Filter . . . . . . . . . . . . . . . 17
Troubleshooting .............................18
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4
Safety
IMPORTANT
SAFETY INSTRUCTIONS
!
General Warnings
Read all instructions before using this steam cleaner
WARNING! To reduce the risk of re, electric shock, or injury
when using an electrical appliance, basic precautions should
always be followed, including the following:
• Do not leave appliance unattended when plugged in.
Unplug from outlet when not in use and before servicing.
• To prevent shock, do not use outdoors. The steam cleaner is
intended for household use only.
• Do not let the unit run while in any one stationary position
for any period of time. Keep the unit moving while in
operation.
• Do not allow to be used as a toy. Close attention is
necessary when used near children.
• Use only as described in this manual. Use only manufac-
turer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not
working as it should, has been dropped, damaged, left out-
doors, or dropped into water, return it to a service center or
call customer service at: US: 1-800-989-3535
Canada: 1-888-676-7325
• Do not pull or carry by the power cord, use cord as a handle,
close a door on the power cord, or pull the power cord
around sharp edges or corners.
• Keep the power cord away from heated surfaces.
• Do not run the steam cleaner over the power cord.
• Do not unplug by pulling on the power cord. To unplug,
grasp the plug, not the power cord.
• Do not use an extension cord.
• Do not handle plug or appliance with wet hands.
• Turn off all controls before unplugging. Always remove the
power cord from the outlet and handle the steam cleaner
with care when lling the water tank with water.
• Do not over ll the water tank. Do not exceed the maximum
ll level. Use the measuring jug to measure the correct
amount of water.
5
• Do not use without the water tank cap in place. Check that
the water tank cap is completely screwed down before use.
• Do not operate without water in the water tank.
• Do not ll the water tank with anything other than water or
Oreck Fresh Air®Steam Mop Essence. Never put additives
(such as perfume, stain remover, or products containing
alcohol) in the water as they may damage the steam cleaner
or make it dangerous to use.
• Empty the water tank when the steam cleaner is not in use.
• Do not touch any hot areas on the steam cleaner. It is normal
for the steam cleaner to heat up during operation.
• The force and heat of the steam may have an adverse effect
on some materials. Always test the steamer on a small
concealed area to determine if it is suitable for treatment.
• Accessories become hot during use. Allow them to cool
down before handling them.
• Never point or aim the steam cleaner at people, animals or
plants (risk of scalding!). Do not aim the steam cleaner at
electrical systems or wires.
• Connecting the steam cleaner to improper voltage may
result in damage to the steam cleaner and possible injury.
Always plug the steam cleaner into a power outlet with the
correct voltage. See the rating label on the unit for the cor-
rect voltage.
6
Grounded Plug
This appliance must be grounded. If it should malfunction or
break down, grounding provides a safe path of least resistance
for electrical current, reducing the risk of electrical shock. The
cord for this appliance has an equipment-grounding conductor
and a grounding plug. It must only be plugged into an electri-
cal outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER: Improper connection of the equipment-grounding
conductor can result in a risk of electrical shock. Check with
a qualied electrician or service person if you are in doubt as
to whether the outlet is grounded. If not, have a proper outlet
installed by a qualied electrician.
This appliance is for use on nominal 120-volt circuit. It has a
grounding plug similar to the example shown. Make sure the
appliance is connected to an outlet with the same conguration
as the plug. No adapter should be used with this appliance.
SAVE THESE INSTRUCTIONS
For household use only
Grounded Prong
7
Parts
Product Components & Accessories
Front View
1. Handle
2. Power cord
3. Water tank
4. Hard water lter
5. Steam tank/power indicator
6. Swivel oor head
7. Bonnet
1
2
3
4
5
6
7
8
9
7
Back View
7. Steam trigger
8. Upper cord clip
9. Lower cord clip
Accessories
10. Microber cleaning pad
11. Carpet glider
12. Measuring cup
250ml
MAX
8
12
10
11
9
Features
1. Hard Water Filter
The Hard Water Filter protects
internal hoses and the Swivel Floor
Head from mineral build-up due to
harmful hard water.
2. Swivel Floor Head
The Swivel Floor Head provides
exibility and ease of movement
when using the steam cleaner.
3. Microfiber Cleaning Pad
The Microber Cleaning Pad is used
to clean hard surfaces.
4. Carpet Glider
The Carpet Glider, used with the
Microber Cleaning Pad, lets you
refresh your carpets.
1
2
4
3
10
Assembly
1. Insert the handle into the body.
Line up the holes in both the
body and handle.
2. Insert the large screw and fasten.
3. Insert the body into the oor
head. Line up the holes.
4. Insert the small screw and fasten.
WARNING!
!
Do not plug the steam cleaner into an electrical outlet
during assembly.
1
2
3
4
