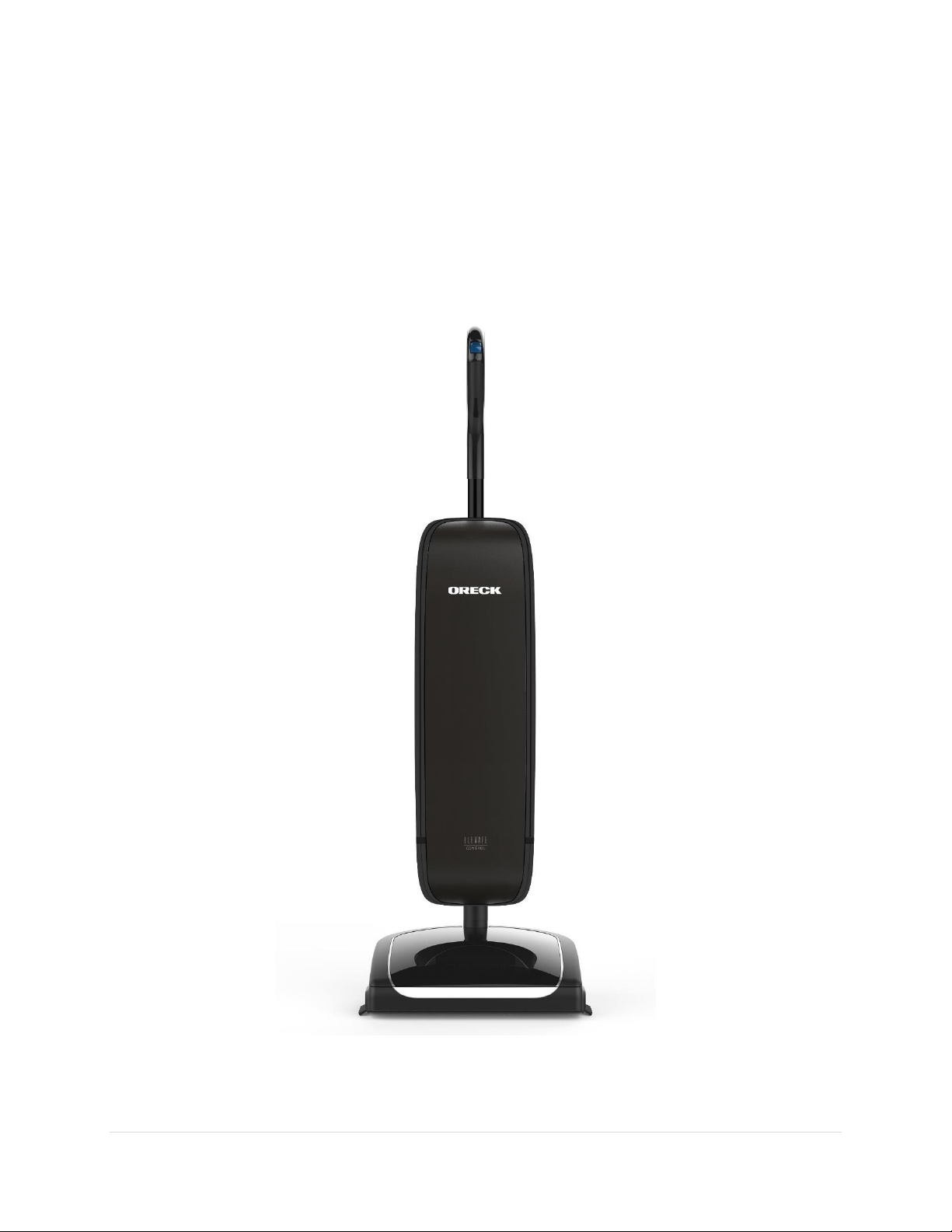

Service Instructions

Oreck® ELEVATE Control™:

UK30100PC, UK30100, UK30100COM

Technical Service –April 2016

2 | P a g e

Table of contents

Base Assembly - Section 1 –Page 4

Belt / Brushroll - Section 2 –Page 4

Motor / PCB - Section 3 –Page 4 / 5

Motor Assembly / Intake Pivot Assembly / Fan Housing - Section 4 –Page 5 / 6

Handle Detent - Section 5 –Page 6

LED PCB - Section 6 –Page 6

Power PCB - Section 7 –Page 6 / 7

Cord Assembly / Power Cord - Section 8 –Page 7

Bag Assembly - Section 9 –Page 8

Carry Handle - Section 10 –Page 8

Wiring Diagram - Section 11 –Page 9

Electrical Troubleshooting - Section 12 –Page 10 / 11

3 | P a g e

Exploded View

4 | P a g e

1. Base Assembly

a. Remove 7 screws and lift base assembly off

of unit. This requires a T20 torx driver.

b. The base is stocked as an assembly which

includes the components shown below.

Once the base assembly is removed the

internal components can be accessed.

2. Belt / Brushroll

a. Remove edge brush holder to access belt –

2 screws.

Remove belt by sliding it off of the motor

shaft and brushroll pulley.

Brushroll

a. Remove base assembly –section 1.

b. Slide Brushroll out of baseplate.

Upon reassembly position brushroll with

thread guard with no notches upward for

worn brushroll and notches upward for new

brushroll. Both sides must be the same.

5 | P a g e

3. Motor PCB

a. Motor PCB is held in position by two

screws. Terminals connections are noted.

4. Motor Assembly / Intake Pivot Assembly /

Fan Housing

a. Remove base assembly –section 1.

b. Separate lower handle from fan housing

assembly –Rotate lower spine connector

CCW to remove.

c. Remove three screws that secure motor

and intake pivot assembly.

d. Lift motor / fan housing assembly out of

position.

e. Disconnect motor lead wires –2 wire

connectors.

f. To separate motor and fan chamber

assembly locate and remove fan nut by

securing the armature shaft and turning the

nut clockwise –LH Thread.

g. Slide fan housing off of motor.

NOTE: Fan housing removal tool (part number

75377-01) and the upright collar tool (part

number COLLARTOOL) are available to order

–however these tools are not required to

complete the disassembly.

h. Remove fan by removing fan seal –press

fit.

Note –felt seal and spacer must be in

position on motor at reassembly.

6 | P a g e

Intake Pivot Assembly

a. Intake pivot assembly stocked with felt

inlet seal. Both seals are available separately.

5. Handle Detent

Located under the Motor / Fan Chamber

Assembly.

a. Remove base assembly –section 1.

b. Remove motor / fan chamber assembly.

c. Remove handle detent –2 screws.

6. LED PCB

a. Remove base assembly –section 1.

b. Disconnect LED PCB connection at main

PCB.

c. Remove two screws located in brushroll

cavity –one in each front corner.

d. Turn unit over and lift upward on fascia to

remove.

e. Remove headlight lens –lift up slightly on

cosmetic strip to allow clearance and remove

headlight lens.

f. Remove LED PCB.

7. Power PCB

a. Remove five screws shown in upper handle

–one holding the cord clip.

7 | P a g e

b. Remove cord clip to access sixth screw and

remove.

c. Lift off handle cover.

d. Remove switch button –snap fit.

e. Disconnect yellow and red lead at terminal

connections in top of handle and slightly

spread handle seat to remove Power PBC.

8. Cord Assembly / Power Cord

a. Remove handle cover –section 7.

b. Locate and remove cord assembly lead

wires at applicable terminals - black at top of

handle and white at midpoint of handle.

c. Feed cord strain relief out of handle to

remove Cord Assembly.

Power Cord

a. Remove lead wires at white and black to

yellow terminals and feed power cord out of

handle.

b. Remove base assembly –section 1.

c. Disconnect power cord connector at PCB.

d. Remove strain relief from main body and

feed power cord out of position.

8 | P a g e

9. Bag Assembly

a. Pull bag cardboard collar down to release

plastic bag dock from connector. Remove

paper bag.

Note: A boss was added to the rear bag dock

to prevent usage of unauthorized bags. A

notch was added to the bag assembly to

allow the bag to be locked into position.

b. Separate bag dock and bag dock rear by

pressing inward on bag dock rear to unhinge.

c. Carefully spread forks on bag dock rear and

work bag dock rear upward and off of bag

duct.

d. Slide bag assembly off unit.

10. Carry Handle

a. Remove screw in carry handle retainer.

b. Spread handle retainer apart and slide it off

of the connector assembly.

c. Remove carry handle –trapped in position

by the handle retainer.

9 | P a g e

11. Wiring Diagram

10 | P a g e

12. Electrical troubleshooting

A. Motor will not run when switch is in the on position.

1. Disconnect the power cord connector from the circuit board.

2. Check for continuity between the wide blade of the attachment cord and the white connection

terminal on the circuit board. This will show continuity regardless of the switch position.

3. Check for continuity between the narrow blade on the attachment cord and the black

connection terminal on the circuit board. This will show continuity when the switch is in the on

position and no continuity when the switch is in the off position.

If continuity exists, go to step 4.

If 1 or 2 above show no continuity it indicates a failure of the power cord, the power line cord, or

power PCB.

a. Check power line cord by checking for continuity between the white connection terminal on the

circuit board and the white lead at the terminal connection in the handle. Check for continuity

between the black connection terminal and the black lead wire that connects to the red lead from

the switch. If continuity exists go to step 4. If not, replace the power line cord.
