Oreck Edge Manuel utilisateur

User’s

Guide

Edge

™

Handheld Vac

Important!

Read this manual carefully, and keep for future reference.

Other Oreck accessories available at:

Thank You for purchasing an Oreck Edge

™

Handheld Vac! This

state-of-the art vacuum cleaner will help give you a healthier

clean home.

At Oreck we understand that our customers are unique and

expect superior service. To meet your needs, we offer

different customer service options to work with your lifestyle

and preferences.

Welcome to our Call. Click. Visit. customer service program.

Enjoy

Click

Call

Visit

To speak with an Oreck representative call:

USA: 1•800•989•3535

Canada: 1•888•676•7325

On the web, point and click at: www.oreck.com

or visit www.oreck.com and click locate a store on

the top right.

Visit any of our nearly 450 Oreck Clean Home

Centers. To ﬁnd the nearest store, please call

888•oreck (1•888•673•2578).

Contents

General Warnings ....................................4

Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Operation ..................................... 4

Parts ..............................................6

ProductComponents ............................ 6

Assembly ......................................... 7

Use .............................................. 7

Using the Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Accessory Tools .....................................7

Maintenance ....................................... 8

Removing and Replacing the Disposable

FilterDustBag................................. 8

Removing and Replacing HEPA Filter . . . . . . . . . . . . . . 9

Cord Management for Storing Unit. . . . . . . . . . . . . . . . .10

Troubleshooting ....................................10

Accessories .......................................10

Warranty ..........................................11

Safety

IMPORTANT SAFETY

INSTRUCTIONS

General Warnings

When using an electrical appliance, basic precautions should

always be followed, including the following:

Read all instructions before using this vacuum cleaner

WARNING! To reduce the risk of ﬁre, electric shock, or injury:

• The vacuum is intended for household use only.

• Use the vacuum only as described in this manual.

• Use only manufacturer’s recommended attachments.

Environment

Use of the vacuum outdoors or on wet surfaces may result in

damage to the appliance and void the warranty. Do not use

outdoors or on wet surfaces.

Use of the vacuum on stairs may cause imbalance, slippage or

tumbling. Always check your balance and ensure your footing

when cleaning on stairs.

Use of the vacuum in an enclosed space containing ﬂammable,

explosive materials or toxic vapors may result in an unexpect-

ed spark or ﬁre. Do not use the vacuum in such an enclosed

space. Always check exposed wiring and wire connections

before use.

Operation

This appliance has powerful suction capability. Do not allow

it to be used as a toy and always maintain close attention when

used by or near children.

Loose clothing, jewelry and long hair may become entangled

in the suction of the vacuum and cause personal injury.

Always keep loose clothing, jewelry, ﬁngers and all parts of

body away from openings.

Use of the vacuum with an opening blocked may reduce air-

ﬂow. Keep all openings free of dust, lint, hair etc. Ensure the

ﬁlter bag assembly is in place before use.

Improper handling of the power cord may result in wiring,

connection damage and potential sparking or shock. Always

follow these instructions when handling the power cord:

• Do not pull or carry the vacuum by the cord

• Do not use the cord as a handle

• Do not unplug the vacuum by pulling on the cord

• Do not close a door on the cord

• Do not pull the cord around sharp edges or corners

• Keep the cord away from heated surfaces

• Do not run the vacuum or other appliance over

the cord

• Always grasp the plug, not the cord, when unplugging

the vacuum

A damaged cord or plug may cause a spark, shock and ﬁre.

Always check the cord and plug before use. If appliance is

not working as it should, has been dropped, damaged, left

outdoors, or dropped into water, return it to a service center

or call customer service at: U.S.: 1-800-989-3535 Canada:

1-888-676-7325.

Using the vacuum with wet hands and on wet surfaces may

result in unexpected shock, slippage and personal injury.

Do not handle the plug or appliance with wet hands or on

wet surfaces.

Vacuuming burning or smoking objects, ﬂammable or com-

bustible liquids and toxic material may result in a ﬁre and

personal injury. Do not vacuum burning or smoking objects,

ﬂammable or combustible liquids.

Unplugging the vacuum while the controls are ON may cause

sparking and ﬁre. Turn OFF all controls before unplugging.

Do not leave appliance unattended when plugged in. Unplug

from outlet when not in use and before servicing.

Polarized Plug Notice

This product is equipped with a polarized alternating current

line plug (a plug having one blade wider than the other). This

plug will ﬁt into the power outlet only one way. This is a safety

feature. If you are unable to insert the plug fully into the outlet,

try reversing the plug. If the plug should still fail to ﬁt, contact

an electrician to replace the obsolete outlet. Do not defeat the

purpose of the polarized plug.

SAVE THESE

INSTRUCTIONS

Residential Use Only

1. Suction hose for vacuum

attachments

2. Hose intake

3. Extension wand

Dust container release clamps

5. Dust container and bag

location

6. On/off switch

7. Variable speed switch

8. Cord strap

9. Carry handle

10. Crevice tool

11. Dusting brush

12. Shoulder strap

13. Tool caddy

14. HEPA ﬁlter

15. Power Cord

16. Disposable inner dust bag

17. Bag dock (black)

18. HEPA door release

19. Lock collar

20. Shoulder strap & tool

caddy attachment loops

21. Bare ﬂoor & wall tool

Side and Front View

Product Components

Parts

20 20

The only assembly necessary before using the vacuum is to

ﬁrmly insert the end of the non-powered suction hose into the

canister intake until it locks into place.

To disconnect hose, rotate locking collar on side of canister.

Then pull hose to remove. Rotate lock collar to lock hose in

place–align tabs on collar and hose.

Using the Accessories

In the table below, you will ﬁnd examples of the uses of the ac-

cessory tools

2. A shoulder strap is included for carrying portability and

ease of use. To install: attach clips on shoulder strap to

attachment loops on the unit.

3. An accessory tool caddy is included for easy access

during cleaning. To install: attach clips on shoulder strap

to attachment loops on the unit.

Use

Assembly

Accessory Tools

Uses Crevice Tool Grooming Brush Extension Wand Dusting Brush

Upholstery T T

Baseboards T T T

Floors T

Drapes T T

Cobwebs T

Stairs T T

Ceiling Fans T T

Bookshelves T T

Recessed Lighting T T

Mantels T T

Blinds T T

Crevices/Corners T T

Removing and Replacing the Disposable Filter

Dust Bag

To remove disposable filter dust bag:

Unlatch clamps and remove top half of unit.

Rotate bag dock (black frame) up.

Gently pull the ﬁlter dust bag by sliding the cardboard bag

stiffener out of the bag dock.

The Saniseal®dust seal will close automatically. Dispose

of bag.

Performing maintenance on the vacuum while

it is plugged into a wall outlet may result in

unexpected vacuum operation, shock and

personal injury. Always turn the vacuum OFF

and unplug before performing inspection and

maintenance.

Maintenance

WARNING!

Removing and Replacing HEPA Filter

To replace disposable filter dust bag:

Guide cardboard collar into the two channels in bag dock.

Slide cardboard collar fully into bag dock and rotate bag

dock (black frame) down.

Align round tube in upper body with hole in inner bag

and re-latch side clamps to close.

Press HEPA door release button and gently pull access

panel down

Rotate HEPA ﬁlter clamp up.

Slide HEPA ﬁlter out.

Reverse order to replace ﬁlter.

Tube

Cord Management for Storing Unit

Bundle cord and slide strap around cord and secure.1.

1. 2.

Trouble-

shooting

Accessories

Part Number

Replacement Disposable Filter Bags,

12 pack PKCC12DW

Replacement HEPA Filter 49003-01

If the following troubleshooting tips do not resolve the problem

please contact Oreck Customer Service.

U.S.: 1-800-989-3535 Canada: 1-888-676-7325

Important! Always unplug and allow the vacuum to cool down

before conducting any troubleshooting. See safety warnings.

Problems Possible Source Areas to Check

Cleaner will

not run

Not plugged in

properly.

No electricity in

wall outlet.

Needs service.

Be sure cleaner is

ﬁrmly plugged into

wall outlet.

Check electrical

source - fuse or circuit

breaker.

Take to service center

or call for nearest

service center.

Vacuum will

not pick up

or has low

suction

Hose/wand tool is

clogged.

Bag is full.

Remove obstructions.

Replace Bag.

Tools/Wands

will not stay

together

Proper friction

ﬁt not being

obtained.

Push and turn.

Autres manuels pour Edge

Table des matières

Langues :

Autres manuels Oreck Aspirateur

Oreck

Oreck U3980H2 Manuel utilisateur

Oreck

Oreck DTX1400 Manuel utilisateur

Oreck

Oreck ELEVATE CONTROL UK30100 Manuel utilisateur

Oreck

Oreck 2310RS Manuel utilisateur

Oreck

Oreck BK95519 Manuel utilisateur

Oreck

Oreck STEAM 75 Manuel utilisateur

Oreck

Oreck OR101 Manuel utilisateur

Oreck

Oreck HALO Manuel utilisateur

Oreck

Oreck XL2310 Manuel utilisateur

Oreck

Oreck Rinse-A-Matic Steemer Ultra M800 Series Manuel utilisateur

Oreck

Oreck MODEL AV-701B Manuel utilisateur

Oreck

Oreck U3700HH Manuel utilisateur

Oreck

Oreck Grab It & Steam It Manuel utilisateur

Oreck

Oreck SurfaceScrub FK40100 Series Manuel utilisateur

Oreck

Oreck XLPRO6 Manuel utilisateur

Oreck

Oreck XL U2000RB2L-1 Manuel utilisateur

Oreck

Oreck TaskVac CK93010 Manuel utilisateur

Oreck

Oreck David Oreck Founder Series Manuel utilisateur

Oreck

Oreck XL2400RS Manuel utilisateur

Oreck

Oreck XL BB870-AW Manuel utilisateur

Oreck

Oreck Simply Amazing U4070H2 Manuel utilisateur

Oreck

Oreck XL3605HH Manuel utilisateur

Oreck

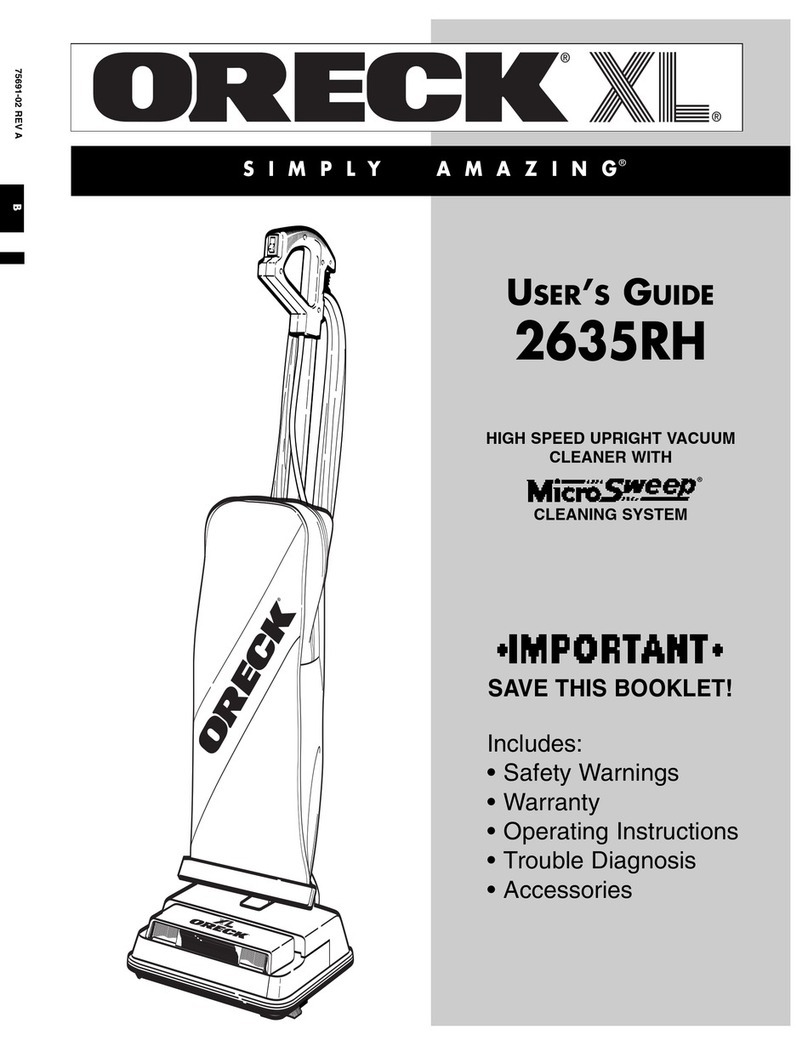

Oreck 2635RH Manuel utilisateur

Oreck

Oreck XL2250RS Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur

Nobles

Nobles 608669 Manuel du produit
