Oracle Netra X5-2 Manuel utilisateur

This guide describes how to install, power on, and configure the server for the first time. For detailed installation

information, refer to the Oracle Server X5-2 Installation Guide.

Installation Options

■If you are deploying multiple servers, use Oracle Enterprise Manager Ops Center. Refer to the Oracle

Enterprise Manager Ops Center product documentation at:

http://docs.oracle.com/cd/E40871_01/index.htm

■If you are deploying a single server, use Oracle System Assistant. For information about Oracle System

Assistant, refer to this guide and to the Oracle X5 Series Servers Administration Guide at:

http://www.oracle.com/goto/x86AdminDiag/docs

Before You Begin — Review the Documentation

Before performing the procedures in this guide, review the following documents at the Oracle documentation

web site: http://www.oracle.com/goto/X5-2/docs

■Oracle Server X5-2 Safety and Compliance Guide – For safety and regulatory compliance information

■Oracle Server X5-2 Product Notes – For late-breaking issues that affect installation requirements

■Oracle Server X5-2 Installation Guide – For detailed installation information and procedures

■Oracle Server X5-2 operating system installation guides – For installation and configuration information for

Oracle Solaris, Oracle VM Server, Linux, Windows, and VMware ESXi

■Oracle Server X5-2 Service Manual – For instructions on how to remove and install server components, and

how to troubleshoot server operation

■Oracle X5 Series Servers Administration Guide – For software methods to set up the server using Oracle System

Assistant, Oracle ILOM, and Oracle Hardware Management Pack

■Oracle ILOM Documentation Collection – For descriptions of Oracle ILOM features, and how to perform

server configuration, monitoring, and administration tasks using Oracle ILOM

For additional safety information, refer to the Important Safety Information for Oracle Hardware Systems, which is

shipped with the server.

Oracle Server X5-2

Getting Started Guide

▼1. Install Optional Components

Optional components for your server might be packaged and shipped separately. If applicable, install optional

components (such as DIMMs or storage drives) before mounting the server in a rack.

1. For installation procedures for optional components, refer to the Oracle Server X5-2 Service Manual.

2. For a complete list of optional components, go to:

https://support.oracle.com/handbook_private/Systems/index.html

▼2. Mount the Server Into a Rack

For rackmounting instructions, refer to the documents included with the rail kit, the service label on the server,

and the Oracle Server X5-2 Installation Guide.

▼3. Connect the Cables and Power Cords

You can set up the server for the first time by establishing a direct connection to the host, or by establishing a

connection to the service processor (SP) through Oracle Integrated Lights Out Manager (ILOM). The following

procedure describes how to cable your server for first-time setup.

Caution – Do not apply power to the server until instructed to do so. To properly configure the

system, cable the server as described in this section before applying power to the server.

To locate the server cable connections, see “Cabling Diagram” on page 3.

1. (Recommended) To cable the server for a direct connection to the host, do the following:

a. Connect a VGA monitor to the VGA port on the server.

b. Connect a USB keyboard and mouse to the USB connectors on the server.

2. To cable the server for a connection to the service processor (SP), do the following:

a. For a local serial connection to the SP –Connect a serial cable between the server’s serial management

port (SER MGT) and a terminal device.

This connection provides initial communication with the SP. Configure the terminal device with the

following settings: 9600 baud, 8 data bits, 1 stop bit, and no parity.

For DTE-to-DTE communication, use the supplied RJ-45 crossover adapter and a standard RJ-45 cable to

set up a null modem connection. With a null modem connection, the transmit and receive signals are

crossed over.

b. For a remote Ethernet connection to the SP –Connect an Ethernet cable between the server’s network

management port (NET MGT) and the network.

DHCP and IPv6 stateless auto-configuration are enabled by default, allowing a DHCP server or IPv6

router on the network to automatically assign network settings to the SP.

3. For network access, connect an Ethernet cable between the server’s NET ports (NET3-0) and the network

to which the server will communicate.

Note – Ethernet ports NET2 and NET3 are non-functional in single-processor systems.

4. Connect the power cords to the power supplies and to separate power sources.

The server can operate with one power source; however, having only one power source eliminates

redundancy.

When the power cords are connected, the green power supply LEDs light and the green SP OK LED blinks

rapidly as the SP boots. Once the SP has booted, the SP OK LED is steady on and the green Power/OK LED

blinks slowly, indicating that the host is in standby power mode. In standby power mode, the server is not

yet initialized or powered on.

Cabling Diagram

FIGURE 1 Cabling for the Oracle Server X5-2

Figure Legend

1Power supply 0 input power

Power supply 1 input power

5USB port (USB 0)

2Network management port (NET MGT) 6USB port (USB 1)

3Serial management port (SER MGT) 7Video port (VGA)

4Ethernet ports (NET3, NET2, NET1, NET0)

▼4. Power On the Server and Launch Oracle System Assistant

Oracle System Assistant enables you to update the server to the latest available firmware and software,

configure key server settings, and install an Oracle Solaris, Oracle VM Server, Linux, or Windows operating

system. Oracle System Assistant is embedded in most Oracle Server X5-2 systems.

The following procedure describes how to power on the server, and then launch Oracle System Assistant if you

have established a direct connection to the host. If you prefer to launch Oracle System Assistant from the Oracle

ILOM web interface, refer to the Oracle X5 Series Servers Administration Guide for instructions.

1. Verify that the server is correctly installed in the rack.

2. Verify that the server has been cabled for a direct connection to the host; see “3. Connect the Cables and

Power Cords” on page 2.

3. Verify that the server is in standby power mode; see “3. Connect the Cables and Power Cords” on page 2.

4. Press and quickly release the Power button on the front panel of the server.

The server boots, and power-on self-test (POST) and boot messages appear on the monitor.

Be attentive. You need to interrupt the boot process.

5. When prompted in the boot screen, press the F9 function key to launch Oracle System Assistant.

The Oracle System Assistant application boots and the System Overview screen appears, showing system

information, and task buttons in the left pane.

6. To set up the server’s network connection, click Configure Network.

7. To download the latest server firmware and software, click Get Updates.

8. To update the Oracle ILOM, BIOS, disk expander, or host bus adapter (HBA) firmware on the server, click

Update Firmware.

9. To configure Oracle ILOM, click Configure Hardware →Service Processor Configuration.

10. To configure RAID, click Configure Hardware →RAID Configuration.

11. To install an Oracle Solaris, Oracle VM Server, Linux, or Windows operating system, and also download

and install system drivers, click Install OS.

For information on other supported OS installation options, see “5. Set Up an Operating System and

Drivers” on page 5.

▼5. Set Up an Operating System and Drivers

Use the options in the following table to set up a supported operating system (OS) and required drivers.

If you do not have access to Oracle System Assistant to install drivers, you can download the latest Oracle

Server X5-2 software release from the My Oracle Support web site at:

http://support.oracle.com

Technical Support

For technical support, go to the My Oracle Support web site at:

http://support.oracle.com

Note that the server serial number, which you will need when requesting technical support or service, is on the

front panel of the server and on the Customer Information Sheet that is shipped with the system. You can also

view the serial number using Oracle System Assistant or Oracle ILOM.

Feedback

You can provide feedback about this document at:

http://www.oracle.com/goto/docfeedback

OS Setup Option Refer To:

Configure preinstalled Oracle Solaris,

Oracle VM Server, or Oracle Linux OS

Oracle Server X5-2 Installation Guide

Install Oracle Solaris, Oracle VM Server,

Linux, or Windows OS

Use Oracle System Assistant (recommended), or refer to the installation guide

for the OS

Install VMware ESXi software Oracle Server X5-2 Installation Guide for VMware ESXi Software

Install supported OS drivers Use Oracle System Assistant (recommended), or refer to the Oracle X5 Series

Servers Administration Guide

Server Front Panel Components

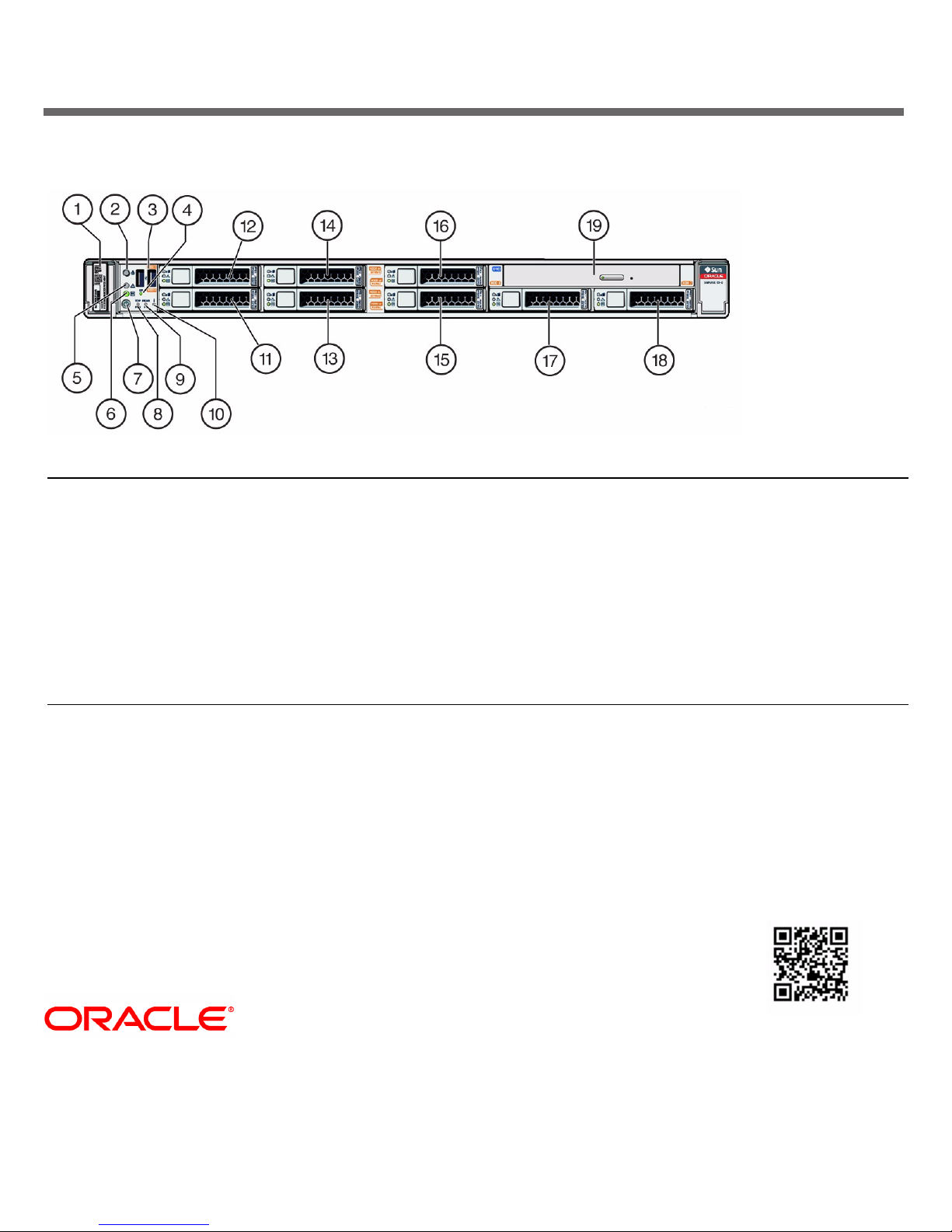

FIGURE 2 Oracle Server X5-2 Front Panel Components

Access to Oracle Support

Oracle customers can access electronic support through My Oracle Support at http://support.oracle.com.

For detailed information, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or if you

are hearing impaired, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=trs.

Figure Legend

1Product Serial Number label and Radio

Frequency Identification tag

8Service Required LED: Top: Fan Module

(amber)

15 Storage drive 4 (optional NVMe SSD)

2Locator button/Locator LED: white 9Service Required LED: Rear: Power

Supply (amber)

16 Storage drive 5 (optional NVMe SSD)

3USB 2.0 connectors (2) 10 Service Required LED: Overtemp Icon:

System Over Temperature Warning

(amber)

17 Storage drive 6

4SP OK LED: green 11 Storage drive 0 18 Storage drive 7

5Service Required LED: amber 12 Storage drive 1 19 Optional SATA DVD drive

6Power/OK LED: green 13 Storage drive 2 (optional NVMe SSD)

7Power button 14 Storage drive 3 (optional NVMe SSD)

Part No.: E48313-01

Mfg No.: 7080351

September 2014
