Optostar Fiber-30voice-4E1-4FE-4RS232 Manuel utilisateur
Fiber-30voice+4E1+4FE+4RS232 multiplexer
Shenzhen Optostar Optoelectronics Co., Ltd.
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
1
Overview
This device provides 30Channel telephone 1-4Channel E1 interface, 4Channel 10M/100M Ethernet
interface (Wire speed 100M) and 4 expansion interface. 4Channel Ethernet interface is switch interface, can
support VLAN. 4 expansion interface can be used as the transmission channel of RS232/RS485/RS422
asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is
very flexible.
Product Features
Based on self -copyright IC
E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology Voice port
supports FXO and FXS port
Support FXO/FXS, EM2/4 audio, Magnet telephone Interface, FXO port docking with program-controlled
switchboard, FXS port connected to the user's telephone;
1~30channel Voice access, supports caller ID feature and reverse polarity billing functions
Support various sites mutual number allocation function
Provide 4 expansion interface, you can extend 1~4Channel asynchronous data, such as
RS232/RS485/RS422/Manchester code;1~4Channel voice, 1~8Channel switch or two/four line audio and so
on
Ethernet interface supports10M/100M, half/full duplex auto- adaptable, support VLAN
4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
Ethernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable)
Telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 /
20μs, the peak output voltage 6KV open standards
The transmission distance is up to 2-120Km without interruption
AC 220V, DC-48V, DC24V can be optional
Fiber-30voice+4E1+4FE+4RS232 multiplexer
Shenzhen Optostar Optoelectronics Co., Ltd.
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
2
Technical Parameters
Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation
(3dbm/km)
Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω(unbalance), 120Ω(balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
Shenzhen Optostar Optoelectronics Co., Ltd.
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
3
Fiber-30voice+4E1+4FE+4RS232 multiplexer
Ethernet interface(10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
EM 2/4 Line
AD: 0dB
DA: -3.5dB
Two/Four-line Impedance: 600 Ohm
Return loss: 20 dB
Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
Fiber-30voice+4E1+4FE+4RS232 multiplexer
Shenzhen Optostar Optoelectronics Co., Ltd.
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
4

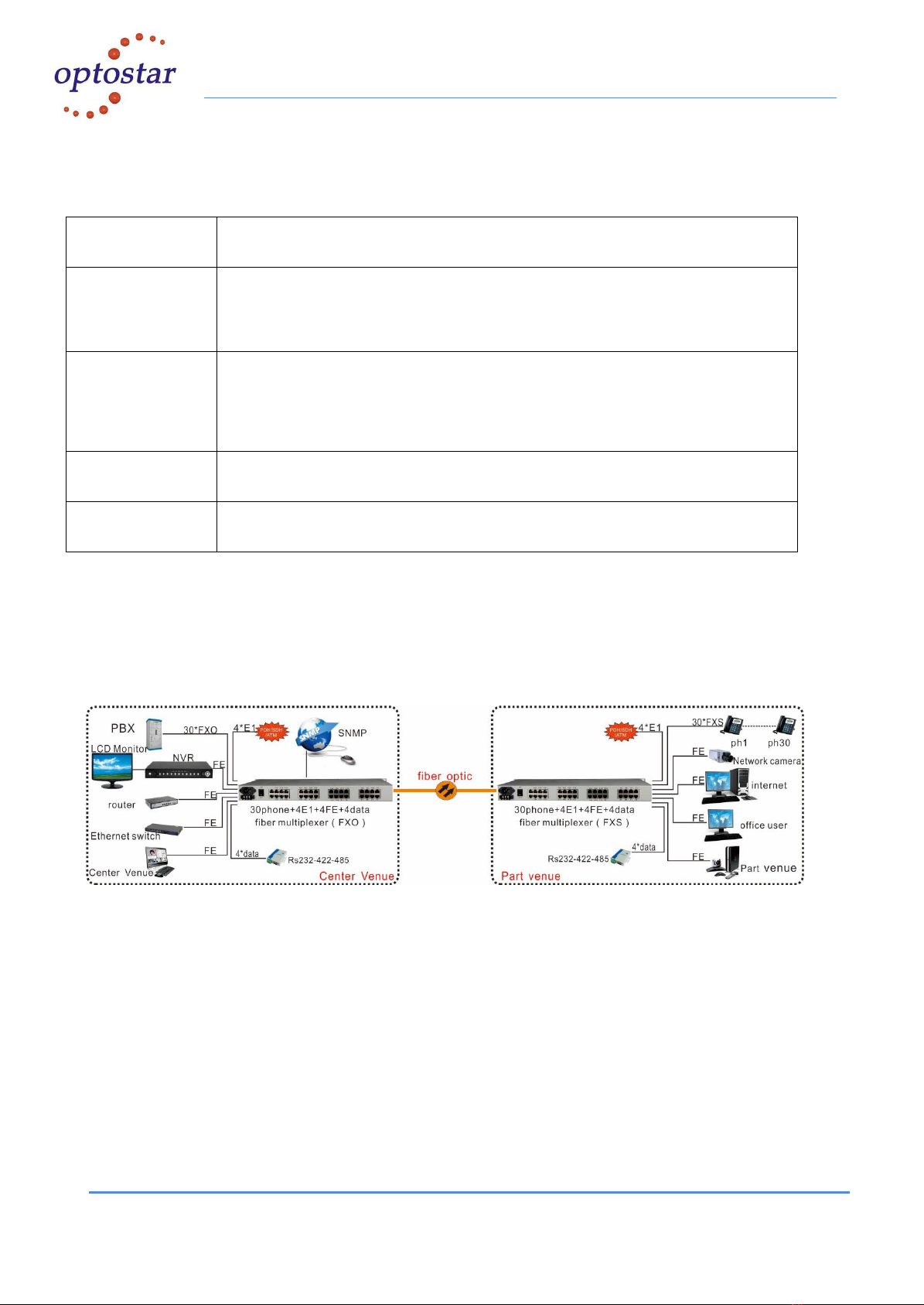

Specification:
Application:
Model
OP-O30E4F4R4C1/FCP-S30E4F4R4C1
Functional
Description
30 * telephone，4E1，4*100 Mbps Ethernet，Console or SNMP，Support 6U
rackmount，Two Fiber interface，4*RS232/422/485
Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
Dimension
Product Size: 485X138X45mm(WXDXH) 19 1U
Weight
2.4KG
Fiber-30voice+4E1+4FE+4RS232 multiplexer
Shenzhen Optostar Optoelectronics Co., Ltd.
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
5
Important Notice
Performance figures, data and any illustrative materialprovided in this data sheet are typical and must bespecifically confirmed in
writing by OPTOSTAR beforethey become applicable to any particular order orcontract. In accordance with the OPTOSTAR policy
ofcontinuous improvement specifications may changewithout notice.
The publication of information in thisdata sheet does not imply freedom from patent or otherprotective rights of OPTOSTAR or
others. Further detailsare available from any OPTOSTAR sales representative.
Contact OPTOSTAR
Shenzhen Optostar Optoelectronics Co., Ltd
Address:A-14,Haide Building,the Intersection of Nanxin Road and Haide Second Road Nansha n
District Shenzhen,China .
Tel: +86-755-26400198 +86-755-26400288 Fax: +86-755-26411001
Email: [email protected]
Skype:ouyangroya
Web: www.optostar.com.cn
