Optima Home Scales COMMANDER-BT Series Manuel utilisateur
1.0 explanation
COMMANDER-BT series has a stainless-steel pan, A variety of logos
displayed large backlit LCD. There are four easy to use function ，
，
COMMANDER-BT
USER MANUAL
，. With the corresponding power module.
2.0 Precautions
Power on/off
Press to hold the reading, refer to 11.4 & 11.5
Press to select unit: KG, Lb, Oz
Zero or tare the weight
⚫Please do not reduce the accuracy of the scales in place
⚫Do not place in direct sunlight or near extreme temperature
⚫Do not put on an unstable platform for weighing
⚫Avoid using with an unstable power source
⚫Do not place scale near machine vibration.
⚫Avoid high humidity and dust as it may cause malfunction of the scale
⚫Avoid placing the scale near air vents or windows
⚫Keep the scale clean of debris
Note: When moving the scale, be careful to avoid bending the connecting
cable and connector.
3.0 KEY
4.
Platform and display
4.1 Platform
The platform works with 4*AA battery.
a.Power key:
Press power key for 2 seconds to activate the platform, and the
light will be flash every second, and light will be turn on if it is
connected to the indicator.
Press power key again to power off the platform. The light will turn
off.
b.Light
There are 4 status of the light. If the light is off, the platform is
asleep, or battery is low. If the light is on, the platform is connected
to the indicator and working. If the light flashes every second, the
platform is waiting to be connect to the indicator. If the light is flashing
every 0.5 second, the platform is low on power, and you need to be
replaced the battery.
c.Connection range
The platform and indicator are connected through wireless
Bluetooth communication. Be sure the distance between
indicator and platform is less than 5 meters without any obstacle.
Try to reduce to the distance if the indicator shows “bt-c”.
The connected distance will be shorter when the battery is low
on power. User can turn the platform to a certain angle for good
connection.
d.How long before you need to replace the battery
The platform can continuously work for about 100 hours if
alkaline battery is used. Ni-MH rechargeable batteries are
recommended.

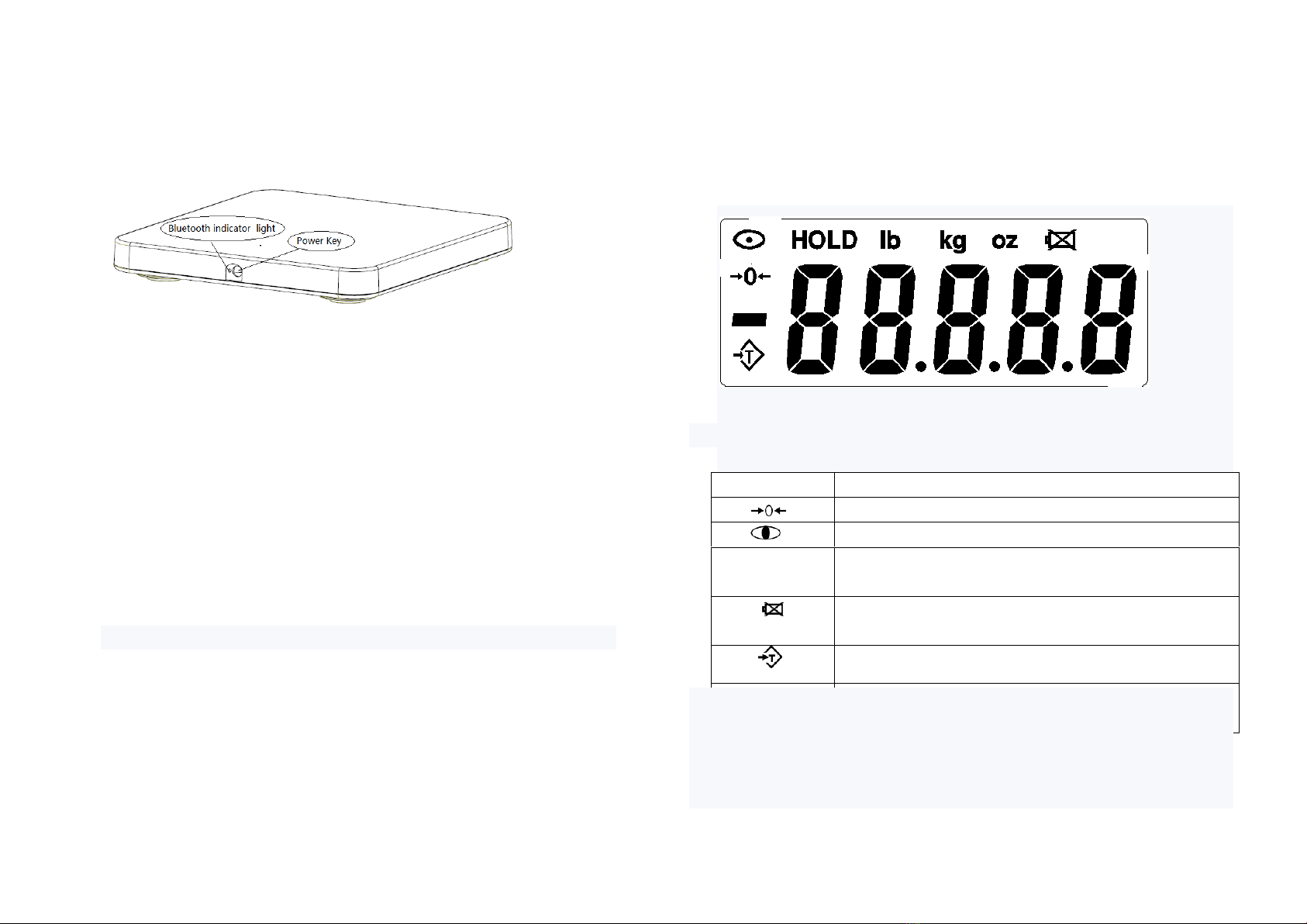

4.2 Display of indicator
Symbol
description
The current scale is zero state
Weighing in stable
kg, lb, oz
Units can be used
Battery low power, the indicator needs you to replace
the battery or power with USB/adaptor
Tare, net weight display
HOLD
When the hold function on the display screen weighing
unchanged
4.0 A description of each indicator to identify
5.0 battery
Indicator: 4*AA battery or USB/adaptor
Platform: 4*AA battery
6.0 backlight display
LCD backlight can be set to remain open until closed or automatically
turned off (i.e., when using scales or press the start button) three
modes See details in section 11.2 how to setup
7.0 Auto power off function
Automatic shutdown feature can be turned off by the user to set this
feature or allow shutdown within a certain time frame for the scale,
details see section 11.1.
8.0
Operating Instructions
8.1
Power on
Press to power onthe indicator
w
ill
self-test,
and connect to
the platform with Bluetooth, be sure the platform within the
range 5 meter and battery is ok if “bt-c” is shown.
The platform’s led light will be on then, and the weight will
be show on the LCD of indicator.
press again will power off the indicator, and the platform
will power off too.
The scale can be set as desired by the user to control the weighing
8.2
Zero function
If the current weight on pan is less than 1 % of the max. capacity,
press to zero the scale.
8.3
Tare function
Press to tare the weight if the weight is less than max. capacity,
and the will be show on the display.
8.4 select units
press to select units
8.5 print/hold function
If communication output mode is set “pr” (refer to 11.4),
press
key
will send weight to the USB port. If hold mode is set “hod 3” (refer to
11.5), press key will hold the reading or cancel the hold.
9.0
External calibration
It may need to be re-calibrated after use for some time, or the reading
is not correct.
⚫In the normal weighing mode, the order press
+ + + + to external calibration. Enter the need for
external calibration weights weight (unit：KG) ，press
Increase value，to displacement.
⚫
⚫
Press
to confirm
Note: If you select a weight less than or greater than 10% of the
weighing ，there will display the “CALEr” err code. Press
external calibration.
to re
⚫After passing external calibration, scale will return to weighing
mode
11.0 User parameter settings
operation. Press to select, and press
to confirm.
11.1 auto power off function
⚫Turn off the scale press and turn on the scale, then release the
，displayed “Pr oFF” ，press to select “Pr oFF” or “Pr on”
1. Pr on：Enables the Auto Power Off function. The power will be
turned off after 2minutes if a key has not been pressed for 2
minutes and the scale is at zero. If there is any weight on the scale
or a key is pressed, the scale will continue to work.
2. Pr oFF：Disables the Auto Power Off function. The scale will not
automatically turn off.
Display will show “Hod 3” (DEFAULT SET).
1.Hod 1: No hold function
2.Hod 2: Automatic hold function, it will hold for 15 seconds when the
reading is stable.
3.Hod 3: Manual hold function, press hold key will hold the reading,
press again will cancel the hold reading.
Note: if output mode of communication is select “pr”, “hod 3” will be
disabled.
12. 0 USB INTERFACE
The scales come with a bi-directional USB interface.
Interface parameters are: USB
output of weighing data ASCII code
Selectable Baud
You should install the USB-Serial diver, and follow the driver
instruction, and then you can use the USB as a serial com.
Input commands format:
Z <cr> <lf>
Tares the scale to display the net weight- same as pressing
H <cr> <lf>
Sets the scale to hold if the hold function is enabled. Same
as pressing the key.
N <cr> <lf>
Sends the net weight to the USB interface.
G <cr> <lf>
Sends the gross weight to the USB interface.
T <cr> <lf>
Sends the tare weight to the USB interface.
11.4.1 SELECTION OF BAUD RATE
Display will show “b 9600” (DEFAULT SET) There are three
options: “b 2400”, “b 4800”, “b 9600”.
11.4.2 SELECTION OF OUTPUT MODE
Display will show “con” (default set), there are three
option: “on” (continue output), “st” (stable output), “pr” (print
out).
11.5 hold function
Output format:
Gross Weight
Net Weight
Tare Weight
11.2 Backlight settings
The second parameter is to set the backlight, display "bL 3"
(default setting)
1. bL 1: backlight always off
2. bL 2: always bright backlight
3. bL 3: If no weight on the pan, then the scale will
automatically turn the backlight or when the object is
removed after 10 seconds off the backlight after zeroing the
scale.
press to select，press to confirm and return to
weighing mode.
11.3 manage the Bluetooth
It will display “Axxxx” (xxxx: The address of the Bluetooth of
the platform), press + + + + to clear the address if you
need replace a new platform for indicator.
Note: a. the “xxxx” will be “FFFF” if there is no platform
connected before.
b. Please ensure only one platform is around you,
and re-power on the indicator to finish the
replace operation.
11.4 manage of USB communication
to confirm
Press
G + 2.00 kg <cr><lf>
N + 1.00 kg <cr><lf>
T + 1.00 kg <cr><lf>
Error code
phenomenon
Failure Analysis
"bt-c"
LCD display “bt-c” when
power on
The platform is not
at the range or lack
of battery
"-----"
overload
Weight on the pan
exceeds the capacity of
the scale. Remove the
weight from the pan.
CALEr
Input weight less than or
greater than 10% of the
weighing displayed “CALEr”
Lead to incorrect
calibration, re-
calibration process
is repeated correctly
Lo
Always show “Lo”, the key
operation is invalid (except
the power button)
Indicator lack of
power supply, need
replace, or input
USB/adaptor
bat-0
LCD show “Lo”, platform is
flash fast every 0.5 second
The battery of the
platform needs to
be replaced
When an error message appears, try rebooting, calibration factors
or other ways to relieve some of the problem may lead to errors, if
the error message still appears, find the proxy service provider
contact
There may be some error messages during the boot process is running,
the following error message:
Error
