SNIVD-310

CB-01

TOUGH

MADE TO BE

CC02 / CB01

High Impact Cam

These are only a select few of our specialty products. Contact us if you don’t see what you need here.

Opticom has served the security and surveillance industry since 1973 and specializes in the most challenging

projects with field proven products.

VDC10X

10x Indoor PTZ

PT509Z

Pressurized Dome

SNVD-300/SNIVD-310

Pan/Tilt Vandal Dome

HVD-570 & HDV-550

IR Bullet Cameras

VDC35X

35x Outdoor PTZ

Product Information Bulletin

VDC10X

PT509Z

Pressurized Dome

Features

Color High Impact Camera

Specifications

CC02

Specialty Camera

All Weather, Extreme Environment Applications

Heavy Gauge Die-Cast Metal Alloy Housing

Auto Backlight Compensation

Compact Design, Simple to Install

Tri-Axial Mounting System

Lifetime Housing Warranty & 5 Year Camera Warranty

Extreme Vibration ResistanceExtreme Vibration Resistance

Waterproof IP68 Rated

Sensor: 1/3” Interline Transfer CCD

Resolution: 480 TV Lines

Sensitivity: 0.1 LUX @F1.8

Lens Sizes Available: 2.9, 4.3, 6.0, 8.0, 12, or 16 mm

Power Supply: 12V DC / 500mA Regulated, Included

Operating Temperature: -58 to +122 Degrees Farenheit / -55 to +55 Degrees Celsius

Dimensions: 2.36 x 2.75 x 4.26 inches / 60 x 70 x 108.2mmDimensions: 2.36 x 2.75 x 4.26 inches / 60 x 70 x 108.2mm

Finish: Beige Powder Coat

Weight: 1.76lbs / 800g

Video Output: BNC

Power Input: 2.1mm Mini Jack

Power Pigtail Included

Over 10,000

Installed Worldwide

MADE TO BE

Unique Virtual

Auto Iris / Shutter Performance

TOUGH

B/W High Impact Camera

Features

Specifications

CB01

Specialty Camera

All Weather, Extreme Environment Applications

Heavy Gauge Die-Cast Metal Alloy Housing

Auto Backlight Compensation

Compact Design, Simple to Install

Tri-Axial Mounting System

Lifetime Housing Warranty & 5 Year Camera Warranty

Extreme Vibration ResistanceExtreme Vibration Resistance

Waterproof IP68 Rated

TOUGH

MADE TO BE

Unique Virtual

Auto Iris / Shutter Performance

Sensor: 1/3” Interline Transfer CCD Sensor

Resolution: 480 TV Lines

Sensitivity: 0.01 LUX @F1.8

Lens Sizes Available: 2.9, 4.3, 6.0, 8.0, 12, or 16 mm

Power Supply: 12V DC / 500mA Regulated, Included

Video Output: BNC

Operating Temperature: -58 to +122 Degrees Farenheit / -55 to +55 Degrees CelsiusOperating Temperature: -58 to +122 Degrees Farenheit / -55 to +55 Degrees Celsius

Dimensions: 2.36 x 2.75 x 4.26 inches

Weight: 1.76 lbs / 800g

Finish: Black Powder Coat

Power Input: 2.1mm Mini Jack

Power Pigtail Included

10X Zoom Day/Night PTZ Camera

Features

Specifications

Options

10x Zoom Day/Night PTZ

VDC10X

Specialty Camera

10x Optical, 10x Digital Zoom

Day / Night

Presets up to 32 Positions

6 Auto Cruise Programs (Customizable)

ICR Mechanical Cut Filter

48 Zone BLC (OSD Control)

Includes: Camera, DC12V Power Supply, Manual, BracketIncludes: Camera, DC12V Power Supply, Manual, Bracket

KB50 Controller

KB50H Controller

Sensor: 1/4” Sony SUPER HAD CCD

Resolutions: 480 TV Lines

Sensitivity: 0.03 Lux

Lens: 3.7-37.8mm / F 1.6 ~1.9

Video Out: 1.0 Vp-p/75 Ohm

White Balance: ATW/AWB/FIX

AGC: +24dBAGC: +24dB

ALC: Auto

BLC: 48 zone

OSD: Zoom, Focus, Iris, AWB, AGC, Position, C Gain, AGC Gain

Electronic Shutter: AES: 1/60~1/120,000 sec, manual: 8 step

Auto Cruise: 6 Auto Cruising Tracks (max)

Sync System: Internal/External(AC Lock) Mode (+/-Hz)

Power Supply: 12V DCPower Supply: 12V DC

Power Consumption: 6W (max.)

Operating Temperature: -14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius

Features

Specifications

PTZ Speed Dome w/ 35x Zoom

VDC35X

Specialty Camera

35x Optical Zoom, 16x Digital Zoom

Day & Night

On Screen Display (OSD) Set-up Menu

128 Preset Points

Remote Control via RS-485

IP66 for outdoor, built-in Heater & Fan

Wall / Pendant / Corner Mount (choice)Wall / Pendant / Corner Mount (choice)

Sensor: 1/4” Sony CCD

Resolution: 520 TV Lines

Sensitivity: 0.01 Lux (night), 0.5 Lux (day)

S/N Ratio: More than 48dB

Electronic Shutter: 1/60 ~ 1/30,000

Flickerless Mode: On / Off

Iris Control: Auto / ManualIris Control: Auto / Manual

Lens: 35x Auto Focus Zoom (33.6~126mm)

Digital Zoom Ratio: Basic 16x

Zoom Speed: 8 sec

Focus Mode: Auto / Manual / Push Auto

Iris Control: Auto / Manual

White Balance: Auto / Hue / Indoor / Outdoor / Manual / Push Auto

Day & Night: AE / Sensor / Day / NightDay & Night: AE / Sensor / Day / Night

Gain Control: Auto / Manual

Back Light Compensation: On / Off

Sequence: 6

Remote Control: RS-485

Protocol: Yoko, Pelco D &P / LG

Auto Turn Around: Yes

Alarm / Relay: 6/1Alarm / Relay: 6/1

Sync System: Internal

Power: DC 12V 2800mA max (option: AC 24V 2400mA max.)

Operational Temp: 14 ~ 122 F / -10 ~ 50 C

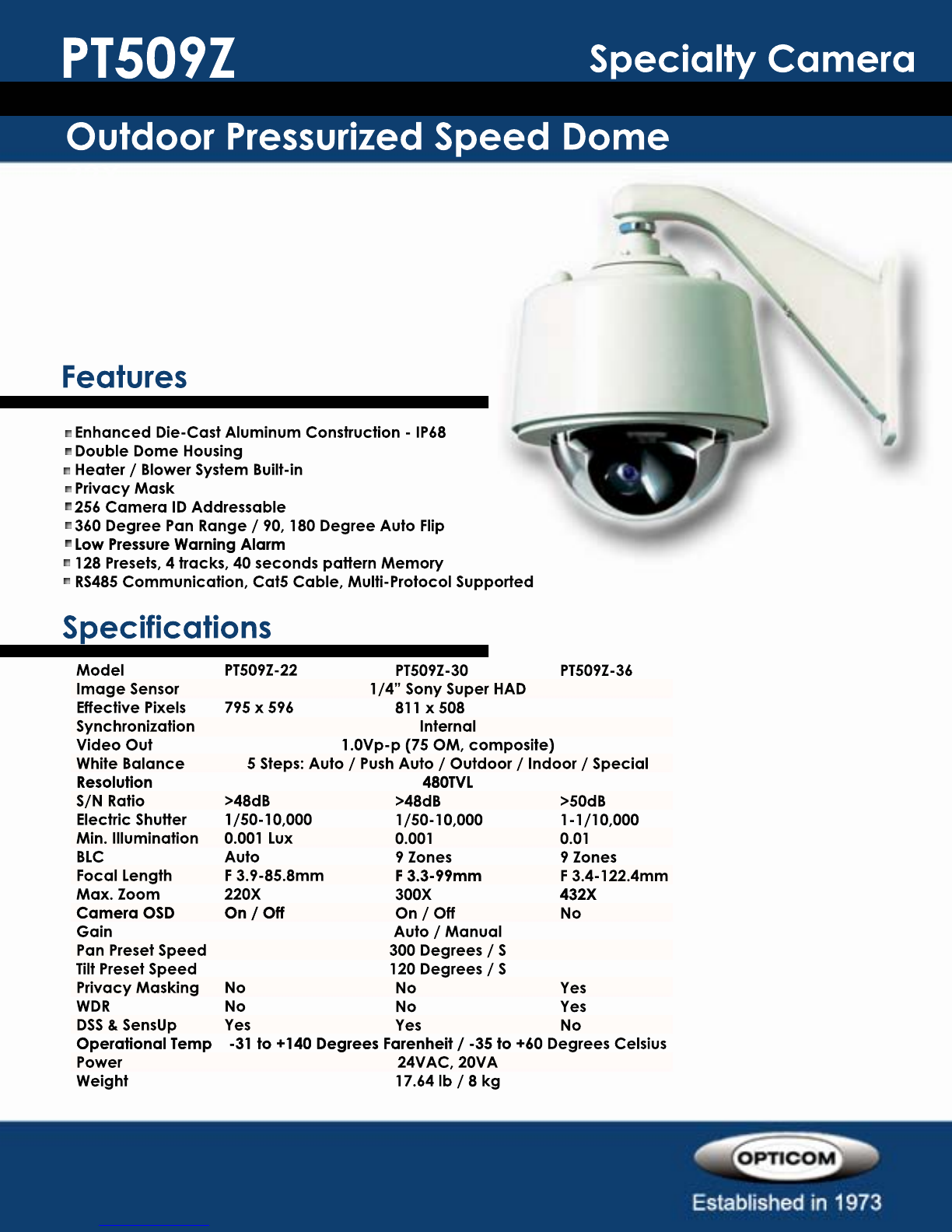

Outdoor Pressurized Speed Dome

22X

30X

36X

Specifications

PT509Z

Specialty Camera

Enhanced Die-Cast Aluminum Construction - IP68

Double Dome Housing

Heater / Blower System Built-in

Privacy Mask

256 Camera ID Addressable

360 Degree Pan Range / 90, 180 Degree Auto Flip

Low Pressure Warning AlarmLow Pressure Warning Alarm

128 Presets, 4 tracks, 40 seconds pattern Memory

RS485 Communication, Cat5 Cable, Multi-Protocol Supported

Features

Model

Image Sensor

Effective Pixels

Synchronization

Video Out

White Balance

ResolutionResolution

S/N Ratio

Electric Shutter

Min. Illumination

BLC

Focal Length

Max. Zoom

Camera OSDCamera OSD

Gain

Pan Preset Speed

Tilt Preset Speed

Privacy Masking

WDR

DSS & SensUp

Operational TempOperational Temp

Power

Weight

PT509Z-22

1/4” Sony Super HAD

795 x 596

Internal

1.0Vp-p (75 OM, composite)

5 Steps: Auto / Push Auto / Outdoor / Indoor / Special

480TVL480TVL

>48dB

1/50-10,000

0.001 Lux

Auto

F 3.9-85.8mm

220X

On / OffOn / Off

Auto / Manual

300 Degrees / S

120 Degrees / S

No

No

Yes

-31 to +140 Degrees Farenheit / -35 to +60 Degrees Celsius-31 to +140 Degrees Farenheit / -35 to +60 Degrees Celsius

24VAC, 20VA

17.64 lb / 8 kg

PT509Z-30

811 x 508

>48dB

1/50-10,000

0.001

9 Zones

F 3.3-99mmF 3.3-99mm

300X

On / Off

No

No

Yes

PT509Z-36

>50dB

1-1/10,000

0.01

9 Zones

F 3.4-122.4mm

432X432X

No

Yes

Yes

No

Features

Specifications

High Res Day/Night Bullet Camera

HDV-570

Specialty Camera

1/3” Sony Super HAD CCD

540 TVL (Color) / 560 TVL (B/W)

3-12mm DC Auto Iris Lens

Mechanical Day / Night

Sens-Up

Weatherproof

External Varifocal AdjustmentExternal Varifocal Adjustment

Cable Management Bracket

Sensor: 1/3” Sony Super HAD CCD

Resolution: 540 TVL (Color) / 560 TVL (B/W)

IR Cut Filter: On / Off

Sensitivity: 0.1 Lux / F1.2 0.001 Lux at F1.2 (B/W Mode, AGC On, Sens-Up On)

Synchronization: Line Lock AC 24V

S/N Ratio: 50dB

Gamma Correction: 0.45 / 1.0Gamma Correction: 0.45 / 1.0

Electronic Shutter: 1/60 ~ 1/120,000 sec

Video Output: 1 Vp-p, 75 Ohm

Lens: 3.0-12mm DC Auto Iris Lens

Auto White Balance: ATW / AWC / FIX (Zero Color Rolling)

Auto Gain Control: Full Auto

Back Light Compensation: Full Auto On / Off

Digital Zoom Function: 10x ManualDigital Zoom Function: 10x Manual

IR Illuminator: 18 w/ 12 additonal Power LED’s

IR Range: 120 ft

IP Rating: IP66

Weight: 1.63lbs / 740g

Power: 24V AC / 12V DC

Power Consumption: 190 mA, 500mA with IR On

Operating Temperature: -40 ~ 113 F / -40 ~ 40 COperating Temperature: -40 ~ 113 F / -40 ~ 40 C

*External IR Range Adjustment

Features

Specifications

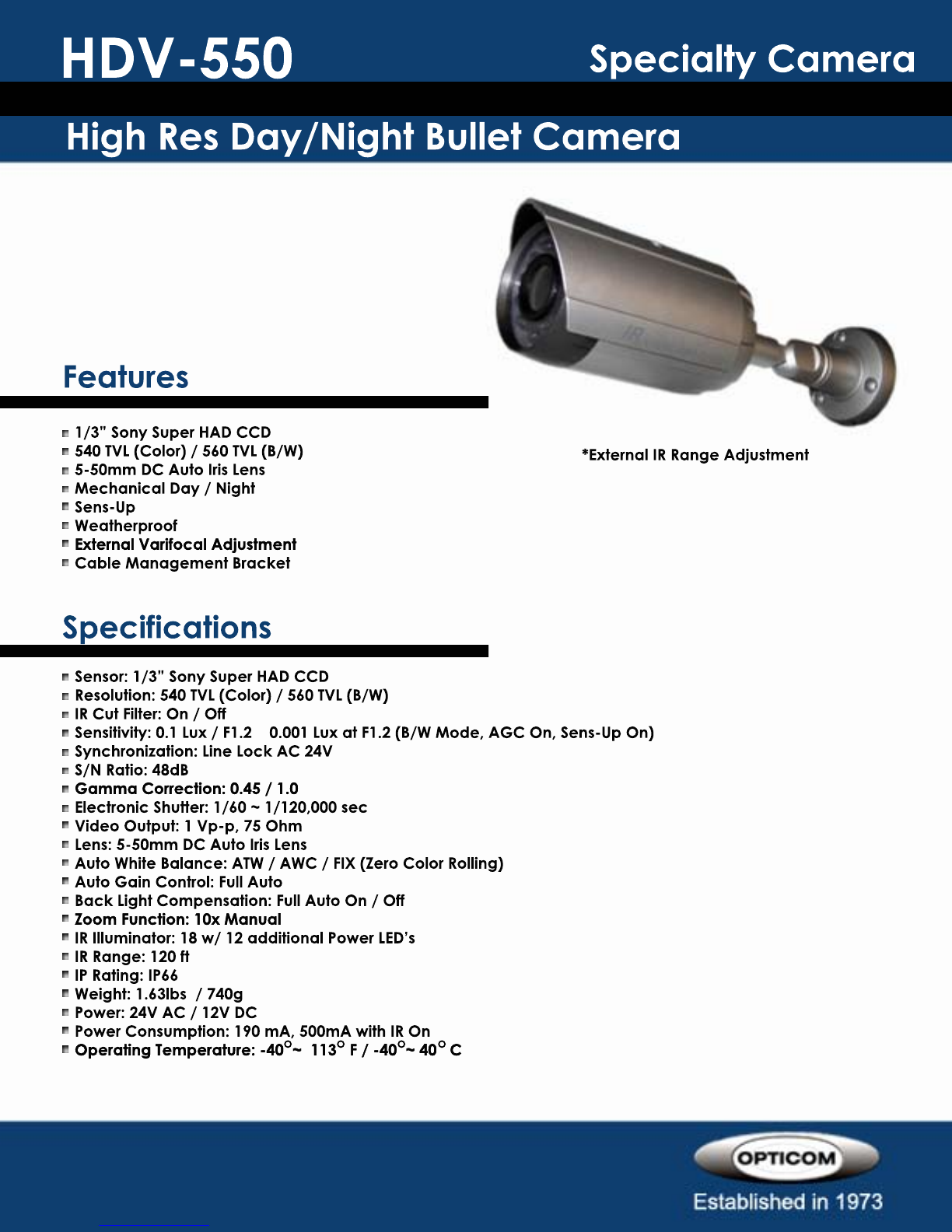

High Res Day/Night Bullet Camera

HDV-550

Specialty Camera

1/3” Sony Super HAD CCD

540 TVL (Color) / 560 TVL (B/W)

5-50mm DC Auto Iris Lens

Mechanical Day / Night

Sens-Up

Weatherproof

External Varifocal AdjustmentExternal Varifocal Adjustment

Cable Management Bracket

Sensor: 1/3” Sony Super HAD CCD

Resolution: 540 TVL (Color) / 560 TVL (B/W)

IR Cut Filter: On / Off

Sensitivity: 0.1 Lux / F1.2 0.001 Lux at F1.2 (B/W Mode, AGC On, Sens-Up On)

Synchronization: Line Lock AC 24V

S/N Ratio: 48dB

Gamma Correction: 0.45 / 1.0Gamma Correction: 0.45 / 1.0

Electronic Shutter: 1/60 ~ 1/120,000 sec

Video Output: 1 Vp-p, 75 Ohm

Lens: 5-50mm DC Auto Iris Lens

Auto White Balance: ATW / AWC / FIX (Zero Color Rolling)

Auto Gain Control: Full Auto

Back Light Compensation: Full Auto On / Off

Zoom Function: 10x ManualZoom Function: 10x Manual

IR Illuminator: 18 w/ 12 additional Power LED’s

IR Range: 120 ft

IP Rating: IP66

Weight: 1.63lbs / 740g

Power: 24V AC / 12V DC

Power Consumption: 190 mA, 500mA with IR On

Operating Temperature: -40 ~ 113 F / -40 ~ 40 COperating Temperature: -40 ~ 113 F / -40 ~ 40 C

*External IR Range Adjustment

Features

Specifications

Day & Night Vandal Dome

SNVD-300

Specialty Camera

Sony Super HAD

High Resolution

Sens-up

Dual Power

Built-In Heater

Sensor: 1/3” Third Generation Sony DSP

Resolution: 560 TV Lines

Lens: 2.8-10mm Motorized Zoom Lens

Scanning System: 2:1 Interlaced

S/N Ratio: More than 50dB

White Balance: ATW/AWBC/Manual

Gamma: r=0.45Gamma: r=0.45

Sync System: Internal

Illumination: 0.002 Lux

Sens-up: X 128

Video Output: BNC; 1.0Vp-p 75 ohm

OSD: Built-in

Back Light Compensation: Low, Middle, High, Off Selectable

Gain Control: Low, Middle, High, Off SelectableGain Control: Low, Middle, High, Off Selectable

Digital Noise Reduction: Low, Middle, High, Off Selectable

Sharpness: On/Off (Level Adjustable)

Privacy: On/Off (4 Programmable Zone)

Mount: Tri-Axis

Accessories: cWireless Remote Control

Power: DC 12V / AC 24V

Operating Temperature: +14° to +122° Farenheit / -10° to +50° CelsiusOperating Temperature: +14° to +122° Farenheit / -10° to +50° Celsius

Features

Specifications

IR Vandal Dome with Motorized Zoom Lens

SNIVD-310

Specialty Camera

Third Generation Sony DSP

Ultra High Resolution

Varifocal Auto Iris Lens

DNR

Day & Night

Sensor: 1/3” Third Generation Sony DSP

Resolution: 560 TV Lines

Lens: 2.8-12mm Motorized Zoom Lens

Scanning System: 2:1 Interlaced

Sync System: Internal

S/N Ratio: More than 50dB

White Balance: ATW/AWBC/ManualWhite Balance: ATW/AWBC/Manual

Gamma: r=0.45

Illumination: 0 Lux w/ IR on

Infrared: 35 IR LED’s

Visual IR Range: 100ft

Video Output: BNC; 1.0Vp-p 75 ohm

OSD: Built-in

Back Light Compensation: Low, Middle, High, Off SelectableBack Light Compensation: Low, Middle, High, Off Selectable

Gain Control: Low, Middle, High, Off Selectable

Digital Noise Reduction: Low, Middle, High, Off Selectable

Sharpness: On/Off (Level Adjustable)

Privacy: On/Off (4 Programmable Zone)

Mount: Tri-Axis

Power: DC 12V / AC 24V

Operating Temperature: +14° to +122° Farenheit / -10° to +50° CelsiusOperating Temperature: +14° to +122° Farenheit / -10° to +50° Celsius
