Opticis HDFX-100-TR Manuel utilisateur

HDFX-100-TR (Ver.1.0)

- 1 -

www.opticis.com

Contents

Description

Features

Applications

Technical Specifications

Drawing of Modules

Drawing of Cable Connections

HDMI Pin Description

Reliability Test

DATA SHEET

One (1) fiber HDMI / Audio Extender,

HDFX-100-TR

OPTICIS HQ

Opticis Co., Ltd.

# 907, Byucksan Technopia, 434-6

Sangdaewon-Dong, Chungwon-Gu,

Sungnam City, Gyeonggi-Do, 462-716

South Korea

Te l: +82 (31) 737-8033~8

Fax: +82 (31) 737-8079

www.opticis.com

[email protected]

HDFX-100-TR (Ver.1.0)

- 2 -

www.opticis.com

One (1) fiber HDMI / Audio Extender, HDFX-100-TR

Description

One (1) fiber HDMI (High Definition Multimedia Interface) / Audio extender, HDFX-100-TR is a

new member of the Opticis family of products that stretches your HDMI connectivity, offering a

benefit of detachable connection with one (1) SC fiber, which makes it easier to install.

The Optical HDMI/Audio extender, HDFX-100-TR offers extremely long-distance extension of

digital video of HDMI 1.3a and audio transmits all signals up to 1000 meters (3280 feet). It is an

all-fiber extension product, no copper connection like CAT5 or 6e between transmitter and

receiver, installed in one (1) SC optical fiber for connection.

Optical technology makes the HDMI transmission stretch the performance beyond limitation of

copper wire extension with various benefits of long distance, crystal-clear data, negligible RFI/EMI

and elimination of costly distribution amplifiers unlike in analog extension.

The HDFX-100-TR is consist of a transmitter and receiver boxes, which are designed to multiplex

and de-multiplex the HD video and offers Self-EDID Programming feature detecting from display

and restoring EDID to an EEPROM in the transmitter without any physical DDC connection and

High Definition Copy Protection (HDCP) so as to be linked over only one (1) optical fiber. All ports

are deployed on the back panel and only indicators on the front panel.

The product is certified to EMI Class A by for FCC or CE for home uses as well as industrial or

commercial uses.

The shipping group is shown as follows;

1) One (1) Transmitter (Tx) Box and One (1) Receiver (Rx) Box.

2) Two (2) DC +5V 2A power adapter

3) User’s Manual

HDFX-100-TR (Ver.1.0)

- 3 -

www.opticis.com

Features

Supports HDMI 1.3a up to 24-bit in color depth

Extends all HD resolution up to 1080p (1920x1080) at 60Hz up to 1000 meters (3280 feet)

over one (1) SC single-mode fiber

Provides lossless and uncompressed image quality without frame dropping

Offers Self-EDID Programming feature detecting from display and restoring EDID to an

EEPROM in the transmitter without any physical DDC connection

Complies with HDCP

Includes two (2) +5V DC power adapters for the transmitter and receiver

Certifies FCC and CE standards for EMI/RFI emission

Not require S/W driver to install; just plug and play

Be rack mountable

Applications

Digital HD-TV of types of LCD, PDP, projection and projectors for Home or Commercial

Entertainments

Digital HD-TVs for industrial applications such as medical appliances, aero traffic control,

factory, conference room, auditorium and bank

Digital FPDs and projectors in conference room and auditorium

Kiosk with digital FPDs showing full motion graphic displays from remote systems

HD-TVs for information display in public sites

LED signboards in streets or in stadiums

HDFX-100-TR (Ver.1.0)

- 4 -

www.opticis.com

Technical Specifications

-General Specifications

Parameter

Specifications

Components

Laser Diodes

1310/1550 FP laser diode

Photo Diodes

1550/1310 PIN type photo diode

Electrical

Input and Output Signals

TMDS Level

Data Transfer Rate (Graphic Data)

Max. 1.65Gbps

Total Jitter at the end of Rx output

Max. 300 ps

Skew inter-channels

Max. 6ns

Optical

Sensitivity

-19dBm

Link Power Budget

Connect

Optical Connector

SC Connector

Electric Connector Type from Modules

and to HDTVs

HDMI receptacle

Recommended Fiber

Standard single-mode fiber

-Absolute Maximum Ratings

Parameter

Symbol

Minimum

Maximum

Units

Supply Adaptor Voltage

VCC

-0.3

+7.0

Operating Temperature

Top

-10

C

Operating Relative Humidity

RHop

80*

%RH

Storage Temperature

Tsto

- 30

+ 85

C

Storage Relative Humidity

RHsto

95*

%RH

Note*: Under the condition of No drops of dew

Recommended Operating Conditions

Parameter

Symbol

Minimum

Typical

Maximum

Units

Ambient Operating Temperature

+ 50

C

Data Output Load

RLD

Power Supply Rejection (Note1)

PSR

mVp-p

Supply Voltage

VCC

+ 4.5

+ 5.0

+ 5.5

Note1. Tested with a 50mVp-p sinusoidal signal in the frequency range from 500 Hz to 500 MHz on the VCC supply with

the recommended power supply filter in place. Typically less than a 0.25 dB change in sensitivity is experienced.

Electrical Power Supply Characteristics

(TA= 0 C to +50 C, unless otherwise noted)

Parameter

Symbol

Minimum

Typical

Maximum

Units

Supply Voltage

VCC

+ 4.5

+ 5.0

+ 5.5

Supply Current

ITCC

650

700

750

IRCC

650

700

750

Power Dissipation

PTX

2.92

3.5

4.1

PRX

2.92

3.5

4.1

HDFX-100-TR (Ver.1.0)

- 5 -

www.opticis.com

-Optoelectronic Characteristics

Transmitter module : HDFX-100-T

Parameter

Symbol

Minimum

Typical

Maximum

Units

Power

Supply

Supply Adaptor Voltage

AVcc

4.5

5.5

Supply Voltage

Vcc

4.5

5.5

Supply Current

ITCC

650

700

750

Power Dissipation

PTX

2.92

3.5

4.1

Power Supply Rejection (Note1)

PSR

mVp-p

TMDS

Data Output Load

RLD

Graphic Supply Voltage (Note2)

GVCC

+ 3.1

+ 3.3

+ 3.5

Single-Ended High Level

Input Voltage

GVIH

GVCC -

0.01

GVCC

GVCC +

0.01

Single-Ended Low Level

Input Voltage

GVIL

GVCC - 0.6

GVCC - 0.4

Single-Ended Input Swing

Voltage

GVISWING

0.2

0.8

Optical Link-TX-

(Note3)

Bit rate

4.25

Gbps

Output Optical Power

-5

dBm

Wavelength



1260

1360

Spectral width in RMS



4.0

Extinction Ratio

Ext

Rising/Falling Time

Trise/Tfall

80% to

20%

140

Optical output eye diagram

Comply with Bellcore TR-NWT-000253 and ITU G.957

Optical Link-RX

(Note3)

Bit rate

1.25

Gbps

Receiving Wavelength



1500

1600

Maximum Input Power

Pmax

-4

dBm

Signal_Detect Good

SDg

-23

dBm

Signal_Detect Fail

SDf

-39

dBm

Sensitivity

Pmin

-23

dBm

Link Power Budget(Note4)

Pbgt

15.9

Receiver module: HDFX-100-R

Parameter

Symbol

Minimum

Typical

Maximum

Units

Power Supply

Supply Adaptor Voltage

AVcc

+ 4.5

+ 5.0

+ 5.5

Supply Voltage

Vcc

+ 4.5

+ 5.0

+ 5.5

Supply Current

IRCC

650

700

750

Power Dissipation

PRX

2.92

3.5

4.1

Power Supply Rejection

(Note1)

PSR

mVp-p

TMDS

Data Input Load

RLD

Graphic Supply Voltage

(Note2)

GVCC

+ 3.1

+ 3.3

+ 3.5

Single-Ended Output Swing

Voltage (Note5)

GVISWING

0.4

0.8

Optical

Link-RX

(Note3)

Bit rate

4.25

Gbps

Receiving Wavelength



1260

1360

HDFX-100-TR (Ver.1.0)

- 6 -

www.opticis.com

Maximum Input Power

Pmax

-4

dBm

Signal_Detect Good

SDg

-15

dBm

Signal_Detect Fail

SDf

-29

dBm

Sensitivity

-15

dBm

Link Power Budget(Note4)

Pbgt

8.9

Optical Link-TX

(Note3)

Bit rate

1.25

Gbps

Output Optical Power

-6

dBm

Wavelength



1480

1600

Spectral width in RMS



4.0

Extinction Ratio

Ext

8.2

Rising/Falling Time

Trise/Tfall

80% to

20%

300

Optical output eye diagram

Comply with Bellcore TR-NWT-000253 and ITU G.957

Note1. Tested with a 50mVp-p sinusoidal signal in the frequency range from 500 Hz to 500 MHz on the VCC supply with the

recommended power supply filter in place. Typically less than a 0.25 dB change in sensitivity is experienced.

Note2. Graphic Supply Voltage is regulated reference voltage for signal processing in modules

Note3. Measure signals at the end of 2 meter 9um SMGOF

Note4. Measures 1km distance with 9um(SM) fiber

Note5. TMDS outputs are coupled in AC

-Recommended Specifications of Fiber-Optic Cables

Parameters

Conditions

Specifications

Fiber Type

Glass single-mode Fiber

9±/ 125±2m

Modal Bandwidth

= 1310nm, 1550nm

Min. 400 MHz km

Fiber Cable Attenuation

= 1310nm, 1550nm

>0.3dBdB/km

No. of Ferrules

SC Connector

1 ferrules

Maximum Cladding

Noncircularity

Maximum Core/Cladding

Noncircularity

1.6%

Minimum Fiber Bending

Radius

30mm

HDFX-100-TR (Ver.1.0)

- 7 -

www.opticis.com

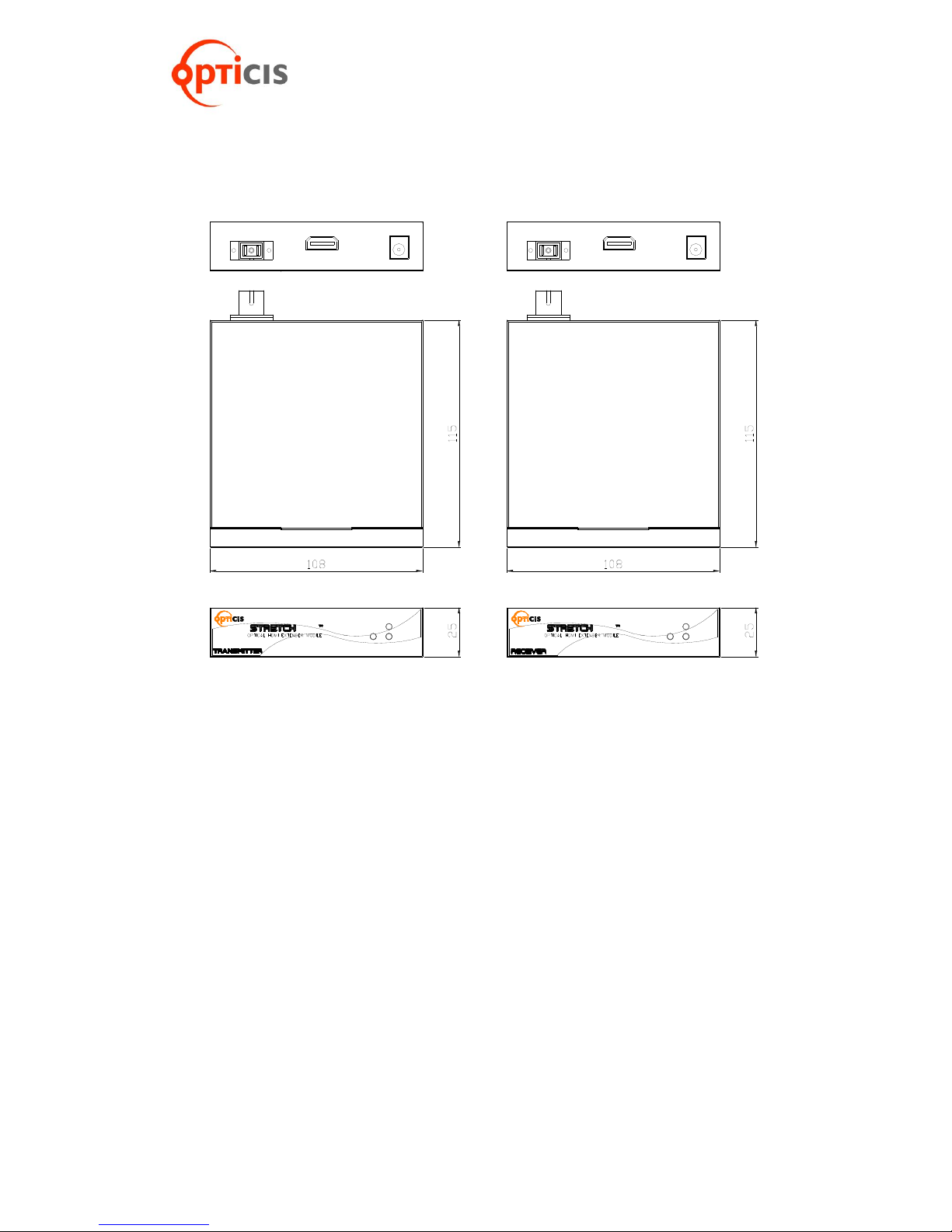

Drawing of Modules

Dimension [mm]

HDFX-100-TR

HDCP

Power

Status

+5V Optic

HDFX-100-TR

Power

+5V Optic

HDMI

HDCP Status

HDMI In

HDMI Out

Note: The transmitter, HDFX-100-T and the receiver, HDFX-100-R have the same mechanical

dimensions.

HDFX-100-TR (Ver.1.0)

- 8 -

www.opticis.com

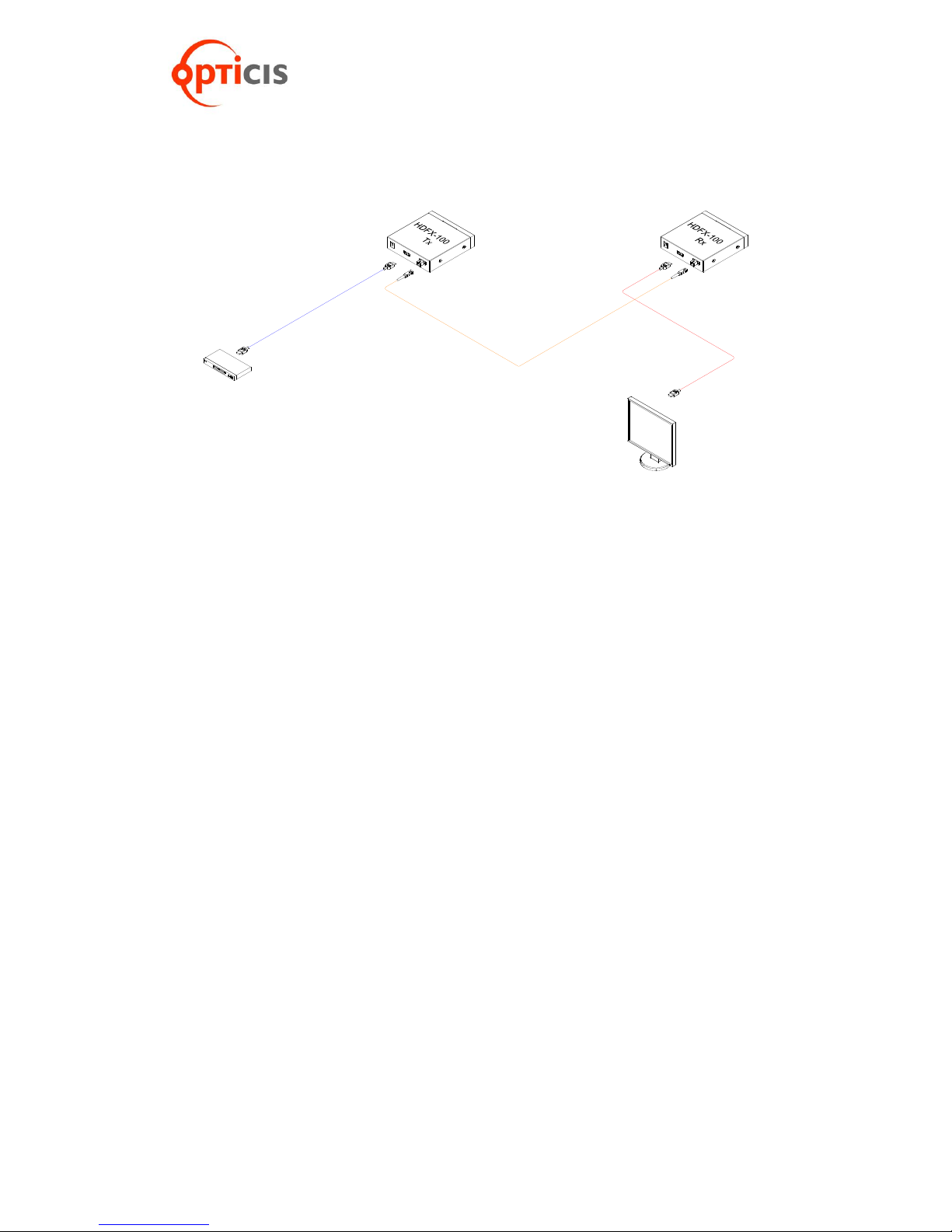

Drawing of Cable Connections

Up to 1000m at WUXGA

HDMI Source

HDMI Display

One (1) Optical Fiber

HDFX-100-TR (Ver.1.0)

- 9 -

www.opticis.com

HDMI Pin Description

Symbol

Functional Description

CH2+

TMDS Data Signal Channel 2 Positive

GND

TMDS Data Signal Channel 2 Shield

Ch2-

TMDS Data Signal Channel 2 Negative

CH1+

TMDS Data Signal Channel 1 Positive

GND

TMDS Data Signal Channel 1 Shield

CH1-

TMDS Data Signal Channel 1 Negative

CH0+

TMDS Data Signal Channel 0 Positive

GND

TMDS Data Signal Channel 0 Shield

CH0-

TMDS Data Signal Channel 0 Negative

CLK+

TMDS Clock Channel Positive

GND

TMDS Clock Signal Shield

CLK-

TMDS Clock Channel Negative

CEC

Consumer Electronics Control

Reserved

Not used

SCL

HDCP/DDC communication clock

SDA

HDCP/DDC communication data

GND

DDC/CEC shield

5 V Input for Transmitter from Host

5 V Output for Monitor from Receiver

Hot plug

Detect

Signal is driven by monitor to enable the system to identify the presence

of a monitor

HDFX-100-TR (Ver.1.0)

- 10 -

www.opticis.com

Reliability Test

We have three kinds of test criteria for a reduction of variability and a continuous improvement of

the process by our FMEA (Failure Mode and Effective Analysis) program.

1) Mechanical test (Vibration, Shock)

2) Temp. & Humidity test

3) EMC test (FCC class A and CE Verification for M1-203H-TR)

Mechanical and Temp. & Humidity Test

Heading

Test

Conditions

Duration

Sample

Size

Remarks

Operating

Test

Operating at each

Temperature (See

Note)

-10~65℃(Interval:

10℃)

30 Min

(Each Temperature)

n=3

Note: Evaluate display

quality of Laser Beam

Projector connected to

Graphic Signal

Generator (Quantum

Data: GD-802B) at each

temperature.

1. TS: Storage

Temperature

2. RH: Relative Humidity

Storage

Test

Low Temperature

TS= -20℃

128 HR

n=3

High Temperature

TS= 65℃

128 HR

n=3

High Humidity /

High Temperature

TS: 65℃

RH: 85%

128 HR

n=3

Mechanical

Test

Mechanical Shock

Pulse: 11 ms

Peak level: 30 g

Shock pulse:

6times/Axis

n=3

Mechanical

Vibration

Peak acceleration: 5 g

Frequency: 10~55 ㎐

Sweep time: 5 Minutes

2 Times/Axis

n=3

Autres manuels pour HDFX-100-TR

Table des matières

Autres manuels opticis Extenseur

opticis

opticis HDFX-250-TR Manuel utilisateur

opticis

opticis Stretch DisplayPort DPC-MP14-TR Manuel utilisateur

opticis

opticis DPFX-300-TR Manuel utilisateur

opticis

opticis M5-1003 Manuel utilisateur

opticis

opticis HDFX-500-TR Manuel utilisateur

opticis

opticis AVFX-100TR Manuel utilisateur

opticis

opticis HDFX-700-TR Manuel utilisateur

opticis

opticis AVFX-100-TR Manuel utilisateur

opticis

opticis HDFX-150-TR Manuel utilisateur

opticis

opticis IPKVM-500-ED Manuel utilisateur

opticis

opticis Stretch DVI DDFX-100-TR Manuel utilisateur

opticis

opticis M5-2C2-TR Manuel utilisateur

opticis

opticis IPKVM-310-ED Manuel utilisateur

opticis

opticis HDCX-100-TR Manuel utilisateur

opticis

opticis M5-2A2-TR Manuel utilisateur

opticis

opticis HDFX-100-TR Manuel utilisateur

opticis

opticis HDFX-100-TR Manuel utilisateur

opticis

opticis M5-1002 Manuel utilisateur

opticis

opticis HDFX-200-TR Manuel utilisateur

opticis

opticis HDWX-100-TR Manuel utilisateur

opticis

opticis KVMX-200-TR Manuel utilisateur

opticis

opticis DPFX-700-TR Manuel utilisateur

opticis

opticis DPFX-100-TR Manuel utilisateur

opticis

opticis DPFX-250-TR Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
