User’s Manual

HDFC-200

Doc No. : OEC-H161223-M1 / Ver 1.0

Stretch HDMITM

Manual Contents

______________________________________________________

Manual Contents 1-0

Welcome!, Product Description 1-1

System Requirements for Setup 1-2

Installation 1-3

Troubleshooting, Maintenance, Technical Support 1-4

Product Specifications 1-5

Warranty Information 1-6

Pictorials

Figure 1 –General connection diagram of HDFC-200 1-1

1- 0 Manual Contents

Welcome!

Congratulations on your purchase of the Stretch HDMITM HDFC-200, Active

Optical Cable for HDMI 2.0. This manual contains information that will assist

you in installing and operating the product.

Product Description

Shipping Group

HDFC-200, Active Optical Cable: One (1) unit, length as your

inquire.

User’s Manual

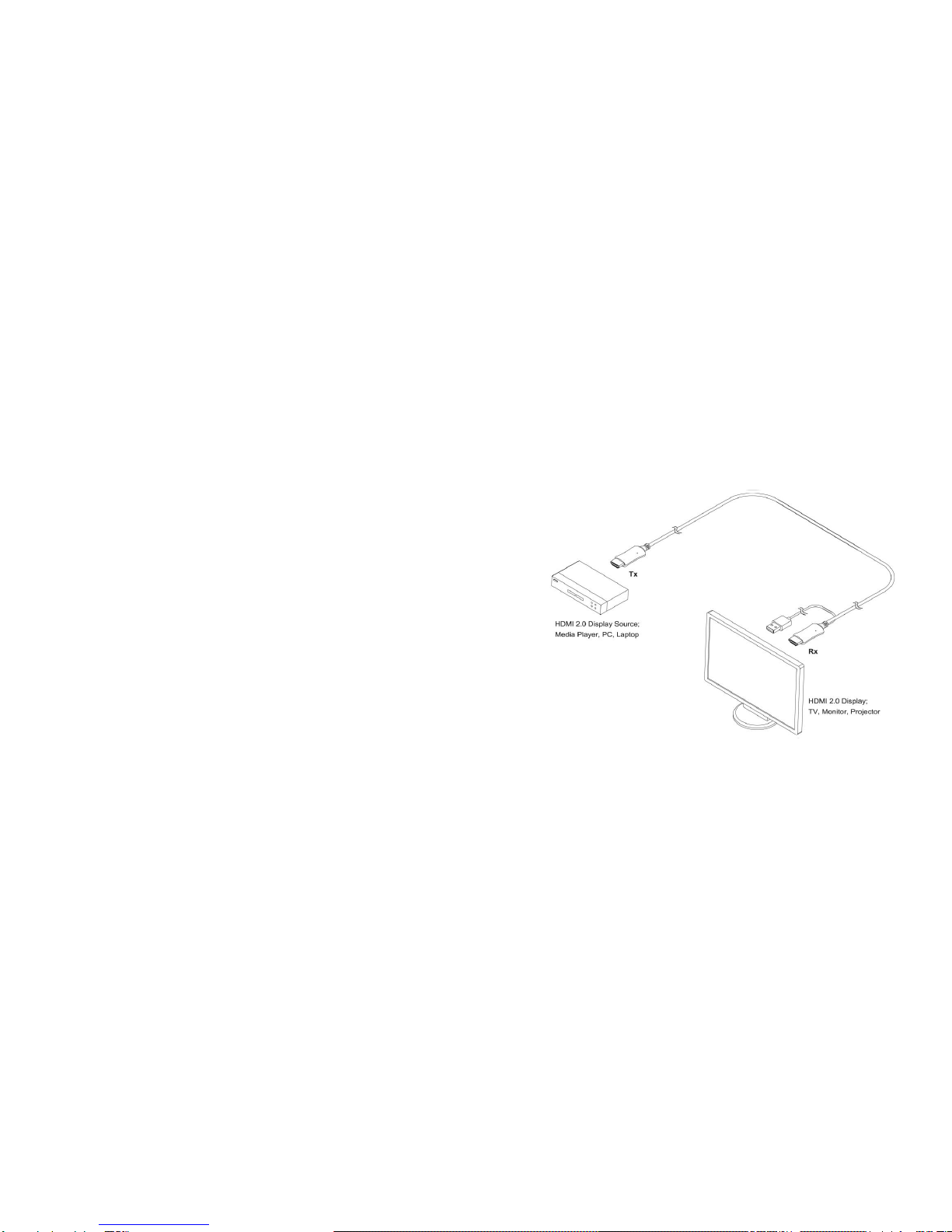

Figure 1 –General connection diagram of HDFC-200

1-1 Welcome, Product Description

System Requirements for Setup

Hardware requirements

You have to have a HDMI display source (Media player, PC or

laptop). It should support the maximum graphic resolution

feature of Display (TV, Monitor or Projector) to be connected.

No special requirements memory size, CPU speed and

chipsets, if you’ve already properly installed your HDMI

systems.

Software requirements

No special restrictions, if you’ve already properly installed your

HDMI / DVI systems.

AC/DC Power Adapter Technical Advisory

The HDFC-200 is designed to use +5V internal power supplied

through a HDMI pin (#18) on the graphic source port. However,

HDFC-200 requires USB power supply on RX side to power up.

Note that if either of Display source or Display does not support

HDMI 2.0 standard, HDFC-200 would not transmit HDMI 2.0 signal.

Just like copper cable, transmitting information will follow lower

resolution of the two.

(Example: 4K Display source –2K Display → 2K resolution,

2K Display source –4K Display → 2K resolution)

1-2 System Requirements for Setup

Installation

Important: Please use the installation procedure below. Improper or no

operation may result if the start-up sequence is not correctly followed.

Step 1

Carefully unpack the contents of the shipping group.

Step 2

Plug directly the HDMI plug of the Tx side of HDFC-200 into the HDMI

receptacle of HDMI source (Media player, PC or laptop) without power up of

the devices. Opticis does NOT recommend customer to use any intermediate

cable or adapter between them. It may deteriorate the signal transmission

performance.

Step 3

Plug the HDMI plug of the Rx side of HDFC-200 into the HDMI receptacle of a

Display. Opticis does NOT recommend customer to use any intermediate

cable or adapter between them. It may deteriorate the signal transmission

performance.

Step 4

Plug USB connector of RX side to USB port of a display and check the blue

LED of RX is ON.

Step 5

Power ON the device of a HDMI source and a Display and check the blue

power LED on Tx and Rx ON.

Step 6

If the system does not work properly, go to page 1-4, trouble shooting.

Note: HDFC-200 can utilize either the +5V power supplied through a HDMI pin

(#18) from the HDMI source or the +5V power adaptor. Nonetheless, you have

to confirm the power being capable to supply more than 500mA. If HDMI

source doesn’t supply enough power, you can make a customized order of

HDFC-200, USB power cable on TX side for supplying power (optional).

Note: Many HDMI sources are able to supply sufficiently DC power to operate

HDFC-200 on TX side.

1-3 Installation

Troubleshooting

The display displays only black screen.

Ensure that the HDMI ports are firmly plugged in to the HDMI source and

display. Ensure that the Tx and Rx module plugged correctly to the HDMI

source and display respectively. Ensure that blue power LEDs on Tx and Rx

modules are on.

Check if the HDMI source and display are powered on and properly booted.

Reset the system by de-plugging and re-plugging the Tx HDMI port or Rx

HDMI port.

Re-boot up the system while connecting the optical HDMI cable system.

Screen is distorted or displays noises.

Ensure connections of both plugs while disconnecting and reconnecting the

optical HDMI cables.

Maintenance

No special maintenance is required for the optical HDMI cables. Ensure that

the cables and power modules are stored or used in a benign environment

free from liquid or dirt contamination.

There are no user serviceable parts. Refer all service and repair issues to

Opticis.

Technical Support and Service

For commercial or general product support, contact your reseller. For

technical service, contact Opticis by email techsupp@opticis.com or visit our

website at www.opticis.com

1-4 Troubleshooting, Maintenance, Technical Support

Product Specifications

HDFC-200, HDMI 2.0 Active Optical Cable

Support HDMI 2.0 Standards

Extends up to 4K (4096x2160) at 60Hz (RGB & YCbCr : 4:4:4)

Transmits HDMI 2.0 data up to 100m(328feet) over hybrid cable

Adopts plenum graded & LSZH (Low Smoke Zero Halogen) hybrid

cable

Prevents accidental disconnection by using High-Retention HDMI

connector

Supports 3D contents transmission

Operates by external USB power on the display(RX) side

Provides USB power cable on display source(TX) side for

insufficient power supply(optional)

Tensile load: 250N

Minimum bending radius: 70mm

(usually safe in assuming a minimum long-term low-stress

radius not less than 15 times the cable diameter. ; EIA/TIA 568

For Fiber Optics

Outer diameter of cable: 3.9x2.7mm

Mechanical specifications of Tx and Rx module parts

Dimensions: 19.6mm / 11.5mm / 42.6mm (W/H/D)

Environmental Specifications

Operating temperature: 0°C to 70°C

Storage temperature: - 20°C to 85°C

Humidity: 10% to 90%

Certifications: CE / FCC

1-5 Product Specifications

Version 1.0. 20,Dec, 2016

Opticis Locations

Headquarters

Opticis Co., Ltd.

# 16Fl, Kins Tower

8 Sungnam-daero, 331 beon-gil,

Bundang-gu,

Seongnam-si, Gyunggi-do, 13558

South Korea

Tel: +82 (31) 719-8033

Fax: +82 (31) 719-8032

www.opticis.com

For order support, please contact your Distributor or Reseller.

For technical support, check with the Opticis web site www.opticis.com or

contact [email protected]om

Warranty Information

1 (One) Year Warranty

Opticis warrants this optical HDMI extension cable to be free from defects in

workmanship and materials, under normal use and service, for a period of

one (1) year from the date of purchase from Opticis or its authorized resellers.

If a product does not work as warranted during the applicable warranty period,

Opticis shall, at its option and expense, repair the defective product or part,

deliver to customer an equivalent product or part to replace the defective item,

or refund to customer the purchase price paid for the defective product.

All products that are replaced will become the property of Opticis.

Replacement products may be new or reconditioned.

Any replaced or repaired product or part has a ninety (90) days warranty or

the reminder of the initial warranty period, whichever is longer.

Opticis shall not be responsible for any software, firmware, information, or

memory data of customer contained in, stored on, or integrated with any

products returned to Opticis for repair under warranty or not.

Warranty Limitation and Exclusion

Opticis shall have no further obligation under the foregoing limited warranty if

the product has been damaged due to abuse, misuse, neglect, accident,

unusual physical or electrical stress, unauthorized modifications, tampering,

alterations, or service other than by Opticis or its authorized agents, causes

other than from ordinary use or failure to properly use the Product in the

application for which said Product is intended.

Dispose of Old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate systems)

This symbol on the product or on its packaging indicates that this

product shall not be treated as household waste. Instead it shall be

handed over to the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could

otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed

information about recycling of this product, please contact your local city office, your

household waste disposal service or the shop where you purchased the product.

1-6 Warranty Information
