Optex AP-360BR Manuel utilisateur

AP-360BR(C)

Indoor Recessed Mount PIR Detector

360°/Battery operated model

INSTALLATION INSTRUCTIONS

No.59-3222-0 2207-04

- Manufacturer’ s statement

- Parts identification

- Specifications

- Dimensions

- Detection area

- Troubleshooting

- Timing chart

- Compliance

Before installation

Others

<< Contents >>

Page

Installation

Ceiling mount

without switch box

Wiring

Ceiling mount

with 86-type box

Checking3

Settings1

Indoor Recessed Mount PIR Detector

AP-360BR(C)

360° ø6.0 m (20’ ) detection area at 4.5 m (14’ 9” ) mounting height

- Manufacturer’ s statement

NOTE

Failure to follow the instructions provided with this indication

and improper handling may cause death or serious injury.

Failure to follow the instructions provided with this indication

and improper handling may cause injury and/or property damage.

Check mark indicates recommendation.

Nix sign indicates prohibition.

Special attention is required to the

section of this symbol.

Mounting height

2.5 to 4.5 m (8’2” to 14’9”)

Symbol Meaning

Warning

Caution

Warning

Caution

Wetting with water

Symbol Meaning

Before installation

Destroy

modify Outdoor installation

Detection through glass

Follow to the Regulations

Partial/complete obscuration

of the detection area.

- Parts identifications

Top cover

Lens

Base cover

JP2

PIR sensitivity

JP1

Alarm output mode

SW1

Tamper switch

Accessories

Retaining spring x 2

Fixing screw

Mounting Bezel

for an 86-type box

Screw cap x 2

JP3

Battery saving timer

Disassemble

Settings

Open the base cover, and to set the detector.

N.C. (default) N.O.

Turn the jumper PIN

by 90 degrees to prevent

interference with the casing.

Jumper pin settings

Assemble

Close the base cover, and fasten the screw to fix the cover.

JP1

Alarm output mode

JP2

PIR sensitivity

120 s (default) 5 s

JP3

Battery saving timer

H (recommended) M (default) L

Mounting height: > 3.5 m 3.0 to 3.5 m < 3.0 m

(11’6”) (9’10” to 11’6”) (9’10”)

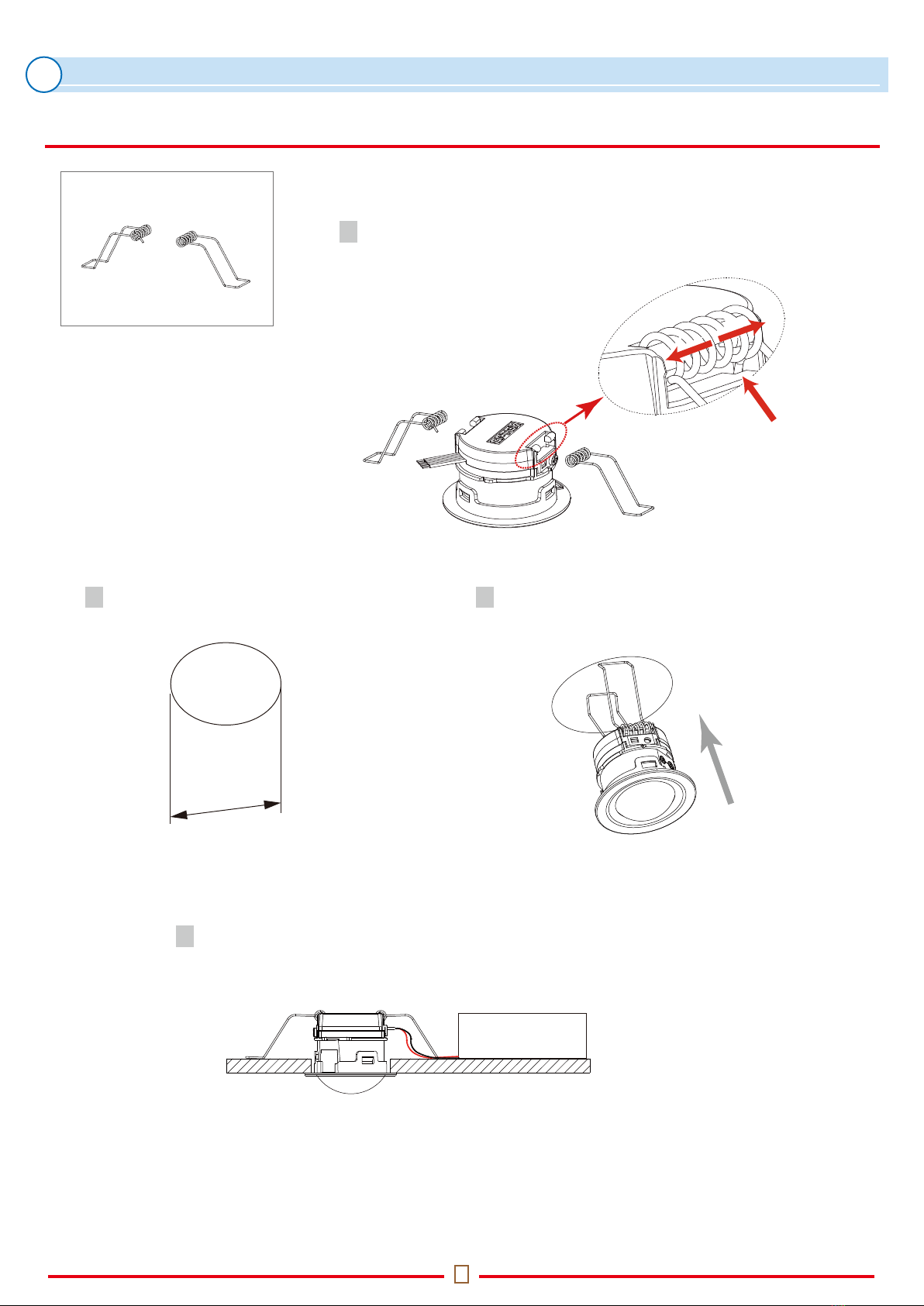

2-1. Ceiling mount without switch box

Installation

Install a retaining spring on both sides.

(follow the illustrated arrow steps to complete the assembly of the retaining spring.)

Mount the detector on the ceiling.

(Be sure to arrange the wires with a downward slope to prevent water igress into the detector.)

2 3

Insert the detector into the hole with the retaining spring facing up.Make a ø45 mm (1.77”) hole in the ceiling for mounting.

ø45 mm

(1.77”)

Accessories

used in this installation

Retaining spring x 2

Transmitter

2-2. Ceiling mount with 86-type box

Alarm

Tamper

Transmitter

For the 86-type box mount, dual 86-type boxes are recommended

with the additional one used to accommodate the transmitter.

NOTE

Accessories

used in this installation

Mounting Bezel

for an 86-type box

Screw cap x 2

Options

to procure in the market

86-type box x 1 or 2

Screw x 2

Prepare an 86-type box on the ceiling.

Install the detector into the 86-type box.

Align the bump with the triangle recess as illustrated in the figure.

NOTE

Fix the detector with two screws and cover their heads with two caps.

Transmitter

2-3. Wiring

[1] Red

[2] Black

[3] White

[4] Yellow

[5] Green

[6] Blue

Power supply: positice

Power supply: negative

Alarm output

Tamper output





Alarm

Tamper

Transmitter

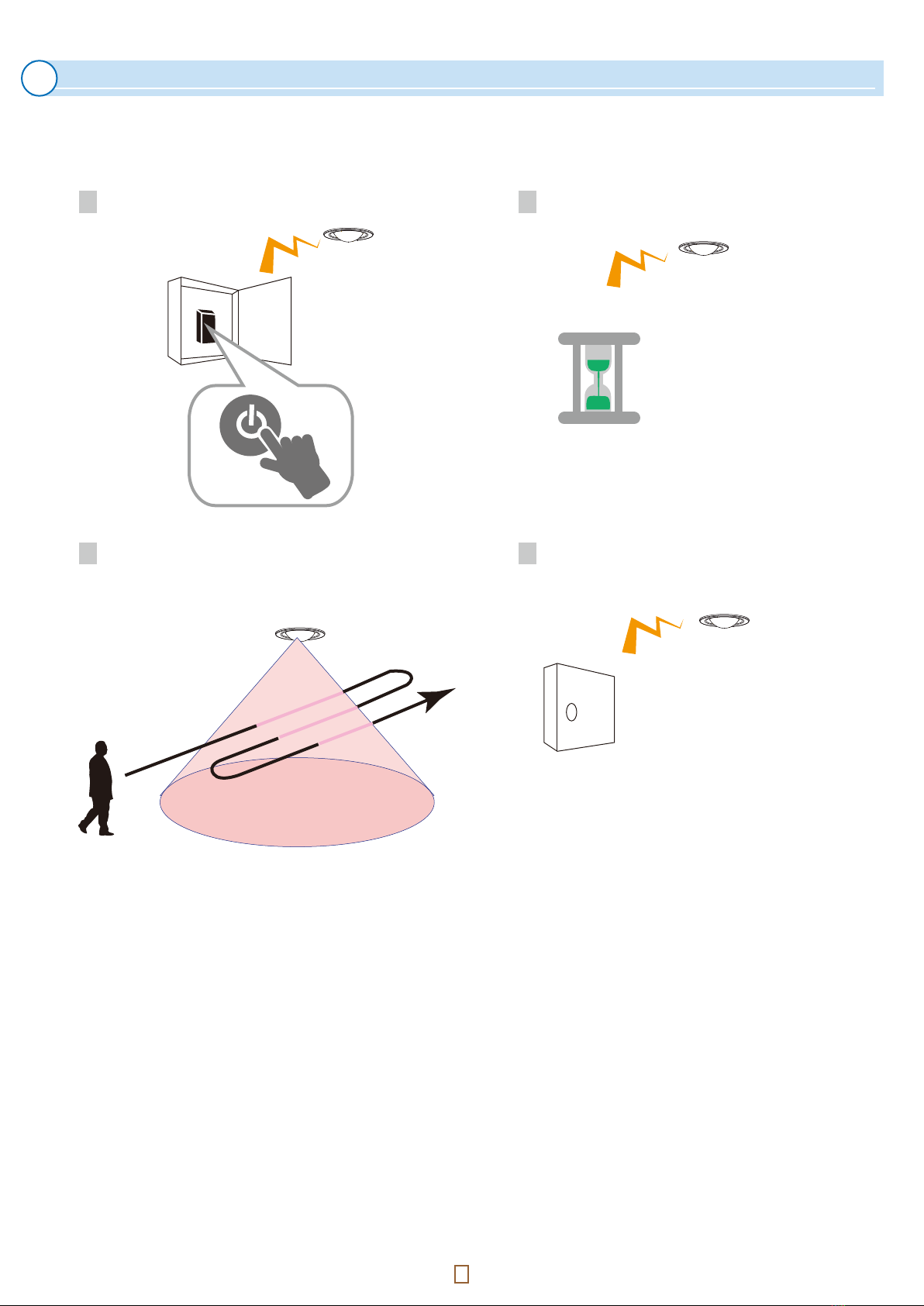

Power on. Wait for 60 seconds to complete the warm-up time.

Walk in the detection area to check the detecting performance.

3-1. Walk test

3Checking

3Start operation.

Power

60 sec.

• Specifications and designs are subject to change without prior notice.

• These units are designed to detect an intruder and activate an alarm control panel.

Being only a part of a complete system, we cannot accept responsibility for any

damages or other consequences resulting from an intrusion.

- Specifications

Others

Detection method

Detection area

Mounting height

Mounting mode

Sensitivity

Detection speed

LED indicator

Alarm cycle

Battery saving timer

Alarm output

Tamper switch

Warm-up time

Power supply

Current

PIR sensitivity

Weight

Operation temprature

Operation humidity

Location

Dimensions

Passive infrared

N.C. 28 V DC 100 mA max.

The contact opens once the casing is detached.

Approx. 60 s

H/ M/ L

< 95%

Indoors



Model AP-360BR(C)

Warm-up upon power on: blinking

Stand-by: off

Walk test: solid on

Alarm: off

Approx. 2 s

120 s/ 5 s selectable

N.O./N.C., 3.6 V DC 10 mA max.

2.7 to 3.6 V DC (CR123A battery)

3 V DC

Stand-by: 10цA, Max.: 4 mA

ø6 m (ø20’ at mounting height: 4.5 m (14’9” ft.)

2.5 to 4.5 m (8’2” ft. to 14’9” ft.)

2.0℃at 0.6 m/s (3.6°F at 2’/s)

0.3 to 3.0 m/s (1‘/s to 9’10”/s)

50 g (1.76 oz)

-20 to +50℃(-4°F to +122°F)

86 x 86 x 42.5 mm (3.39 x 3.39 x 1.67 in.): with 86-type box mount

ø52 x 42.5 mm (ø2.05 in. x 1.67 in.): without switch box mount

Recessed ceiling mount/86-type box mount

- Dimensions

- Detection area

2.0 (6’7”)

2.5 (8’2”)

3.0 (9’10”)

3.5 (11’6”)

4.0 (13’1”)

4.5 (14’9”)

Side view

Top view

3 2 1 0 1 2 3

(9’10” 6’7” 3’3” 0 3’3” 6’7” 9’10”)

3.0 (9’10”)

2.0 (6’7”)

1.0 (3’3”)

2.0 (6’7”)

3.0 (9’10”)

Mounting height

Detection area

Maximum detection area

2.5

(8’ 2’ )

ø3.3

(ø10’ 10” )

3.0

(9’ 10” )

ø4.0

(ø13’ 1” )

3.5

(11’ 6” )

ø4.6

(ø15’ 1” )

4.0

(13’ 1” )

ø5.4

(ø17’ 8” )

4.5

(14’ 9” )

ø6.0

(ø20’ )

Unit: m (ft., in.)

3 2 1 0 1 2 3

(9’10” 6’7” 3’3” 0 3’3” 6’7” 9’10”)

Without switch box mount

  

With 86-type box mount

Unit: mm (inch)

86 (3.39)

86 (3.39) 42.5 (1.67)

ø52 (2.05) 42.5 (1.67)

102 (4.02)
