Optex CVS2 Manuel utilisateur

DISPLAY ON LCD SCREEN

Basic Information Before Use

Display on LCD Screen

Distinction by

Patterns Recognition

Use of Applied Functions

Changing Set Value

Troubleshooting

Appendix

COLOR VISION SENSOR SERIES

Patterns Recognition

Sensor

Instruction Manual

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

FOREWARD

• Thank you for purchasing our color vision sensor series Patterns

Recognition Sensor (CVS2).

• Carefully read this manual before using this device for correct use.

• After reading this manual, keep it handy for ready reference.

• This device cannot be used as a safety-related device to protect human

body.

Legend of Safety Symbols

In this manual, various symbols are used for safe use of the device,

preventing the harm to you and other persons as well as the damage to the

property.

Symbols and their meanings are as follows. Before reading this manual,

fully understand the meanings of these symbols.

Indicates a possible hazard that may result in death or

serious injury if the device is used incorrectly without

observing stated instructions.

Indicates a possible hazard that may result in any injury or

property damage if the device is used incorrectly without

observing the stated instructions.

Indicates precautions and regulations to be observed or other

information useful to know.

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

PRECAUTIONS FOR SAFE USE

• Do not disassemble nor modify the device.

Otherwise, it may cause a re or an electric shock.

• Continuing to use the device under abnormal

conditions, such as those with abnormal smell or

smoke, may cause a re or an electric shock. In

such cases, immediately pull out the power plug and

conrm that the abnormal condition is removed, and

then contact us or our sales representative. Never

repair the device by yourself since it is dangerous.

• Do not use the device by a power voltage outside

12-24 V DC. It may cause a re or an electric shock.

• Avoid wiring a cable and high-voltage or power cable

in parallel or wiring them in a same piping. It may

cause a malfunction of the device.

• Do not mount the device at any one of the following

places to use this product properly and safely. If not

observed, it may cause a re, an electric shock, or a

failure.

• Place at high prospective humidity

• Place at high prospective temperature (where

the device is subject to direct sunshine)

• Dusty place

• Place with insufcient ventilation

• Place where static electricity is likely to be

generated

• Place involving corrosive or ammable gases

• Place where the device is subject to water, oil,

and /or chemical splashes

• Place with direct vibration and impact

• Do not handle electric cables as follows. Otherwise,

cables may be damaged, resulting in a re or an

electric shock.

• Damage • Torture • Pull

• Twist • Bundle, • Put heavy stuff

• Do not touch the device or its cable with wet hand.

Otherwise, it may cause an electric shock.

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

• Do not insert any improper cable or metal into

electrical terminals. It may result in short-circuiting

inside the device, causing a re, an electric shock,

and / or a failure.

• Do not drop this device nor give any strong impact

on it. It may result in personal injury, if it falls on your

foot, or a device failure.

• Securely mount this device. This device may

fall off due to insufcient mounting or unstable

mounting position, resulting in personal injury or

an accident.

• Wipe off the dirt on this device with a soft, dry

cloth or a rmly squeezed cloth wet with diluted

neutral detergent.

• Please note that there may be dead pixels or

bright pixels with the LCD screen although it

has been produced with a super-high precision

technology.

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

TABLE OF CONTENTS

FOREWARD.......................................................................2

Legend of Safety Symbols ......................................................... 2

PRECAUTIONS FOR SAFE USE ......................................3

TABLE OF CONTENTS ......................................................5

1 BASIC INFORMATION BEFORE USE ............................7

Names and Functions of Components....................................... 7

Precautions When Mounting This Sensor.................................. 8

Wiring of Power Cable ............................................................. 10

Option....................................................................................... 11

2 DISPLAY ON LCD SCREEN .........................................12

Outline of LCD screen .............................................................. 12

Details of LCD Screen.............................................................. 14

Names and Functions of Operating Buttons ............................ 15

3 DISTINCTION BY PATTERNS RECOGNITION............16

Outline of Patterns Recognition................................................ 16

Registration of Work Pattern (Shape) ...................................... 17

Conrming Identity by Switching Display Mode ....................... 19

Operation Check by Shifting Work ........................................... 21

4 USE OF APPLIED FUNCTIONS ...................................22

Position & Magnication Correction ......................................... 22

Masking.................................................................................... 29

Edition of Color Detection Area ................................................ 36

Rotation Correction .................................................................. 39

Brightness Irregularity Correction............................................. 46

5 CHANGING SET VALUE...............................................48

Changing Set Value.................................................................. 48

Initializing Set Value ................................................................. 49

Example of Changing Set Value .............................................. 50

Set Items List............................................................................ 52

Function of Color Selection & Mask Edition Menu ................... 58

6 TROUBLESHOOTING...................................................59

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

When in trouble: ....................................................................... 59

7 APPENDIX .....................................................................65

Specications ........................................................................... 65

Outside Dimensions Drawing ................................................... 66

I/O Circuit Diagrams................................................................. 67

Relation between External Input and Bank No. ....................... 68

External Teaching Timing ......................................................... 68

Function of Auxiliary Output ..................................................... 69

Operation Check by Using Sample Work................................. 70

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

BASIC INFORMATION BEFORE USE

Conrm that the device is not damaged before using it.

Names and Functions of Components

Operating Buttons

Use to register patterns or colors, set

each item, or switch the display mode

of the screen.

See "Names and Functions of

Operating Buttons" on Page 15.

LCD Display

Displays the images and the detection

result taken by the built-in camera.

Also, displays each set item and set value.

See "Display on LCD Screen"

on Page 12

Power / Signal Cable Connector

Connects the power / signal cable.

See "Wiring of Power Cable" on Page 10.

Cable Connector

Connects external cable (Option).

See "Options" on Page 11.

Mounting Hole

Using a screw M4×50 mm or more is

recommended.

See "Outside Dimensions

Drawing" on Page 66.

Built-in camera and

lights are equipped

on the back.

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

Precautions When Mounting This Sensor

• Mount the sensor leaned by 5°-45° so that

lighting should not be reected by a work.

5°-45°

Work

• Detection may become successful by changing

the setting even if a detected image is

displayed as shown in the right gure.

See "Changing Set Value" on Page 48.

Tilt the sensor by 10°-40° to avoid the mirror reection when a

work is shiny.

• Take caution so that the external lighting (light

from uorescent light, etc.) is not reected.

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

• The work imaging condition changes depending on the distance

between the sensor and a work and the tilted angle of the sensor.

When detecting a slight difference in shape, smear, or aw of a work,

furnish more stable bracket for this sensor and design the machine so

that attering of works is reduced as much as possible.

• Refer to the standard object distance of each model as to the distance

between this sensor and a work.

See "Specications" on Page 65.

If the object distance is too near, the sensor becomes out of focus,

causing a irregular lighting, while it is too far, the sensor is likely to

receive the inuence of the turbulence light since the light does not

reach the work.

See "Correction of Brightness Irregularity" on Page 46.

• When a work moving very fast is going to be detected, the shutter time

(brightness) has to be shortened. In such a case, make the distance

between the sensor and a work closer or add additional external

lighting since quantity of light becomes insufcient with only the light

built in this sensor.

See "Options" in Page 11.

• The shutters of the image sensor of this device open in sequence from

the right to the left in the screen. Because of this reason, the work

traveling from the right to the left is displayed wider and the one

traveling opposite is displayed narrower.

In order to detect a slight difference in shape, slow down the travel

speed of a work.

• Please note that there may be dead pixels (pixels that cannot receive

light correctly) with this image sensor. Although dead pixels may

not detect or detect incorrectly, they will not be any problem on the

practical use since they are very few.

BASIC INFORMATION BEFORE USE

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

Wiring of Power Cable

The following shows the color and signal allocations of the power / signal

cable lines.

No Line Color Content of signal

1 Brown 12-24 V DC

2 Blue 0 V

3 Orange / Black Bank switch 0 input

4 Yellow / Black Bank switch 1 input

5 Pink Bank switch 2 input / External

teach input

6 Purple Bank switch 3 input / Synchronous

input

7Black Judgment output

8Red/Black Aux. output

• The LCD screen and lighting turn ON when the power lines are

connected.

• The reference power capacity is 300 mA/unit.

Ramco Innovations

www.optex-ramco.com

phone 800-280-6933

Table des matières

Autres manuels Optex Accessoires

Optex

Optex TS-1000-D Manuel utilisateur

Optex

Optex OA-4500S(E) Manuel utilisateur

Optex

Optex OVS-01GT Manuel utilisateur

Optex

Optex VIBRO Manuel utilisateur

Optex

Optex OA-PRESENCE T Manuel d'installation

Optex

Optex Elite OA-603 Manuel utilisateur

Optex

Optex ProSafe OA-Presence Manuel utilisateur

Optex

Optex AX-250PLUS Manuel utilisateur

Optex

Optex OA-FLEX LITE Manuel utilisateur

Optex

Optex BS Series Manuel utilisateur

Optex

Optex i-OneX T Manuel utilisateur

Optex

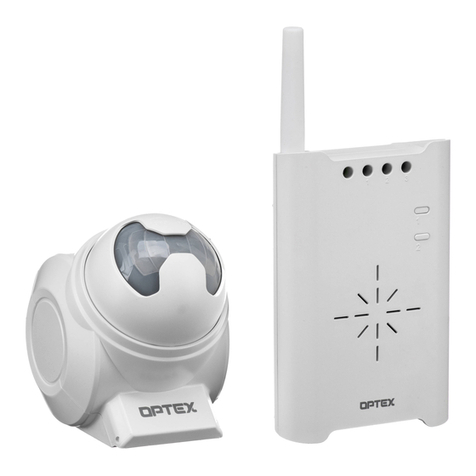

Optex RC-20U Manuel utilisateur

Optex

Optex Pro Swing OA-Edge T Manuel utilisateur

Optex

Optex QA-AXIS II Manuel utilisateur

Optex

Optex OA-FLEX T Manuel utilisateur

Optex

Optex OA-4500S Manuel utilisateur

Optex

Optex OA AXIS T Manuel utilisateur

Optex

Optex i-OneX T Manuel utilisateur

Optex

Optex OAM-DUAL TE Manuel utilisateur

Optex

Optex Prosafe OA-1V Manuel utilisateur

Optex

Optex Redscan Mini Manuel utilisateur

Optex

Optex Accurance-3D A3001CB Manuel

Optex

Optex OA-FLEX AIR T Manuel utilisateur

Optex

Optex i-oneX T Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
