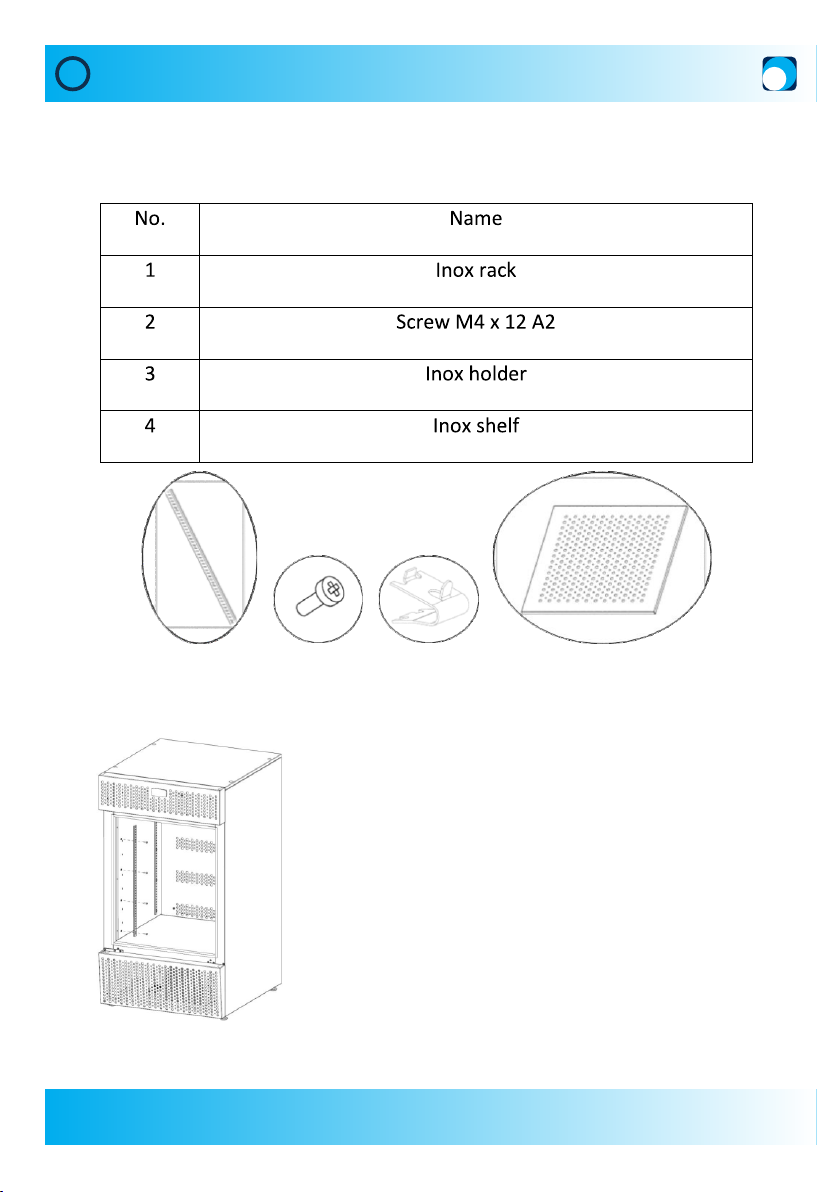

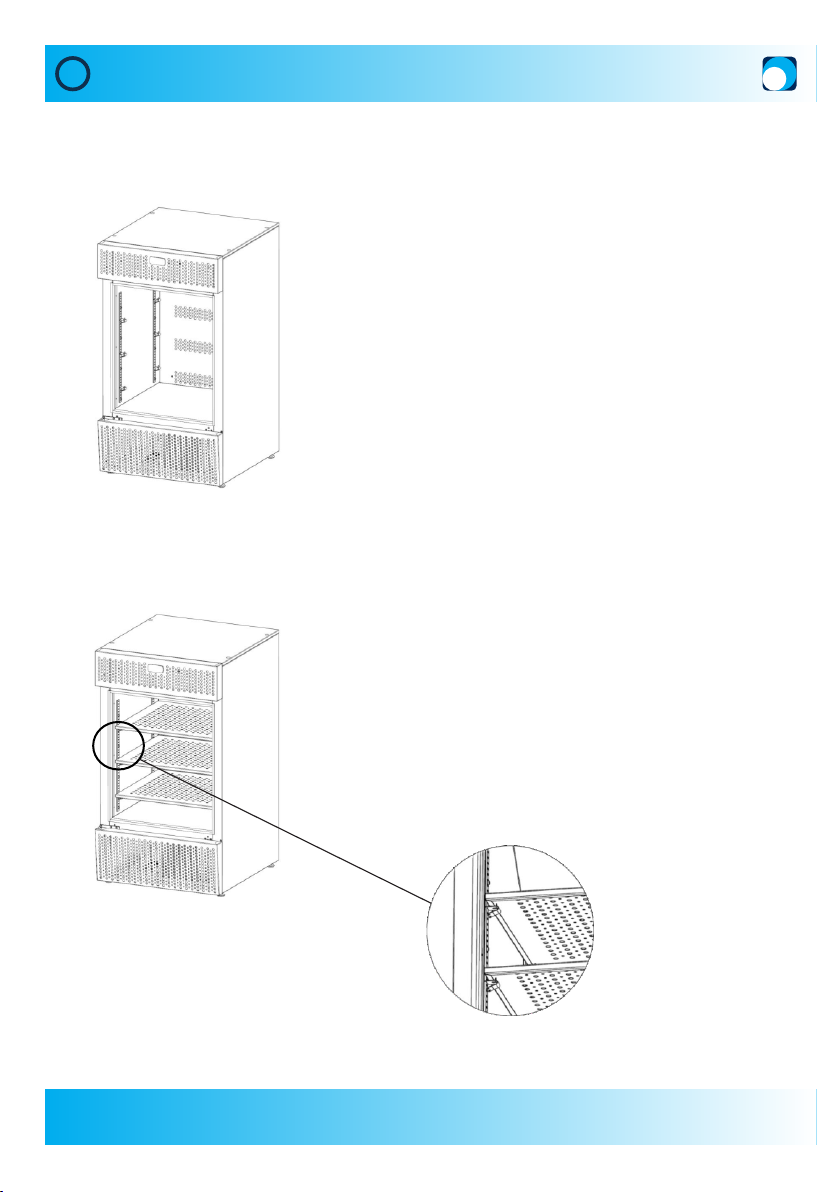

EN Appendix 4 - Drawer mounting instruction
6
Step 3.

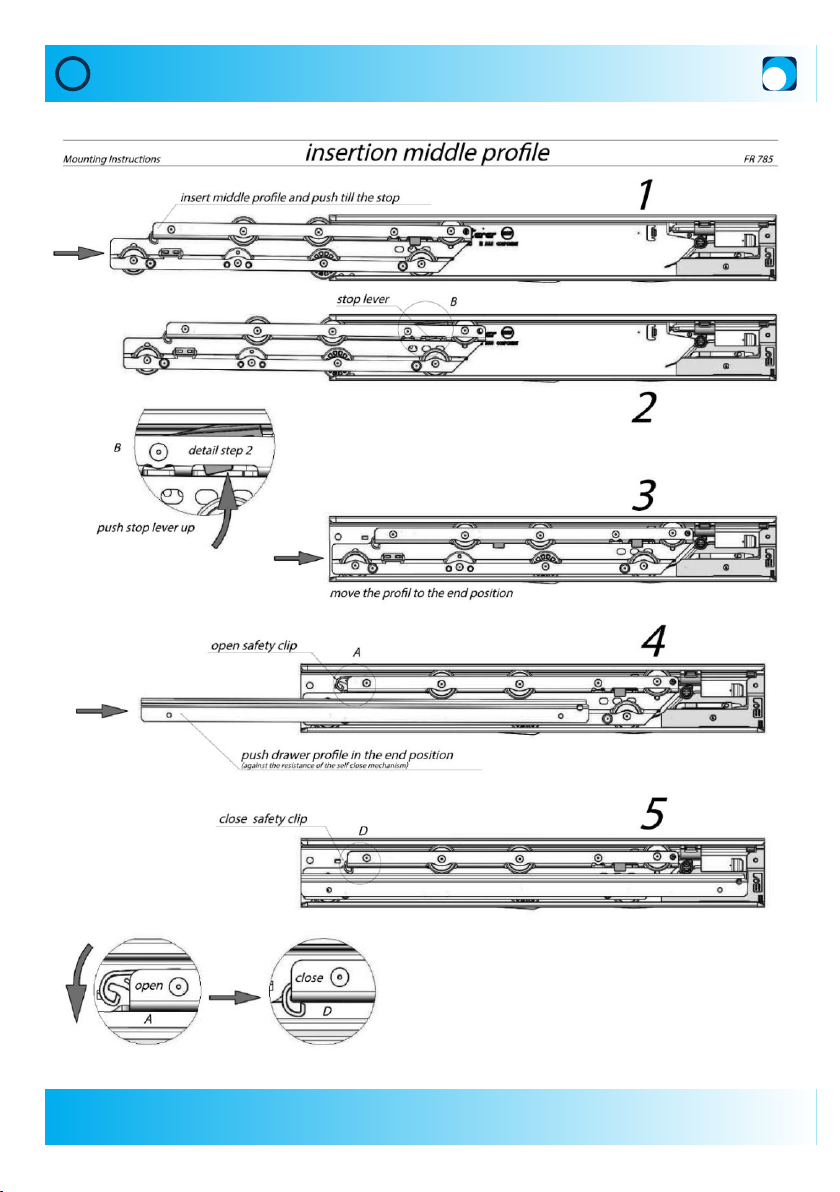

Insert middle profile and push it till the
stop [slide insertion instructions on
next page]. Mount drawer set to the
slides. Use drawer organizer set to
organize drawer to up to 9 smaller
compartments.
IMPORTANT: Slide set contains
mirrored left and right slide!
Step 2.
Mount slide brackets to the other
side of the cabinet. Use number 2
screw M4 x 10 A2 to tighten bracket to
the side. Use number 5 screw
M4 x 10 A2 to mount slide profile
onto brackets.
IMPORTANT: Slide set contains
mirrored left and right slide!

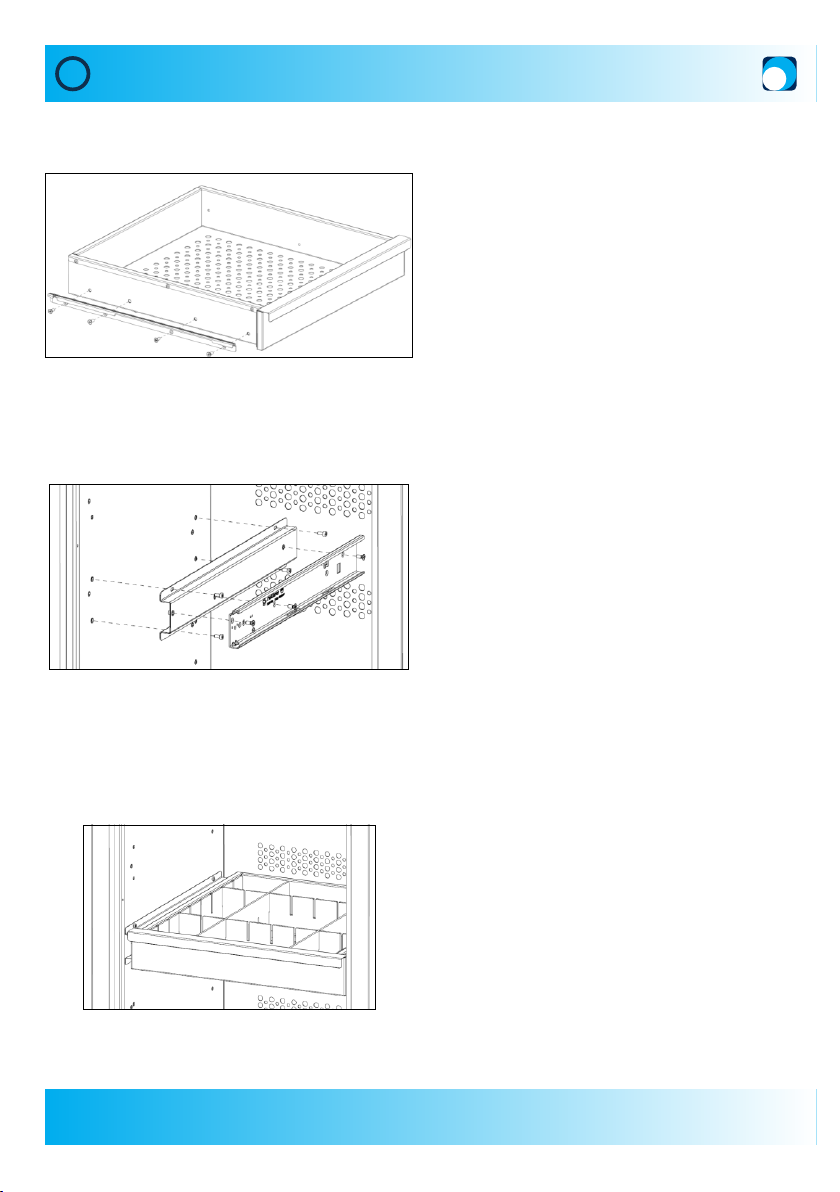

Figure 3. Drawer
Figure 2. Mounting of side bracket

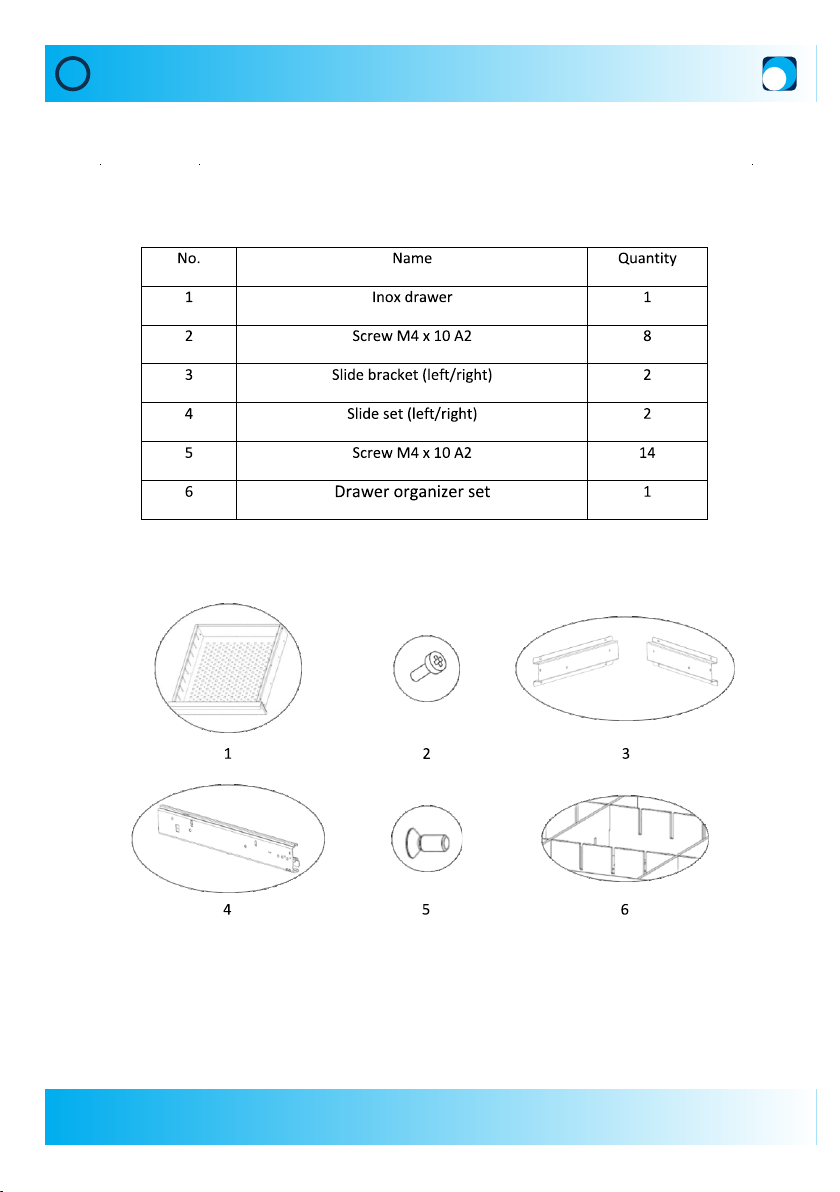

Step 1.
Unpack set from boxes. Take out inox
drawer, slide sets and number 5 screw
M4 x 10 A2. Mount drawer profile on
the sides of the drawer.
IMPORTANT: Slide set contains
mirrored left and right slide!
Figure 1. Mounting of drawer profile
