Opiz OP-D7D4 Manuel utilisateur

OPIZ ELECTRONICS CO.,LTD.

www.opizcn.com

tip

OP —D7D4

User Manual

Science & Technology protect your comfort life.

Direct-Call Door Station

Thank you for your kindly purchasing our product.

Please carefully read this user manual before using the product and follow instructions

exactly on how to install and use the product.

- 1 - - 2 -

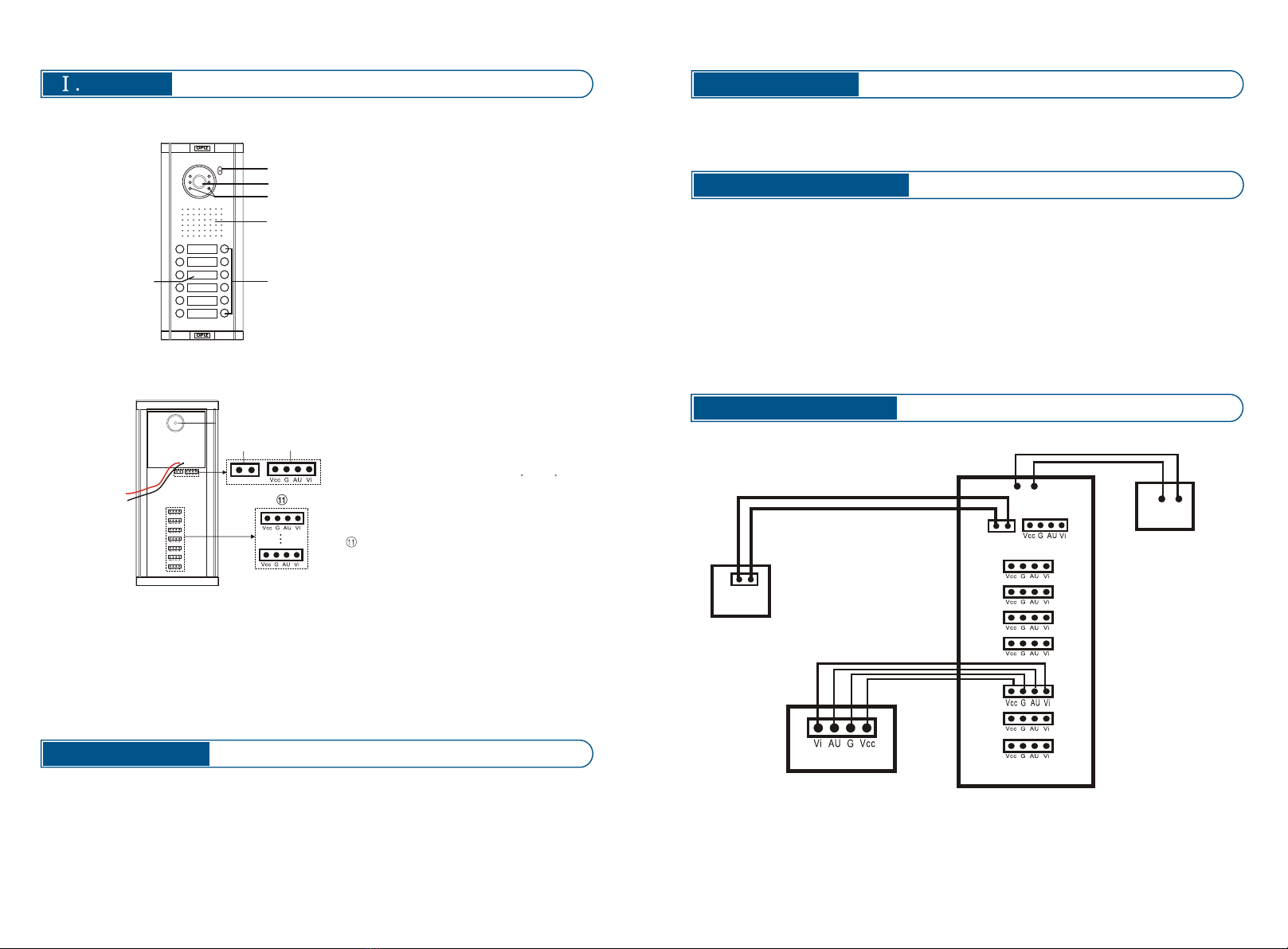

VIEW

FUNCTIONS

OPERATION

SPECIFICATIONS

PROGRAMMING

Ⅱ.

Ⅲ.

Ⅳ.

Ⅴ.

2. Rear view

1. Front view Calling: press “Call” button to call the indoor phone and talk with the

householder of the indoor phone. The householder can unlock the door by

pressing “Unlock” button.

Temperature: -40 ℃ ~ 70℃

Relative humidity: 45% ~ 95%

Atmospheric pressure: 86Kpa ~ 108Kpa

Fire endurance rating: IP33

Working voltage: DC12V

Standby current: 130mA

Working current: 230mA

Camera: Color 420L/ B/W 480L

Dimension: 275*120*45mm

Install dimension: 243*105*30mm

Installation: Wall mounted

Net weight: 715g

①

②

③ Infra-red lamp

④ Speaker

⑤ Call button

⑥ Room name

MIC

Camera

①

②

③

④

⑤

⑥

1. Two way communication

2. Unlock

3. One house one button

4. Transmit video image

5. Back light for keyboard

6. IR CCD camera

7. Visual and non-visual are compatible

V+ G

L+ L-

L+

L-

Power

Supply

Indoor Phone

Outdoor Station

E-Lock

V+ G

L+

L-

RED

BLAC K

V+ G

Vi Video line, connects with indoor phone Vi

AU Talking, calling and unlock line, connects with indoor phone AU line

GND Common line, connects with indoor phone G line

VCC Power line, connects with indoor phone VCC

L+ Connects with lock. This line can be signal line for unlocking if it is not used for the lock.

Available for high level (12V)

L- Connects with lock. This line can be common line for unlocking if it is not used for the lock.

V+ Connects with power +

G Connects with power -

Camera. Adjustable angle from -15 to +15

Power supply for keyboard.

No back light if unconnected

Connects with PCB inside

Connects with lock. Consumption 30W

System line, connects with each indoor phones

⑨

⑩

⑦

⑧

⑦

⑧⑨

⑩
