OpenEye OE-C9518 Manuel utilisateur
Camera
OE-C9518
www.openeye.net

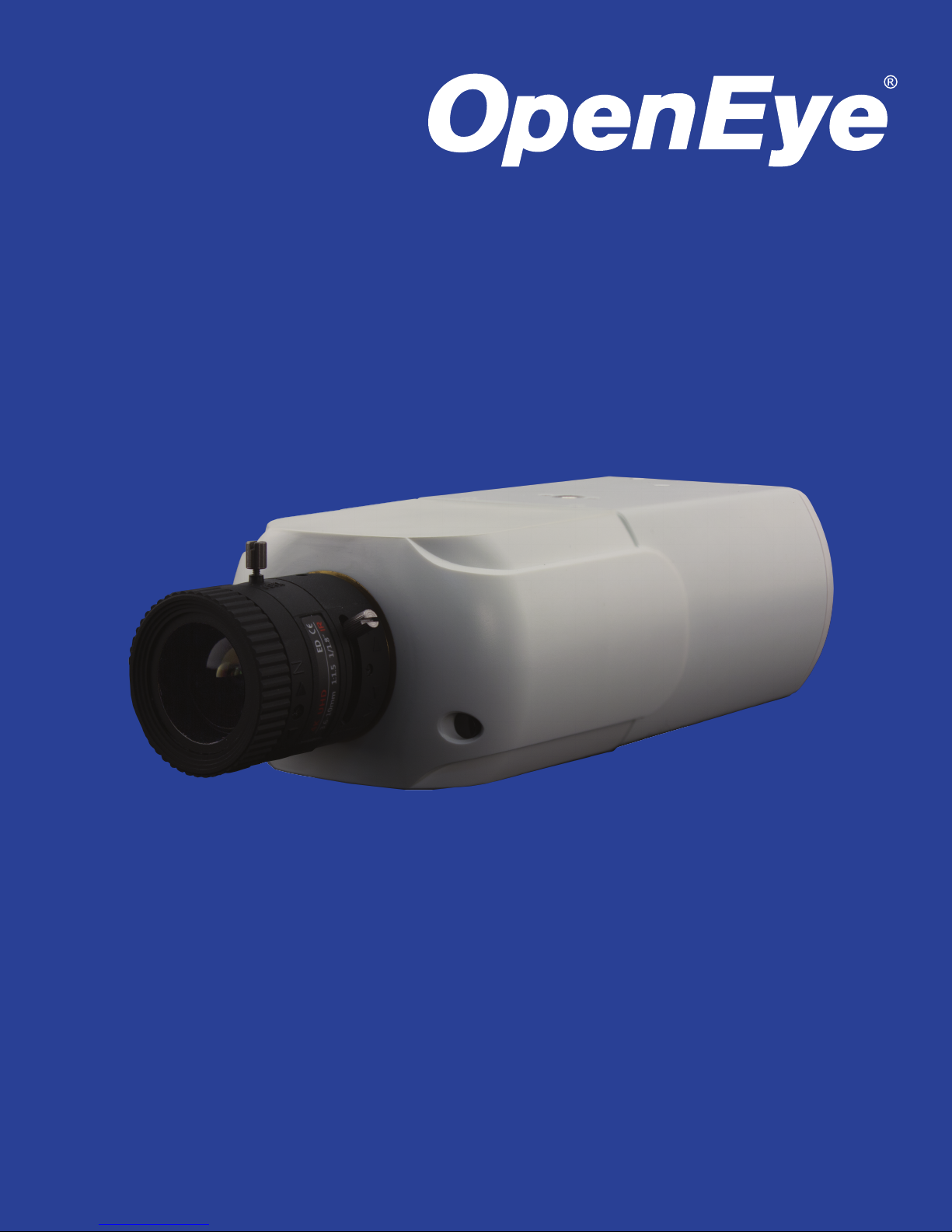

8MP IP Box Camera
User Manual
2
●
33505AA
Important Safeguards
Precautions
4
Regulation
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
For more details information about recycling of this product, please contact your local city office,
your household waste disposal service or the shop where you purchased the product.
Warning
Caution
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
33505AA
TABLE OF CONTENTS
6
33505AA
INTRODUCTION
OVERVIEW
PRODUCT FEATURES
SYSTEM REQUIREMENTS
8
CONNECTIONS
CAMERA BOX CONTENTS
33505AA
DIMENSIONS
CONNECTIONS
Pin
Connection
Definition
1
BNC
For analog video output.bett
2
microSD Card Slot
Insert the microSD card into the card slot to store
video and snapshots.
3
Reset Button
Reset the camera to factory default.
4
Auto Iris
Auto iris lens connection
5a
Alarm I/O
Line Out
5b
Alarm I/O
Line In / Line Out
6
Alarm I/O
Alarm Block
7
Power (24vAC)
Alternate power supply to camera for non-PoE
networks
8
RJ-45
For network and PoE connections
10
ALARM I/O CONNECTIONS
ETHERNET CABLE CONNECTION
Pin
Definition
1
Alarm In +
2
Alarm In -
3
Alarm Out +
4
Alarm Out -
