WIRELESS ACCESS POINT

P/N 364887-01(In-Ceiling)

P/N 364891-01(In-Wall)

OWNER’S MANUAL

1307877 REV.B

Page ii

Middletown, PA 17057 www.onqlegrand.com

(800)-321-2343

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of

the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal

Canadian Department of Communications

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in

the Radio Interference Regulations of the Canadian Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est

conforme à la norme NMB-003 du Canada.

FCC Radio Frequency Exposure Caution Statement

In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and

operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna.

Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.

Any changes of modifications not expressly approved by the grantee of this device could void the users authority to

operate the equipment.

Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user

documentation provided with the product. Any changes or modifications (including the antennas) made to this device

that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The

manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this

device, or the substitution or attachment of connecting cables and equipment other than manufacturer specified. It is

the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or

attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or

violation of government regulations arising from failing to comply with these guidelines.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna

or transmitter.

Declaration of Conformity (R&TTE directive 1999/5/EC)

The following items were completed and are considered relevant and sufficient:

• Essential requirements as in [Article 3]

• Protection requirements for health and safety as in [Article 3.1a]

• Testing for electric safety according to [EN 60950]

• Protection requirements for electromagnetic compatibility in [Article 3.1b]

• Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301]

Page iii

Middletown, PA 17057 www.onqlegrand.com

(800)-321-2343

• Testing according to [489-17]

• Effective use of the radio spectrum as in [Article 3.2]

• Testing for radio test suites according to [EN 300 328-2]

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE. THE UNIT MUST NOT BE EXPOSED TO DRIPPING OR SPLASHING WATER.

CAUTION: DO NOT OPEN THE UNIT. DO NOT PERFORM ANY SERVICING OTHER THAN THAT

CONTAINED IN THE INSTALLATION AND TROUBLESHOOTING INSTRUCTIONS. REFER ALL

SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION: THIS DEVICE MUST BE INSTALLED AND USED IN STRICT ACCORDANCE WITH THE

MANUFACTURER’S INSTRUCTIONS AS DESCRIBED IN THE USER DOCUMENTATION THAT

COMES WITH THE PRODUCT.

WARNING: POSTPONE INSTALLATION UNTIL THERE IS NO RISK OF THUNDERSTORM OR

LIGHTNING ACTIVITY IN THE AREA.

When using this device, basic safety precautions should always be followed to reduce the risk of fire, electric shock

and injury to persons, including the following:

•Read all of the instructions {listed here and/or in the user manual} before you operate this equipment.

•Give particular attention to all safety precautions.

•Retain the instructions for future reference.

•Comply with all warning and caution statements in the instructions.

•Observe all warning and caution symbols that are affixed to this equipment.

•Comply with all instructions that accompany this equipment.

•Avoid using this product during an electrical storm. There may be a risk of electric shock from lightning. For

added protection for this product during a lightning storm, or when it is left unattended and unused for long

periods of time, unplug the power supply, and disconnect the Cat 5e to the WAP at the Power Inserter. This will

prevent damage to the product due to lightning and power surges. It is recommended that the customer install an

AC surge protector in the AC outlet to which this device is connected. This is to avoid damaging the equipment

by local lightning strikes and other electrical surges. A Data Surge Conditioning Unit is also available from On-

Q/Legrand (364598-01) to help protect the data connection from the Power Injector to the WAP.

•Operate this product only from the type of power source indicated on the product’s marking label.

•If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

•Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to

determine that the product is in safe operating condition.

Installation of this product must be in accordance with national wiring codes and conform to local regulations.

Place Power Inserter to allow for easy access when disconnecting the power cord/adapter of the device from the AC

wall outlet.

Wipe the unit with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly on

the unit or use forced air to remove dust.

When not utilizing the recommended 3 gang plastic switch & outlet box, do not directly cover the device, or block the

airflow to the device with insulation or any other objects.

Keep the device away from excessive heat and humidity and keep the device free from vibration and dust.

Page iv

Middletown, PA 17057 www.onqlegrand.com

(800)-321-2343

TABLE OF CONTENTS

I. Introduction 1

II. Product Overview 2

A.Features 2

B.ComponentsIncluded 2

C.ReplacementParts 2

D. Detailed Physical Description 2

III. Installation 5

A.“Rough-In”Steps 5

B.“Trim-Out”Steps 6

IV. Basic Configuration 8

A. Configuring a Network Interface Card to talk to a WAP 9

B. Logging on to the WAP 11

C. Initial Wireless Access Point Setup 12

D. Returning the PC to DHCP Control 14

V. Advanced Configuration 17

A. Wireless Interface Configuration 17

B. Wireless Bridge Configuration 18

C. Wireless Access Control Configuration 19

D. Wireless RADIUS Setting Configuration 20

E. Wireless Advanced Configuration 21

F. System Setup Global Settings 22

G. System Setup Operation Mode 23

H.SystemSetupFirmwareUpgrade 23

I. System Setup Setting Management 24

J.SystemSetupFactoryDefault 24

K.SystemStatus 25

L. Wireless Status 25

VI. Troubleshooting 26

A.ContactInformation 26

B.HardwareSituations 26

C.SoftwareSituations 29

VII. Glossary 31

Page 1

Middletown, PA 17057 www.onqlegrand.com

(800)-321-2343

I. Introduction

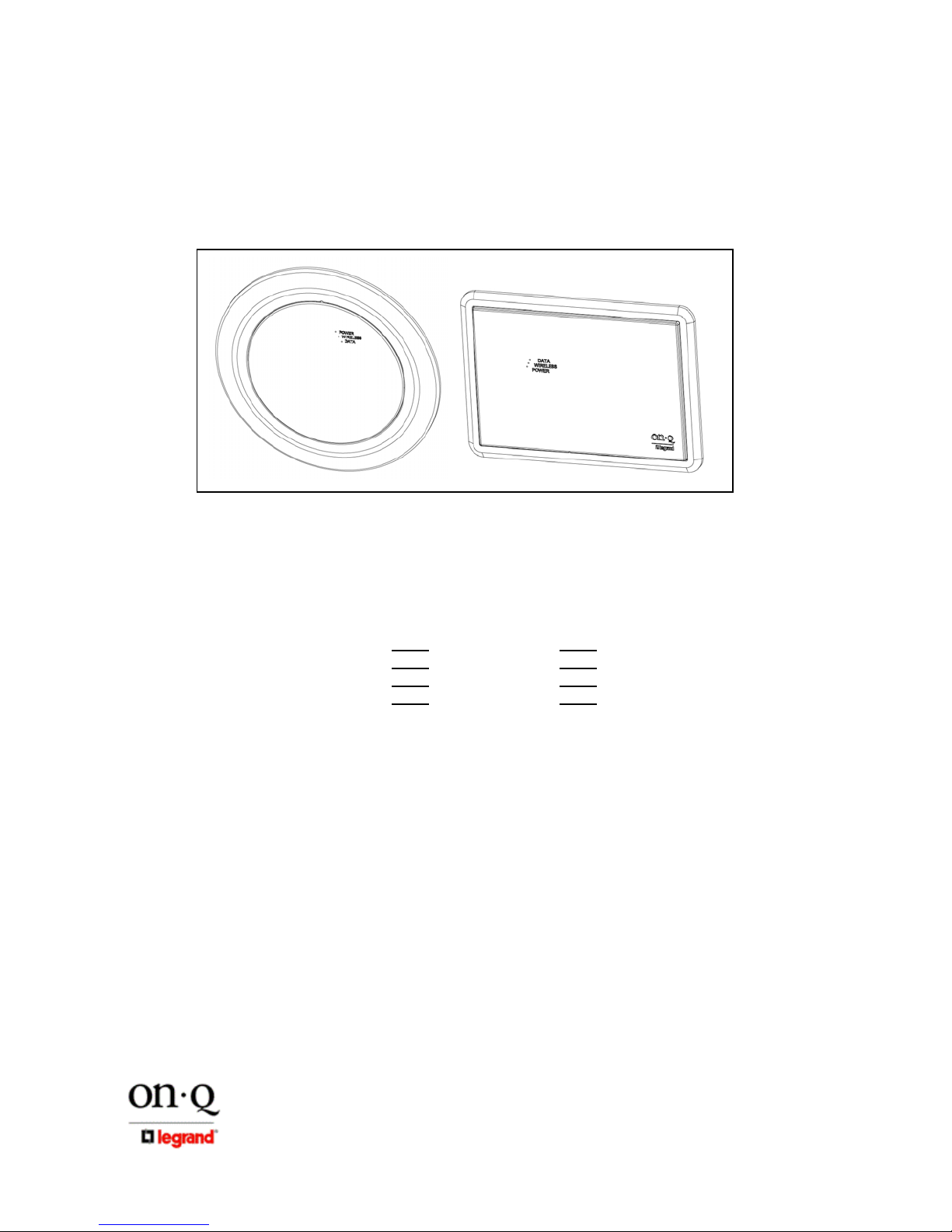

The On-Q/Legrand Wireless Access Point (WAP) 802.11g In-Ceiling or In-Wall unit (shown in Figure

1) uses a radio transmission technology defined by the Institute of Electrical and Electronics

Engineers (IEEE). This standard is subdivided into distinct categories of speed and the frequency

spectrum used, designated by the lower case letter after the standard. Your On-Q WAP 802.11g

supports both the 802.11b and 802.11g specifications.

The 802.11b specification transmits data rates up to 11 Mbps while the 802.11g specification transmits

data rates up to 54 Mbps. These are theoretical speeds so your performance may vary. The radio

waves radiate out in a donut-shaped pattern. The waves travel through walls and floors, but

transmission power and distance are affected. The following chart shows how the wireless range is

different for each data rate and also depends on the local conditions:

Data Rate Open Area Closed Area

54 Mbps Up to 100 ft. Up to 60 ft.

11 Mbps Up to 900 ft. Up to 160 ft.

5.5 Mbps Up to 1300 ft. Up to 200 ft.

2 or 1 Mbps Up to 1500 ft. Up to 300 ft.

Typically, the best performance can be expected by positioning it in the ceiling or wall at a central

location on the top floor of the home or where a localized “hot spot” is desired.

The following recommendations help you achieve the best wireless performance environment:

•Placing the WAP in the physical center of your network is the premium location because the

antenna radiates out the signal in all directions.

•Placing the WAP in a higher location helps to disperse the signal cleanly, especially to receiving

locations on upper stories.

•Direct line of sight achieves better performance, but obviously is not always achievable.

•Try to avoid placing the WAP next to large solid or dense objects like walls, fireplaces, etc. This

helps the signal penetrate more cleanly.

•Other wireless devices like televisions, radios, microwaves and 2.4 GHz cordless telephones can

interfere with the signal. Keep devices away from the unit.

•Mirrors, especially silver-coated, negatively affect transmission performance.

Your On-Q WAP 802.11g is powered over the single Cat 5e cable that connects it to the service

provider. A power supply inserts power onto the Cat 5e cable through an inserter module, and then

this power is extracted for use at the WAP location. In this way, unsightly power cables are avoided at

the WAP location.

Figure 1

P/N 364887-01 P/N 364891-01

Page 2

Middletown, PA 17057 www.onqlegrand.com

(800)-321-2343

II. Product Overview

A. Features

•Compatibility with both 802.11g and 802.11b standards

•Wireless security via Wired Equivalent Privacy (WEP) and WiFi Protected Access (WPA)

encryptions

•Firmware upgrades available to stay current with latest specification

B. Components Included

The On-Q WAP 802.11g (either In-Ceiling or In-Wall version) includes the following components:

•WAP Assembly

•WAP Cover

•WAP 24VDC Power Supply with AC cord

•WAP Power Over Cat 5e Inserter Module

•Cat 5e Jumper Cable

•The WAP Owner’s Manual on CD

•WAP IS Sheet and User Guide

C. Replacement Parts

Replacement parts available for the On-Q WAP 802.11g include:

•WAP 24 VDC Power Supply with AC cord (P/N 364889-01)

•WAP Power Over Cat 5 Inserter Module (P/N 364888-01)

D. On-Q WAP 802.11g Detailed Physical Description

The following information describes the physical characteristics of the WAP Assembly.

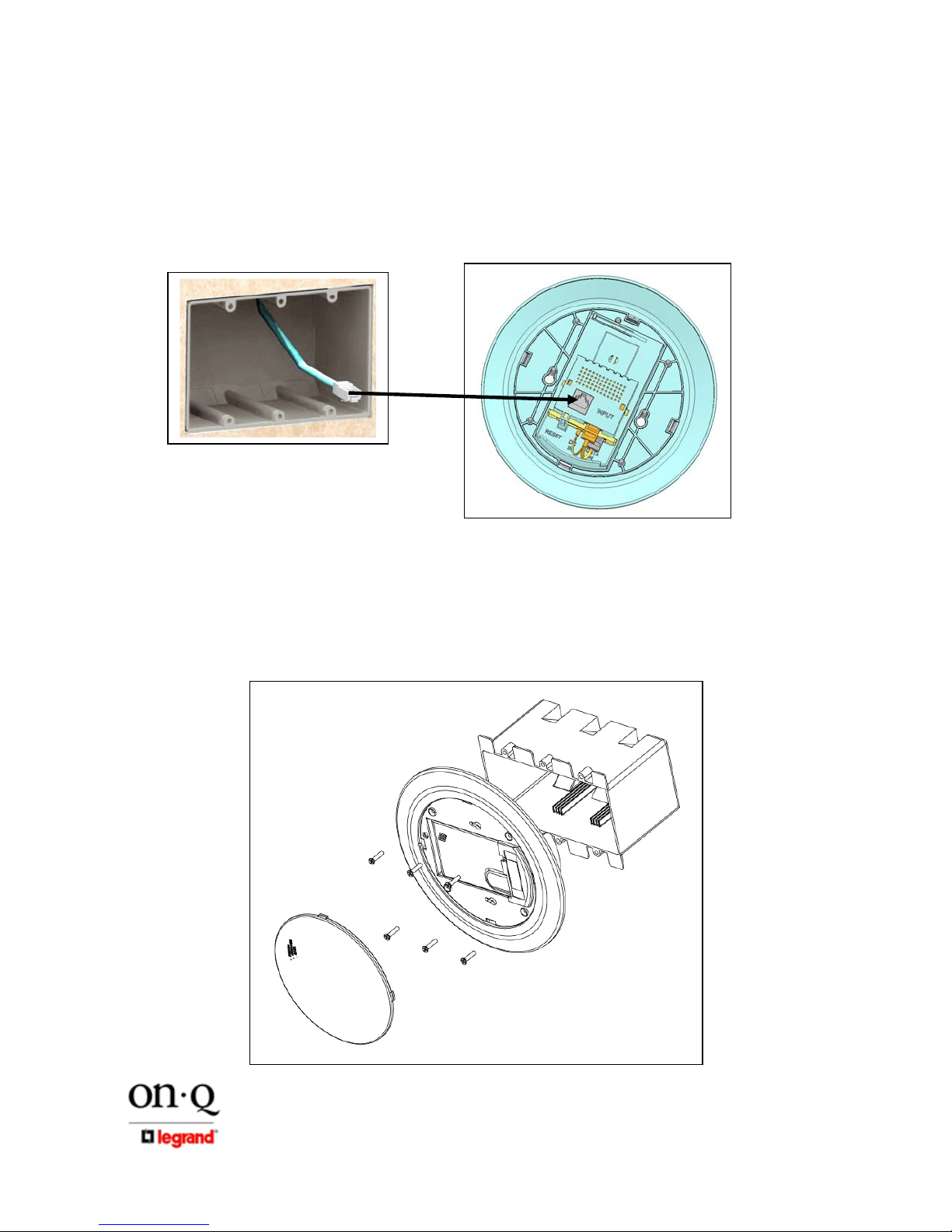

1. WAP Assembly Connections (P/N 364887-01 shown)

Figure 2 shows the WAP Assembly connection area including:

Cat 5e from Power Inserter in enclosure “INPUT” connection

2. Connection Area Detailed Description

Figure 2

Page 3

Middletown, PA 17057 www.onqlegrand.com

(800)-321-2343

INPUT – This RJ-45 connector is where the Cat 5e cable from the Power Over Cat 5e

Inserter Module in the On-Q Enclosure plugs in. There is an Extractor Module in the WAP

Assembly that breaks out the required DC power from the data on the input Cat 5e cable

connection.

NOTE: Notice in Figure 2 that there is also a small factory installed jumper cable that

supplies the required DC power and data to the WAP assembly.

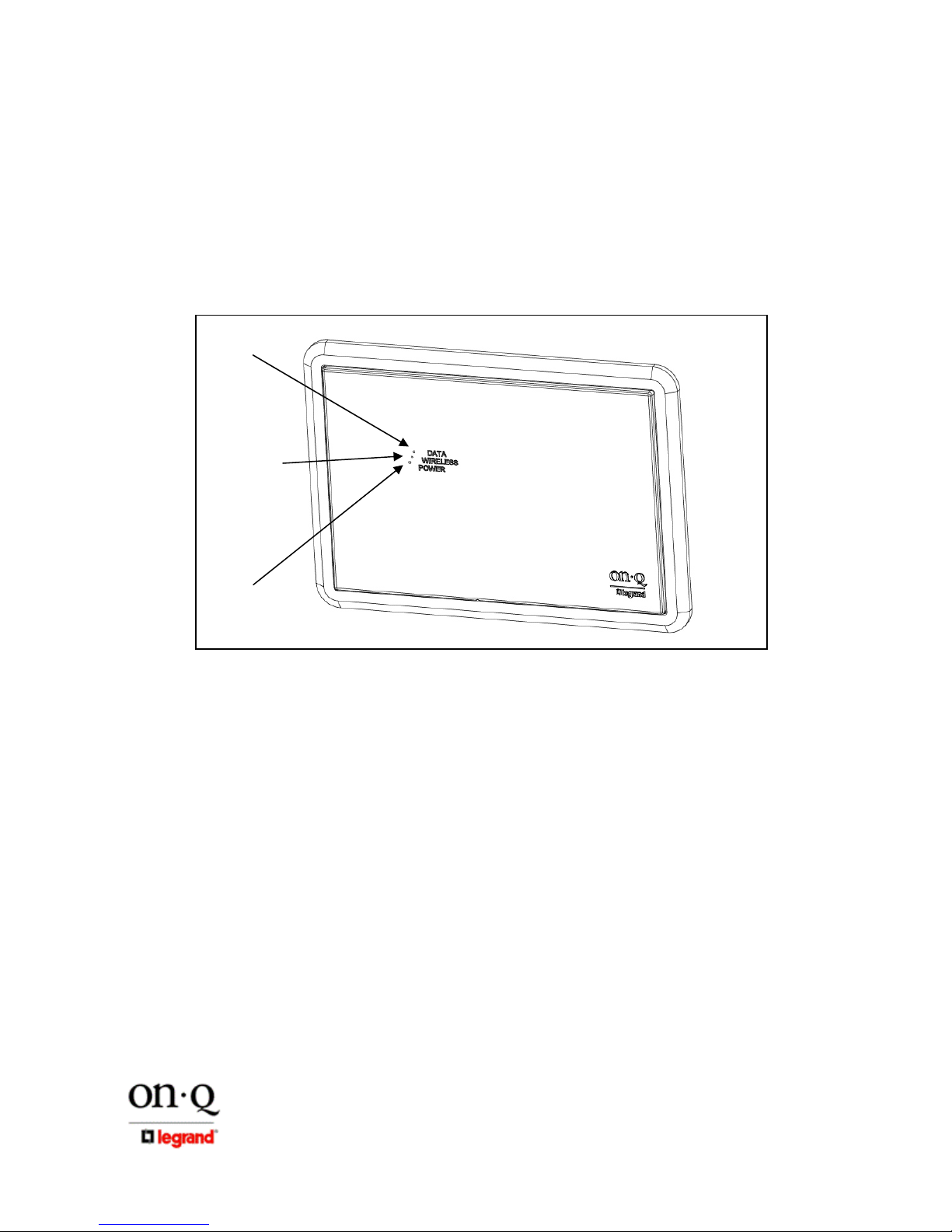

3. WAP Assembly Status Indications (P/N 364891-01 shown)

Figure 3 shows the WAP 802.11g Assembly status indicators, which are visible when the

WAP cover is properly installed:

4. Status Indicators Detailed Description:

Data Indicator

ON (Blue) – The device is connected to a data network.

OFF – The device is powered off or not connected to a data network.

Wireless Indicator

Blinking (Blue) – The device is transmitting or receiving data.

Power Indicator

ON (Blue)- The device is powered on and operating normally.

OFF – The device is powered off or performing a boot sequence.

Blinking (Blue)Firmware upgrade failed.

5. WAP 802.11g Reset Button Access

Figure 4 shows the WAP 802.11g with the cover removed to gain access to the Reset

Button. As shown, there is a tab that when pushed in the direction shown will activate the

Reset Button. Pushing and holding this tab for five seconds or more will return the unit to

factory hardware default condition. This is particularly handy if someone configured a security

level or IP Address by mistake that prohibits you from gaining access to the unit.

Figure 3

Powe

Wireless

Data

Page 4

Middletown, PA 17057 www.onqlegrand.com

(800)-321-2343

NOTE: Although the WAP is shipped from On-Q with its IP address set to 192.168.40.1 (in

the On-Q product 192.168.40.xxx sub-network), if you push the reset button for five

seconds, the WAP is reset to the factory default IP address of 192.168.1.220, and will have

to be re-configured to the 192.168.40.xxx sub-network to work with the other On-Q

products.

6. WAP 802.11g Power Over Cat 5e Inserter Module

Figure 5 shows the WAP Inserter Module components:

Figure 5

24VDC in from Power Supply

Data and Power out to WAP

Data in from ISP

Figure 4

Page 5

Middletown, PA 17057 www.onqlegrand.com

(800)-321-2343

III. Installation

The On-Q WAP 802.11g is best installed during new construction in two steps; at “rough-in” with

the other low voltage cabling such as TV and Phone, but prior to drywall being installed, and at

“trim-out” after the drywall is installed and painted. These steps are detailed below:

A. “Rough-in” steps:

1. A single Cat 5e should be run in the walls from a plastic triple gang box (not supplied) at

the location in the home where the On-Q Wireless Access Point (WAP) will be installed to

the location where the Power Inserter Module will be located (On-Q enclosure) leaving

extra cable at both ends.

NOTE: The preferred location for the WAP 802.11g is in the ceiling or wall of the top

floor, centrally located in the home (see Figure 6). If multiple WAPs are used, they

should be located in overlapping wireless zones.

Figure 6

Page 6

Middletown, PA 17057 www.onqlegrand.com

(800)-321-2343

B. “Trim-out” steps:

1. The Cat 5e cable that was run from the triple gang plastic box to the enclosure should be

pulled out of the box and terminated with an RJ-45 plug as shown in Figure 7.

NOTE: Use proper tools and standard TIA 568A rules to prep and terminate the Cat 5e

cable, such as the On-Q Cat 5 Cable Stripper (P/N 363292-01) and the On-Q EZ RJ45

Crimp Tool (P/N 364555-01).

2. It should then be plugged into the “INPUT” connector on the rear of the WAP Assembly as

shown in Figure 8.

3. The On-Q WAP 802.11g Assembly can then be screwed into the triple gang box and the

cover inserted, insuring that the LEDs on the WAP line up with the holes in the cover (see

Figure 9).

Figure 7

Figure 9

Figure 8

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Onq Point d'accès sans fil

Onq

Onq 364711-01 Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
