AV RECEIVER

Instruction Manual

TX-NR787

Table of contents

Connections

- Connecting Speakers

Playback

Setup

Troubleshooting

Appendix

Supplementary Information

≫

Contents

Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

What’s in the box 5

Part Names 6

Front Panel 6

Display 8

Rear Panel 9

Remote Controller 11

Connections

Connecting speakers 13

Speaker Installation 14

Speaker Connections and "Speaker Setup" Settings 32

Speaker combinations 45

Connecting the TV 46

To ARC TV 47

To Non-ARC TV 48

Connecting Playback Devices 49

Connecting an AV Component with HDMI Jack

Mounted 49

Connecting an AV Component without HDMI Jack

Mounted 50

Connecting an Audio Component 51

Connecting a Video Camera, etc. 52

Connecting an AV Component in a Separate Room

(Multi-zone Connection) 53

Connecting a Pre-main Amplier (ZONE 2) 53

Connecting Antennas 54

Network Connection 55

Connecting External Control Devices 56

IR IN port 56

12V TRIGGER OUT jack 57

Connecting the Power Cord 58

Playback

AV Component Playback 60

Basic Operations 60

BLUETOOTH®Playback 61

Basic Operations 61

Internet Radio 62

Playing Back 62

Spotify 64

Playing Back 64

AirPlay®65

Basic Operations 65

DTS Play-Fi®66

Playing Back 66

FlareConnectTM 67

Playing Back 67

3Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

USB Storage Device 68

Basic Operations 68

Device and Supported Format 70

Playing back les on a PC and NAS (Music Server) 71

Windows Media®Player settings 71

Playing Back 72

Supported Audio Formats 75

Play Queue 76

Initial Setup 76

Adding Play Queue Information 76

Sort and Delete 77

Playing Back 77

Listening To the AM/FM Radio 78

Tuning into a Radio Station 78

Presetting a Radio Station 80

Multi-zone 82

Switch remote control mode (ZONE 2) 82

Switch remote control mode (ZONE 3) 83

Playing Back 84

Convenience functions 85

Adjusting the tone 85

Listening Mode 86

Selecting a Listening mode 86

Listening Mode E󰀨ects 88

Selectable listening modes 93

Setup

Setup Menu 106

Menu list 106

Menu operations 108

1. Input/Output Assign 109

2. Speaker 113

3. Audio Adjust 119

4. Source 120

5. Hardware 122

6. Multi Zone 127

7. Miscellaneous 128

Quick Menu 129

Menu operations 129

Web Setup 131

Menu operations 131

Firmware Update 132

Updating Function on This Unit 132

Updating the Firmware via Network 133

Updating via USB 135

Initial Setup with Auto Start-up Wizard 137

4Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

Operations 137

Troubleshooting

When the unit is operating erratically 141

Troubleshooting 142

Appendix

About HDMI 151

General Specications 153

5Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

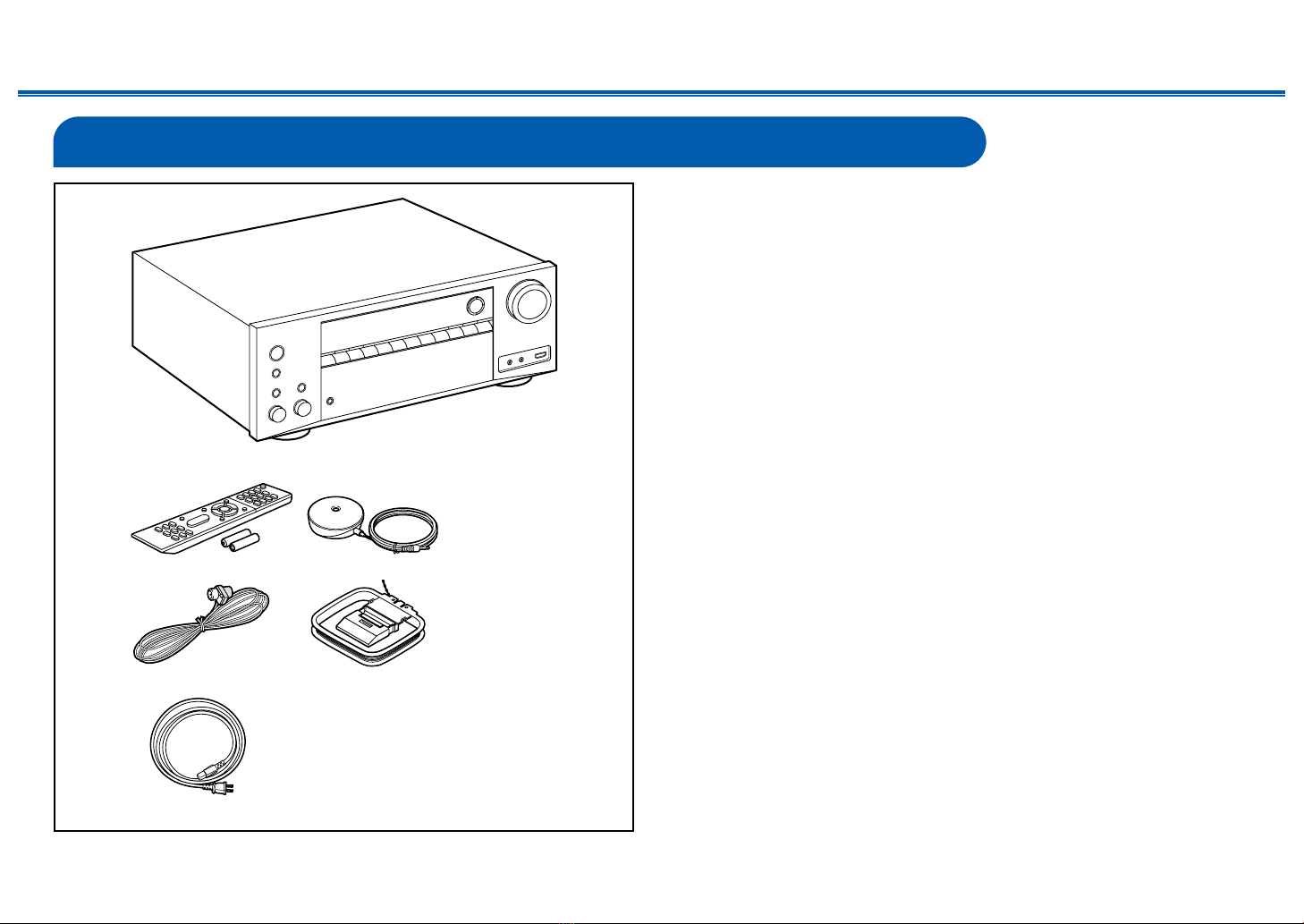

What’s in the box

1. Main unit (1)

2. Remote controller (RC-911R) (1), Batteries (AAA/R03) (2)

3. Speaker setup microphone (1)

• Used during Initial Setup.

4. Indoor FM antenna (1)

5. AM loop antenna (1)

6. Power cord (1)

• Quick Start Guide (1)

* This document is an online instruction manual. It is not included as an

accessory.

• Connect speakers with an impedance of 4 Ω to 16 Ω.

• The power cord must be connected only after all other connections are

completed.

• We will not accept any responsibility for damage arising from the connection

with equipment manufactured by other companies.

• Network services and content that can be used may no longer be available

if new functions are added by updating rmware or the service providers

terminate their services. Also, available services may di󰀨er depending on your

area.

• Details on the rmware update will be posted on our website and through

other means at a later date.

• Specications and appearance are subject to change without prior notice.

Contents

≫Connections

≫Playback

≫Setup

≫

Front Panel≫Rear Panel≫Remote≫

Part Names

Front Panel

❏For details, see ( p7)

bn bo bp bq br

83456 72

lbk

Contents

≫Connections

≫Playback

≫Setup

≫

Front Panel≫Rear Panel≫Remote≫

1. ON/STANDBY button

2. MUSIC OPTIMIZER button/indicator: Turns on/o󰀨 the MUSIC OPTIMIZER

function that improves the quality of the compressed audio.

3. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the

functions such as HDMI Standby Through and Network Standby that work in

standby are enabled.

4. Remote control sensor: Receives signals from the remote controller.

• The reception range of the remote controller is within a distance of approx.

16´/5 m, and an angle of 20° in vertical direction and 30° to right and left.

5. ZONE 2/ZONE 3 button: Controls the multi-zone function. ( p84)

6. DIMMER button: Switches the brightness of the display with three levels. It

cannot be turned o󰀨 completely.

7. Display ( p8)

8. SETUP button: You can display advanced setting items on the TV and the

display to have a more enjoyable experience with this unit. ( p106)

9. Cursor buttons ( / / / ) and ENTER button: Select an item with the

cursors, and press ENTER to conrm your selection. When using TUNER, use

them to tune in to stations. ( p78)

10.

RETURN button: Returns the display to the previous state while setting.

11.

MASTER VOLUME

12.

Press the LISTENING MODE button (above) to select a category from "Movie/

TV", "Music" and "Game", and then turn the LISTENING MODE dial (below) to

change the listening mode. ( p86)

13.

You can adjust the sound quality of the speakers. Press the TONE button

(above) to select an item to adjust from "Bass" and "Treble", and turn the

TONE dial (below) to adjust. ( p85)

14.

PHONES jack: Connect headphones with a standard plug (ø1/4"/6.3 mm).

15.

Input selector buttons: Switches the input to be played.

16.

SETUP MIC jack: Connect the supplied speaker setup microphone. ( p138)

17.

AUX INPUT AUDIO/HDMI jack: Connect a video camera, etc. using a stereo

mini plug cable (ø1/8″/3.5 mm) or HDMI cable. ( p52)

8Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

Display

5431

1. Speaker/Channel display: Displays the output channel that corresponds to the

selected listening mode.

2. Lights in the following conditions.

: Headphones are connected.

Z2/Z3: ZONE 2/ZONE 3 is on.

: Connected by BLUETOOTH.

: Connected by Wi-Fi.

NET: Lights when connected to the network with the "NET" input selector. It

will blink if incorrectly connected to the network.

USB: Lights when the "NET" input selector is selected, a USB device is

connected and the USB input is selected. It will blink if the USB device is not

properly connected.

HDMI: HDMI signals are input and the HDMI input is selected.

DIGITAL: Digital signals are input and the digital input is selected.

3. Lights according to the type of input digital audio signal and the listening

mode.

4. Lights in the following conditions.

TUNED: Receiving AM/FM radio.

FM ST: Receiving FM stereo.

SLEEP: Sleep timer is set. ( p125)

AUTO STBY: Auto Standby is set. ( p126)

5. Blinks when muting is on.

6. Displays various information of the input signals.

• "DialogNorm: X dB" ("X" is a numerical value) may be displayed when a

Dolby Digital, Dolby Digital Plus or Dolby TrueHD source is played. For

example, if "DialogNorm: +4 dB" is displayed, the source being played is

recorded with 4 dB plus the THX standard level. If you play it with the THX

standard level, lower the volume by 4 dB.

7. This may light when operating with the "NET" input selector.

Contents

≫Connections

≫Playback

≫Setup

≫

Front Panel≫Rear Panel≫Remote≫

Rear Panel

❏For details, see ( p10)

180°

90°

Contents

≫Connections

≫Playback

≫Setup

≫

Front Panel≫Rear Panel≫Remote≫

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio

signals with a digital optical cable or digital coaxial cable.

2. TUNER AM/FM terminal: Connect the supplied antennas.

3. COMPONENT VIDEO IN jacks: Input AV component video signals with a

component video cable. (Compatible only with 480i or 576i resolution.)

4. Wireless antenna: Used for Wi-Fi connection or when using a BLUETOOTH-

enabled device. Adjust the angles according to the connection status.

5. USB port: Connect a USB storage device to play music les. ( p68) You

can also supply power (5 V/1 A) to USB devices with a USB cable.

6. ETHERNET port: Connect to the network with a LAN cable.

7. VIDEO IN jacks: Input AV component video signals with an analog video cable.

8. RS-232C port: Connect a home control system equipped with an RS-232C

port. For adopting a home control system, contact the specialized stores.

9. HDMI OUT jacks: Transmit video signals and audio signals with an HDMI

cable connected to a monitor such as a TV or projector.

10.

HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable

connected to an AV component.

11.

AC INLET: Connect the supplied power cord.

12.

GND terminal: Connect the ground wire of the turntable.

13.

12V TRIGGER OUT jack: Connect a device equipped with a 12V trigger input

jack to enable power link operation between the device and this unit.

(p57)

14.

AUDIO IN jacks: Input TV or AV component audio signals with an analog audio

cable.

15.

IR IN port: Connect a remote control receiver unit.( p56)

16.

SPEAKERS terminals: Connect speakers with speaker cables. (Compatible

with banana plugs)

17.

SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a

subwoofer cable. Up to two powered subwoofers can be connected. The same

signal is output from each SUBWOOFER PRE OUT jack.

18.

ZONE 2 LINE OUT jacks: Output audio signals with an analog audio cable

connected to a pre-main amplier in a separate room (ZONE 2).

Autres manuels pour TX-NR787

Table des matières

Autres manuels Onkyo Récepteur stéréo

Onkyo

Onkyo TX-8160 Manuel utilisateur

Onkyo

Onkyo TX-8050 Manuel utilisateur

Onkyo

Onkyo TX-NR5007 - AV Network Receiver Manuel utilisateur

Onkyo

Onkyo TX-SV535 Manuel utilisateur

Onkyo

Onkyo TX-8260 Manuel utilisateur

Onkyo

Onkyo TX-SR576 Fiche technique

Onkyo

Onkyo TX-8270 Manuel utilisateur

Onkyo

Onkyo TX-8255 Manuel utilisateur

Onkyo

Onkyo TX-6500MKII Manuel utilisateur

Onkyo

Onkyo TX-8050 Manuel utilisateur

Onkyo

Onkyo TX-NR828(B) Manuel utilisateur

Onkyo

Onkyo TX-SR501 Manuel utilisateur

Onkyo

Onkyo TX-4500 Manuel utilisateur

Onkyo

Onkyo TX-NR801 - AV Receiver Manuel utilisateur

Onkyo

Onkyo TX-8020 Manuel utilisateur

Onkyo

Onkyo TX-RZ70 Manuel

Onkyo

Onkyo TX-8211 Manuel utilisateur

Onkyo

Onkyo TX-NR636 Manuel utilisateur

Onkyo

Onkyo TX-NR696-S Manuel utilisateur

Onkyo

Onkyo TX-SR3100 Manuel utilisateur

Onkyo

Onkyo TX-SR393DAB Manuel utilisateur

Onkyo

Onkyo TX-SR875 Manuel utilisateur

Onkyo

Onkyo TX-SR804 Manuel utilisateur

Onkyo

Onkyo TX-SR504 Manuel utilisateur

Manuels Récepteur stéréo populaires d'autres marques

Marantz

Marantz CINEMA 70S Manuel utilisateur

Kenwood

Kenwood KMDX92 Manuel utilisateur

Yamaha

Yamaha RX-830 Manuel utilisateur

Pioneer

Pioneer AVH-Z7250BT Manuel utilisateur

Yamaha

Yamaha RX-750 Manuel utilisateur

Denon

Denon AVR-1311 Manuel utilisateur

Denon

Denon AVR-S760H Manuel utilisateur

Denon

Denon AVR-X7200W Manuel utilisateur

Pioneer

Pioneer SC-LX904 Manuel

Sony

Sony XAV-1500 Manuel utilisateur

Radio Shack

Radio Shack DX-399 Manuel utilisateur

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Manuel utilisateur

Pioneer

Pioneer SX-1000TA Manuel utilisateur

Yamaha

Yamaha MusicCast TSR-5B3D Manuel utilisateur

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Manuel utilisateur

Sony

Sony STR-DG500 - Multi Channel Av Receiver Manuel utilisateur

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manuel utilisateur

Pioneer

Pioneer SX-838 Manuel utilisateur
