Onkyo HTP-340S Manuel utilisateur

HTP-340

SERVICE MANUAL

5.1-CH HOME THEATER SPEAKER PACKAGE

Silver model

MODEL HTP-340(S)

Ref. No. 3938

042006

Front Speakers (L / R)

"SKF-340F"

Center Speaker

"SKC-340C"

Surround Speakers (L / R)

"SKM-340S"

Passive Subwoofer

"SKW-340"

Cannot remove the speaker grill.

S : ColorS MD MD : USA model

S : ColorS MC MC : Canadian model

S : ColorS MT MT : Asian model

S : ColorS MA MA : Australian model

S : ColorS MK MK : Korean model

S : ColorS MP MP : European model

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

HTP-340

SPECIFICATIONS

Type :

Impedance :

Maximum input power :

Output sound pressure level :

Frequency response :

Cabinet capacity :

Dimensions (W x H x D) :

Weight :

Drivers unit :

Terminal :

Bass-reflex type Passive

Subwoofer

6 ohm

125 W

85 dB/m/w

30 Hz - 150 Hz

1.1 cubic feet (31 L)

9-1/4" x 18-1/8" x 16-1/8"

(235 x 461 x 410 mm)

17.9 lbs. (8.1 kg)

8" (20 cm) Cone

Spring type color coded

Front Speaker (SKF-340F)

Type :

Impedance :

Maximum input power :

Output sound pressure level :

Frequency response :

Crossover frequency :

Cabinet capacity :

Dimensions (W x H x D) :

Weight :

Drivers unit :

Terminal :

Key hole slot :

Threaded insert :

Grille :

Other :

2 Way Bass-reflex

6 ohm

120 W

84 dB/W/m

80 Hz - 22 kHz

10 kHz

0.046 cubic feet (1.3 L)

4-9/16" x 8-9/16" x 5"

(116 x 218 x 127 mm)

2.0 lbs. (0.9 kg)

3-1/8" (8 cm) Cone (Woofer)

3/4" (2 cm) Ceramic (Tweeter)

Spring type color coded

North American model :

1/4" screw, Depth 5/16"

Other models :

5 mm screw, Depth 8 mm

Fixed

Magnetic shielding

Type :

Impedance :

Maximum input power :

Output sound pressure level :

Frequency response :

Crossover frequency :

Cabinet capacity :

Dimensions (W x H x D) :

Weight :

Drivers unit :

Terminal :

Key hole slot :

Threaded insert :

Grille :

Other :

2 Way Bass-reflex

6 ohm

120 W

87 dB/W/m

80 Hz - 22 kHz

10 kHz

0.092 cubic feet (2.6 L)

11-13/16" x 5-1/16" x 4-5/8"

(300 x 128 x 118 mm)

3.3 lbs. (1.5 kg)

3-1/8" (8 cm) Cone (Woofer) x 2

3/4" (2 cm) Ceramic (Tweeter)

Spring type color coded

North American model :

1/4" screw, Depth 5/16"

Other models :

5 mm screw, Depth 8 mm

Fixed

Magnetic shielding

Surround Speaker (SKM-340S)

Type :

Impedance :

Maximum input power :

Output sound pressure level :

Frequency response :

Crossover frequency :

Cabinet capacity :

Dimensions (W x H x D) :

Weight :

Drivers unit :

Terminal :

Key hole slot :

Threaded insert :

Grille :

2 Way Bass-reflex

6 ohm

120 W

83 dB/W/m

80 Hz - 22 kHz

10 kHz

0.046 cubic feet (1.3 L)

4-9/16" x 8-9/16" x 5"

(116 x 218 x 127 mm)

1.5 lbs. (0.7 kg)

3-1/8" (8 cm) Cone (Woofer)

3/4" (2 cm) Ceramic (Tweeter)

Spring type color coded

North American model :

1/4" screw, Depth 5/16"

Other models :

5 mm screw, Depth 8 mm

Fixed

Specifications and appearance are subject to change

without prior notice.

Passive Subwoofer (SKW-340) Center Speaker (SKC-340C)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

HTP-340

EXPLODED VIEWS-1

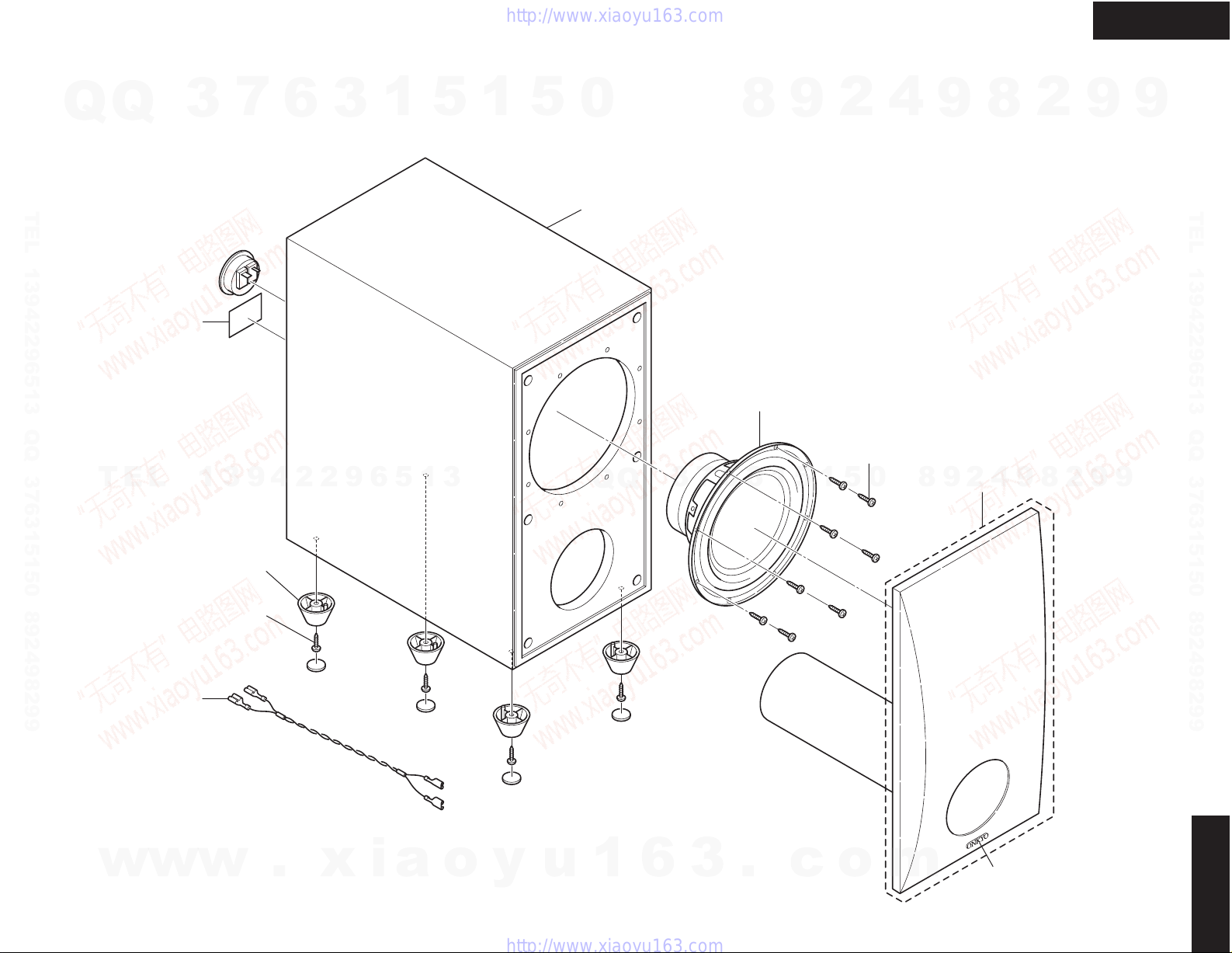

SKW-340 : PASSIVE SUBWOOFER

SP09a /

SP09b

SP06

SP05a /

SP05b

SP07a /

SP07b

SP01a /

SP01b /

SP01c

SP03

x 4 pcs.

SP02

x 4 pcs.

SP03

x 8 pcs.

SP08

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

HTP-340

EXPLODED VIEWS-2

SKF-340F / SKC-340C / SKM-340S

SP13a /

SP13b

SP10a /

SP10b /

SP10c

SP12a /

SP12b /

SP12c

SP17a /

SP17b

SP19a /

SP19b

SP16a /

SP16b /

SP16c

SP18a /

SP18b /

SP18c

SP14a /

SP14b /

SP14c

SP15a /

SP15b

SP11a /

SP11b

"SKF-340F (L)" "SKF-340F (R)" "SKC-340C"

"SKM-340S (R)""SKM-340S (L)"

TERMINAL :

White / Black

TERMINAL :

Red / Black

TERMINAL :

Green / Black

TERMINAL :

Blue / Black

TERMINAL :

Gray / Black

NOT MAGNETICALLY SHIELDED NOT MAGNETICALLY SHIELDED

<Notes>

USA and Canadian models : inch nut.

Other models : mm nut.

<Note>

Cannot remove the speaker grill.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

HT-S590

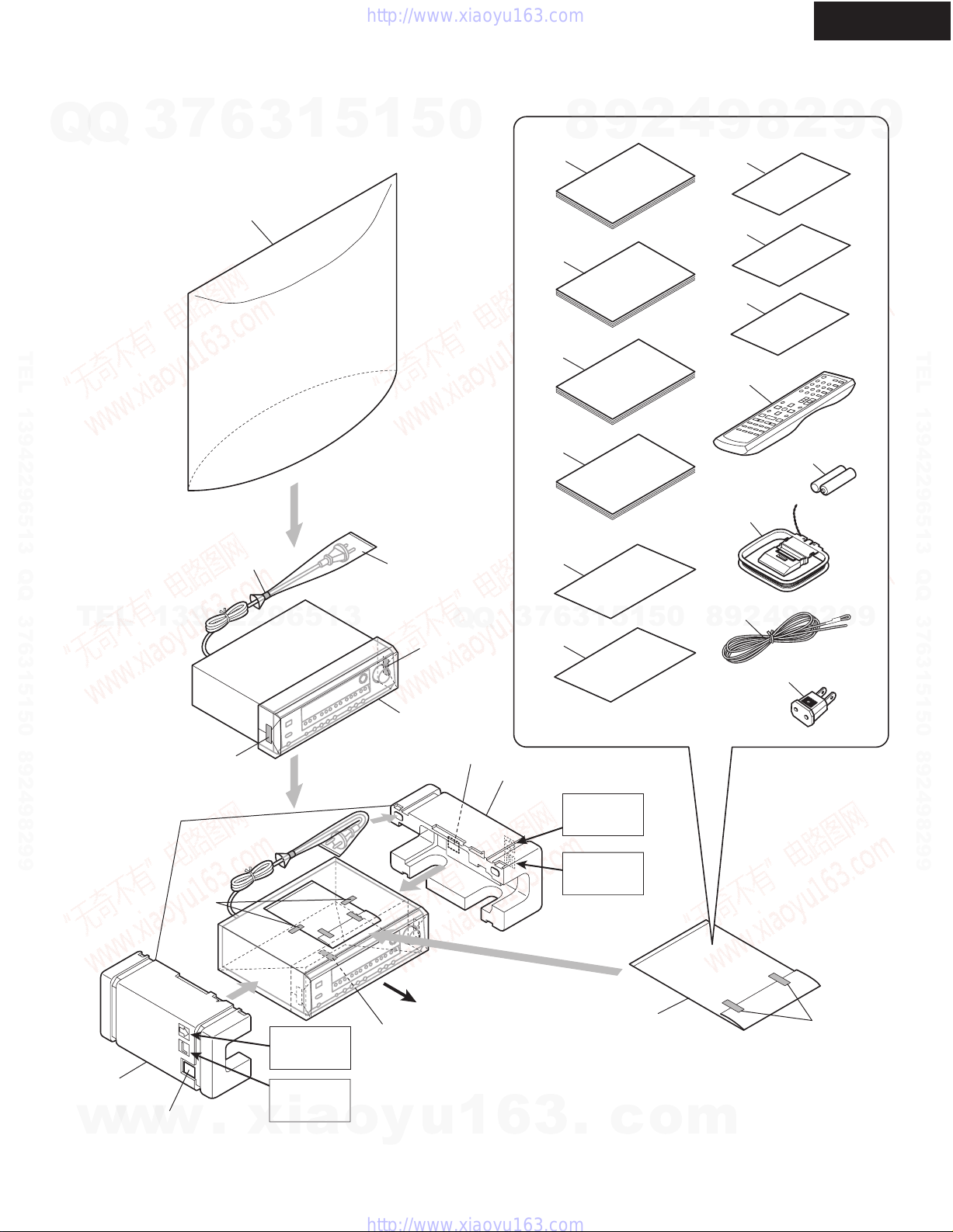

PACKING PROCEDURE-1

RECEIVER SECTION

A631

A610

A601

(L & R)

A631

A656

A631

A626

A611

A625 A631

A812

A801

A802

A811

A813

A814

A807

A803

A804

A805

A806

A815

A808

A809

<R>

Front side

Right side

marking

Front side

marking

Left side

marking

Front side

marking

<L>

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

HT-S590

PACKING PROCEDURE-2

SPEAKER SECTION

TOP

SP06

SP05

SP06

SP15

(Cable set + Poly bag)

SP07

SP08

SP03

SP02

SP01

SP21

(20 pcs.)

Bottom

marking

Middle

marking

Top

marking

SKC-340C

SKF-340F(R)

SKF-340F(L)

SKM-340S(R)

SKM-340S(L)

SKW-340

Front side

L = 15 ft.

(22# 4.5 m)

(White / Black)

L = 15 ft.

(22# 4.5 m)

(Red / Black)

L = 30 ft.

(22# 9 m)

(Blue / Black)

L = 10 ft.

(22# 3 m)

(Green / Black)

L = 30 ft.

(22# 9 m)

(Gray / Black)

L = 15 ft.

(22# 4.5 m)

(Purple / Black)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

HT-S590

PACKING PROCEDURE-3

OVERALL

SP13

SP11a - SP11g

Front side

Refer to "PACKING PROCEDURE-1"

Refer to "PACKING PROCEDURE-2"

Front side

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

HTP-340

ONKYO EUROPE UK Office

Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ

UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY

Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/

Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN

Tel: 072-831-8023 Fax: 072-831-8124

ONKYO CORPORATION

http://www.onkyo.com/

HOMEPAGE

ONKYO CHINA LIMITED

Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,

N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039

http://www.ch.onkyo.com/

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com
