Onkyo TX-SR577 Fiche technique

Front

Left

Surround

Left

Surround

Back

Left

Surround

Back

Right

Surround

Right

Listener

Sub

woofer

Front

Right

Center

Front

Left

Surround

Left

Surround

Back

Left

Surround

Back

Right

Surround

Right

Listener

Front

Right

Center

Sub

woofer

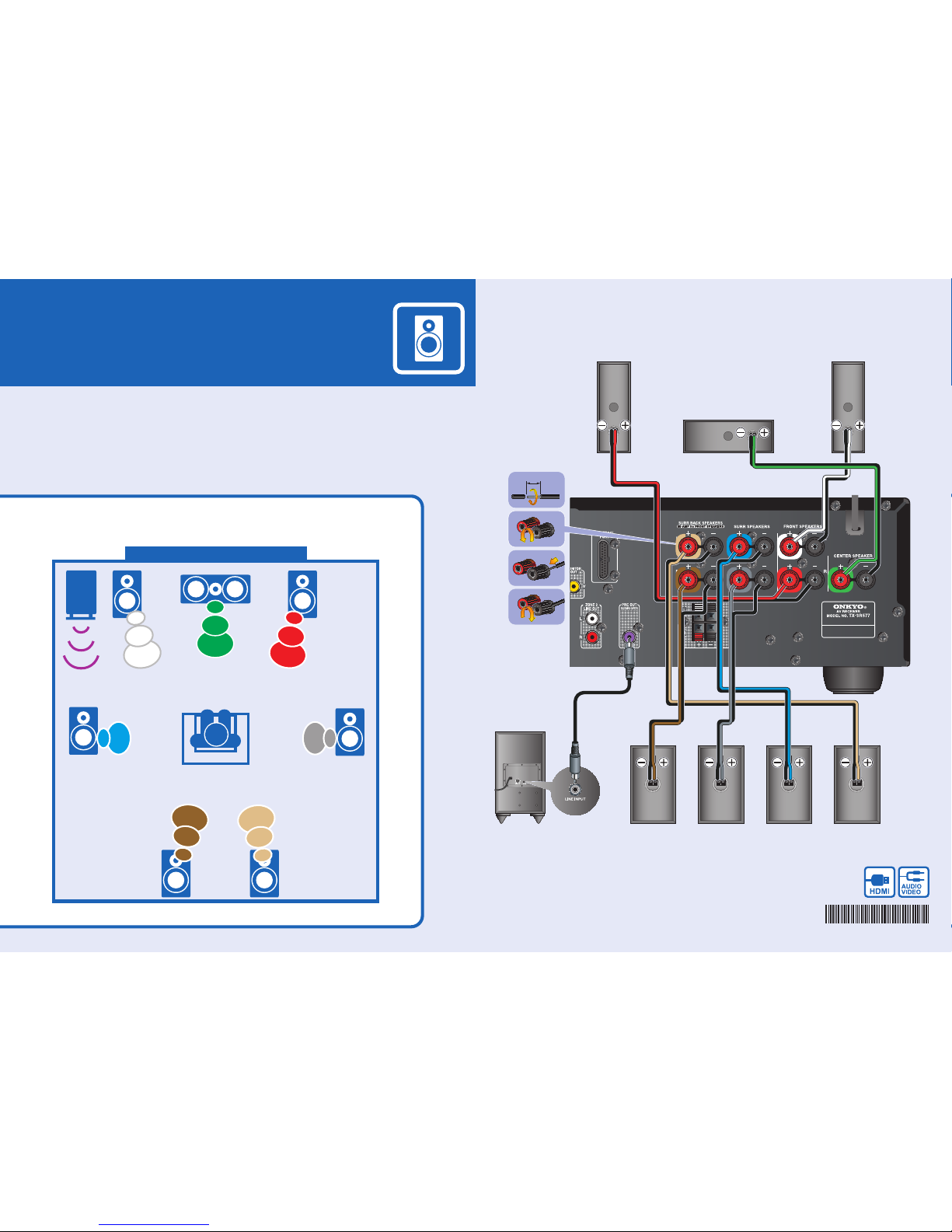

Speaker Layout (Main Room)

5/8''

(15mm)

1/2''-5/8''

(12-15mm)

Surround right

speaker

Surround left

speaker

Surround back

left speaker

Surround back

right speaker

Powered

subwoofer

Front left

speaker

Front right

speaker

Center

speaker

See the other side of this sheet for the AV component hookup.

Thank you for purchasing this product.

This quick setup sheet shows the typical hookup method for connecting

speakers and AV components (DVD player, TV, cable/satellite receiver).

For more detailed hookup information and operating instructions,

please see the Instruction Manual.

QUICK SETUP

Model : TX-SR577

* 2 9 4 0 0 0 0 7 *

Speaker Hookup

VIDEO 1

Cable/

satellite

VIDEO

OUT

AUDIO

OUT

Antenna input

(e.g..RF IN)

DVD/BD

player

VIDEO

OUT

AUDIO

OUT

DIGITAL

OUT

COAXIAL L

COAXIAL

DIGITAL

OUT

HDMI

OUT Antenna input

(e.g., RF IN)

Cable/satellite

HDMI

OUT DVD/BD player

AV Component Hookup

IF NO HDMI

See the other side of this sheet for the Speaker hookup.

If your TV or player doesn’t support HDMI, use the analog or digital

connections shown below.

Please ensure the monitor input

(VIDEO 1, VIDEO 2, VIDEO 3, etc.)

selected corresponds to actual

connection used.

Coaxial feed from

TV antenna

If you are not using

Cable/satellite box,

please refer to the

instruction manual.

Assigning the Digital Input

If there’s no sound, you’ll need to assign the

digital inputs as necessary using the setup

menus on the AV receiver’s display.

If you connect your DVD/BD player to the AV

receiver’s DIGITAL IN COAXIAL 1, and your

cable/satellite receiver to the DIGITAL IN

COAXIAL 2, as shown, it’s not necessary to

assign the digital input.

On the front panel

Assigning the HDMI Input

If you connect a video component to an

HDMI input, you must assign that HDMI

Input to an input selector in Setup.

If you make the same connections as shown

here, you must assign the “DVD/BD” setting

to “HDMI 1”, and assign the “CBL/SAT”

setting to “HDMI 3”.

On the front panel

With an HDMI cable you can send both audio and video with a single cable,

making connecting simple and keeping wires neat.

If you have an HDMI-compatible TV and players, you can connect them

to the AV receiver with HDMI cables. Digital audio signals received

at HDMI IN input are output by the speakers and headphones connected

to the AV receiver.

Coaxial feed from

TV antenna

If you are not using

Cable/satellite box,

please refer to the

instruction manual.
