What's in the box

1. Main unit 2. Remote controller (RC-926R)

×1, Batteries (AA/R6) ×2

3. Indoor FM antenna ×1 4. AM loop antenna ×1 5. Speaker setup microphone ×1

6. Power cord ×1

Glossary

Dolby Atmos

This unit supports playback in the Dolby Atmos format which provides 360e sound placement. Unlike existing

surround systems, Dolby Atmos doesn't rely on channels, but rather enables the accurate placement of sound

objects that have independent motion in a three-dimensional space with even greater clarity. Dolby Atmos is an

optional audio format on Blu-ray Discs and achieves a three-dimensional sound field by introducing a sound field

above the listener.

ARC

The ARC (Audio Return Channel) feature transfers TV audio signals via HDMI cable so that you can play the

audio from the TV through this unit. Connection to an ARC compatible TV is complete with one HDMI cable. Refer

to the instruction manual for your TV to see if it supports ARC. (

P11)

HDMI CEC functionality

Control features such as linking input switching with the input selector and players conforming to the CEC

standard, switching audio output and volume using the remote controller of a CEC-compliant TV, and

automatically switching this unit to standby when the TV is turned off (

P13)

HDMI Standby Through

Video and audio signals from AV components can be transmitted to the TV even if this unit is in standby (

P13)

CAUTION: Connect speakers with 4 Ω to 16 Ω impedance. The power cord must be connected only after

all other cable connections are completed. We will not accept responsibility for damage arising from the

connection of equipment manufactured by other companies.

SN29402420B_TX-RZ3100_BAS_En_171026.book 2 ページ２０１７年１０月２６日　木曜日　午後１時１０分

> Before start > Hookup > Setup > Playback > Part Names

Step1: Speaker Layout

＊1

＊2

＊3

＊1: 22e〜30e, ＊2: 90e〜120e, ＊3: 135e〜150e

12 Front Speakers

3Center Speaker

45 Surround Speakers

6Powered Subwoofer

78 Surround Back Speakers

7.1-Channel System

Front speakers output front stereo sound and a center

speaker outputs center sound such as dialogs and vocals.

Surround speakers create back sound field. Powered

subwoofer reproduces bass sounds and creates rich

sound field.

Surround back speakers improve the sense of

envelopment created by the back sound field and provide

a more realistic sound field. Furthermore, by installing

surround back speakers, you can select the Dolby Atmos

listening mode, which realizes the most up-to-date 3D

sound, when the input format is Dolby Atmos.

The front speakers should be positioned at ear height,

while the surround speakers should be positioned just

above ear height. Center speaker should be set up facing

the listening position.

Placing the powered subwoofer between the center

speaker and a front speaker gives you a natural sound

even when playing music.

The optimal positioning is for surround back speakers to

be at ear height.

0If you are including surround back speakers in the

setup, surround speakers are required.

Go To "Hookup" (

P9)



SN29402420B_TX-RZ3100_BAS_En_171026.book 3 ページ２０１７年１０月２６日　木曜日　午後１時１０分

> Before start > Hookup > Setup > Playback > Part Names

＊1

＊2

＊3

3´ (0.9 m)

or more

3´ (0.9 m)

or more

＊1: 22e〜30e, ＊2: 90e〜120e, ＊3: 135e〜150e

9: Height Speakers

Front High Speakers

Rear High Speakers

Height Speakers;

Front High Speakers/

Rear High Speakers

These are types of height speakers. Furthermore, by

installing height speakers, you can select the Dolby

Atmos listening mode, which realizes the most up-to-date

3D sound including overhead sounds, when the input

format is Dolby Atmos.

Front high speakers or rear high speakers should be

situated at least 0.9 m higher than the front speakers.

Front high speakers should be situated directly above the

front speakers and the distance between the rear high

speakers should match the distance between the front

speakers. Both should be set up facing the listening

position. Note that with height speakers you can install up

to two sets; Height 1 Speaker and Height 2 Speaker.

Go To "Hookup" (

P9)



SN29402420B_TX-RZ3100_BAS_En_171026.book 4 ページ２０１７年１０月２６日　木曜日　午後１時１０分

> Before start > Hookup > Setup > Playback > Part Names

＊1

＊2

＊3

＊1: 30e〜55e, ＊2: 65e〜100e, ＊3: 125e〜150e

9: Height Speakers

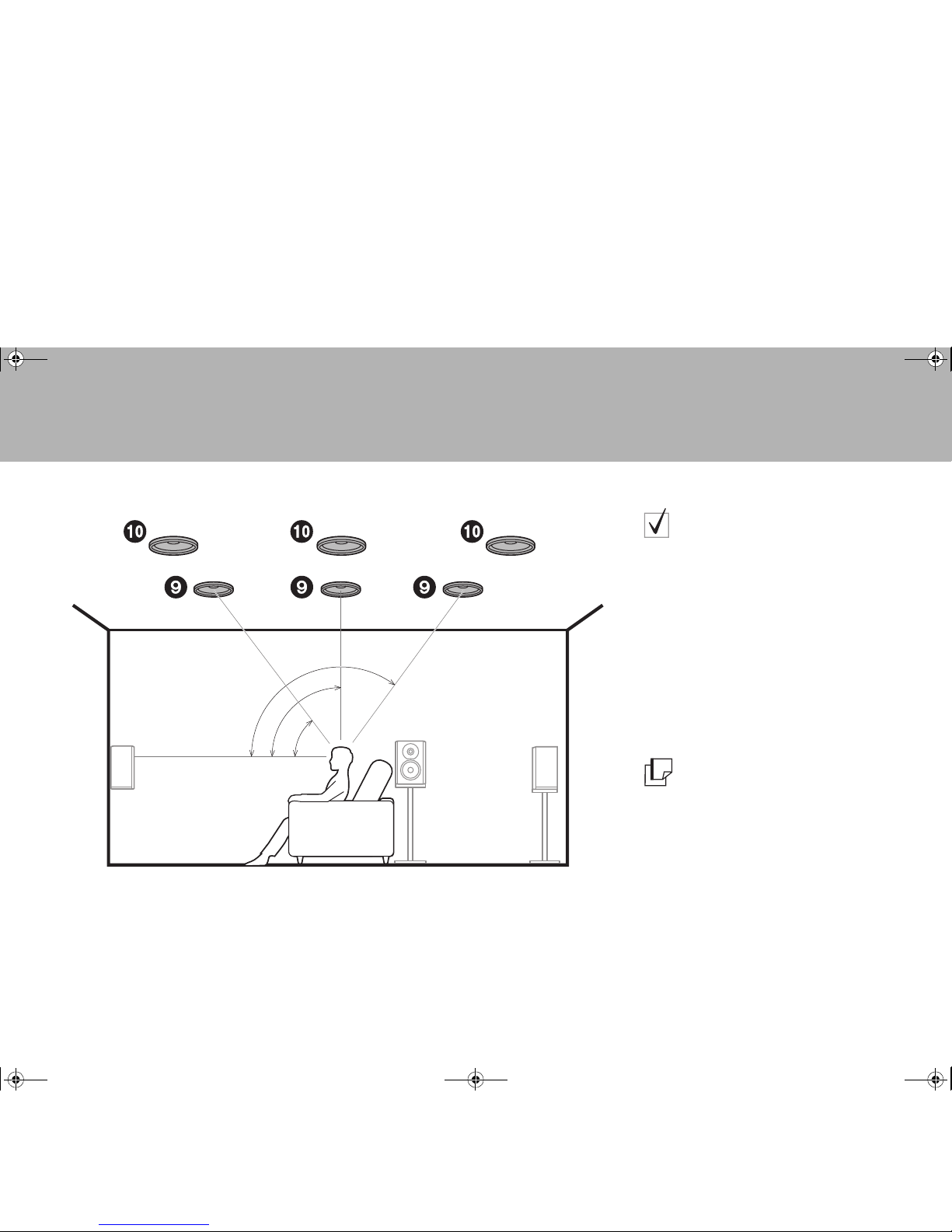

Top Front Speakers

Top Middle Speakers

Top Rear Speakers

Height Speakers;

Ceiling Speakers

These are types of height speakers. Furthermore, by

installing height speakers, you can select the Dolby

Atmos listening mode, which realizes the most up-to-date

3D sound including overhead sounds, when the input

format is Dolby Atmos.

Fit top front speakers on the ceiling forward of the seating

position, top middle speakers on the ceiling directly above

the seating position, and top rear speakers on the ceiling

behind the seating position. The distance between each

pair should match the distance between the two front

speakers. Note that with height speakers you can install

up to two sets; Height 1 Speaker and Height 2 Speaker.

0Dolby Laboratories recommends placing this type of

height speakers to obtain the best Dolby Atmos effect.

Go To "Hookup" (

P9)



SN29402420B_TX-RZ3100_BAS_En_171026.book 5 ページ２０１７年１０月２６日　木曜日　午後１時１０分

> Before start > Hookup > Setup > Playback > Part Names

＊1

＊2

＊3

＊1: 22e〜30e, ＊2: 90e〜120e, ＊3: 135e〜150e

9: Height Speakers

Dolby Enabled Speakers (Front)

Dolby Enabled Speakers (Surround)

Dolby Enabled Speakers (Surround Back)

Height Speakers;

Dolby Enabled Speakers

(Dolby Speakers)

These are types of height speakers. Dolby enabled

speakers are special speakers designed to face the

ceiling so that sound is heard after bouncing off the ceiling

so that sound appears to be coming from overhead.

Furthermore, by installing height speakers, you can select

the Dolby Atmos listening mode, which realizes the most

up-to-date 3D sound including overhead sounds, when

the input format is Dolby Atmos.

Place them either above the front speakers or above the

surround speakers or surround back speakers. Note that

with height speakers you can install up to two sets; Height

1 Speaker and Height 2 Speaker.

Go To "Hookup" (

P9)



SN29402420B_TX-RZ3100_BAS_En_171026.book 6 ページ２０１７年１０月２６日　木曜日　午後１時１０分

> Before start > Hookup > Setup > Playback > Part Names

＊1

＊2

＊3

＊1: 22e〜30e, ＊2: 90e〜120e, ＊3: 135e〜150e

12 Front Speakers (Bi-Amping)

Bi-Amping the Speakers

It is possible to connect front speakers supporting Bi-

Amping to improve quality of the bass and treble. The

effects and placements for speakers are the same as for a

system that doesn't use Bi-Amping speakers.

Go To "Hookup" (

P10)



SN29402420B_TX-RZ3100_BAS_En_171026.book 7 ページ２０１７年１０月２６日　木曜日　午後１時１０分

> Before start > Hookup > Setup > Playback > Part Names

Speaker combinations

In any of the combinations, up to two powered subwoofers can be connected.

Points to note with speaker combinations

＊1: It is not possible to use Bi-AMP and ZONE speakers at the same time. However, with 2.1 ch to 7.1 ch,

it is possible to use Bi-AMP and ZONE 2 speakers at the same time.

＊2: If front speakers are to be Bi-Amping connected, height speakers need to be connected to the

HEIGHT 2 jacks.

＊3: ZONE 2 speakers need to be connected to the HEIGHT 1 jack, ZONE 3 speakers need to be

connected to the SURROUND BACK jacks, and height speakers need to be connected to the

HEIGHT 2 jacks.

HEIGHT 1/HEIGHT 2

When connecting 2 sets of height speakers, the height speaker combinations you can choose are as follows.

– Height 1 Speaker: Top Middle, Height 2 Speaker: Rear High

– Height 1 Speaker: Front High, Height 2 Speaker: One of Rear High/Top Middle/Top Rear/Dolby Enabled

Speaker (Surround)/Dolby Enabled Speaker (Surround Back)

– Height 1 Speaker: Top Front or Dolby Enabled Speaker (Front), Height 2 Speaker: One of Rear High/Top

Rear/Dolby Enabled Speaker (Surround)/Dolby Enabled Speaker (Surround Back)

When connecting only one set of height speakers, select one type of height speakers from the types

available.

Speaker

Channels FRONT CENTER SURROUND SURROUND

BACK HEIGHT 1 HEIGHT 2 Bi-AMP

＊1

ZONE 2

＊1

(

P18)

ZONE 3

＊1

(

P19)

2.1 ch

3.1 ch

4.1 ch

5.1 ch

6.1 ch

7.1 ch

2.1.2 ch

＊2

＊3

3.1.2 ch

＊2

＊3

4.1.2 ch

＊2

＊3

5.1.2 ch

＊2

＊3

6.1.2 ch

＊2

7.1.2 ch

＊2

4.1.4 ch

5.1.4 ch

6.1.4 ch

7.1.4 ch

SN29402420B_TX-RZ3100_BAS_En_171026.book 8 ページ２０１７年１０月２６日　木曜日　午後１時１０分

> Before start > Hookup > Setup > Playback > Part Names

Step2: Connect the Speakers

3/8˝

(10 mm)

ᴧᴧ

1 Speaker cable, 2 Subwoofer cable

Standard Connections

Refer to the illustration to connect the speaker system.

＊Depending on the combination of speakers, you may need to

connect to other jacks. See "Points to note with speaker

combinations" (ÄP8) for details.

Make sure the exposed wires of the speakers do not stick out of

the speaker terminals when connecting. If the exposed wires of

the speakers touch the rear panel or the + and – wires touch each

other, the protection circuit will be activated.

SN29402420B_TX-RZ3100_BAS_En_171026.book 9 ページ２０１７年１０月２６日　木曜日　午後１時１０分

> Before start > Hookup > Setup > Playback > Part Names

3/8˝

(10 mm)

For high-

frequency

For low-

frequency

1 Speaker cable

Connections with Bi-

Amping speakers

Connect front speakers compatible with Bi-Amping

connection to the FRONT jacks and the HEIGHT 1 jacks.

Make sure you remove the jumper bar fitted between the

woofer jacks and tweeter jacks of the front speakers. In

case of Bi-Amping connection, refer to the instruction

manual of your speakers.

Make sure the exposed wires of the speakers do not stick out of

the speaker terminals when connecting. If the exposed wires of

the speakers touch the rear panel or the + and – wires touch each

other, the protection circuit will be activated.

SN29402420B_TX-RZ3100_BAS_En_171026.book 10 ページ２０１７年１０月２６日　木曜日　午後１時１０分

Autres manuels pour TX-RZ3100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Onkyo Récepteur

Onkyo

Onkyo TX-SV828THX Manuel utilisateur

Onkyo

Onkyo HT-R640 Manuel utilisateur

Onkyo

Onkyo HT-R540 Manuel utilisateur

Onkyo

Onkyo HT-R592 Manuel utilisateur

Onkyo

Onkyo DR-C500 Manuel utilisateur

Onkyo

Onkyo TX SR607 - AV Receiver Manuel utilisateur

Onkyo

Onkyo TX-SR313 Manuel utilisateur

Onkyo

Onkyo TX-NR626 Manuel utilisateur

Onkyo

Onkyo PR-SC5507 Manuel d'utilisation et d'entretien

Onkyo

Onkyo TX-SV343 Manuel utilisateur

Onkyo

Onkyo Integra TX-DS898 Manuel utilisateur

Onkyo

Onkyo TX-NR807 Manuel d'utilisation et d'entretien

Onkyo

Onkyo TX-NR801 - AV Receiver Manuel utilisateur

Onkyo

Onkyo TX-NR5007 - AV Network Receiver Manuel utilisateur

Onkyo

Onkyo TX-SR353 Manuel utilisateur

Onkyo

Onkyo SR705 - TX AV Receiver Manuel utilisateur

Onkyo

Onkyo TX-SR503 Manuel utilisateur

Onkyo

Onkyo TX-NR809 Fiche technique

Onkyo

Onkyo TX-NR757 Manuel utilisateur

Onkyo

Onkyo RFR-5 Manuel utilisateur

Onkyo

Onkyo LS-V955 Manuel utilisateur

Onkyo

Onkyo SC886 - PR Preamplifier / Processor Manuel utilisateur

Onkyo

Onkyo TX-SR602 Manuel utilisateur

Onkyo

Onkyo TXSR606S Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
