Onerr Boosted Line Selector BL-1 Manuel utilisateur
User Guide
Guide de l'Utilisateur
Manual do Usuário
EFFECTS
BOOSTED LINE SELECTOR BL-1
2
ENGLISH

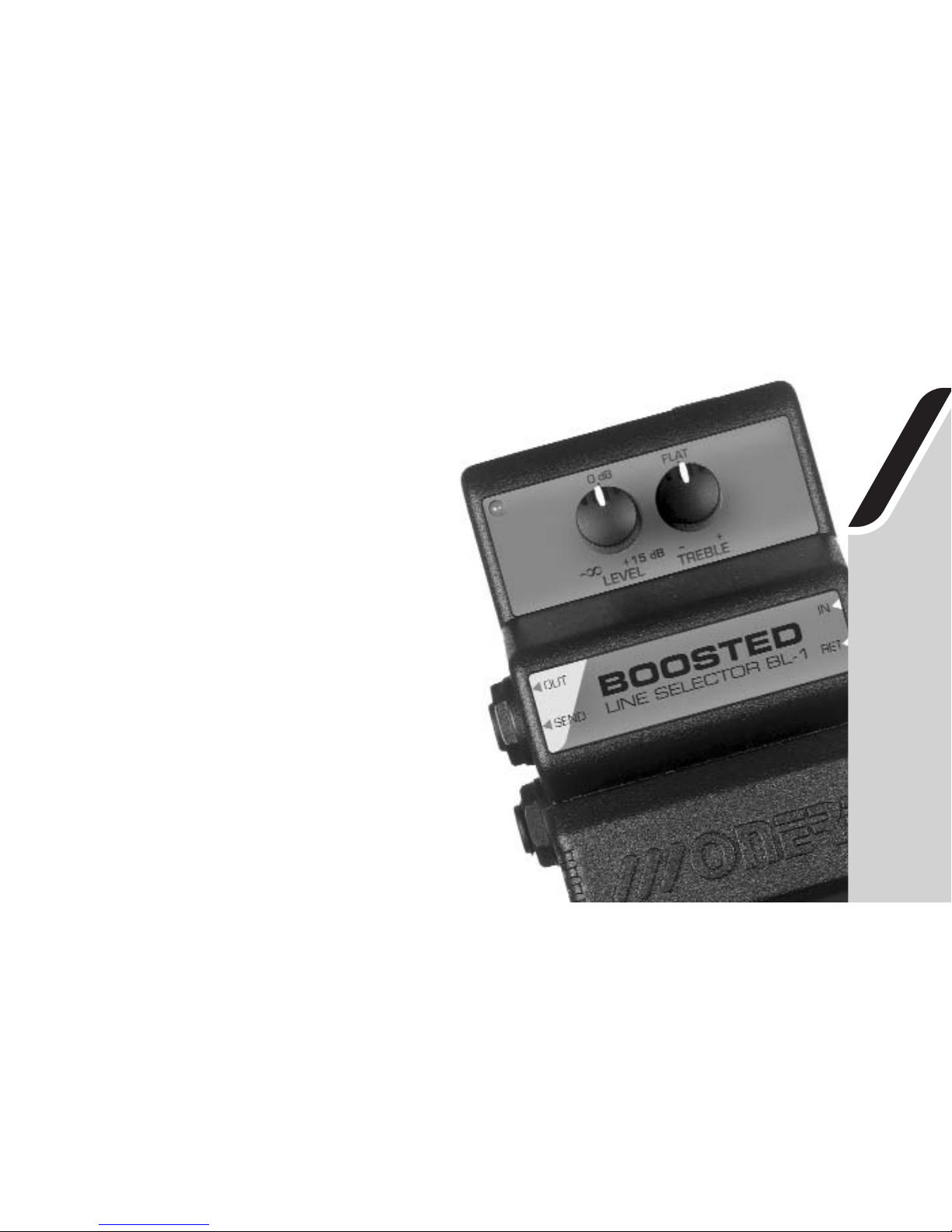

Product Overwiew
Thank you for choosing an Onerr product.
The ONERR Boosted Line Selector BL-1 was designed
to give musicians three very useful options:
A/B box: Connect either two instruments to a single
amplifier (with control of Level and Treble of one of the
instruments) or one instrument to two amplifiers.
Booster: Boost your guitar level and “push” a tube amp,
warming your tone.
Effect Loop: Create an external effect loop that can be
bypassed when necessary.
3

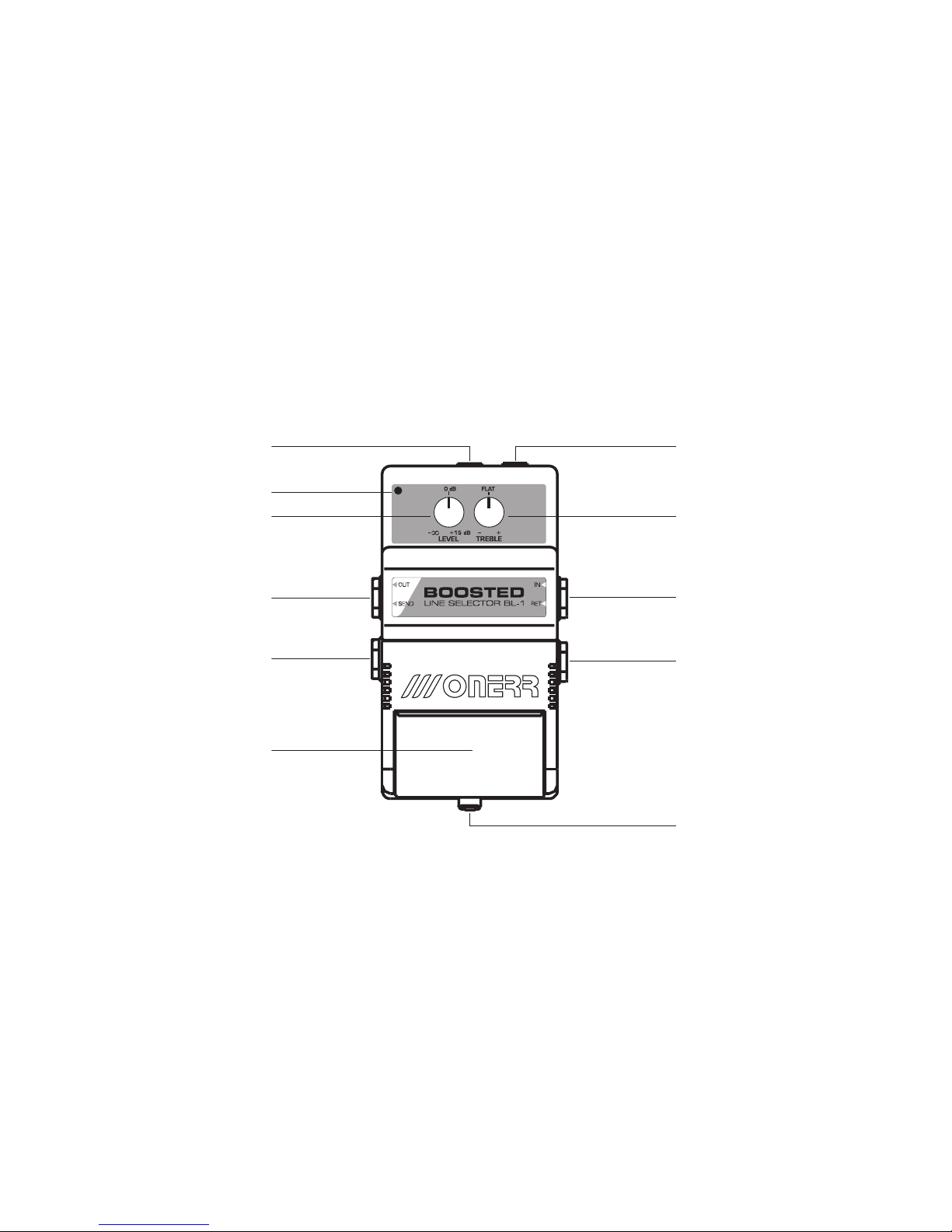

Panel Descriptions
AC adaptor jack J1 AC adaptor jack J2
Led indicator on/off
Level knob
Output jack
Send jack
Pedal switch
Input jack
Return jack
Thumbscrew
Treble knob
4
AC adaptor Jack (J1): Accepts connection of an
external AC adaptor.
AC adaptor Jack (J2): Used to distribute the voltage
to your pedal chain.
Input Jack: Connect your instrument cord or the ouput
of another effect pedal if you are linking pedals together.
Output Jack: This output jacks will deliver the
effected sound to your amplifier, or to an input jack of
another effect.
Send Jack: Send the instrument signal to an external
effect loop.
Return Jack: Receive an external signal from an
external effect loop.
Pedal: Depress to turn on/off the pedal.
Level: Adjusts the level of the RETURN jack. The center
position is set to 0 dB. Turning it to the left decreases
the total volume and turning it to the right increases the
total volume up to 15 dB (max).
Treble: Adjusts the amount of treble of the RETURN
jack. Turning it to the left decreases the treble amount
and turning it to the right increases the treble amount.
Led Indicador: Indicates the pedal status.
When led is green, the power supply is okay and
indicates your BL-1 is under bypass mode.
When led is red, your instrument signal is being sent to
an external looping effect.
Pedal Descriptions
5
Powering
This pedal is not battery operable. You must use an AC
adaptor to power your pedal.
Warning
When using an AC adaptor is sure to use a compatible
model for your unit, otherwise irreparable damage may be
caused.
Optional Onerr AC adaptor: Onerr PA-21 or PA-23.
Power supply specifications
Output voltage: 9VDC
Current capacity: 100ma (minimum)
Output plug: 2.1 x 5.5 mm ( negative center)

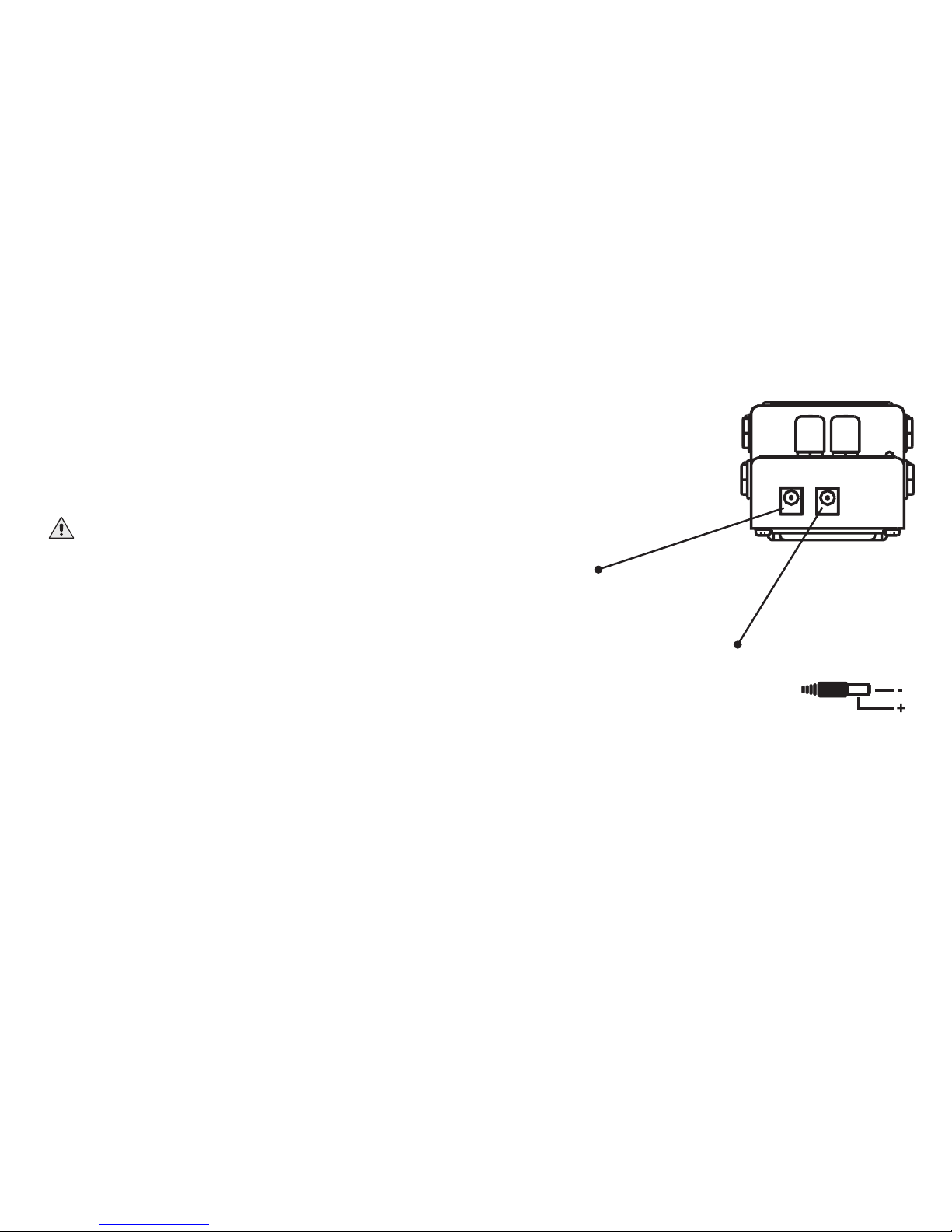

DC input Jack.
Connect your AC adaptor here.
DC output jack.
6
AC adaptor
Onerr model
PA 21 or PA 23
Guitar 1
Guitar 2
Amplifier

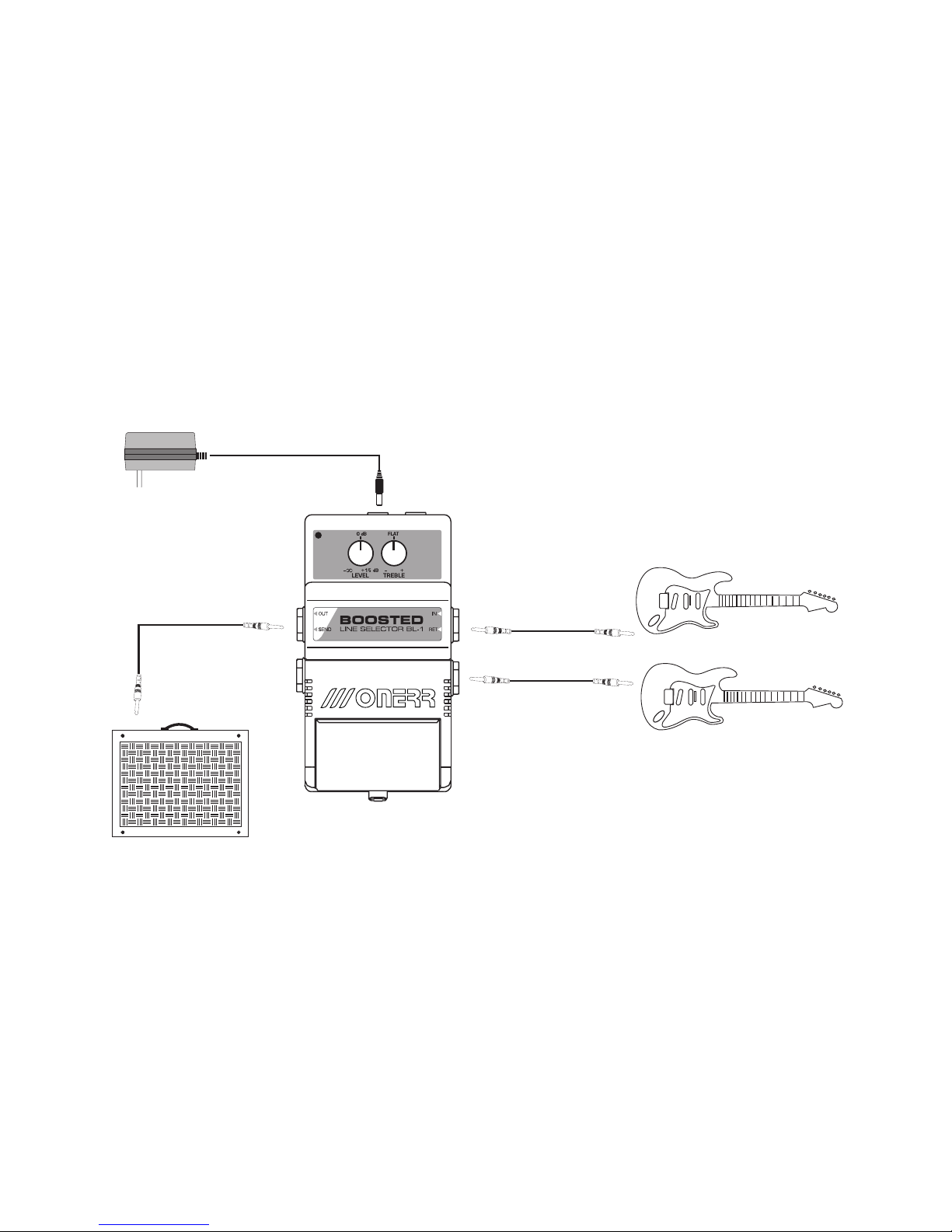

Using as an A/B Box (1)
7
Adaptor
AC/DC Onerr
PA-21 / PA-23
Guitar
Amp 1 Amp 2

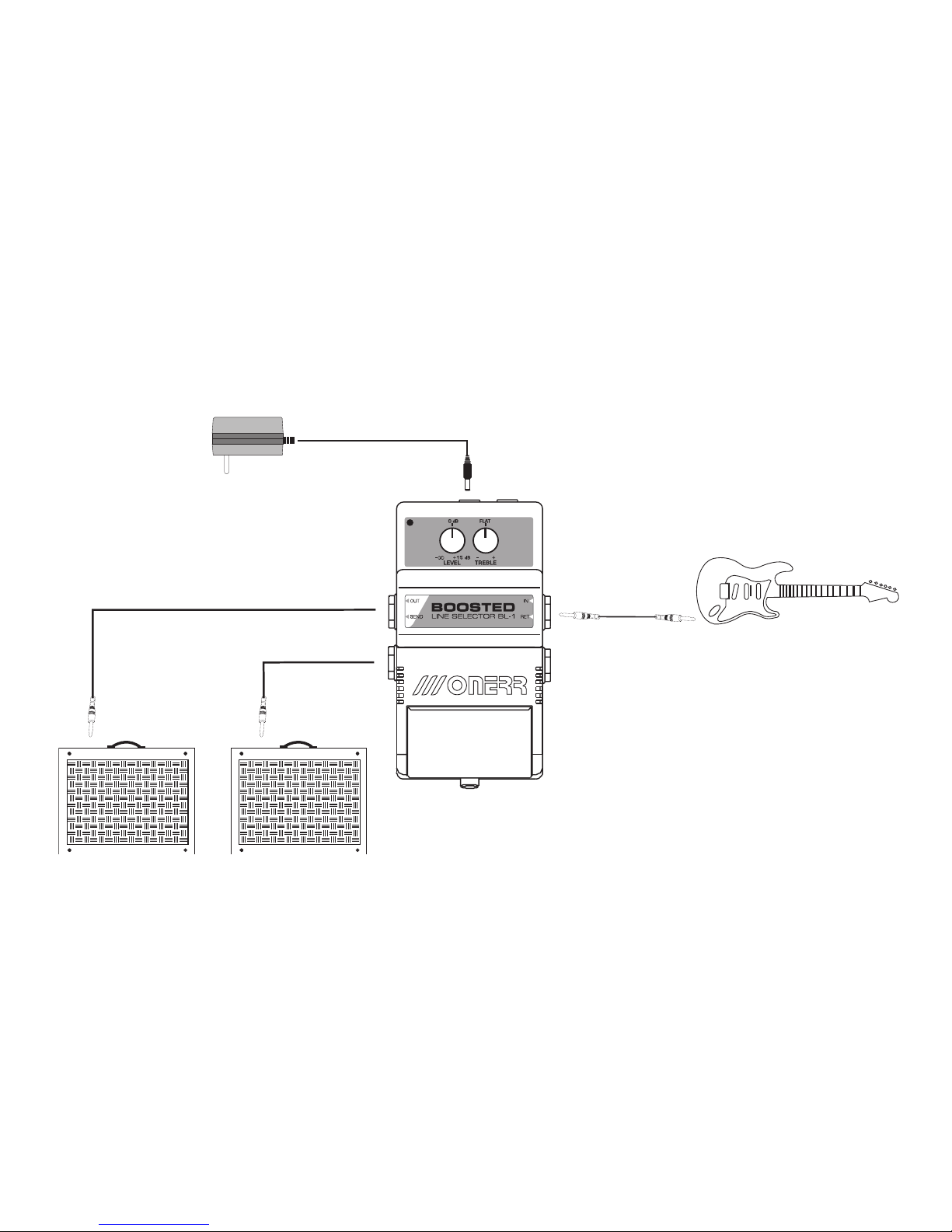

Using as an A/B Box (2)
8
Using as a Booster
Adaptor
AC/DC Onerr
PA-21 / PA-23
Guitar
Amplifier

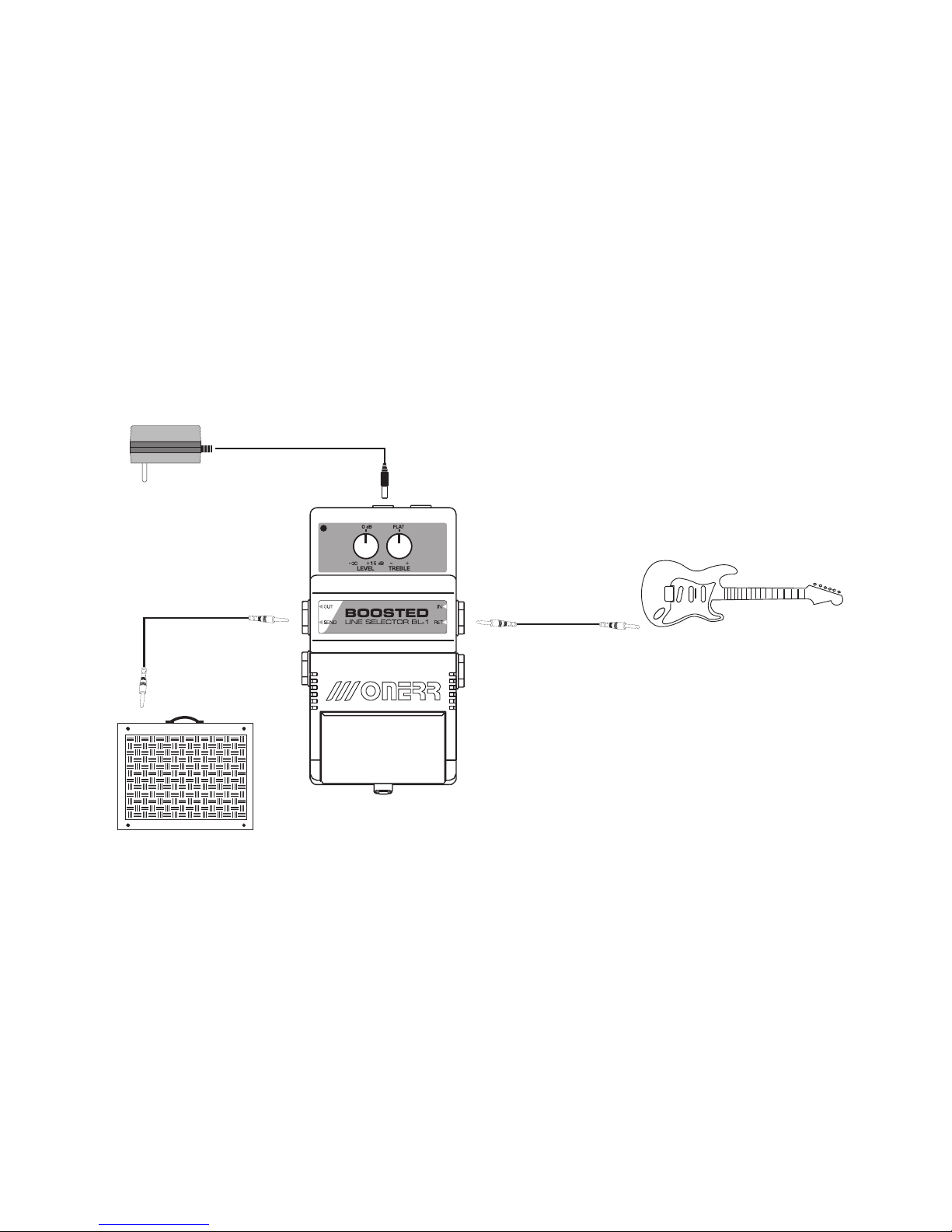

9

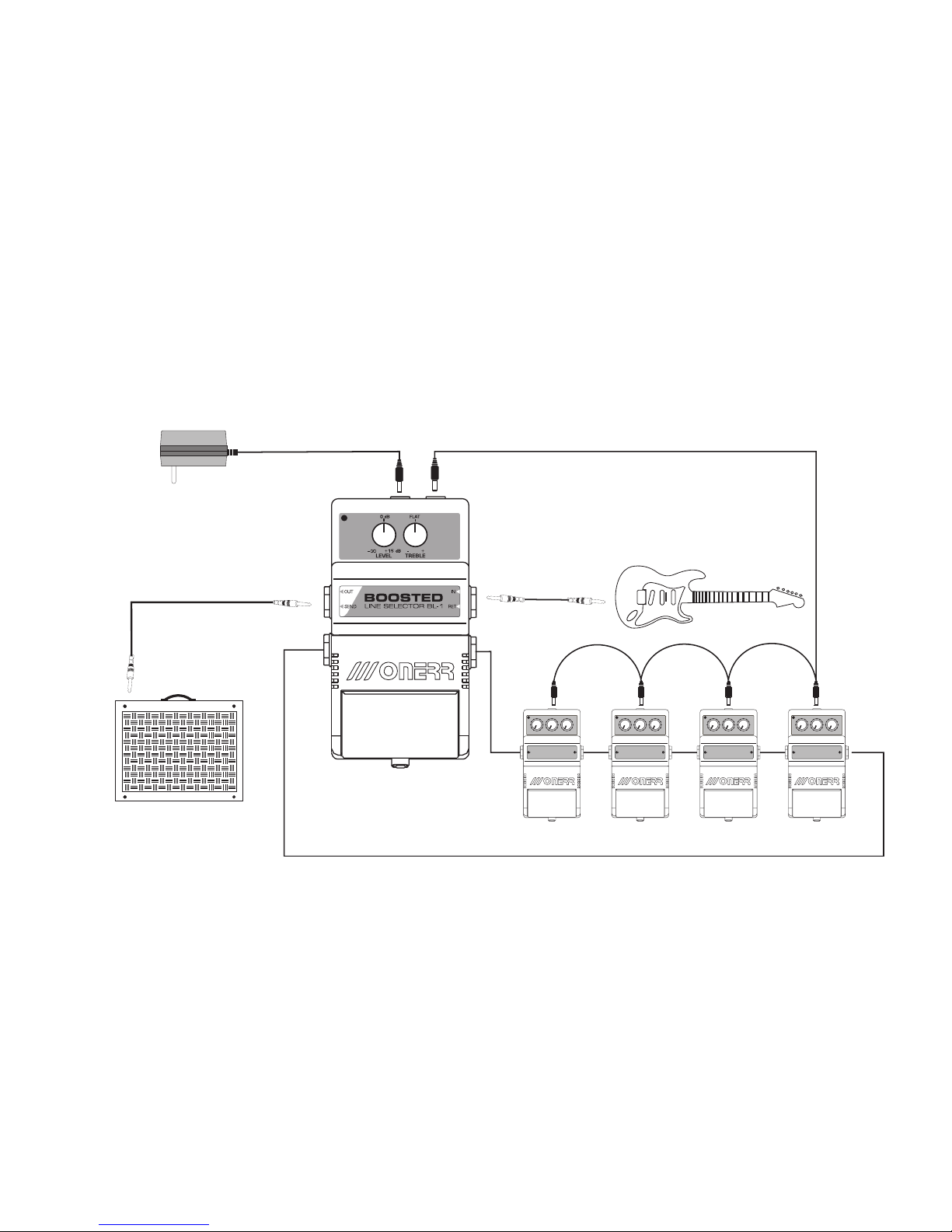

Amplifier
Using as a Boosted effect loop
Adaptor
AC/DC Onerr
PA-21 / PA-23
Guitar 1
External Loop Effect
10
Notes:
Using this pedal safely
-Only use reliable cords to connect your pedals. This is to be sure you won´t get troubles while playing.
-Before powering your pedals, make all necessary linking connections. In case of you need to change any connection,
do not forget to turn the power off in order to not cause any damage to your units.
-Only use regulated adapators in order to have best performance.
-Do not worry if you accidentally change the input to output cord. This will not damage your unit. Just turn the power
off and reconnect it correctly.
Warning or caution:
Instructions alerting the user to possible risks and/or injuries if the produc is used improperly.
Forbidden actions:
Used to advise those actions that can't be carried out.
