Oneida Air Systems Supercell Mobile Manuel utilisateur

Rev: B 20221128 Doc. #ZBM000038

Appearance may vary slightly

OWNER’S MANUAL

Supercell®

Supercell® Turbo

High-Pressure

Dust Collector

30/35/55 Gallon

# XSK000030

# XSK000035

# XSK000055

# XSK430000

# XSK435000

# XSK455000

U.S. Patent: #8393050,

#8377160, #9125535,

#D917806

READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNING LABELS BEFORE

USING THE DUST COLLECTOR.

1oneida-air.com

Table of Contents

System Start-Up Information 2

Supercell/Supercell Turbo System Specications 6

Wall Bracket Mounting Specications 7

Wall Bracket Dimensions 8

System Dimensions with 30 Gallon Drum 9

System Dimensions with 35 Gallon Drum 10

System Dimensions with 55 Gallon Drum 11

System Contents 30/35/55 Gallon Drum 12

Maintenance 26

Troubleshooting 28

F.A.Q. 30

Recommended Accessories 31

Warranty Information 33

Oneida Air Systems, Inc.2

System Start-Up Information

 WARNING 

1. READ and understand ALL instructions and warning labels BEFORE using the dust collector.

2. REPLACE warning labels if they become obscured or removed.

3. ALWAYS follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and

regulations when installing and operating this dust collector.

4. ENSURE that all users of this Dust Collector are informed of all warnings and precautions, safe use, and

maintenance procedures.

5. FULL mental alertness is required. NEVER operate under the inuence of drugs or alcohol, when tired, or

when distracted.

6. DO NOT allow use by or near children.

7. DO NOT allow to be used as a toy. Close attention is necessary when used by or near children.

8. NEVER leave the dust collector running while unattended.

9. TURN OFF and UNPLUG the dust collector BEFORE walking away, servicing, or cleaning. Allow the fan

blower motor to come to a COMPLETE STOP before walking away or performing any maintenance, service,

cleaning, or adjustments. is eliminates the risk of injury from unintended startup or contact with live

electrical components.

10. ENSURE that your dust collector is turned OFF and UNPLUGGED during installation. is eliminates the

risk of injury from unintended startup or contact with live electrical components.

11. COMPLETELY INSTALL ductwork/ex hose before operating collector.

a. Seal ductwork with silicone sealant or duct tape if leaks are found.

b. Have dust drum in place and sealed.

c. NEVER operate without lter and cowling in place. is machine has high speed rotating elements than

can cause severe injury.

12. ONLY use the dust collector for its intended purpose as described in this manual. DO NOT force it or

an attachment to do a job for which it was not designed. Consult this owner’s manual or reach out for

recommended accessories.

Before Purchasing or installing a dust collection system the process owners/operators

are cautioned to do so in accordance with prescribed Federal, State, Local, OSHA, NFPA,

and any other applicable codes or regulations relating to the type of dust(s) you are

collecting.

This manual contains specific precautionary statements relative to worker safety. Read

thoroughly and comply as directed. The most up to date safety information can be found

on our website: oneida-air.com/safety

oneida-air.com 3

System Start-Up Information (Continued)

13. ENSURE enough air volume is at the suction point to capture all the particulate generated.

14. NEVER make modications without prior approval from Oneida Air Systems. Modifying the dust collector

or using it dierently than intended will void the warranty and may result in malfunction or mechanical

failure that leads to serious personal injury or death!

15. DO NOT locate or operate the system in moist, wet, poorly lit, or cluttered environments. Operating in these

areas can create shock hazards, increase the risks of accidents and injury, and/or lower the operating lifespan

of the dust collector.

16. DO NOT install in classied hazardous atmospheres without an enclosure rated for the application. System

Location must account for wind, seismic zone, and other load conditions. Codes may regulate acceptable

locations for installing dust collectors. Consult with the appropriate authorities having jurisdiction to ensure

compliance with all national and local codes regarding dust collector installation. Equipment must be

anchored in a manner consistent with local code requirements. Anchors must be sucient to support dead,

live, seismic, and other anticipated loads. Consult a qualied engineer for nal selection of anchorage.

17. ENSURE exhaust air is properly vented. It should NOT be vented into a wall, a ceiling, or a concealed space

of a building. Personal injury, death, and/or property damage can result from material discharge during

venting. e risk of personal injury and/or property damage can be minimized or avoided by locating vented

equipment outside buildings and away from normally occupied areas. If exhaust air is vented outside, you

must provide make up / return air. Flue gases (carbon monoxide) can be drawn into the shop from furnaces,

water heaters, or other appliances

18. INSPECT and MAINTAIN REGULARLY. Keep the dust collector in proper working order. A machine that

isn’t properly maintained, not working as it should, has been dropped, damaged, le outdoors, or dropped in

water could malfunction leading to serious personal injury or death!

19. AVOID CORD DAMAGE. DO NOT pull or carry by cord. DO NOT use cord as handle. DO NOT unplug

by pulling on cord. To unplug, grab the plug, DO NOT close door on cord or pull cord around sharp edges or

corners. DO NOT run dust collector over cord. DO NOT handle cord/plug with wet hands. Keep cord away

from heated surfaces.

20. ALWAYS check for damaged parts. A part that is damaged should be carefully checked to determine that

it will operate properly and perform its intended function. Immediately repair or replace damaged or mis-

adjusted parts before operating machine.

21. DO NOT put any object in openings. DO NOT use with any opening blocked. (Except when pulsing - See

Maintenance Section for more information.)

22. ALWAYS wear a NIOSH approved respirator when emptying dust bins and during operation. Some dust

created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals

known to cause cancer, birth defects or other long-term respiratory damage

23. ALWAYS keep hair, loose clothing, ngers, and all parts of body AWAY from openings and moving parts.

24. ALWAYS wear ANSI-approved safety glasses or a face shield when operating or observing machinery and

when emptying dust bin.

25. ALWAYS wear hearing protection during extended periods of operation.

Oneida Air Systems, Inc.4

System Start-Up Information (Continued)

1. THIS UNIT IS NOT RATED FOR USE IN COMBUSTIBLE ENVIRONMENTS.

2. DO NOT operate the dust collector in areas where explosion risks are high. Areas of high risk include, but

are not limited to, areas near pilot lights, open ames, or other ignition sources.

3. ONLY operate dust collector in locations that include a re suppression system or have a re extinguisher

available nearby.

a. e ABC type (dry chemical) is generally a good choice for small wood shops.

b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire

Extinguishers).

4. DO NOT allow accumulation of layers of ne dust on horizontal surfaces. Especially overhead lights,

electrical boxes and fuse panels which can ignite dust. Keep the oor around the system clean and free of

scrap material, oil, grease.

5. ENSURE all equipment and ductwork is electrically grounded.

6. DO NOT use PVC drain pipe.

7. ALWAYS consult an electrician or qualied service personnel about wiring practices and electrical codes

in your area. ONLY allow an electrician or qualied service personnel to do electrical installation or repair

work.

8. ALWAYS disconnect power before accessing or exposing electrical equipment. Improper wiring can cause

re, electrocution, injury, or death.

9. DO NOT use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

10. DO NOT use to pick up liquids, ammable liquids, or combustible liquids, such as gasoline, or use in areas

where they may be present.

11. DO NOT use excessively large wood waste bins. Wood dust mixtures are highly ammable and can be

explosive

 FIRE HAZARDS 

Process owners/operators retain all responsibility for the suitability of fire and explosion

hazard mitigation, suppression, and isolation strategies and to follow all applicable

federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and regulations

when installing and operating this dust collector.

Improper operation of a dust control system may contribute to conditions in the work

area or facility that could result in severe personal injury and product or property

damage.

Oneida Air Systems assumes no responsibility or liability for the suitability of any fire and/

or explosion mitigation strategy, or any items incorporated into a collector as part of an

owner/operators hazard mitigation strategy.

oneida-air.com 5

Customer Service Dept.

1-866-387-8822 • support@oneida-air.com

System Start-Up Information (Continued)

12. ALWAYS check your dust bin for smoldering materials before leaving the shop.

13. NEVER introduce sparks or sources of ignition into the dust collector. Sparks can be generated in several

ways:

a. High speed sanders, abrasive planers, saws, and edgers may strike foreign material and create a red-hot

metal fragment.

b. Knots in hardwood can create frictional sparks.

c. Trapped metal, when drawn into the dust collection system, can spark against ductwork.

d. Check wood stock for old nails and screws which can create red-hot metal fragments.

14. DO NOT overload woodworking equipment, especially sanders, as excessive frictional heat can

spontaneously ignite dust. Sanders can produce concentrations of dust well into the combustible range.

15. ALWAYS check that all dust collection equipment is properly selected and sized for the intended use.

Authorities with jurisdiction should be consulted before installing to verify local codes and installation

procedures. In the absence of such codes, install collector according to the National Electric Code, NFPA No.

70-latest edition and NFPA 91, NFPA664 Code (NFPA 654 if combustible dust is present).

Bare Wiring

Two Hot Wires & Ground

Licensed Electrician

REQUIRED

Bare Wiring

Two Hot Wires & Ground

Licensed Electrician

REQUIRED

6Oneida Air Systems

Supercell/Supercell Turbo System Specications

OPERATION

Maximum Suction Rating 97.8" WC

MOTOR AND ELECTRICAL

Motor Type 3x 1300W Modular Motors / 4x 1300W Modular Motors

Horsepower 5HP Total / 6.7 HP Total

Motor Speed 48,880 RPM

Phase 1-Phase

Voltage 208-230V

Cycle 60Hz

Listed FLA 18A / 22A

On/O Switch Magnetic Starter with On-O Switch and RF Remote

Power Cord Length 10 feet

Power Connector NEMA 6-20 / BareWiring

Recommended Circuit Size 20A / 30A

Recommended Circuit Type HACR

Sound Emission 80 dBA @ 10 ft / 85 dBA @ 10 ft

CARTRIDGE FILTER

Filter Media Type HEPA Certied

Filter Eciency 99.97% @ 0.3 microns

Filter Surface Area 40 sq ft

SYSTEM DIMENSIONS AND CONSTRUCTION

Primary Build Materials Cold Rolled Steel, Static Dissipative Polyethylene

Inlet 4" O.D.

Discharge to Drum 5" O.D.

Overall Height 30 Gallon: 79-3/16"; 2,011 mm without Universal Drum Dolly

35 Gallon: 72-7/8"; 2,108 mm without Universal Drum Dolly

55 Gallon: 84-1/4"; 2,140 mm without Universal Drum Dolly

Overall Weight 30 Gallon: 95 lbs

35 Gallon: 95 lbs

55 Gallon: 102 lbs

e Supercell requires a 20 Amp

outlet receptacle to be installed by a

licensed electrician.

e Supercell Turbo requires that

it be installed to a 30 Amp breaker

(minimum) by a licensed electrician.

7oneida-air.com

43"

1,092 mm

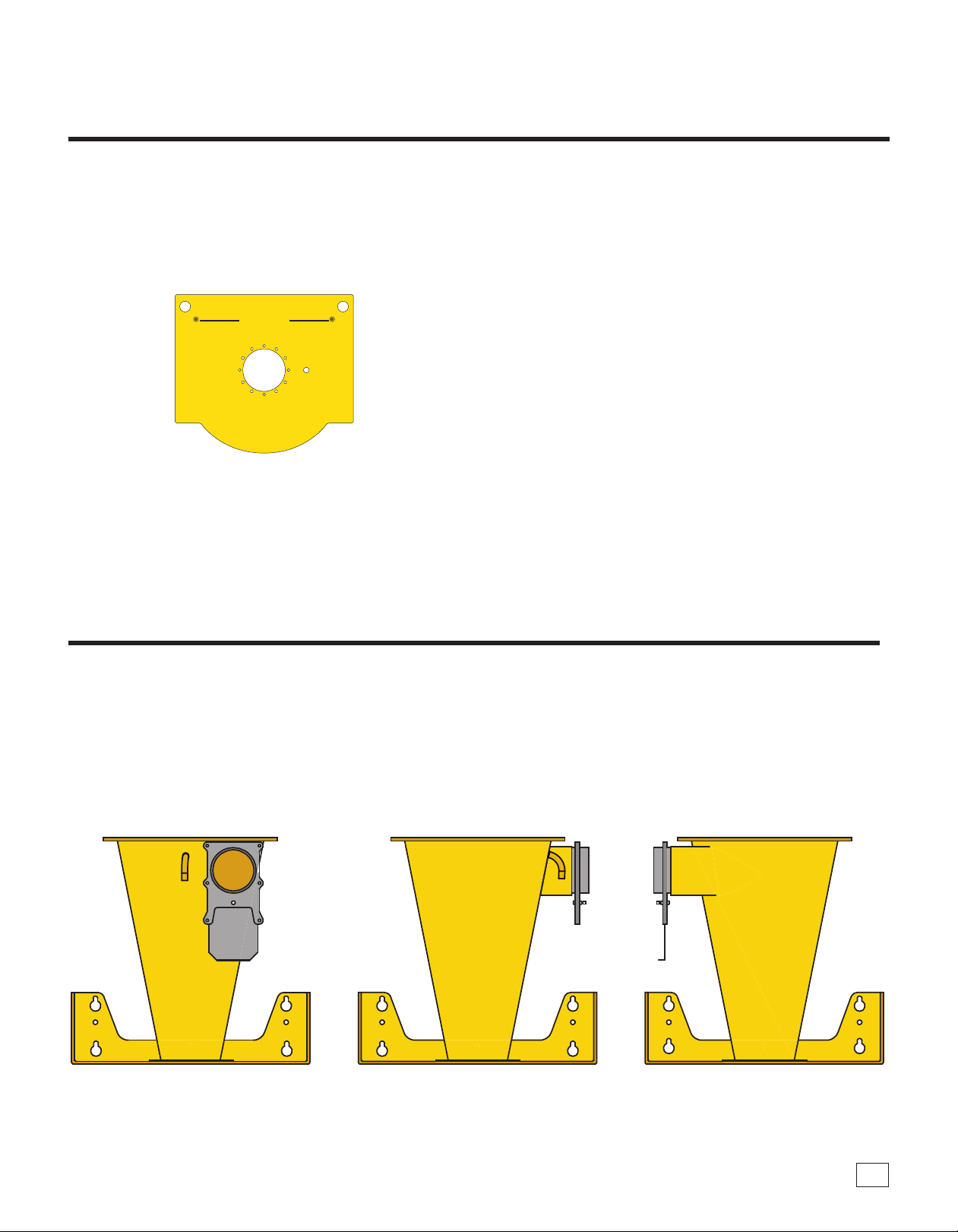

Wall Bracket Mounting Specications

THE WALL BRACKET SHOULD BE MOUNTED TO A STURDY, REINFORCED WALL E.G. CONCRETE WALL, BRICK

WALL, WOODFRAMED WALL, ETC. THE WALL BRACKET IS DESIGNED TO WORK WITH STANDARD 16”STUD

SPACING. WALL ANCHORS CAN BE USED IF MOUNTING ON DRYWALL. THIS TEMPLATE INDICATES THE

PROPER DRILL HOLES AND THE FULL, ASSEMBLED SIZE OF THE WALL BRACKET.

The Cyclone can be rotated in 90-degree increments so that the inlet is facing parallel or perpendicular to the wall.

Decide how you want your system oriented during installation to best meet your shop’s needs. Other positions

will not work as they will hinder installation of the Rear Support Brace.

Cyclone Mounting Positions

RIGHTFORWARD LEFT

Rivnuts

Note: The Wall Bracket (F) is universal to all

Supercell systems. The Rivnuts are used only

for the 14 gallon model.

Use appropriate fasteners for the wall type you are

installing your system onto, drill into and install

fasteners into the wall at all marked locations.

Maximum Fastener Size: 5/16" diameter

for the 4 keyholes

Maximum Fastener Size: #12 screw for

the rear support brace holes

Maximum Washer Size: 3/4" outside

diameter

8Oneida Air Systems

Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.

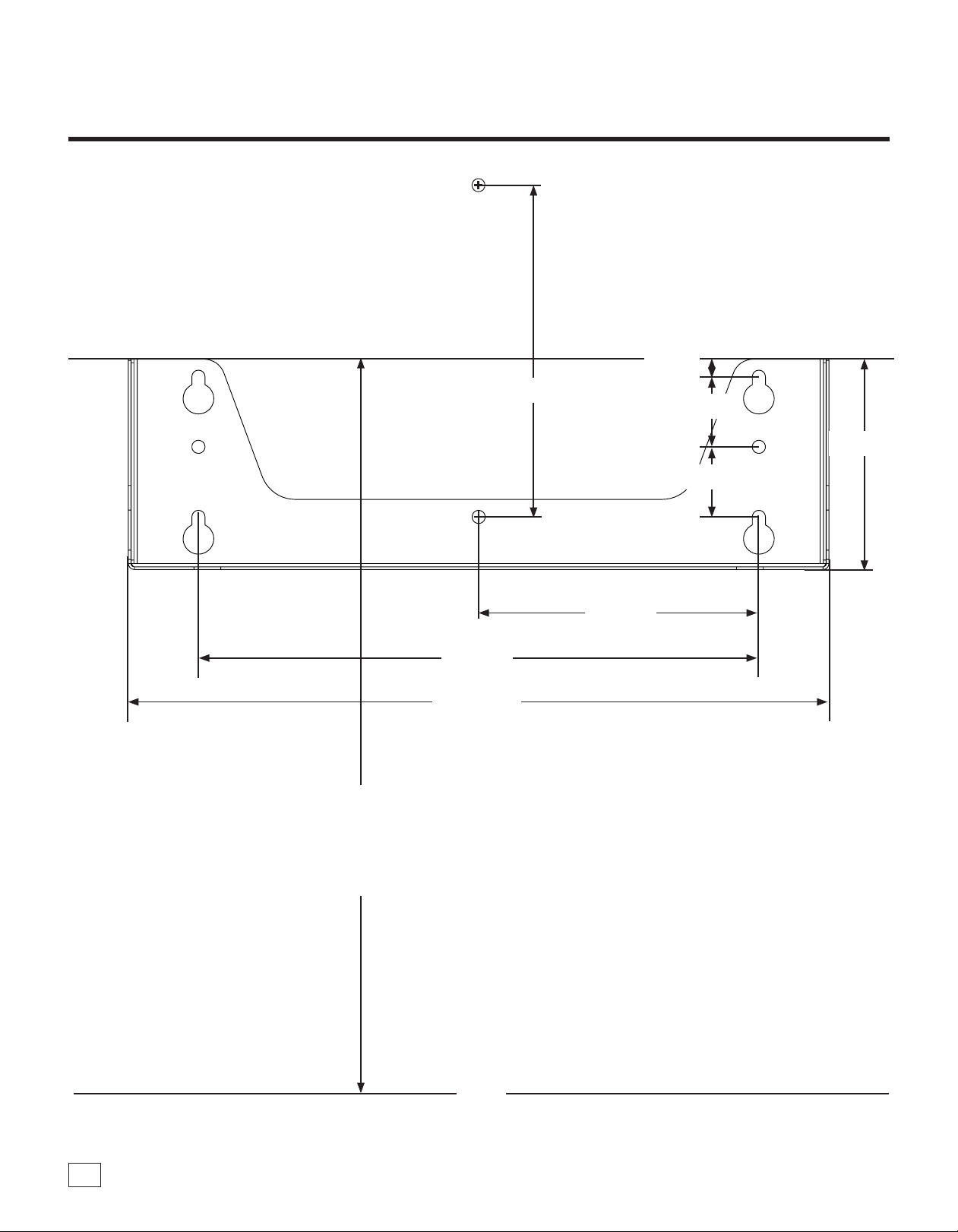

Wall Bracket Dimensions

51 mm

203 mm

16"

406 mm

1/2"

13 mm

152 mm

20"

508 mm

Floor

30 Gallon: 45-13/16" ; 1163 mm

30 Gallon with Dolly: 49-13/16" ; 1265 mm

35 Gallon: 38-1/2" ; 978 mm

35 Gallon with Dolly: 42-1/2" ; 1080 mm

55 Gallon: 49-7/8"; 1267 mm

55 Gallon with Dolly: 53-7/8"; 1368 mm

15-1/4"

388 mm

Autres manuels pour Supercell Mobile

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Oneida Air Systems dépoussiéreur

Oneida Air Systems

Oneida Air Systems XXK100300 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems 10 HP Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Smart Dust Collector Manuel utilisateur

Oneida Air Systems

Oneida Air Systems XGK030035 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Dust Deputy AXD990003 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems 5 & 7.5 HP Direct Drive Cyclonic Dust... Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Dust Deputy AXD001004 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Dust Cobra Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Mini-Gorilla Manuel utilisateur

Oneida Air Systems

Oneida Air Systems V1500 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems V-1500 1.5hp Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Supercell XSK000030 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems XCKM013000 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Pro 2000 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems XXVM001500 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems V1500 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems BenchTop DC Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Supercell XSK000014 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Mini GORILLA XXP010101 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Super Dust Gorilla Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Dust Deputy AXD001004 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems XXS050333 Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Super Dust Gorilla 2hp Manuel utilisateur

Oneida Air Systems

Oneida Air Systems Dust Gorilla Pro Smart Boost... Manuel utilisateur

Manuels dépoussiéreur populaires d'autres marques

Fein

Fein 9-88-35 Manuel utilisateur

Blastrac

Blastrac BDC-44 Manuel utilisateur

DIVERSITECH

DIVERSITECH WB-4000-D Manuel

National

National 3402 Manuel utilisateur

Grizzly

Grizzly G0850 Manuel utilisateur

Bosch

Bosch GDE18V-16 Instructions de montage

Grizzly

Grizzly G0441HEP Manuel utilisateur

Storch

Storch Cover Quick Wall Manuel utilisateur

laguna

laguna C FLUX 1 Manuel utilisateur

Jet

Jet DC-1100VX Series Manuel de service

GMC

GMC RDC8LA Manuel utilisateur

Showa

Showa Fumeresa CBA-1000AT-HC-DSA-V1 Manuel utilisateur

King Industrial

King Industrial KC-4043KWRC Manuel utilisateur

Jet

Jet 500 Manuel utilisateur

Shop fox

Shop fox SHOP FOX W1687 Manuel utilisateur

Blastrac

Blastrac 655DC Manuel utilisateur

Elektra Beckum

Elektra Beckum Multi 180A Manuel utilisateur

Grizzly

Grizzly G0508 Guide de démarrage rapide
