Brief Introduction
Safety Note
There’s high pressure components in this products, please do not open the box and repair
it by yourself.
Input voltage is 100-240V, 50/60Hz, please use correct power supply.
Power cable connect with GND. Please ensure that you will plug in the socket which is
connecting with GND before you connect with input and output port
Please take off the power supply of LED video processor before you do any hardware
operations, and ESD by touching the ground.
Please make sure that all the power supply cables and signal cables are plugged off before
you want to connect with plug off any signal cable and controlling cable.
Please make sure the environment is clean, dry and ventilated when you use this product,
also, do not put this product to a high temperature and wet environment.
This product is electronic products, please keep away from fire, water source and
flammable&combustible products.
Turn off the power supply immediately when you find smoking, peculiar smell or
something unusual. And contact with us soon.
About Software
Cannot do any modification, decompilation, disassembling, decoding or reverse
engineering on our software, it’s illegal.
www.onbonbx.com Page 4
Function
Overview
OVP-L1X video controller is used for big LED screen ,platform, rental, meeting room and
so on. It supports pixel-pixel input and output for high resolution LED screen, the video effect
will be more clear. There are two Gigabit port on OVP-L1X, it’s the integrated type with video
processor and LED big screen. Also, it supports USB port.
Characteristics
Support 1,300,000 pixels, maximum width 1920, maximum height 2500;
Cluster with 2 channels of Gigabit network output, more stable and easy for remote
maintenance;
Seamless switch between all the input signal and output mode;
Support 6 channels of HD digitals and analog input interface;
Support 3 channels of digitals input DVI/HDMI ,custom input EDID setup;
Support input signal source hot backup;
Restore 8 kinds of user mode for fast using;
Support local USB2.0 multi media display;
Control the device via PC software and USB .
www.onbonbx.com Page 5
Physical Instruction
Front board
Interface
1
Turn on/off button for power supply
2
INPUT AREA
Buttons for inputting signals. There are 6 buttons from [HDMI1] ~ [USB].
3
FUNCTION AREA
Part of functions and menu, 4 buttons:
[BRT-]：Adjust brightness - .
[BRT+]：Adjust brightness + .
[FREEZE]：Freeze photo,as to display photo statically.
[PART]：Display part or full.
4
USB PLAY AREA
U disk operation area, it includes four buttons: Last one, next one, stop, play.
5
USB port
Display by U disk
○
1
○
2
○
3
○
4
○
5
www.onbonbx.com Page 6
Backside board
Video input signal
DVI
DVI port
HDMI1
HDMI port 1
HDMI2
HDMI port 2
CV
PAL\NTSC compound video
VGA
VGA port
Audio input & output signal
HDMI
Embedded in HDMI video input port
AUDIO_IN
Audio input
AUDIO_OUT
Audio output
Control port
COM
Serial port
Power supply
Input voltage
100-240V~50/60Hz
Video output signal
LED1~LED2
Transfer by LAN cable
www.onbonbx.com Page 7
Introduction of PC software
Use LedshowTV 2017 software, it support all of our video processor, like
OVP-L1,OVP-M2,OVP-M3,OVP-L1X and OVP-M1X. We integrated VS or VSM sending card
inside the video processor, customers will get a good video effect.
Connect Video Processor

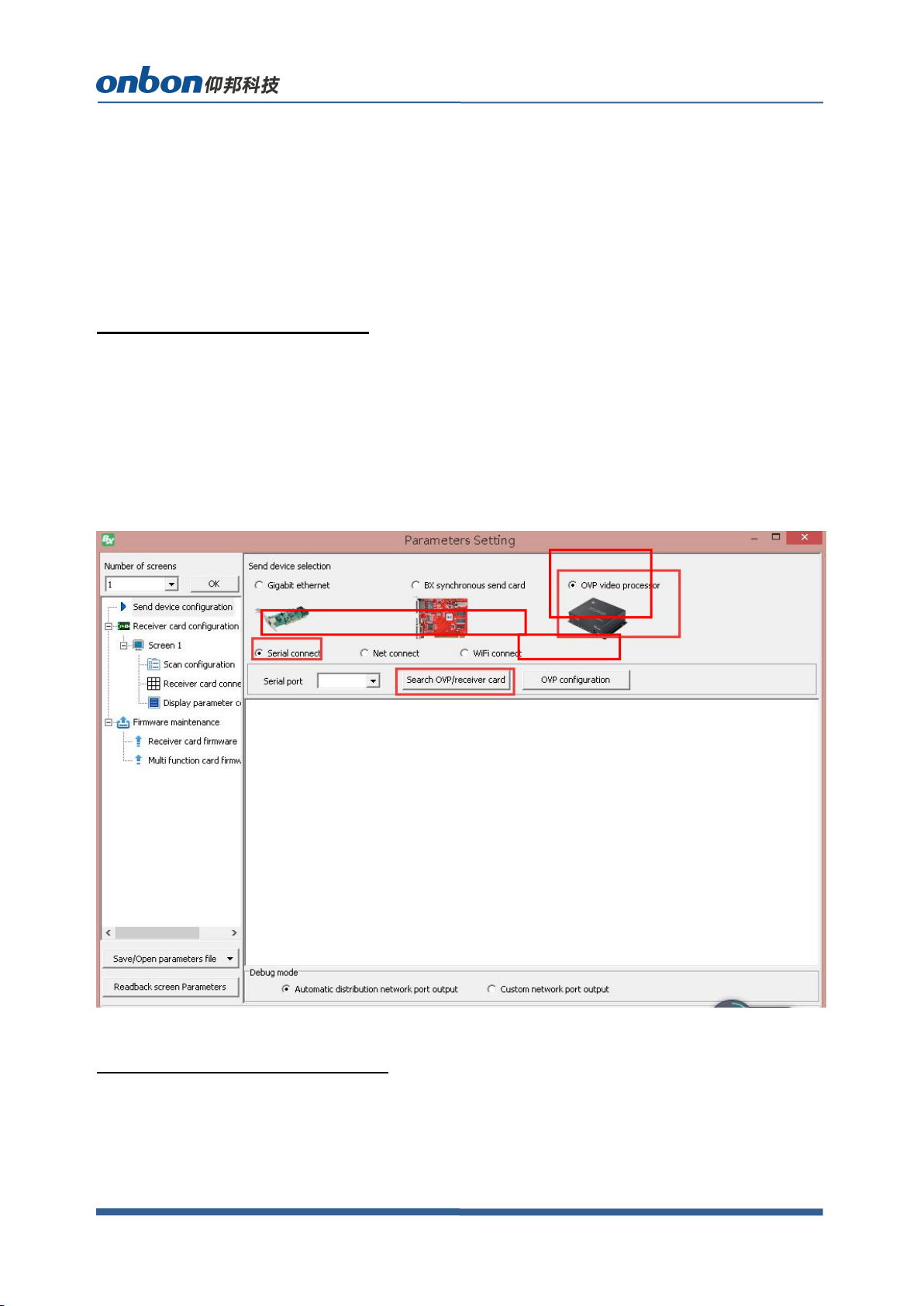

1. Open “LedshowTV 2017”, select “screen options” under “setup”menu.
2. ”screen options”--”send device configuration”--”OVP video processor”, there are
several communication method “Serial connect”, “Net connect”, “WIFI connect”,
here please select “Serial connect”-- “Search OVP/receiver card”, it will search and
connect your present equipment directly.
Send Device Configuration
1. LED screen parameters
Then, click “OVP configuration”, it will show the corresponding type, like below. Also, it
will read the parameters in present video processor.
www.onbonbx.com Page 8
Click ,set the width and height of LED screen. Then, click “send” as to finish
the configuration to video controller. Check below:
OVP-L1X connects LED screen by LAN cable.
Each port supports maximum 650,000pixels @60Hz
Horizontal splicing: width≤3840, height≤2500, total pixels:≤1.3 million pixels
2. LAN Port Parameters
Support two modes:“Automatic distribution network port output” and “Custom
network pot output”
1. Automatic distribution network port output: Click “Automatic distribution network port
output” in “Debug mode”, software will distribute the output parameters according to
the connection of receiver. Check below:
