Omron V600-CA1A Manuel utilisateur

Cat.No. Z127–E1–1

R/W Heads and

SRAM Data Carriers

V600 RFID System

OPERATION MANUAL

V600 RFID System

R/W Heads and SRAM Data Carriers

Operation Manual

Produced August 1998

Notice:

OMRON products are manufactured for use according to proper procedures by a qualified operator

and only for the purposes described in this manual.

The following conventions are used to indicate and classify precautions in this manual. Always heed

the information provided with them. Failure to heed precautions can result in injury to people or dam-

age to property.

DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or

serious injury.

WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or

serious injury.

Caution Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury, or property damage.

Product Application

You must allow sufficient leeway against product ratings and functionality, and provide safety mea-

sures, such as fail-safe measures, whenever applying the products described in this manual in any of

the following situations. Always consult with your OMRON representative whenever applying the

products in any of these situations.

•Applications under any conditions or any environments not described in this

manual.

•Applications for nuclear power control, railways, aviation, automobiles, fur-

naces, medical equipment, amusement equipment, safety equipment, etc.

•Applications that can affect human life or property or that particularly require

safety.

Visual Aids

The following headings appear in the left column of the manual to help you locate different types of

information.

Note Indicates information of particular interest for efficient and convenient operation

of the product.

1, 2, 3... 1. Indicates lists of one sort or another, such as procedures, checklists, etc.

OMRON, 1998

form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permis-

sion of OMRON.

No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is

constantly striving to improve its high-quality products, the information contained in this manual is subject to change

without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no

responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the informa-

tion contained in this publication.

TABLE OF CONTENTS

vii

SECTION 1

Features and System Configuration 1. . . . . . . . . . . . . . . . .

1-1 Features 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2 System Configuration 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2

Specifications 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1 R/W Heads 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2 Data Carriers 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3 Data Carrier Battery Service Life 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3

Communications Specifications 15. . . . . . . . . . . . . . . . . . . .

3-1 Transmission Range 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2 Transmission Time 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-3 Data Carrier Speed 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4

Installation 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-1 R/W Head Installation 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-2 Data Carrier Installation 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 5

Chemical Resistance 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendices

A Accessories (Sold Separately) 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B Discontinued Models and Replacements 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C Other Series 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Revision History 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

About this Manual:

This manual describes the installation and operation of the V600-series Read/Write Heads and battery-

powered SRAM Data Carriers, and includes the sections described below.

Please read this manual carefully and be sure you understand the information provided before attempting

to install and operate the Read/Write Heads and Data Carriers. Keep this manual in a convenient location

where it can continue to be used for reference and guidance.

Section 1 provides general information on features and system configuration.

Section 2 provides specifications for the Read/Write Heads and Data Carriers.

Section 3 provides communications specifications.

Section 4 explains how to install the Read/Write Heads and Data Carriers.

Section 5 provides information on specific chemicals that affect the Read/Write Heads and Data Carriers.

Appendix A provides information on accessories that can be purchased separately.

Appendix B provides information on discontinued models and their replacements.

Appendix C provides information on particular models to be used in England.

WARNING Failure to read and understand the information provided in this manual may result in

personal injury or death, damage to the product, or product failure. Please read each

section in its entirety and be sure you understand the information provided in the section

and related sections before attempting any of the procedures or operations given.

SECTION 1

Features and System Configuration

This section provides a general introduction to the V600 RFID System, including the V600-series Read/Write (R/W) Heads

and Data Carriers. The V600 RFID System utilizes non-contact data transfer in which data is transmitted electromagnetically

without physical contact between the devices.

1-1 Features 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2 System Configuration 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1SectionFeatures

1-1 Features The V600 RFID System offers powerful support to the automation of large-scale

distributed control systems and multi-model small-scale production systems by

means of contactless data communication.

Data is transmitted between the Data Carrier (DC) and Read/Write (R/W) Head

electromagnetically in both directions, without physical contact between the two

devices.

SRAM (static random access memory) is used for the DC’s memory. There is no

limit to the number of times that the memory can be accessed for reading or writ-

ing data. The memory is powered by a long-life lithium battery.

A 16-bit CRC (Cyclic Redundancy Check) has been added to detect data trans-

mission errors in both directions between the ID Controller and R/W Head, and

the R/W Head and DC. This feature also helps to ensure superior transmission

reliability even in environments where noise tends to occur.

The DCs have an 8K-byte memory. In addition to essential identification data,

information on models and test results can be entered on-site.

The battery will last eight years in temperatures ranging from –25°C to 70°C

(–18°F to 158°F).

The projected battery service life can be easily checked by means of a command

from the ID Controller, which simplifies battery maintenance.

The R/W Head and DC offer superior resistance to environmental factors such

as vibration, oil, water, and so on.

Contactless Data

Transfer

SRAM Memory

CRC Error Detection

8K-byte Memory

Long Battery Life

Battery Status Checking

Superior Durability and

High Reliability

1-2SectionSystem Configuration

1-2 System Configuration

A V600 RFID System is made up of ID Controllers, R/W Heads, and DCs. A sys-

tem can be assembled to suit almost any situation with different arrangements of

these components.

ID Controllers and ID Sensor Units

V600-CA1A/CA2A V600-CA8A/CA9A V600-CF1A V600-CB-S

100 to 240 VAC

Host: RS-232C/RS-422 100 to 240 VAC

Host: Parallel PNP/NPN 100 to 240 VAC

Host: RS-232C Hand-held Model

V600-CD1D-V2 C500-IDS01-V2

C200H-IDS01-V1 IDSC-C1DR-A

IDSC-C1DT-A

24 VDC

Host: RS-232C PLC, ID Sensor Units ID Controllers

R/W Heads and Data Carriers

V600-H07 V600-H11

V600-D8KR12 V600-D8KR13 V600-D8KR04 V600-D2KR16

Note Refer to Appendix B for details on the availability of V600-H12 and

V600-D8KR11.

SECTION 2

Specifications

This section provides Read/Write (R/W) Head and Data Carrier (DC) specifications.

2-1 R/W Heads 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1-1 Specifications and Outer Dimensions 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2 Data Carriers 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2-1 Specifications and Outer Dimensions 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2-2 Memory Map 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2-3 Write Protect Function 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3 Data Carrier Battery Service Life 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3-1 Battery Service Life Factors 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3-2 Battery Service Life Expectancy Check 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

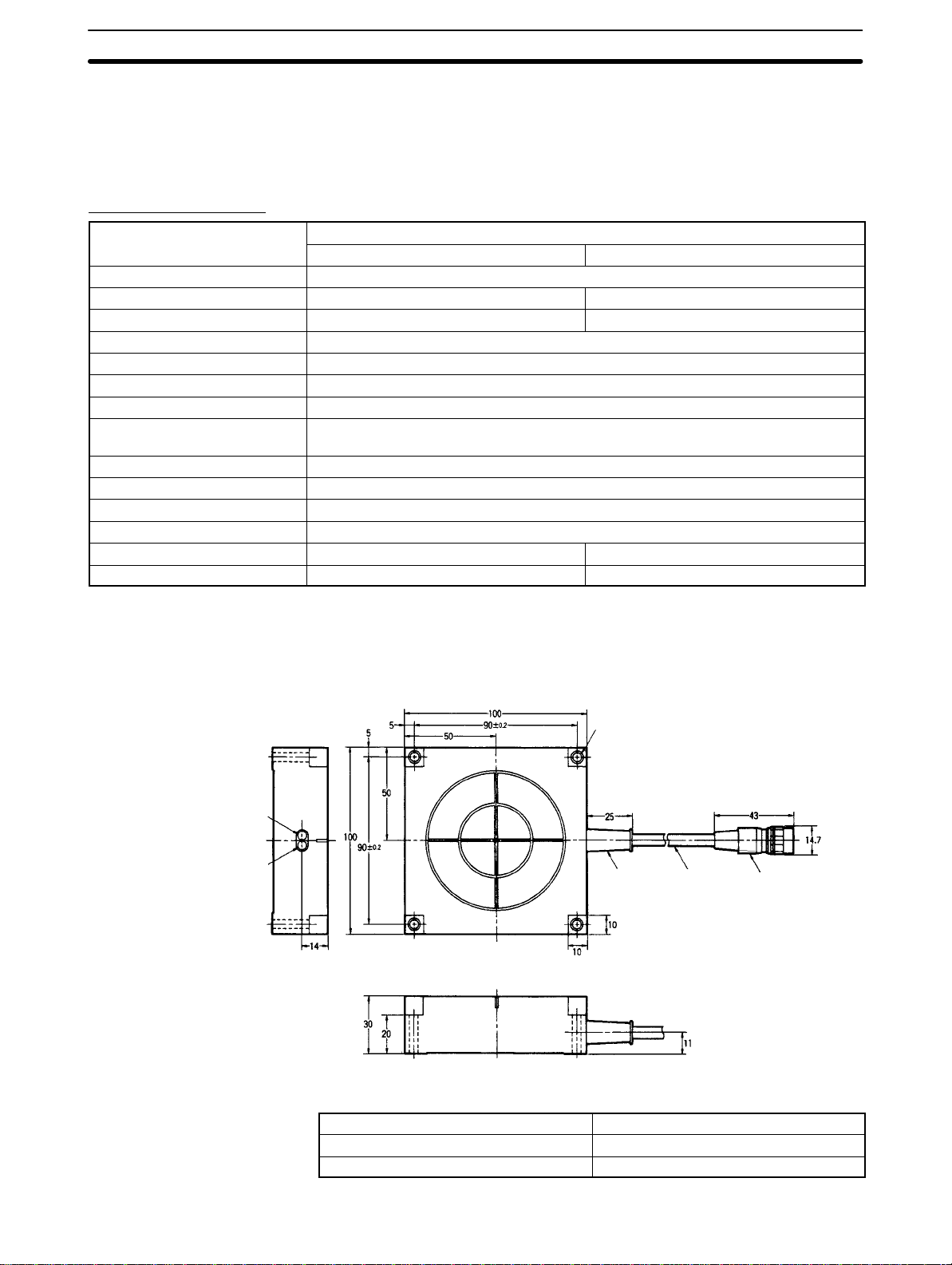

2-1SectionR/W Heads

2-1 R/W Heads

2-1-1 Specifications and Outer Dimensions

V600-H07/V600-H11

Item Model

V600-H07 V600-H11

Operating frequency 530 kHz

Operating temperature –25°C to 70°C–10°C to 60°C

Storage temperature –40°C to 85°C–25°C to 75°C

Operating humidity 35% to 95% RH

Insulation resistance 50 MΩmin. between cable terminals and case (at 500 VDC)

Dielectric strength 1,000 VAC 50/60 Hz for 1 minute between cable terminals and case.

Degree of protection (See note.) Meets or exceeds IEC60529 IP67 and JEM IP67G standards.

Vibration resistance 10 to 500 Hz, 1.0 mm in each direction; acceleration: 150 m/s2(about 15 G); one

sweep in each of three axis directions, three sweeps in 11 minutes

Shock resistance 500 m/s2(about 50 G) three times each in X, Y, Z directions, total 18 times

Error detection 16-bit CRC (Cyclic Redundancy Check) is used in both directions of transmission.

LED indicators Power supply: green; communications: orange

Cable length Standard lengths of 0.5, 2, 5, and 10 m.

Max. cable length 30.5 m 50.5 m

Weight (approximate) 1 kg (with 10 m cable) 650 g (with 10 m cable)

Note The connectors are not waterproof.

V600-H07

Power indicator (LED)

Operation indicator (LED)

Mounting holes (four, 4.5 dia.)

Bushing Vinyl-insulated

round cord (6 dia)Connector

Case material ABS resin

Fill resin Epoxy resin

Cable PVC (oil-resistant)
