Safety Relay Unit

G9SA

The G9SA Series Offers a Complete

Line-up of Compact Units.

• Four kinds of 45-mm wide Units are available:

A 3-pole model, a 5-pole model, and models with 3 poles

and 2 OFF-delay poles, as well as a Two-hand Controller.

Also available are 17.5-mm wide Expansion Units with 3

poles and 3 OFF-delay poles.

• Simple expansion connection.

• OFF-delay models have 15-step OFF-delay settings.

• Conforms to EN standards. (BG approval)

• Both DIN track mounting and screw mounting are possible.

Model Number Structure

Model Number Legend

1. Function

None: Emergency stop

EX: Expansion Unit

TH: Two-hand Controller

2. Contact Configuration (Safety Output)

0: None

3: 3PST-NO

5: 5PST-NO

3. Contact Configuration (OFF-delay Output)

0: None

2: DPST-NO

3: 3PST-NO

4. Contact Configuration (Auxiliary Output)

0: None

1: SPST-NC

5. Input Configuration

None: 1-channel or 2-channel input possible

6. OFF-delay Time (Max. setting time)

None: No OFF-delay

T075: 7.5 seconds

T15: 15 seconds

T30: 30 seconds

Be sure to read the “Safety Precautions” on page 14

1 2 3 4 5 6

G9SA- -

Note: Please see “Ordering Information” on page 2 for the actual models that can be ordered.

Authorised Distributors:-

Intech Systems Chennai Pvt. Ltd, Chennai-600 032

Ph: 4353 8888 Mob: 99 4353 8888 Fax: 044 4353 7888

E-mail: [email protected] Website: www.intechchennai.com

G9SA

Ordering Information

Emergency-stop Units

Emergency-stop OFF-delay Units

Note: Set to maximum values in the factory.

*The following 15-step OFF-delay time settings are available:

T075: 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, and 7.5 s

T15:1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, and 15 s

T30:2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, and 30 s

Two-hand Controller

Expansion Unit

The Expansion Unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.

Expansion Units with OFF-delay Outputs

The Expansion Unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.

Note: Set to maximum values in the factory.

*The following 15-step OFF-delay time settings are available:

T075: 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, and 7.5 s

T15:1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, and 15 s

T30:2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, and 30 s

Main contacts Auxiliary contact Number of input channels Rated voltage Model

3PST-NO

SPST-NC 1 channel or 2 channels

possible

24 VAC/VDC G9SA-301

100 to 240 VAC

5PST-NO 24 VAC/VDC G9SA-501

100 to 240 VAC

Main contacts OFF-delay

contacts

Auxiliary

contact

Number of

input

channels

OFF-delay

time Rated voltage Model

3PST-NO DPST-NO SPST-NC

1 channel or

2 channels

possible

7.5 s 24 VAC/VDC G9SA-321-T075

100 to 240 VAC

15 s 24 VAC/VDC G9SA-321-T15

100 to 240 VAC

30 s 24 VAC/VDC G9SA-321-T30

100 to 240 VAC

Main contacts Auxiliary contact Number of input channels Rated voltage Model

3PST-NO SPST-NC 2 channels 24 VAC/VDC G9SA-TH301

100 to 240 VAC

Main contacts Auxiliary contact Model

3PST-NO SPST-NC G9SA-EX301

Main contact form Auxiliary contact OFF-delay time Model

3PST-NO SPST-NC

7.5 s G9SA-EX031-T075

15 s G9SA-EX031-T15

30 s G9SA-EX031-T30

G9SA

Specifications

Ratings

Power Input

*When an Expansion Unit is connected, the power consumption is increased by 2 VA/2 W max.

Inputs

*When an Expansion Unit is connected, the input current is increased by 30 mA max.

Contacts

Characteristics

*1. The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.

*2. Not Including bounce time.

*3. The response time is the time it takes for the main contact to open after the input is turned OFF. Includes bounce time.

*4. The insulation resistance was measured with 500 VDC at the same places that the dielectric strength was checked.

*5. The durability is for an ambient temperature of 15 to 35°C and an ambient humidity of 25% to 75%.

*6. Weight shown is for 24-VAC/VDC type. For 100 to 240-VAC type, add approximately 20 g.

Item Model G9SA-301/TH301 G9SA-501 G9SA-321-T@

Power supply voltage 24 VAC/VDC:24 VAC, 50/60 Hz, or 24 VDC

100 to 240 VAC:100 to 240 VAC, 50/60 Hz

Operating voltage range 85% to 110% of rated power supply voltage

Power consumption *24 VAC/VDC: 1.8 VA/1.7 W max.

100 to 240 VAC: 9 VA max.

24 VAC/VDC: 2.8 VA/2.6 W max.

100 to 240 VAC: 11 VA max.

24 VAC/VDC: 3.5 VA/3.3 W max.

100 to 240 VAC: 12.5 VA max.

Item Model G9SA-301/321-T@/TH301 G9SA-501

Input current *40 mA max. 60 mA max.

Model G9SA-301/501/321-T@/TH301/EX301/EX031-T@

Item Load Resistive load

Rated load 250 VAC, 5 A

30 VDC, 5 A

Rated carry current 5 A

Item Model G9SA-301/TH301 G9SA-501/321-T@G9SA-EX301/EX031-T@

Contact resistance *1100 mΩ

Operating time *230 ms max.

Response time *310 ms max.

Insulation resistance *4100 MΩmin. (at 500 VDC)

Dielectric

strength

Between different outputs

2,500 VAC, 50/60 Hz for 1 min

Between inputs and outputs

Between power inputs and outputs

Between power inputs and other

inputs (only for 100 to 240-V models)

Vibration resistance 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)

Shock

resistance

Destruction 300 m/s2

Malfunction 100 m/s2

Durability *5Mechanical 5,000,000 operations min. (at approx. 7,200 operations/hr)

Electrical 100,000 operations min. (at approx. 1,800 operations/hr)

Failure rate (P Level) (reference value) 5 VDC, 1 mA

Ambient operating temperature −25 to 55°C (with no icing or condensation)

Ambient operating humidity 35% to 85%

Terminal tightening torque 0.98 N·m

Weight *6Approx. 210 g Approx. 270 g Approx. 130 g

G9SA

Connections

Internal Connections

A1 A2 T11 T12 T31 T32 13 23 33 41

PE T21 T23 T22 AB 14 24 34 42

13 23 33 43 53 61

T31 T32

A1 A2 T11 T12

PE T21 T23 T22 AB 14 24 34 44 54 62

13 23 33 41

12 5 4

36 14 24 34 42

K1 K2

A1 A2 T11 T12

aK2 K4

5K2

14 24 34 44 54 62

PE T21 T23 T22

bK2

K1 a

T31 T32 13 23 33 43 53 61

A1 A2 T11 T12 T31 T32T13 13 23 33 41

14 24 34 42

PE T23 T21 T22 CD

25K1

13 23 33 41

14 24 34 42

G9SA-301 (24 VAC/VDC)

G9SA-501 (24 VAC/VDC)

G9SA-321-T@(24 VAC/VDC)

G9SA-TH301 (24 VAC/VDC)

G9SA-EX301

G9SA-EX031-T@

Control circuit

G9SA-301 (100 to 240 VAC)

G9SA-501 (100 to 240 VAC)

G9SA-321-T@(100 to 240 VAC)

G9SA-TH301 (100 to 240 VAC)

*2*

*2*1

*2*1*3

*2*1

*2*1*3

Control circuit

Control

circuitControl

circuit

Control

circuitControl

circuit

Off delay

timer Control

circuitOff delay

timer Control

circuit

Off delay

timer

Note: 1. With 100 to 240-VAC type, be sure to connect PE to a protective

ground. With 24-VAC/VDC type, if the power supply is not

connected to a protective ground, be sure to connect PE to a

protective ground.

2. With 24-VAC/VDC type, the power supply terminals A1 and A2

have polarities. A2 is the negative pole.

*1. Use terminals A and B to switch reset mode.

A to B open: Manual reset

A to B closed: Auto-reset

*2. Terminal T23 is used for 2-channel input with a positive common

(when connecting a safety sensor with a PNP output).

When using T23, make sure that T21 and T22 are open.

For 1-channel input, make sure that T12 and T23 are shorted.

*3. Terminals 43-44 and terminals 53-54 are OFF-delayed outputs.

G9SA

Wiring of Inputs and Outputs

*1. Terminal T23

Terminal T23 is used for 2-channel input with a positive common (when connecting a safety sensor with a PNP output). When T23 is being

used, please open T21 and T22. For 1-channel input, short circuit T12-T23 before use.

*2. Output Contacts

G9SA-301: Safety Output Contacts 13-14, 23-24, 33-34. Auxiliary Contact 41-42.

G9SA-501: Safety Output Contacts 13-14, 23-24, 33-34, 43-44, 53-54. Auxiliary Contact 61-62.

G9SA-321-T@: Safety Output Contacts 13-14, 23-24, 33-34. Safety OFF-delay Output Contact 43-44, 53-54. Auxiliary Contact 61-62.

*3. Terminals A and B

A-B Opening: Manual Reset

A-B Short Circuit: Auto Reset

Signal name Terminal name Description of operation

Power supply input A1, A2 The input terminals for power supply. Connect the power source to the A1 and A2 terminals.

DC inputs have polarity, so A1 should be connected to the positive side and A2 to the negative side.

Safety input 1 T11, T12 To set the safety outputs in the ON state, the ON state signals must be input to both safety input 1 and

safety input 2. Otherwise the safety outputs cannot be in the ON state.

Safety input 2 T21, T22, T23 *1

Feedback/reset input T31, T32 To set the safety outputs in the ON state, the ON state signal must be input to T31 - T32. Otherwise the

safety outputs cannot be in the ON state.

Instantaneous safety outputs See below. *2Turns ON/OFF according to the state of the safety inputs and feedback/reset inputs. During OFF-delay

state, the Instantaneous safety outputs are not able to turn ON.

OFF-delayed safety outputs See below. *2 OFF-delayed safety outputs. The OFF-delay time is set by the OFF-delay preset switch.

Auxiliary output See below. *2 Synchronized with Instantaneous Safety Output.

Manual/Auto selector input A, B *3 Switch between Auto Reset and Manual Reset modes.

Ground terminal PE

Be sure to connect the PE terminal to a protective earth for 100-240 VAC models.

Where the 24 VAC/VDC model power supply is not grounded, lease be sure to connect the PE to a

protective earth.

G9SA

Dimensions and Terminal Arrangement (Unit: mm)

Terminal Arrangement

Mounting Holes

Two, 4.2 dia. or M4

Terminal Arrangement

Mounting Holes

Two, 4.2 dia. or M4

4.6 dia.

45 max.

76 max.

111 max.

4.6 dia.

111 max.

76 max.

17.5 max.

Connector cover *

Eight, M3

G9SA-301

G9SA-501

G9SA-321-T@

G9SA-TH301

G9SA-EX301

G9SA-EX031-T@

G9SA-301: Twenty, M3

G9SA-501: Twenty-four, M3

G9SA-321-T@: Twenty-four, M3

G9SA-TH301: Twenty-one, M3

(See note 1)

Note 1: The OFF-delay time setting switch is

found on the G9SA-321-T@only.

OFF-delay time

setting switch

(See note 1)

G9SA-EX301

G9SA-EX031-T@

OFF-delay time

setting switch

(See note 1)

2: The K1 to K4 indicators light when the NO contacts of

internal relays K1 to K4 close.

*Do not remove unless an Expansion Unit is being used.

Note 1: The OFF-delay time setting switch is

found on the G9SA-EX031-T@only.

2: The K1 and K2 indicators light when

the NO contacts of internal relays K1

and K2 close.

13 23 33 41

14 24 34 42

T11 T12 T31 T32 T23

T21 T22

A B PE A2

13 23 33 43 53 61

14 24 34 44 54 62

T11 T12 T31 T32 T23

T21 T22

A B PE A2

13 23 33 41

14 24 34 D 42

T11 T12 T13 T31 T32

T21 T22 T23

CPEA2

4363

35±0.3

7×5=35

5.9

R2.3 5

5.6

10.5

G9SA-301 G9SA-501

G9SA-321-T@

G9SA-TH301

(See note 1.)

84±0.3

PWR (green)

K1 (green)

K2 (green)

PWR (green)

K1 (green)

K2 (green)

PWR (green)

K1 (green)

K2 (green)

K3 (green)

K4 (green)

4133

2313

2414

4234

87±0.3

5.6

R2.3 5

13.2

10.5

5.9

PWR (green)

K1 (green)

K2 (green)

G9SA

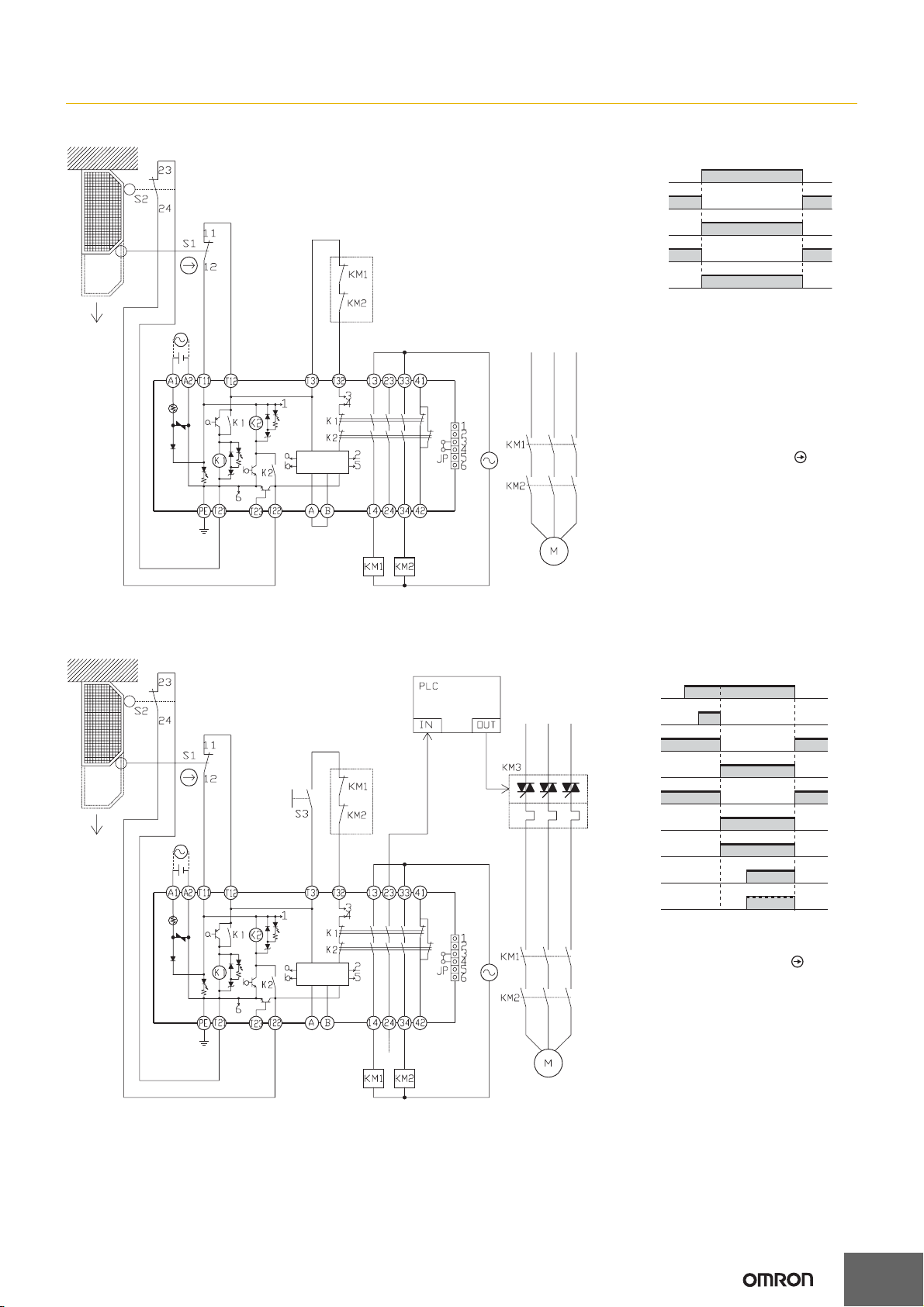

Application Examples

G9SA-301 (24 VAC/VDC) with 2-channel Limit Switch Input/Auto-reset

Note: This circuit achieves Safety Category 4.

G9SA-301 (24 VAC/VDC) with 2-channel Limit Switch Input/Manual Reset

Note: This circuit achieves Safety Category 4.

Feedback loop

Open

Control

circuit

Timing Chart

S1: Safety Limit Switch

with direct opening mechanism (NC)

(D4B-N, D4N, D4F)

S2: Limit switch (NO)

KM1 and KM2: Magnetic Contactor

M: 3-phase motor

Limit switches

S1 and S2

K1 and K2 (NC)

K1 and K2 (NO)

KM1 and KM2

(NC)

KM1 and KM2

(NO)

Open

Feedback loop

Control

circuit

Timing Chart

S1: Safety Limit Switch

with direct opening mechanism (NC)

(D4B-N, D4N, D4F)

S2: Limit switch (NO)

S3: Reset switch

KM1 and KM2: Magnetic Contactor

KM3: G3J Solid-state Contactor (G3J)

M: 3-phase motor

PLC input

PLC output

KM3

Limit switches

S1 and S2

Reset switch S3

K1 and K2 (NC)

K1 and K2 (NO)

KM1 and KM2

(NC)

KM1 and KM2

(NO)

G9SA

G9SA-301 (100 to 240 VAC) with 2-channel Limit Switch Input/Auto-reset

G9SA-301 (24 VAC/VDC) with 2-channel Emergency Stop Switch Input/Manual Reset

Feedback loop

Timing Chart

Open

Limit switches

S1 and S2

K1 and K2

(NC)

K1 and K2

(NO)

KM1 and KM2

(NC)

KM1 and KM2

(NO)

S1: Safety Limit Switch

with direct opening mechanism (NC)

(D4B-N, D4N, D4F)

S2: Limit switch (NO)

KM1 and KM2: Magnetic Contactor

M: 3-phase motor

Note: This circuit achieves Safety Category 4.

Control

circuit

Feedback loop

Timing Chart

PLC input

PLC output

KM3

Emergency

stop switch S1

Reset switch

K1 and K2

(NC)

K1 and K2

(NO)

KM1 and KM2

(NC)

KM1 and KM2

(NO)

S1: Emergency stop switch

with direct opening mechanism

(A165E or A22E)

S2: Reset switch

KM1 and KM2: Magnetic Contactor

KM3: G3J Solid-state Contactor (G3J)

M: 3-phase motor

Note: This circuit achieves Safety Category 4.

Control

circuit

G9SA

G9SA-321-T@(24 VAC/VDC) with 2-channel Limit Switch Input/Manual Reset

Feedback loop

Motor controller

Timing Chart

Motor rotation

OFF-delay time

Open

Operation

instruction

S1: Safety Limit Switch

with direct opening mechanism (NC)

(D4B-N, D4N, D4F)

S2: Limit switch (NO)

S3: Reset switch

KM1 and KM2: Magnetic Contactor

M: 3-phase motor

Limit switches

S1 and S2

Reset switch

K1 and K2

(NC)

K1 and K2

(NO)

K3 and K4

(NC)

K3 and K4

(NO)

KM1 and KM2

(NC)

KM1 and KM2

(NO)

Operation

instruction

Note: This circuit achieves Safety Category 4.

The OFF-delay output, however, achieves

Safety Category 3.

Off delay

timer Control

circuit

G9SA

G9SA-321-T@(24 VAC/VDC) + G9SA-EX031-T@with 2-channel Limit Switch Input/Manual Reset

Feedback loop

Motor controller

Timing Chart

OFF-delay time 1

OFF-delay time 2

Open

Motor controller

Operation

instruction

Operation

instruction

S1: Safety Limit Switch

with direct opening mechanism (NC)

(D4B-N, D4N, D4F)

S2: Limit switch (NO)

S3: Reset switch

KM1, KM2,

KM3, and KM4: Magnetic Contactor

M1, M2: 3-phase motor

Limit switches

S1 and S2

Reset switch

G9SA-321-T@

K1 and K2 (NC)

G9SA-321-T@

K1 and K2 (NO)

G9SA-321-T@

K3 and K4 (NC)

G9SA-321-T@

K3 and K4 (NO)

KM1 and KM2

(NC)

KM1 and KM2

(NO)

Operation

instruction

Motor M1

rotation

G9SA-EX031

K1 and K2 (NC)

G9SA-EX-031

K1 and K2 (NO)

KM3 and KM4

(NC)

KM3 and KM4

(NO)

Operation

instruction

Motor M2

rotation

Note: This circuit achieves Safety Category 4.

The OFF-delay output, however, achieves

Safety Category 3.

Off delay

timer Control

circuit

Off delay

timer

Autres manuels pour G9SA -

Table des matières

Autres manuels Omron Relais

Omron

Omron K8AB-VW Series Manuel utilisateur

Omron

Omron K8AK-VW2 24 VAC/DC Manuel utilisateur

Omron

Omron K8AB-PA1 Manuel utilisateur

Omron

Omron K8DT-AS Series Manuel utilisateur

Omron

Omron G7L - Manuel utilisateur

Omron

Omron G9SX-ADA222-T Series Manuel utilisateur

Omron

Omron G3RV-SL700-A Series Manuel utilisateur

Omron

Omron K8AK-AS Manuel utilisateur

Omron

Omron G9SB Manuel utilisateur

Omron

Omron LY - Manuel utilisateur

Omron

Omron ZEN-8E Manuel d'utilisation et d'entretien

Omron

Omron G70D B7A Series Manuel utilisateur

Omron

Omron K8AB-AS Manuel utilisateur

Omron

Omron G9SA - Manuel utilisateur

Omron

Omron G7J - Manuel utilisateur

Omron

Omron ZEN Manuel d'utilisation et d'entretien

Omron

Omron K8AB-PM Series Manuel utilisateur

Omron

Omron G3PA-VD Series Manuel utilisateur

Omron

Omron SYSMAC W398-E1-1 Manuel utilisateur

Omron

Omron G3PE Series Manuel utilisateur

Omron

Omron K8AK-VW3 Manuel utilisateur

Omron

Omron K8DT-VW Manuel utilisateur

Omron

Omron G3PJ Series Manuel utilisateur

Omron

Omron G9SA - Manuel utilisateur

Manuels Relais populaires d'autres marques

Shelly

Shelly Pro Series Manuel utilisateur

GE MVAX 11 Manuel utilisateur

ABB

ABB RELION REF615R Manuel utilisateur

Pilz

Pilz PNOZ X10 Manuel du propriétaire

ABB

ABB SPAJ 142 C Manuel de la liste des pièces

Kemo Electronic

Kemo Electronic B197 Manuel utilisateur

Seg

Seg MRM3 Manuel utilisateur

Basler

Basler BE1-700C Manuel utilisateur

CD Automation

CD Automation REVEX 2PH 280A Manuel utilisateur

Ruelco

Ruelco 1S04 Manuel utilisateur

Basler

Basler V3E Z1P B2C1F Manuel utilisateur

Doepke

Doepke Dupline DSM 2 Manuel utilisateur

Siemens

Siemens SIRIUS 3RT1966-4D Manuel utilisateur

GE DGP Manuel utilisateur

Kyongbo Electronics

Kyongbo Electronics GDR-D01 Manuel utilisateur

Siemens

Siemens SIPROTEC 4 Manuel utilisateur

Siemens

Siemens BD2-AK03X/FS Series Manuel utilisateur

Leuze

Leuze MSI-SR5B Manuel utilisateur
