Omron CJ Series Manuel utilisateur

OMRON Corporation

CS/CJ Series

HOST Link Driver

1 System Configuration.......................................................................................................3

2 Selection of External Device............................................................................................5

3 Example of Communication Setting.................................................................................6

4 Setup Items....................................................................................................................24

5 Cable Diagram...............................................................................................................29

6 Supported Device...........................................................................................................35

7 Device Code and Address Code....................................................................................37

8 Error Messages..............................................................................................................38

CS/CJ Series HOST Link Driver

GP-Pro EX Device/PLC Connection Manual 2

Introduction

This manual describes how to connect the Display (GP3000 series) and the External Device (target PLC).

In this manual, the connection procedure will be described by following the below sections:

1System Configuration

This section shows the types of External

Devices which can be connected and SIO

type.

)"1 System Configuration" (page 3)

2Selection of External Device

Select a model (series) of the External

Device to be connected and connection

method.

)"2 Selection of External Device" (page 5)

3Example of Communication Settings

This section shows setting examples for

communicating between the Display and

the External Device.

)"3 Example of Communication Setting"

(page 6)

4Communication Settings

This section describes communication

setup items on the Display.

Set communication settings of the Display

with GP-Pro EX or in off-line mode.

)"4 Setup Items" (page 24)

5Cable Diagram

This section shows cables and adapters

for connecting the Display and the

External Device.

)"5 Cable Diagram" (page 29)

Operation

CS/CJ Series HOST Link Driver

GP-Pro EX Device/PLC Connection Manual 3

1 System Configuration

The system configuration in the case when the External Device of OMRON Corporation and the Display are

connected is shown.

Series CPU Connection Port SIO Type Communication

Settings Cable Diagram

CS1

CS1G-CPU45

CS1G-CPU44

CS1G-CPU43

CS1G-CPU42

CS1G-CPU45H

CS1G-CPU44H

CS1G-CPU43H

CS1G-CPU42H

CS1G-CPU45-V1

CS1G-CPU44-V1

CS1G-CPU43-V1

CS1G-CPU42-V1

CS1H-CPU67

CS1H-CPU66

CS1H-CPU65

CS1H-CPU64

CS1H-CPU63

CS1H-CPU67H

CS1H-CPU66H

CS1H-CPU65H

CS1H-CPU64H

CS1H-CPU63H

CS1H-CPU67-V1

CS1H-CPU66-V1

CS1H-CPU65-V1

CS1H-CPU64-V1

CS1H-CPU63-V1

RS232C port on the

CPU unit RS232C Setting Example 1

(page 6) Cable Diagram 1

(page 29)

Peripheral port on the

CPU unit*1

*1 Turn ON the DIP switch 4 on the CPU unit.

RS232C Setting Example 2

(page 9) Cable Diagram 2

(page 30)

CS1W-SCU21 RS232C Setting Example 5

(page 18)

Cable Diagram 1

(page 29)

CS1W-SCB21 RS232C Setting Example 3

(page 12)

CS1W-SCB41

RS232C Setting Example 3

(page 12)

RS422/485

(4wire) Setting Example 4

(page 15) Cable Diagram 3

(page 31)

CJ1G-CPU45

CJ1G-CPU44

CJ1M-CPU23

CJ1M-CPU22

CJ1M-CPU21

CJ1M-CPU13

CJ1M-CPU12

CJ1M-CPU11

CJ1H-CPU66H

CJ1H-CPU65H

CJ1G-CPU45H

CJ1G-CPU44H

CJ1G-CPU43H

CJ1G-CPU42H

RS232C port on the

CPU unit RS232C Setting Example 1

(page 6) Cable Diagram 1

(page 29)

Peripheral port on the

CPU unit*1 RS232C Setting Example 2

(page 9) Cable Diagram 2

(page 30)

CJ1W-SCU41

RS232C Setting Example 5

(page 18) Cable Diagram 1

(page 29)

RS422/485

(4wire) Setting Example 6

(page 21) Cable Diagram 3

(page 31)

CS/CJ Series HOST Link Driver

GP-Pro EX Device/PLC Connection Manual 4

Connection Configuration

• 1:1 Connection

• 1:n Connection

• Access beyond network

You can access beyond maximum 3 levels of network.

Display External

Device

Display External

Device

External

Device

Max 16 units (for RS422/485 connection)

Display

External

Device

External

Device

External

Device

External

Device

Network 1 Network 3

Network 2

External Device Max 16 units

CS/CJ Series HOST Link Driver

GP-Pro EX Device/PLC Connection Manual 5

2 Selection of External Device

Select the External Device to be connected to the Display.

Setup Items Setup Description

Maker Select the maker of the External Device to be connected. Select "OMRON Corporation".

Driver

Select a model (series) of the External Device to be connected and connection method.

Select "CS/CJ Series HOST Link".

Check the External Device which can be connected in "CS/CJ Series HOST Link" in

system configuration.

)"1 System Configuration" (page 3)

Use System Area

Check this option when you synchronize the system data area of Display and the device

(memory) of External Device. When synchronized, you can use the ladder program of

External Device to switch the display or display the window on the display.

Cf. GP-Pro EX Reference Manual "Appendix 1.4 LS Area (only for direct

access method)"

This can be also set with GP-Pro EX or in off-line mode of Display.

Cf. GP-Pro EX Reference Manual " 6.13.6 Setting Guide of [System Setting

Window][Main Unit Settings] Settings GuideSystem Area Setting"

Cf. GP3000 Series User Manual "4.3.6 System Area Setting"

Port Select the Display port to be connected to the External Device.

CS/CJ Series HOST Link Driver

GP-Pro EX Device/PLC Connection Manual 6

3 Example of Communication Setting

Examples of communication settings of the Display and the External Device, recommended by Pro-face, are

shown.

3.1 Setting Example 1

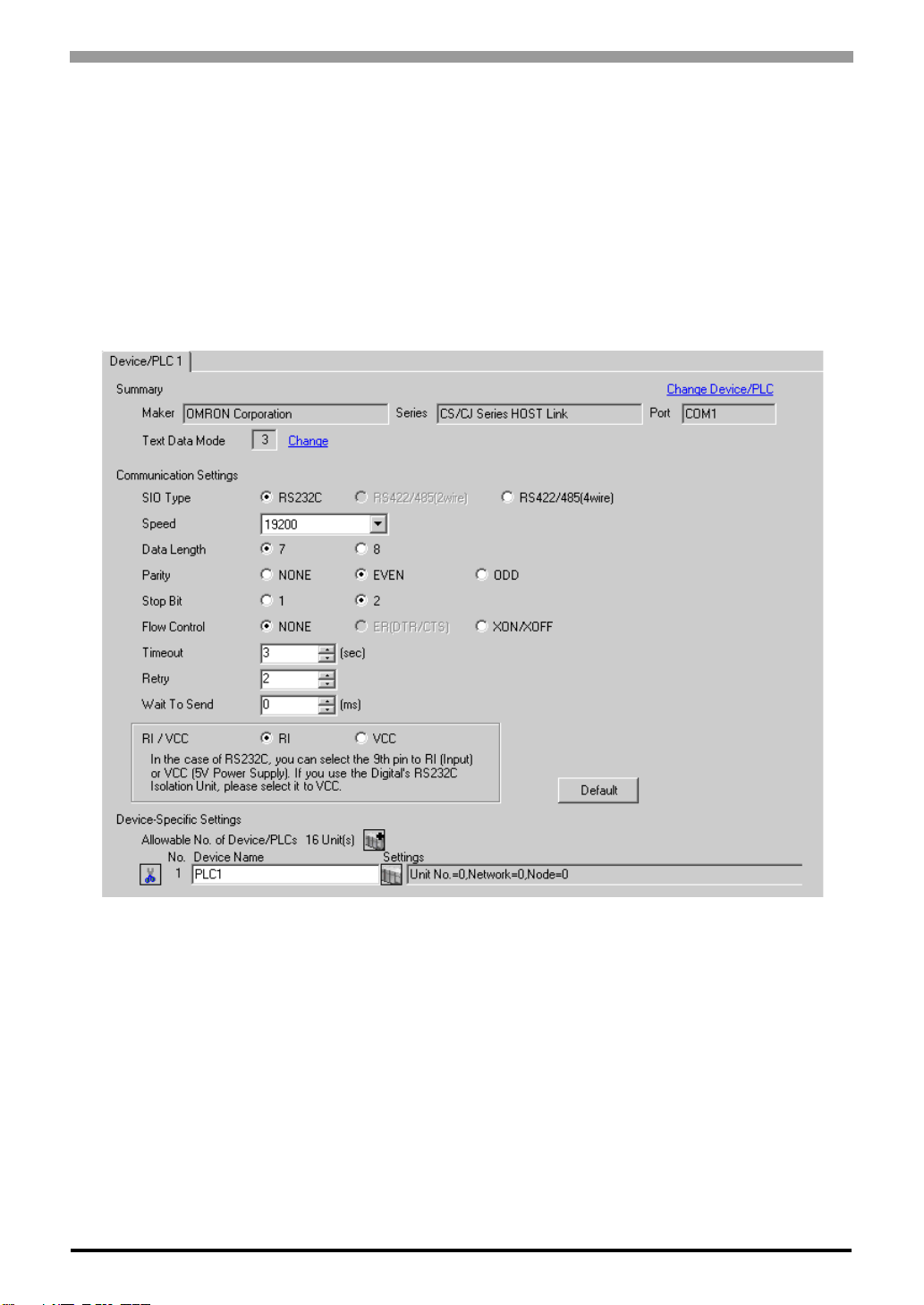

Setting of GP-Pro EX

Communication Settings

To display the setting screen, select [Device/PLC Settings] from [System setting window] in workspace.

CS/CJ Series HOST Link Driver

GP-Pro EX Device/PLC Connection Manual 7

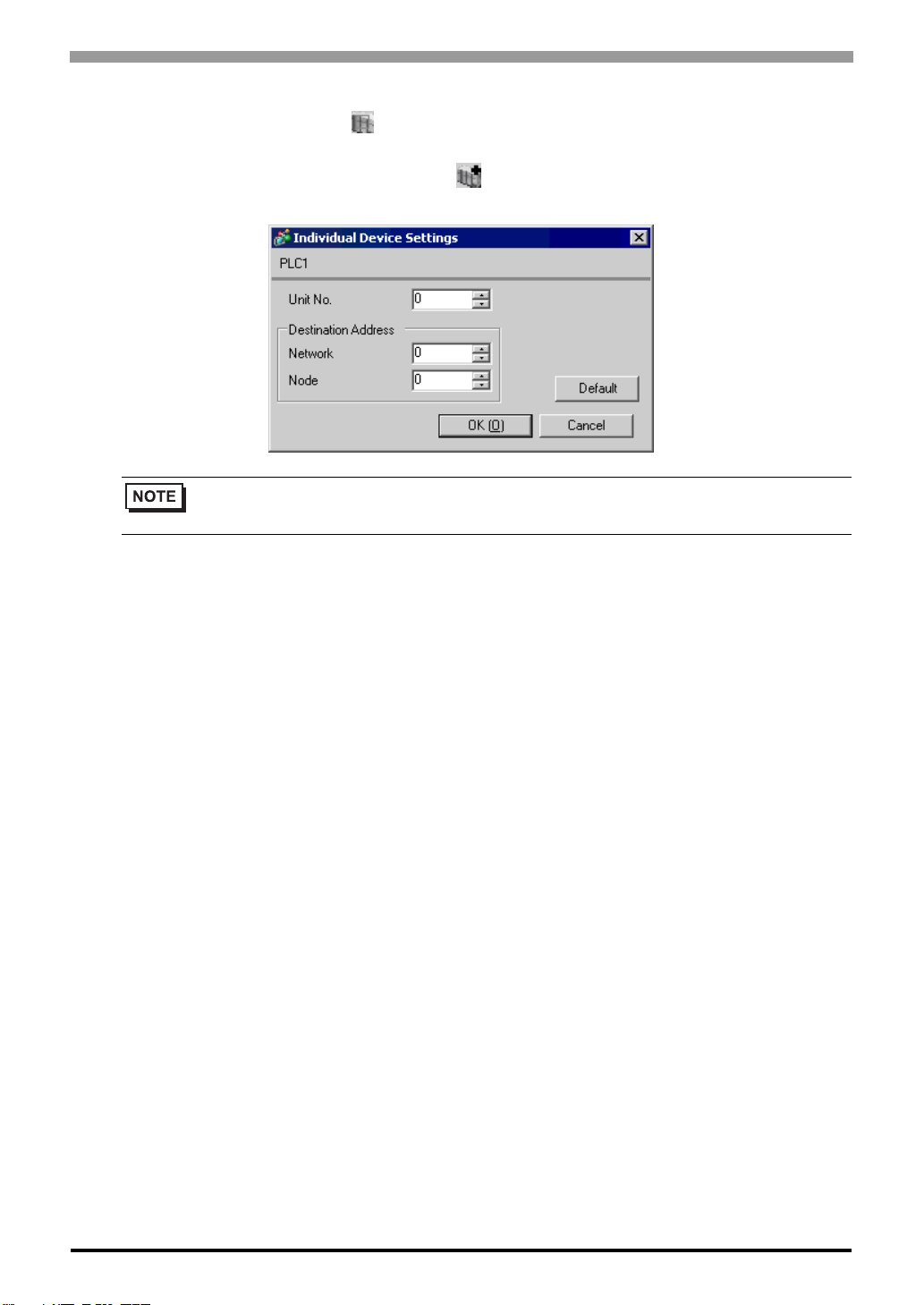

Device Setting

To display the setting screen, click ([Setting]) of External Device you want to set from [Device-Specific

Settings] of [Device/PLC Settings].

When you connect multiple External Device, click from [Device-Specific Settings] of [Device/PLC

Settings] to add another External Device.

• Set the unit No. you set in the External Device for "Unit No.".

• If you do not access beyond network, set "0" for "Network" and "Node" settings.

CS/CJ Series HOST Link Driver

GP-Pro EX Device/PLC Connection Manual 8

Setting of External Device

Click the [HOST Link Port] tab from the [PC System Settings] of the ladder software for the communication

settings of the HOST link port (RS232C port on CPU) and set as below.

Notes

• Do not set the duplicate node address in the same network address group.

Setup Items Settings

Speed 19200

Parameter 7,2,E

Mode HOST link

DIP Switch*1

*1 Use the DIP switch on the front of the unit for setting.

SW1: OFF

SW5: OFF

SW7: OFF

SW8: OFF

Unit No. Option

Source Network Address*2

*2 Parameter used when you access beyond network. Set in the routing table of "CX-Net Network Configuration".

Please refer to the manual of the External Device for more details.

Option

Node Address Setting Rotary Switch*3

*3 Parameter used when you access beyond network. Set with the rotary switch on the front of the Controller Link

unit used for access beyond network.

Option

CS/CJ Series HOST Link Driver

GP-Pro EX Device/PLC Connection Manual 9

3.2 Setting Example 2

Setting of GP-Pro EX

Communication Settings

To display the setting screen, select [Device/PLC Settings] from [System setting window] in workspace.

CS/CJ Series HOST Link Driver

GP-Pro EX Device/PLC Connection Manual 10

Device Setting

To display the setting screen, click ([Setting]) of External Device you want to set from [Device-Specific

Settings] of [Device/PLC Settings].

When you connect multiple External Device, click from [Device-Specific Settings] of [Device/PLC

Settings] to add another External Device.

• Set the unit No. you set in the External Device for "Unit No.".

• If you do not access beyond network, set "0" for "Network" and "Node" settings.
