Omron V680 - 2 Manuel utilisateur

NEW

V680 Series

RFID System

Next-Generation RFID System

Conforming to ISO/IEC 18000-3

(ISO/IEC 15693).

New ID Sensor Units

for CJ1/CS1 PLCs and New M12 Antenna.

Visualize data transmission on

production lines.

Managing the manufacture of LCDs

and color filters

Managing dies, die histories,

and die service lives

Managing process instructions

and histories for engine

manufacturing

Managing manufacturing process

traceability

Can be used in many countries around the world.

Conforms to ISO/IEC 18000-3 (ISO/IEC 15693)

High-speed transmission of 27 kbps achieved.

The V680 Series offers data transmission speeds as high as 27 kbps at an operating frequency of 13.56 MHz,

and dramatically shortens turn around time (TAT) with a Self-execution Mode that eliminates the need for host

access.

The V680 Series also supports V600-series commands,

so there is no need to change command systems.

These ultra-compact Tags also feature high environmental durability, long service lives,

and maintenance-free operation.

ID Tags can be either embedded in metal or

mounted on non-metallic objects without requiring

any extra attachments.

A long service life enables 10 billion accesses.

A new battery-less model with a large, 32-Kbyte

capacity has been added to the line-up.

In addition to managing the growing amount

of production and quality data on today's factory floors,

this new Tag makes it easy to build a system with

traceability.

The V680 Series features the same level of environmental

durability as the previous V600 Series.

Battery-less

Long service life

Battery-less

Long service life

billion

accesses

Enables High-speed Data Transmission

A Wide Range of ID Tags Available for Various Production Lines

No Changes Needed when Switching from an Existing System

Versatile Functions for Optimal

Use on Production Lines

The V680 Series can be used in many parts of the world because it meets the requirements of radio wave

regulations in Japan, Europe, the U.S.A., Canada, Mexico, Singapore, Malaysia, the Philippines, China, Hong

Kong, Taiwan, and Korea. Contact your OMRON sales representative for details on use in other countries.

Note: The requirements of radio wave regulations have been met in the countries listed above for combinations of a V680-HA63A or V680-HA63B

Amplifier and a V680-HS52, V680-HS63, or V680-HS65 Antenna (application pending in Mexico). The V680-CH and V680-H01 Antennas and

combinations of a V680-HA63A or V680-HA63B Amplifier and a V680-HS51 Antenna meet the requirements of radio wave regulations in Japan, Europe,

the U.S.A., and Canada. Application is in progress in other countries.

Self-execution system

ID Tag

transmission time

Judgment and

instruction

TAT

Conventional system

Host send (command) time Host send (response)

judgment and instruction time

ID Tag

transmission time

Judgment and

instruction

TAT

Easier Startup and Maintenance.

Simpler Operation.

Contributes to higher efficiency for on-site startup and maintenance.

Seven maintenance modes make it easy to diagnose the optimal usage conditions for the V680 RFID System.

Startup is also easier because the system can be checked without having to use a personal computer or other

host device.

Work efficiency is greatly increased because the ID Map Manager includes an ID Tag read/write test function

and communications checking function in addition to memory map definition and editing functions.

Memory map data created by the ID Map Manager can also be easily shared between the production line

design department and the vendors that are building the line.

Using the ID Map Manager dramatically shortens the time required to allocate

ID Tag memory and complete system designs.

Maintenance modes are

quickly switched with

the DIP switch on the

front of the Controller.

The Amplifier Unit is also

equipped with an indicator that

displays the communications

condition, for easy confirmation

from the location nearest the

production line.

V680-A-IMMEG-P01

Lets You Visualize Data Transmission

Strong Support for Creating ID Tag Memory Maps

Distant Close

Little noise Much noise

More than 99 successful

communications

Visualize Data Transmission without the Need for a Host Device.

Perform Simple Diagnosis of Communications Conditions.

Confirms correct mounting positions for the Read/Write Antenna and ID Tag.

The distance between the Read/Write Antenna and ID Tag mounting locations relative to the communications

range is displayed using six levels.

Controller

Amplifier Unit

Distance Level Measurement Mode

Confirms spatial noise, noise sources, and noise countermeasure effects.

Measures the ambient noise level and displays it in levels ranging from 00 to 99.

Noise Level Measurement Mode

Confirms the speed of moving ID Tags and the number of usable bytes.

Data is transmitted repeatedly to moving ID Tags, and the number of successful communications and speed

level are displayed in levels ranging from 01 to 99.

(No data is actually written to the ID Tags during the write part of the Speed Level Measurement Mode.)

Speed Level Measurement Mode (Read/Write)

Read/Write

Antenna

Read/Write

Antenna

ID Tag

Movement

Read/Write

Antenna

Distance level “--”

ID Tag

“06”

“05”

“04”

“03”

“02”

“01”

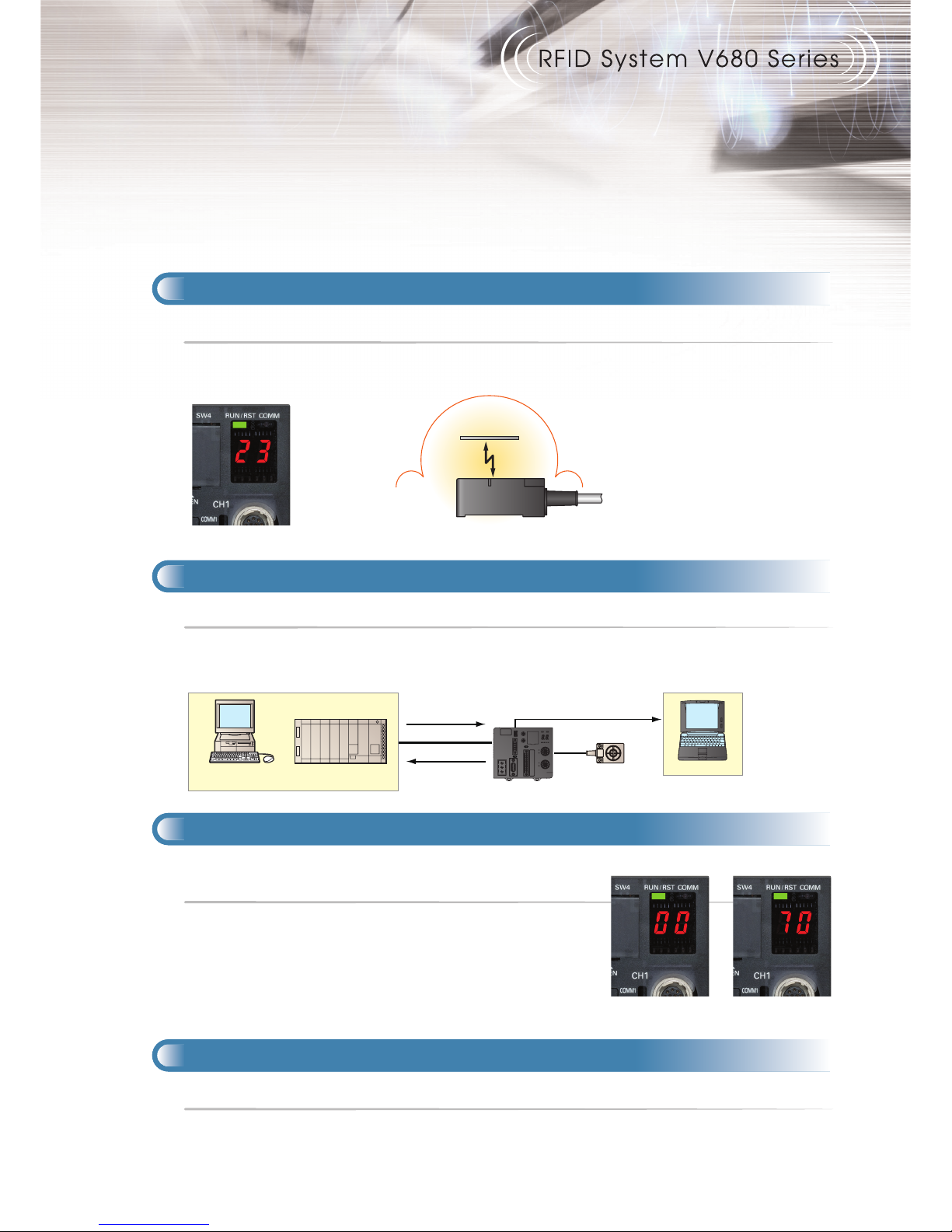

Seven maintenance modes make it easy to diagnose the communications conditions from the front

panel of the Controller or Amplifier Unit. The data can also be output from the USB port of the Controller

to a personal computer or other monitoring device.

(Maintenance Mode cannot be used with the V680-H01 or V680-CH.)

Communications successes: 23

Communications errorNormal communication

Controller

Confirms the communications success rate between the Read/Write Antenna and ID Tags.

A total of 100 communications are executed without retries, and the rate of communications success is

displayed in levels ranging from 01 to 99.

Confirms communications ability between the Read/Write

Antenna and ID Tags.

The end codes are displayed to show the results of communications

between the Read/Write Antenna and ID Tags. When the Controller

is mounted inside a control panel, or in some other location, this

data can be output from the Controller's USB port and easily

checked on a monitor.

(The Tag Communications Test Mode uses only read operations.)

This mode can be used as a protocol analyzer function for host device communications lines.

The communications commands sent from the host device and the execution result responses can be output

from the USB port of the Controller.

Confirms whether the signals sent from the Controller are being correctly transferred to an external device.

The communications commands and responses between the Controller and a host device are output from the

Controller's USB port for easy identification of problems, such as incorrect communications parameters or wiring.

Communications Success Rate Measurement Mode

Host Device Communications Monitor Mode (Protocol Analyzer Function)

Tag Communications Test Mode

Host Device Communications Confirmation Mode

Read/Write

Antenna

ID Tag

100

communications

Command:

RDSTH100100010*CR

Response:

RD72*CR

Read/Write

Antenna

Monitor:

RDSTH100100010*CR

RD72*CR

Personal computer

Host device

Programmable Controller

(PLC)

Notebook PC

Monitor

6V680 Series RFID System

RFID System

V680 Series

New, Next-generation

RFID Systems with ISO/IEC 18000-3

(ISO/IEC15693) Compliance

• High-speed, 27-kbps transmission response-only

speed of 53 kbps from the V680-D@KF68.

• Read/Write Antennas and ID Tags with excellent

environmental resistance.

• Wide line-up of ultra-compact, long-life ID Tags, with

capacities from 1 to 32 Kbytes.

• Seven modes make it possible to visualize data

transmission.

• ID Map Manager simplifies memory map designing for

ID Tags.

• Complies with FCC Standards and R&TTE Directive.

System Configuration

Note 1. Use a V680-HS51/-HS52 Antenna if the V680-D1KP52MT or V680-D2KF52M is to be embedded in metal. Communications cannot be performed if a V680-

HS63 Antenna is used in combination with the V680-D1KP52MT or V680-D2KF52M.

The V680-HS65 Antenna cannot communicate with V680-D1KP52MT or V680-D2KF52M ID Tags if they are embedded in metal.

2. For details, refer to the following User’s Manuals (Cat. No. Z248, Z249, Z262, and Z274).

3. The maximum total cable length is 62.5 m. It is achieved by connecting an Antenna with a 12.5-m cable, an Amplifier with a 10-m cable, and 20-m Amplifier

Unit Special Extension Cables.

Cylinder type

V680-HS51

V680-HS65

CJ1W-V680C11/C12

CS1W-V680C11/C12

ID Sensor Units

SYAMAC

CJ/CS Series

8-Kbyte/32-Kbyte memory

V680-D8KF68/-D32KF68

(86 ×54 ×10 mm)

For flush mounting on non-metallic surface

ControllerID Tag Amplifier Unit

Personal

computer

Programmable

Controller

Read/Write Antenna

Square type

V680-HS63

Cylinder type

V680-HS52

-W:

-R:

Standard cable,

waterproof

connector

Flexible cable,

non-waterproof

connector

1-channel type

V680-CA5D01-V2

2-channel type

V680-CA5D02-V2

1-Kbyte memory

V680-D1KP52MT

(8 dia. ×5 mm)

For embedding in metallic or non-metallic

surface

1-Kbyte memory

V680-D1KP66MT/V680-D1KP66T

(34 ×34 ×3.5 mm)

For flush mounting on metallic surface

1-Kbyte memory

V680-D1KP66T-SP

(96 ×36.5 ×6.5 mm)

For flush mounting on non-metallic surface

2-Kbyte memory

V680-D2KF52M

(8 dia. ×5 mm)

For embedding in metallic or non-metallic

surface

2-Kbyte memory

V680-D2KF67M/V680-D2KF67

(40 ×40 ×4.5 mm)

For flush mounting on non-metallic surface

For

1-Kbyte ID Tags

V680-HA63A

-W:

-R:

Standard cable,

waterproof

connector

Flexible cable,

non-waterproof

connector

For 2-, 8-, or

32-Kbyte ID Tags

V680-HA63B

Communications

interfaces

RS-232C, RS-422,

RS-485

Amplifier Unit

Special Extension

Cable

V700-A43/-A44

Amplifier Unit

Special Extension

Cable

V700-A43/-A44

Host Device

V680 Series RFID System 7

System Configuration

Connect V680 Read/Write Antennas and Amplifier Units to a V680-series Controller, and read or write data from or to V680-series ID Tags.

Transmission is also possible with ID Tags other than those of the V680 Series as long as they comply with ISO/IEC 18000-3 (ISO/IEC 15693).

However, transmission with ID Tags other than those of the V680 Series cannot be assured. The user must confirm transmission capabilities

carefully prior to use.

ID Sensor Units SYAMAC

CJ/CS Series

Communications

interfaces

RS-232C, RS-422,

RS-485

V680-D1KP66MT/

V680-D1KP66T

V680-D2KF67M/

V680-D2KF67

V680-D1KP66T-SP

1-channel type

CJ1W-V680C11

CS1W-V680C11

1-channel type

V680-CA5D01-V2

Host Device

1-Kbyte memory with

high-temperature

capability

V680-D1KP58HT

V680-H01

Special Cable

V700-A40-W

ControllerID Tag Read/Write Antenna

Personal computer

Programmable

Controller

Personal computer

Programmable

Controller

1-Kbyte memory

V680-D1KP52MT

2-Kbyte memory

V680-D2KF52M

8-Kbyte/32-Kbyte

memory

V680-D8KF68/-D32KF68

Psion Teklogix 7527S-series

Handheld Terminal for

V680-CH1D-PSI

(Recommended model:

V680-A-7527S-G2-EG-S)

V680-CHUD

Handheld Reader Writer

V680-CH1D V600-A22 AC Adapter

(order separately)

V680-CH1D-PSI

RS-232C

interface

(Connector)

RS-232C

interface

(Connector)

USB interface

8V680 Series RFID System

Ordering Information

ID Tag

Read/Write Antenna (Detachable Amplifier Unit Type)

Read/Write Antenna with Built-in Amplifier

Note: Use an Antenna Cable to connect the Read/Write Antenna to the Controller.

The maximum cable length is 30.5 m.

Type Memory capacity Appearance Size Metallic compatibility Model

Battery-less 1 Kbyte Cylindrical,

ultra-compact

8 dia. ×5 mm

For embedding in metallic

or non-metallic surface

V680-D1KP52MT

Square

34 ×34 ×3.5 mm

For flush mounting on

metallic surface

V680-D1KP66MT

For flush mounting on

non-metallic surface

V680-D1KP66T

Square PFA package

95 ×36.5 ×6.5 mm

For flush mounting on

non-metallic surface

V680-D1KP66T-SP

80 dia. ×t10 mm

(High-temperature

type)

For flush mounting on

non-metallic surface

V680-D1KP58HT

2 Kbytes Cylindrical,

ultra-compact

8 dia. ×5 mm

For embedding in metallic

or non-metallic surface

V680-D2KF52M

Square

40 ×40 ×4.5 mm

For flush mounting on

metallic surface

V680-D2KF67M

For flush mounting on

non-metallic surface

V680-D2KF67

8 Kbytes 86 ×54 ×10 mm For flush mounting on

non-metallic surface

V680-D8KF68

32 Kbytes V680-D32KF68

Type Appearance Size Cable length Model

Cylindrical Standard cable,

waterproof connector

M22 ×65 mm 2 m V680-HS52-W 2M

12.5 m V680-HS52-W 12.5M

Flexible cable, non-

waterproof connector

2 m V680-HS52-R 2M

12.5 m V680-HS52-R 12.5M

Standard cable, non-

waterproof connector

M12 ×35 mm 2 m V680-HS51 2M

Square Standard cable,

waterproof connector

40 ×53 ×23 mm 2 m V680-HS63-W 2M

12.5 m V680-HS63-W 12.5M

Flexible cable, non-

waterproof connector

2 m V680-HS63-R 2M

12.5 m V680-HS63-R 12.5M

Standard cable,

waterproof connector

100 ×100 ×30 mm 2 m V680-HS65-W 2M

12.5 m V680-HS65-W 12.5M

Flexible cable, non-

waterproof connector

2 m V680-HS65-R 2M

12.5 m V680-HS65-R 12.5M

Type Appearance Size Cable length Model

Square 250 ×200 ×35 mm 0.5 m (See note.) V680-H01

V680 Series RFID System 9

Amplifier Unit

Note: The maximum extendable cable length is 50 m (including the Amplifier Unit cable). The maximum number of V700-A43/-A44 Amplifier Unit

Special Extension Cables that can be connected is two.

Controller

ID Sensor Units

Note: When connected to the V680-H01: 0.28 A

Handheld Reader Writers

Psion Teklogix Handheld Terminals

Handheld Terminal Set

Type Appearance Size Cable length Model

For 1-Kbyte memory 25 ×40 ×65 mm 5 m V680-HA63A 5M

10 m V680-HA63A 10M

For 2-/8-/32-Kbyte memory 5 m V680-HA63B 5M

10 m V680-HA63B 10M

Type No. of connectable

Amplifiers

Appearance Size Transmission interface Model

DC power supply Single 105 ×90 ×65 mm RS232C,

RS422/RS485

V680-CA5D01-V2

Dual V680-CA5D02-V2

Type Unit name Connected ID System External

power supply

No. of unit

numbers used

Current consumption (A) Model

5 V 24 V External

CJ1

Special

I/O Unit

V680 Series 1 Head --- 1 unit number 0.26 0.13

(See

note.)

--- CJ1W-

V680C11

2 Heads 2 unit number 0.32 0.26 --- CJ1W-

V680C12

Type Unit name Connected ID System External

power supply

No. of unit

numbers used

Current consumption (A) Model

5 V 26 V External

CS1

Special

I/O Unit

V680 Series 1 Head --- 1 Head 0.26 0.13

(See

note.)

--- CS1W-

V680C11

2 Heads 24 VDC 2 Heads 0.32 --- 0.36 CS1W-

V680C12

Name Model

Model with USB connector and 0.8-m cable V680-CHUD 0.8M

Model with USB connector and 1.9-m cable V680-CHUD 1.9M

Model with RS-232C connector and 2.5-m cable

(for use with a personal computer or programmable controller)

V680-CH1D

Model with RS-232C connector and 0.8-m cable

(Recommended: Psion Teklogix Handheld Terminal)

V680-CH1D-PSI

AC Adapter (for V680-CH1D) V600-A22

Name Psion Teklogix model number OMRON model number Set contents

Handheld Terminal Set

(English OS)

7527S-G2-EG-S V680-A-7527S-G2-EG-S Handheld Terminal, RS-232C in-

terface, hand strap, and charger

(standard model)

10 V680 Series RFID System

Accessories (Order Separately)

ID Tag Attachment

Amplifier Unit Special Extension Cable (Amplifier Unit to Controller)

V680-H01 Read/Write Antenna Special Cable (Read/Write Antenna to Controller)

Note: The maximum cable length is 30.5 m. If extending the cable length, connect only one additional cable. (Do not connect more than two cables

together.)

RS-232C Communications Connector ID Map Manager (for Windows)

Note: An RS422/RS485 Communications Connector is provided with the RFID System.

Type Appearance Model

For the V680-D1KP66T V600-A86

For the V680-D@KF68 V680-A81

To mount the V680-D1KP58HT V680-A80

Cable length Appearance Model

10 m V700-A43 10 M

20 m V700-A44 20 M

Cable length Appearance Model

2 m V700-A40-W 2M

5 m V700-A40-W 5M

10 m V700-A40-W 10M

20 m V700-A40-W 20M

30 m V700-A40-W 30M

Name Model

Connector Plug XM3B-0922-111

Connector Hood XM2S-0911

Type Model

English version V680-A-IMMEG-P01

Autres manuels pour V680 - 2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Omron Système de conférence

Omron

Omron C200HW-COM01 Manuel utilisateur

Omron

Omron GRT1 - 27-11-2006 Manuel utilisateur

Omron

Omron CompoNetT E3NW-CRT Manuel utilisateur

Omron

Omron V670 Series Manuel utilisateur

Omron

Omron SMARTSLICE - 04-2008 Manuel utilisateur

Omron

Omron V640 Manuel utilisateur

Omron

Omron ZS-CRT Manuel utilisateur

Omron

Omron GRT1-PNT - 2 Manuel utilisateur

Omron

Omron CS1W-SCU21 Manuel utilisateur

Omron

Omron SYSDRIVE MX2 SERIES Manuel utilisateur

Omron

Omron Sysmac E3X-ECT Manuel utilisateur

Omron

Omron GRT1-CRT - 05-2008 Manuel utilisateur

Omron

Omron DRT1-COM Manuel utilisateur

Omron

Omron E3NW-CCL Manuel utilisateur

Omron

Omron C200HW-CORT21-V1 Manuel utilisateur

Manuels Système de conférence populaires d'autres marques

Kramer

Kramer VIA GO Manuel utilisateur

AVT

AVT MAGIC AC1 Go Manuel utilisateur

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manuel utilisateur

Sony

Sony PCS-I150 Manuel utilisateur

Middle Atlantic Products

Middle Atlantic Products VTC Series Manuel utilisateur

Prentke Romich Company

Prentke Romich Company Vanguard Plus Mode d’emploi

Speakerbus

Speakerbus iD 712 Manuel utilisateur

Trelleborg

Trelleborg SafePilot CAT PRO Manuel utilisateur

Sennheiser

Sennheiser ADN Manuel utilisateur

ADTRAN

ADTRAN NetVanta 7100 Manuel utilisateur

AINA

AINA PTT Voice Responder Manuel utilisateur

Yamaha

Yamaha ProjectPhone PJP-100H Manuel utilisateur

vissonic

vissonic VLI Series Manuel utilisateur

Panasonic

Panasonic KX-VC500 Manuel utilisateur

Poly

Poly Trio 8300 Manuel utilisateur

Crestron

Crestron Mercury CCS-UCA-SMK Dessin dimensionnel

Inmarsat

Inmarsat mini M Manuel utilisateur

Tenveo

Tenveo ALL-IN-ONE Manuel utilisateur
