Omron E39 Series Manuel utilisateur

Sensor connectors, reflectors, mounting brackets, accessories

XS, Y92E, E39

The sensor accessory portfolio provides the products required to

connect, mount or operate the main photoelectric and inductive sen-

sors. The accessories are designed to match the performance levels

of the respective sensors from general applications to the most chal-

lenging enviroments.

• Reflectors for standard applications, special mounting requirements

or special environments

• M8, M12 cable connectors

• Special fiber and photomicrosensor connectors

• Mounting brackets for square and cylindrical sensor shapes

Content

Cable connectors – quick guide and selection table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Mounting accessories for standard photoelectric, inductive and capacitive sensors . . . . . . . . . . 24

Reflectors for retro-reflective photoelectric sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Cable connectors – quick guide and selection table

Size Shape Type Features

Material Order code Extended

Portfolio

and Specs

on Page

Nut Cable

M8 General

purpose

(screw)

3 pin (LED

optionally) Brass (CuZn)

PVC 2 m

PUR 2 m

XS3F-M8PVC3S2M

XS3F-M8PUR3S2M

XS3F-M8PVC3A2M

XS3F-M8PUR3A2M 3

4pin PVC 2 m

PUR 2 m

XS3F-M8PVC4S2M

XS3F-M8PUR4S2M

XS3F-M8PVC4A2M

XS3F-M8PUR4A2M 3

Detergent

resistant 4 pin

Stainless

steel

(SUS316L)

PVC 2 m Y92E-

S08PVC4S2M-L

Y92E-

S08PVC4A2M-L 6

Robotic 4 pin Brass (CuZn) Robotic

PVC 2 m XS3F-M421-402-R XS3F-M422-402-R 8

M12

General

purpose

(screw)

3 wire (LED

optionally)

Brass (CuZn)

PVC 2 m

PUR 2 m

XS2F-M12PVC3S2M

XS2F-M12PUR3S2M

XS2F-M12PVC3A2M

XS2F-M12PUR3A2M 3

4 wire PVC 2 m

PUR 2 m

XS2F-M12PVC4S2M

XS2F-M12PUR4S2M

XS2F-M12PVC4A2M

XS2F-M12PUR4A2M 3

5 wire PVC 2 m

PUR 2 m

XS2F-M12PVC5S2M

XS2F-M12PUR5S2M

XS2F-M12PVC5A2M

XS2F-M12PUR5A2M 3

Detergent

resistant 4 wire

Stainless

steel

(SUS316L)

PVC 2 m Y92E-

S12PVC4S2M-L

Y92E-

S12PVC4A2M-L 6

105°C

Heat

resistant

4 wire

Stainless

steel

(SUS316L)

Heat resist-

ant PVC

XS2F-E421-D80-E XS2F-E422-D80-E 12

Twist & click 4 wire Nickel plated

Zinc

PVC 2 m

PUR 2 m

XS5F-D421-D80-A

XS5F-D421-D80-P

XS5F-D422-D80-A

XS5F-D422-D80-P 14

Robotic 4 wire Brass (CuZn) Robotic

PVC 2 m XS2F-D421-D80-R XS2F-D422-D80-R 8

Fiber

amplifi-

er (E3X)

connec-

tor

Fiber

amplifier

connectors

Special

fiber

connector -

4 wire

PBT PVC 2 m E3X-CN21 19

Special

fiber

connector +

M8 plug Plug: Zinc

diecast

PVC 30 cm

with M8

4-pin plug

E3X-CN21-M3J-2 0.3M 19

Special

fiber

connector +

M12 plug

PVC 30 cm

with M12

4-pin plug

E3X-CN21-M1J 0.3M 19

Photo-

micro-

sensor

(EE-SX)

connec-

tor Cable

connec-

tor

Cable

connector

standard

cable

Nylon PVC 1 m

EE-1017 1M 21

robotic

cable EE-1017-R 1M 21

M8/M12 Confection-

able

Plugs and

connectors

for self

assembly

Brass n.a. XS2G, XS2C

Y92E_conf 15

M12 Field I/0

boxes

Direct

wiring or

DeviceNet

communi-

cation

-XW3B, DRT2 18

M8/M12

T-connectors,

covers,

accessories

and extended

wiring

portfolio

n.a. - XS2R, XS3R, XY2F, .. 23

General purpose connectors (M8/M12)

XS3F, XS2F

Ordering information

Note: M12 2-wire models are available for AC and DC applications.

Contact your Omron representative

Type Size Material Features Shape Length

(m) Order code

Nut Cable

General purpose

Brass

(Nickel plated)

PVC

3 pin

angled 2 XS3F-M8PVC3A2M

5 XS3F-M8PVC3A5M

straight 2 XS3F-M8PVC3S2M

5 XS3F-M8PVC3S5M

4 pin

angled 2 XS3F-M8PVC4A2M

5 XS3F-M8PVC4A5M

straight 2 XS3F-M8PVC4S2M

5 XS3F-M8PVC4S5M

M12

3 wire

angled 2 XS2F-M12PVC3A2M

5 XS2F-M12PVC3A5M

straight 2 XS2F-M12PVC3S2M

5 XS2F-M12PVC3S5M

4 wire

angled 2 XS2F-M12PVC4A2M

5 XS2F-M12PVC4A5M

straight 2 XS2F-M12PVC4S2M

5 XS2F-M12PVC4S5M

5 wire

angled 2 XS2F-M12PVC5A2M

5 XS2F-M12PVC5A5M

straight 2 XS2F-M12PVC5S2M

5 XS2F-M12PVC5S5M

PUR

3 pin

angled 2 XS3F-M8PUR3A2M

5 XS3F-M8PUR3A5M

straight 2 XS3F-M8PUR3S2M

5 XS3F-M8PUR3S5M

4 pin

angled 2 XS3F-M8PUR4A2M

5 XS3F-M8PUR4A5M

straight 2 XS3F-M8PUR4S2M

5 XS3F-M8PUR4S5M

M12

3 wire

angled 2 XS2F-M12PUR3A2M

5 XS2F-M12PUR3A5M

straight 2 XS2F-M12PUR3S2M

5 XS2F-M12PUR3S5M

4 wire

angled 2 XS2F-M12PUR4A2M

5 XS2F-M12PUR4A5M

straight 2 XS2F-M12PUR4S2M

5 XS2F-M12PUR4S5M

5 wire

angled 2 XS2F-M12PUR5A2M

5 XS2F-M12PUR5A5M

straight 2 XS2F-M12PUR5S2M

5 XS2F-M12PUR5S5M

Specifications

Pin arrangement

Materials

Dimensions

XS3F

M8 Screw-on cable connectors

M8 M12

Rated current 1A 4A

Rated voltage 125 VDC 125 VDC, 250 VAC

Degree of protection IP67 (IEC 60529)

Ambient temperature PUR Fixed cable: -50°C to 80°C

Moving cable: -25°C to 80°C

PVC -25°C to 70°C

M8 3 poles M8 4 poles

1 = brown

3 = blue

4 = black

1 = brown

2 = white

3 = blue

4 = black

M12 3 poles M12 4 poles M12 5 poles

1 = brown

2 = n.c.

3 = blue

4 = black

1 = brown

2 = white

3 = blue

4 = black

5 = n.c.

1 = brown

2 = white

3 = blue

4 = black

5 = green / yellow

Pin block PBT resin (UL 94V-0)

Contacts Brass/ nickel base, 0.4 µm gold plating

Fixture Brass/ nickel plated

Cover Polyester elastomer (UL 94V-O)

O-ring Rubber

4 dia.

Straight Connectors

L-shaped Connectors

4 dia.

9dia.

2.15

1.95 0.5 31

3.4

9dia.

12.9

21.5

31.4

XS2F

M12 Screw-on cable connectors

Straight Connectors

L-shaped Connectors

Wiring Diagram (M8 and M12)

5 dia. 5 dia.

14.9 dia.

6 dia.

L50

40.7 30

5 dia.5 dia.

6 dia.

White

Brown

Blue

Black

Cable lead colors

Contact No.

Detergent resistant cable connectors (M8 / M12)

Y92E-S

Ordering information

Detergent resistant models

Specifications

Pin arrangement

Materials

Type Size Material Features Shape Length

(m)*1 Order code

Nut Cable

detergent resistant

SUS 316L PVC

3 pin

Angled 2 Y92E-S08PVC3A2M-L

5 Y92E-S08PVC3A5M-L

Straight 2 Y92E-S08PVC3S2M-L

5 Y92E-S08PVC3S5M-L

4 pin

Angled 2 Y92E-S08PVC4A2M-L

5 Y92E-S08PVC4A5M-L

Straight 2 Y92E-S08PVC4S2M-L

5 Y92E-S08PVC4S5M-L

M12

Angled 2 Y92E-S12PVC4A2M-L

5 Y92E-S12PVC4A5M-L

Straight 2 Y92E-S12PVC4C2M-L

5 Y92E-S12PVC4S5M-L

*1 For different cable length please contact your Omron representative

Rated current 4A

Rated voltage

M8 3 pin: 60 VDC

M8 4 pin: 30 VDC

M12 4-wire: 250 VDC

Degree of protection IP67 (IEC 60529); IP69k (after DIN 40050-1)

Ambient temperature -25°C to +70°C

M8 3 pin M8 4 pin M12 4 pin

1 = brown

3 = blue

4 = black

1 = brown

2 = white

3 = blue

4 = black

1 = brown

2 = white

3 = blue

4 = black

5 = n.c.

Pin block PVC

Contacts CuSn, nickel base, 0.3 µm gold plating

Fixture Stainless steel

Cover PVC

O-ring EPDM

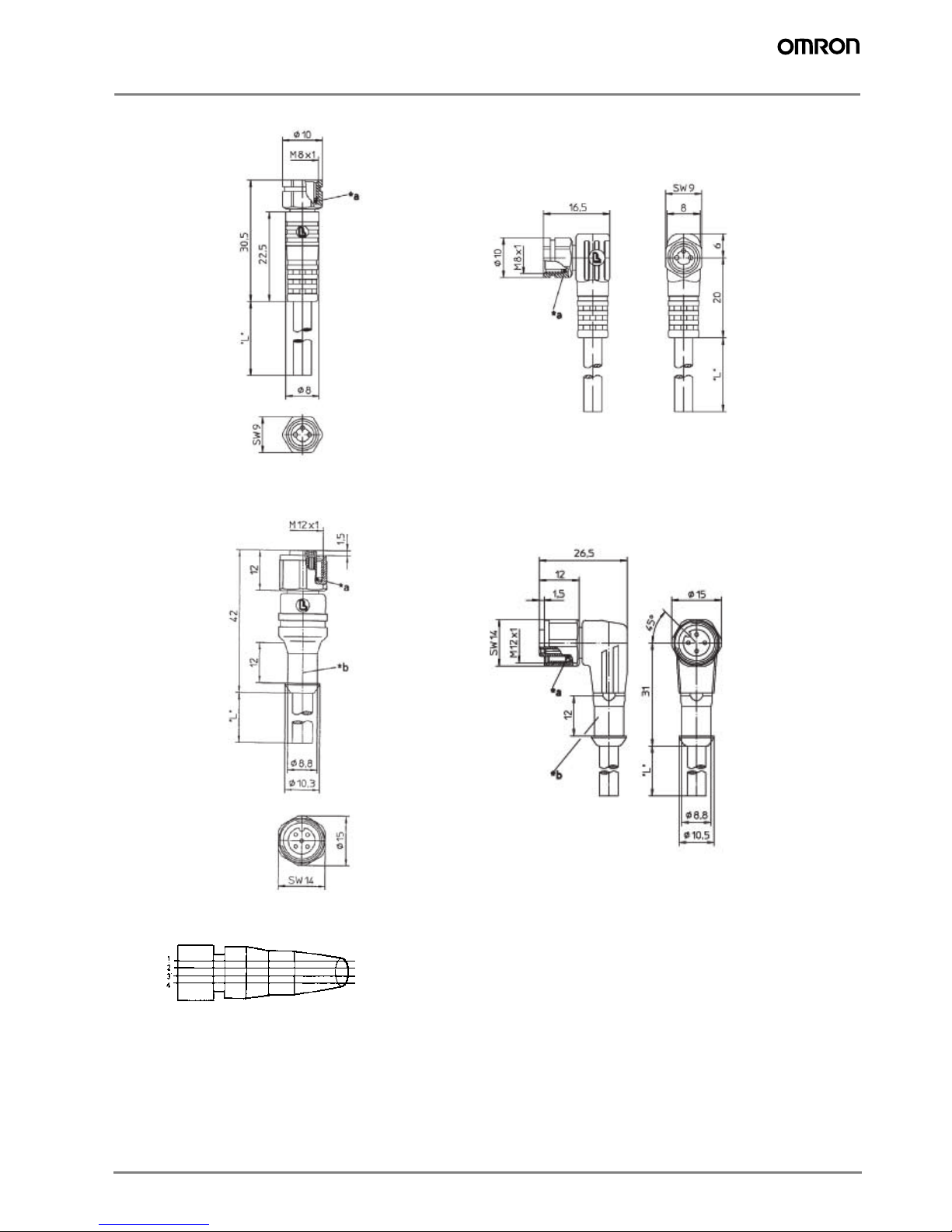

Dimensions

Y92E-S08

Y92E-S12

Wiring Diagram (M8 and M12)

White

Brown

Blue

Black

Cable lead colors

Contact No.

Robot Cable Connectors (M8/M12)

XS3F-_-R, XS2F-_-R

Ordering Information

Type Size Material Features Shape Length

(m) Order code

Nut Cable

Vibration-proof robot

cable (screw on)

Brass (CuZn) PVC 4 pin

Straight 2 XS3F-M421-402-R

5 XS3F-M421-405-R

Angled 2 XS3F-M422-402-R

5 XS3F-M422-405-R

Vibration-proof robot

cable (snap on) Thermoplastic PVC 4 pin

Straight 2 XS3F-S421-402-R

5 XS3F-S421-405-R

Angled 2 XS3F-S422-402-R

5 XS3F-S422-405-R

Vibration-proof robot

cable (screw on)

M12 Brass (CuZn) PVC

2 wire

Straight

2XS2F-D421-DA0-R

4 wire XS2F-D421-D80-R

2 wire 5XS2F-D421-GA0-R

4 wire XS2F-D421-G80-R

2 wire

Angled

2XS2F-D422-DA0-R

4 wire XS2F-D422-D80-R

2 wire 5XS2F-D422-GA0-R

4 wire XS2F-D422-G80-R

Vibration proof robot

cable (srew on) for AC

usage

2 wire

Straight

2XS2F-A421-DB0-R

4 wire XS2F-A421-D90-R

2 wire 5XS2F-A421-GB0-R

4 wire XS2F-A421-G90-R

2 wire Angled 2 XS2F-A422-DB0-R

5 XS2F-A422-GB0-R

Specifications

Pin arrangement

Materials

Dimensions

XS3F-_-R

M8 Screw-on cable connectors

Wiring Diagram (M8)

M8 M12

Rated current 1 A 3 A

Rated voltage 125 VDC 125 VDC, 250 VAC

Degree of protection IP67 (IEC529) IP67 (IEC529)

Ambient temperature Operating: -25C to 70C Operating: -25C to 70C

M8 M12

DC type AC type

M8 M12

Pin Block PBT resin/light gray or black PBT resin (UL94V-0), light grey or dark grey

Contacts Brass/nickel base, 0.4-m gold plating Phosphor bronze, nickel base, 0.4-m gold

plating

Fixture Brass/nickel plated

Cover Thermoplastic elastomer/black Polyester elastomer

O-ring Rubber

Socket

4 dia.

Straight Connectors

Angled Connectors

4 dia.

9 dia.

2.15

1.95 0.5 31

3.4

9 dia.

12.9

21.5

31.4

White

Brown

Blue

Black

Cable lead colors

Contact No.

M8 Snap-on cable connectors

XS2F-_-R

M12 Screw-on cable connectors

Straight Connectors

Angled Connectors

4 dia.

2.15

3.4

0. 5

1.95

30.7

21.1

13.9

2.15

3.4

0.5

1.95

8.2 dia.

19.8

23.1

L5 0

DC AC

5 dia. 5 dia.

14.9 dia.

6 dia.

L50

40.7 30

Straight Connectors

DC AC

5 dia.5 dia.

6 dia.

Angled Connectors

Ce manuel convient aux modèles suivants

Autres manuels Omron Accessoires

Omron

Omron E3X-DA-S Manuel utilisateur

Omron

Omron E3F3 Manuel utilisateur

Omron

Omron ZFV-C Manuel d'installation

Omron

Omron ZFX-SR10-1 Manuel utilisateur

Omron

Omron K7L-UP-FLK Manuel utilisateur

Omron

Omron E3Z-LT Manuel utilisateur

Omron

Omron E3X-DA21-S Manuel utilisateur

Omron

Omron CJ - 12-2004 Manuel utilisateur

Omron

Omron F3SH-A - Manuel utilisateur

Omron

Omron Z4M-W10 Manuel utilisateur

Omron

Omron F3W-D052C Series Manuel utilisateur

Omron

Omron FQ-AC Series Manuel utilisateur

Omron

Omron ZX1-LD Manuel utilisateur

Omron

Omron E2C-EDA Series Manuel utilisateur

Omron

Omron E3FS-10B4 2M Manuel utilisateur

Omron

Omron E3X-DAC-S Series Manuel utilisateur

Omron

Omron LASER ZX - Manuel utilisateur

Omron

Omron ES1B Manuel utilisateur

Omron

Omron SYSMAC C200H-IDS01-V1 Manuel utilisateur

Omron

Omron E2F-D Manuel utilisateur

Omron

Omron FZ4-L350-10 Manuel utilisateur

Omron

Omron F150-3 - 2 Manuel utilisateur

Omron

Omron E2Q2 Manuel utilisateur

Omron

Omron E3JK series Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
