Omnisense Systems Ulysses mini Manuel utilisateur

IMPORTANT: The Quick Start Guide is part of the complete documentation for your thermal

camera. Please visit Omnisense Systems website to download the complete and latest user

guide for your product.

omnisense-systems.com

Part No: Part No: ULS-N640S & ULS-N640W

Ver 2.0

Quick Start Guide

Omnisense Systems USA Inc

1881 West State Road 84, Bldg. 1 Unit 102

Fort Lauderdale, Florida, 33315, United States

T: +1 (954) 316-6230

E: [email protected]

Compact dual payload marine

thermal camera

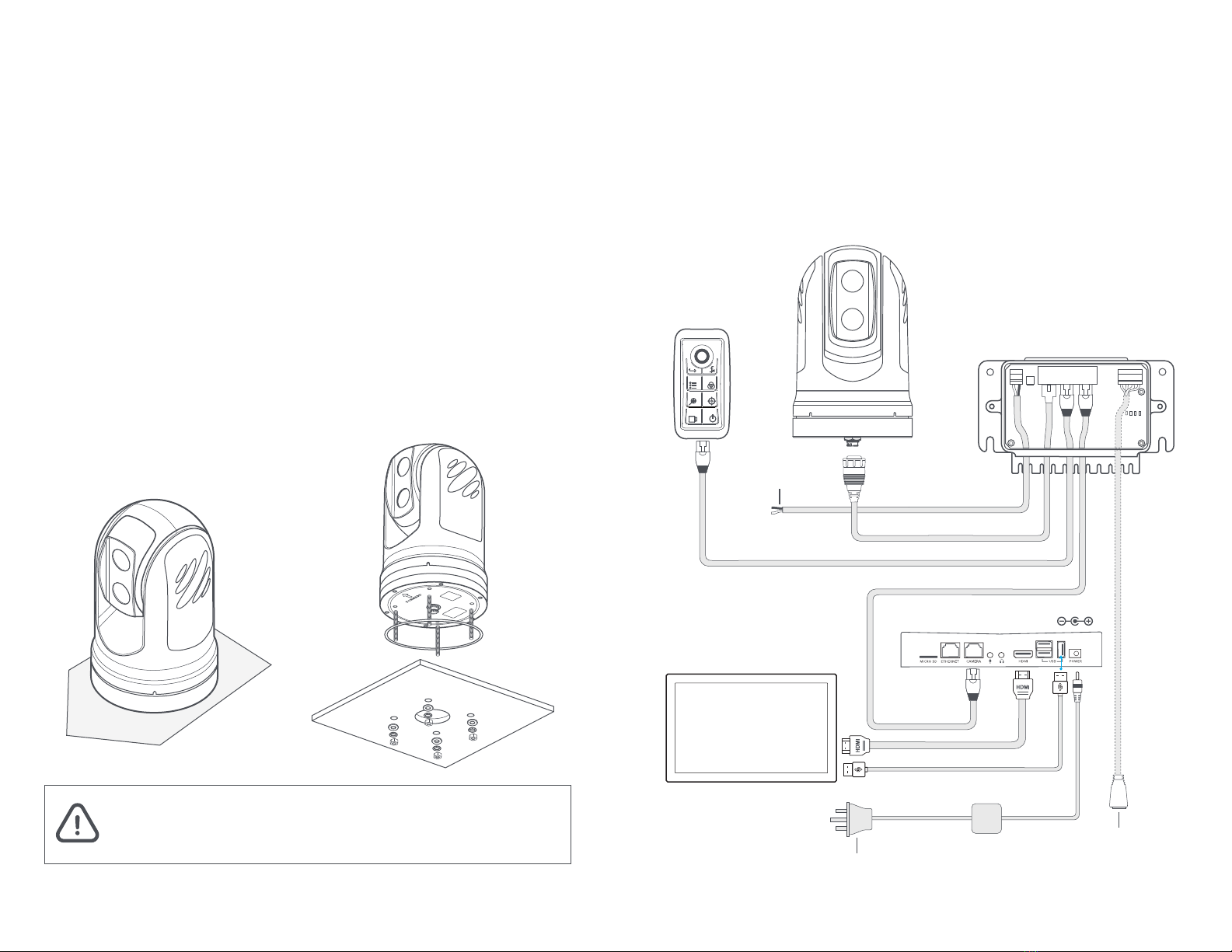

System Layout and Connections

Before you commenced the installation, it is important to produce a schematic

diagram. The diagram will be handy for any future maintenance or upgrades to the

system. The diagram should include the location of all components, cable types,

routing and length.

This is the layout plan of how your Ulysses Mini thermal camera system will be set-up.

Joystick

Controller

Camera Turret

Junction Box

MFD / Touchscreen monitor

12V DC power supply

12V or 24V DC

power supply

NMEA 0183 data

source (if required)

Begin by selecting an apparated location to install the camera. It should ideally be

installed at a good vantage point with emphasis on forward view.

Using the Mounting Template decal provided, mark and drill all the holes required for

Camera Turret installation at the selected location.

Prepare the camera for installation by installing the provided 4 x m6 studs into the

base of the camera. (Fig.2). Be sure not to over tighten these studs as doing so may

severely damage the camera.

Pass the camera harness cable through the center hole and route it to the junction

box location. Connect the cable harness to mating connector under the camera base.

Note the orientation of the Camera Turret indicated by the “forward arrow” under the

camera and install the camera with it’s base facing toward the bow of your vessel.

Secure the camera with supplied hardware as indicated in Fig.1.

Pro Tip: Put a temporary mark of the front side of the base, to indicate the forward

side to aid installation.

Camera can be installed on a riser in the same way.

Mounting the Camera Turret

Ensure depth of screws do not penetrate more than 13mm from the base.

Failure to observe this may severely damage the product and is not

covered under the warranty.

Fig. 1 Fig. 2

Mounting the Joystick Controller

Identify the desired location of the Joystick Controller.

Use the supplied mounting template decal and create

the necessary openings as indicated on the template.

The Joystick controller has a ﬂush mounting ﬂange

that will sit on a ﬂat surface and sealed with a gasket.

Secure it from under the panel with supplied

hardware as indicated in Fig. 3. The supplied nut can

be fastened with ﬁngers and then tighten with an

appropriate hand tool.

Note:

Please measure the thickness of your mounting

surface and purchase the required length of

these screws if the supplied studs are not used. Fig. 3

Fig. 4

Joystick Controller Functions

Joystick

Menu navigation and

camera control

Enter

Conﬁrm selection

Display menu options

Zoom

Adjust zoom

Sensor Select

Toggle between cameras

Function

Programmable key

Color Palette

Select color mode

Radar Track

Activate tracking functions

Power/Standby

Wake, park, or return turret

to home position

All essential functionalities are integrated and accessed via the 8 buttons and

joystick (Fig. 4).

Press any of the button once to activate the menu items on the screen. Use the

joystick to select and cycle-through the options available.

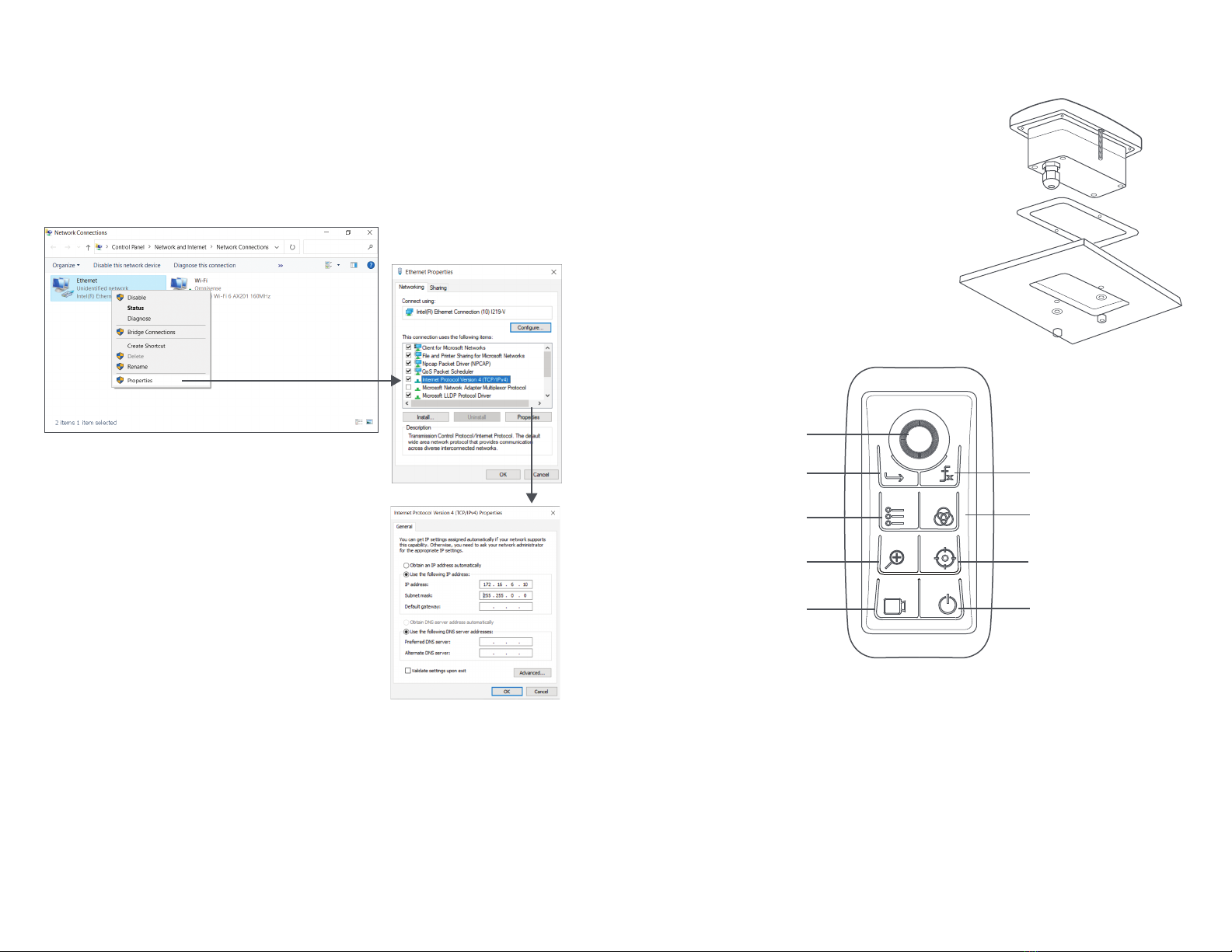

If you are unable to connect to the camera due to the a dierent set of IP address,

follow this step to conﬁgure the camera for Windows user.

1. Go to Settings, then click on Network & Internet.

2. Right-click on your Ethernet Network that is connected to the Junction Box and

click on Properties (Fig. 7).

Change IP Settings

3. On the properties screen, select Internet

Protocol Version 4 (TCP/IPv4) and click on

Properties (Fig. 8).

4. On IPv4 properties screen, select Use the

following IP Address option (Fig. 9).

5. Enter the following IP address: 172.16.6.xxx (any

number). As you can see in above image (Fig. 9),

the ﬁrst 3 number sets (172.16.6) in IP Address

ﬁeld need to be the same as the Junction Box IP

address. You can only change the last number

set with any number from 1 to 254. Click in the

Subnet Mask area, which should auto-complete.

Click OK (Fig. 9).

Fig. 8

Fig. 9

Fig. 7

6. Launch your web browser and enter the following address http://172.16.6.225/

and login with the following:

Username: admin

Password: 12345

7. Full control of the camera can be accessed through the Web Interface. You can

conﬁgure the IP address to connect to your MFD from the Settings menu.

1. Power cable - Connect the power cable provided to the [Power] port in the Junction

Box and to a DC power source on your vessel. It is recommended that you use

either a 12V or 24V DC power. The power cable consists of Black for (-) negative,

White for (+) wire. Please ensure that the correct polarity is inserted into the right

terminal (Fig. 6).

2. Camera harness - Connect the end of the camera harness to the ethernet port in

the Junction Box marked [Camera].

3. Controller cable - Connect the ethernet cable to the Junction Box [Controller/MFD]

port and the other end the Joystick Controller.

4. Console cable - Connect the ethernet cable to the Junction Box [Controller/MFD]

port on the right and the other end to the Console [Camera] port.

5. NMEA 0183 socket - For devices that require input from NMEA 0183 devices,

connect the NMEA 0183 data source to the [NMEA] socket in the Junction Box

using 24-20 AWG cables and the output from the NMEA device to the Rx pins in

the Junction Box.

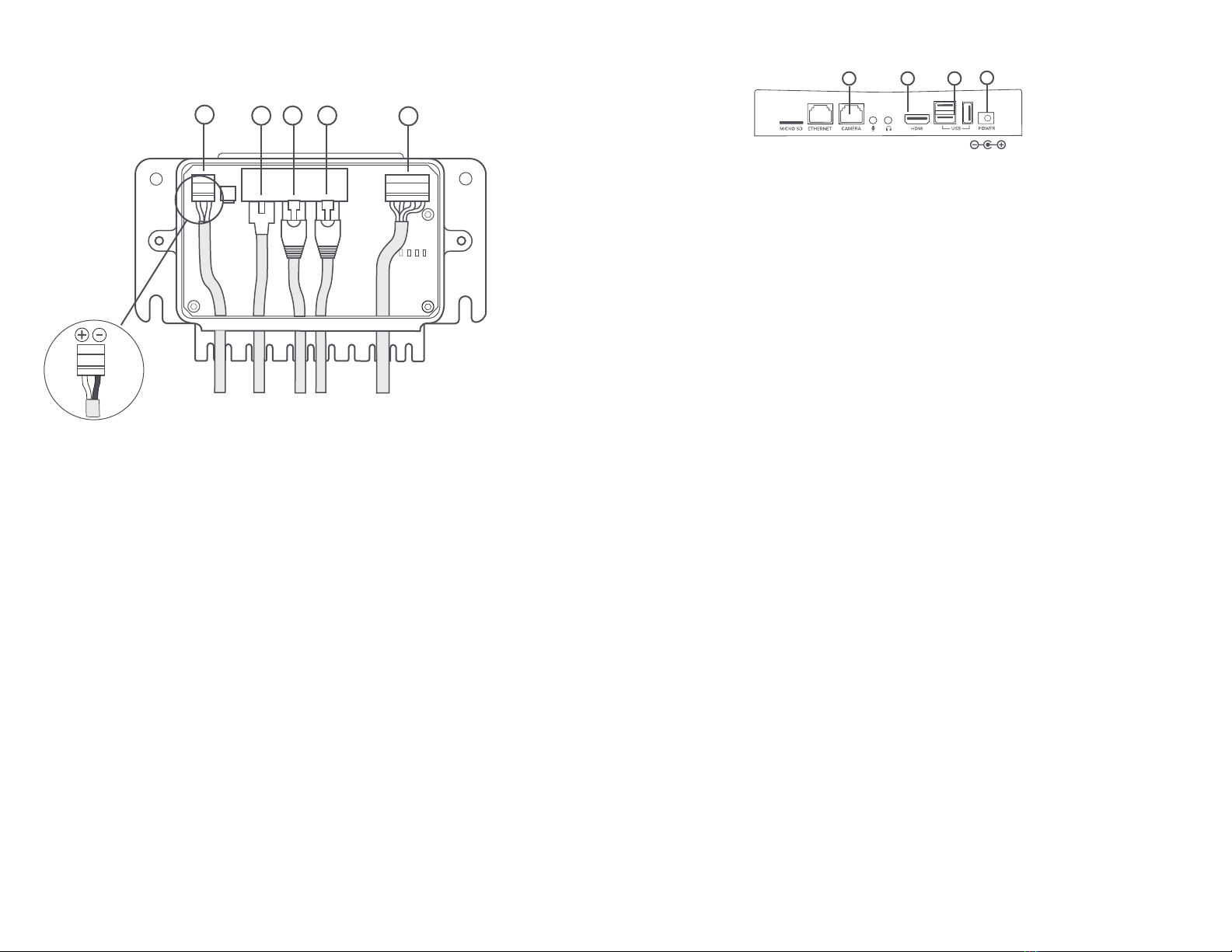

Connecting the Cables

Junction Box

The Junction Box is the primary means to provide power to the Camera and Joystick

Controller. It also serves as a hub for data transmission and interfacing point to other

connected network devices.

Fig. 6

Fig. 5

1. Power

2. Camera

3. Joystick Controller

4. Console

5. NMEA

12345Fig.7

6. Console cable - Connect the ethernet cable to the Console [Camera] port and to

the Junction Box [Controller/MFD] port on the right (see no.4).

7. HDMI cable - Connect the HDMI cable to the HDMI input port on the Console and to a

supported MFD / Touchscreen monitor.

8. USB cable - Connect the USB cable to the USB input port on the Console and to a

supported MFD / Touchscreen monitor.

9. Power cable - Connect the power cable provided to the [Power] port on the Console

and to a 12V DC power source on your vessel.

Console

The console provides high resolution HDMI video interface and multi-touch control

capabilities with compatible displays.

You can choose to display the video output of your Ulysses Mini to a supported MFD

via IP (ethernet) or via HDMI to a Touchscreen monitor/MFD. We recommend using

HDMI option (above) when using higher resolution cameras for better video

performance. However, if you choose to connect it through ethernet, instructions are

as follows:

1. Connecting to a MFD:

Connect the Ethernet cable from the [Controller/MFD] port in the Junction Box to a

compatible MFD. The camera will work with Garmin MFD with OneHelm. If you are

using a Garmin’s MFD, you should see a Ulysses Mini icon displayed on the

‘OneHelm’ page after powering up both the MFD and camera system. Launch the

Ulysses Mini icon to use the camera.

If you are using a Furuno or Navico’s MFD, you will need to conﬁgure the camera

system to communicate in the correct network environment by using a web browser

or an analog monitor/Joystick Controller. Refer to setup section on the next page.

2. Connecting to a PC:

Connect an Ethernet cable from your PC to Ethernet port on the Junction Box

marked [Controller/MFD]. On your web browser, enter the default IP address as

indicated at the base of the turret and login with the following:

Username: admin

Password: 12345

Full control of the camera can now be accessed through the Web browser.

Connecting to your Display via Ethernet (Options)

6. Camera

7. HDMI

8. USB

9. Power

679
