Omega Calibre 3603 Guide de démarrage rapide

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

3603A

12’’’

Ø 27 mm

Version A

1 2 3

Height on movement 7.95 mm

Power reserve

Number of jewels

Frequency

52 h

4 Hz (28’800 A/h)

CALIBRE

3603

Automatic movement, exclusive Omega chronograph,, date, COSC-certified. Chronograph system with

column-wheel. 30-min. minute counter and 12-h hour counter. Chronograph, hour and minute display in centre.

Small second hand at 9 o’clock. GMT hand in the centre. Co-Axial escapement. Omega balance system

without index.

Technical Guide TG-19-C-063-E A

Made by : rendav Date : 02.04.2009 3

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

Contents

Exploded views for Calibre 3603 6-14

Dial side 6

Movement side 7

Movement side 8

Movement side 9

Dial side 10

Module side 11

Dial side 12

Movement side 13

Dial side 14

Spare parts list & illustrations for Calibre 3603 15-19

Spare parts & illustrations 15

Speciﬁcinformation for Calibre 3603 20-29

Assembling of date indication 20

Chronograph wheel function / Description of chronograph system 21

Escapement and Balance bridge installation 22

Chronograph setting 23

Hand setting for calibre 3603 / Checks, to carry out after hand-setting 24

Principle of GMT function 25-27

Runners for hand setting and hand setting force / Epilame coating 28

Instantaneous rate 29

Spare parts & illustrations 16

Spare parts & illustrations 17

Spare parts & illustrations 18

Spare parts & illustrations 19

General information for Calibre 3603 3-5

Balance bridge / Key points / Date correction 3

Tightening and untightening torques according to screw thread size / Lubricants 3

Mandatory tools / Lubricants 3

Librication of crow wheel and the three driving wheels for rachet wheel 4-5

Calibre 3603 1

Page

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

General information for calibre 3603

Exchange with serial no

Version A Balance bridge,

(réf. 7223603A1005818)

For exchanges always sent to Omega.

Engravings at Omega within 4 weeks.

Balance bridge

The bridges with serial numbers are not available

(see CS-Info Calibre No 33). For exchange, see table:

Key points

The three intermediate driving wheels for ratchet wheel (32.083)

must be correctly lubricated with Moebius SYNT-HP-1300 Sans

Colorant. Insufﬁcient lubrication could lead to the formation of burrs

or chips and hinder the correct winding of the barrel. Cleaning

would not be sufﬁcient to remove all this.

(see page 4 and 5).

Due to the movement construction, there are various screw lengths.

To avoid problems at assembly, group identical screws together for

cleaning.

Co-axial Escapement lubrication

See Working Instruction No 40.

Date correction

Date correction should not be performed between 10 pm and 2 am.

Tightening and untightening torques according to screw

thread size

Screw Ø Tightening torque target cNm Untightening torque mini cNm

Øthreads ≤S 0.50 mm 1.0 0.7

Øthreads S 0.6 mm 1.4 0.8

Øthreads S 0.7 mm 1.8 0.9

Øthreads S 0.8 mm 2.2 1.1

Øthreads S 0.9 mm 2.6 1.3

Øthreads S 1.0 mm 3.0 1.6

Øthreads S 1.2 mm 3.5 2.0

Øthreads S 1.4 and > 4.0 2.5

Mandatory tools :

To ﬁt the hands, the movement must be placed in a suitable,

well-adjusted movement holder.

Hand ﬁtting Reference

Movement holder for hand fitting 507 0001

Hand fitting tool kit 507 0011

Movement Reference

Mainspring winder 502 150 0009

Timing key 502 200 0501

Movement holder 506 0001

Tool for checking the escapement

functions 506 0004

Lubricants Reference

Moebius SYNT-A-LUBE 9010 (2ml) 504 200 0001

Moebius SYNT HP-1300 SC 504 5013

Moebius 9504 504 5014

Moebius SYNT HP-500 504 5012

Kluber P125 504 100 0071

small quantity

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

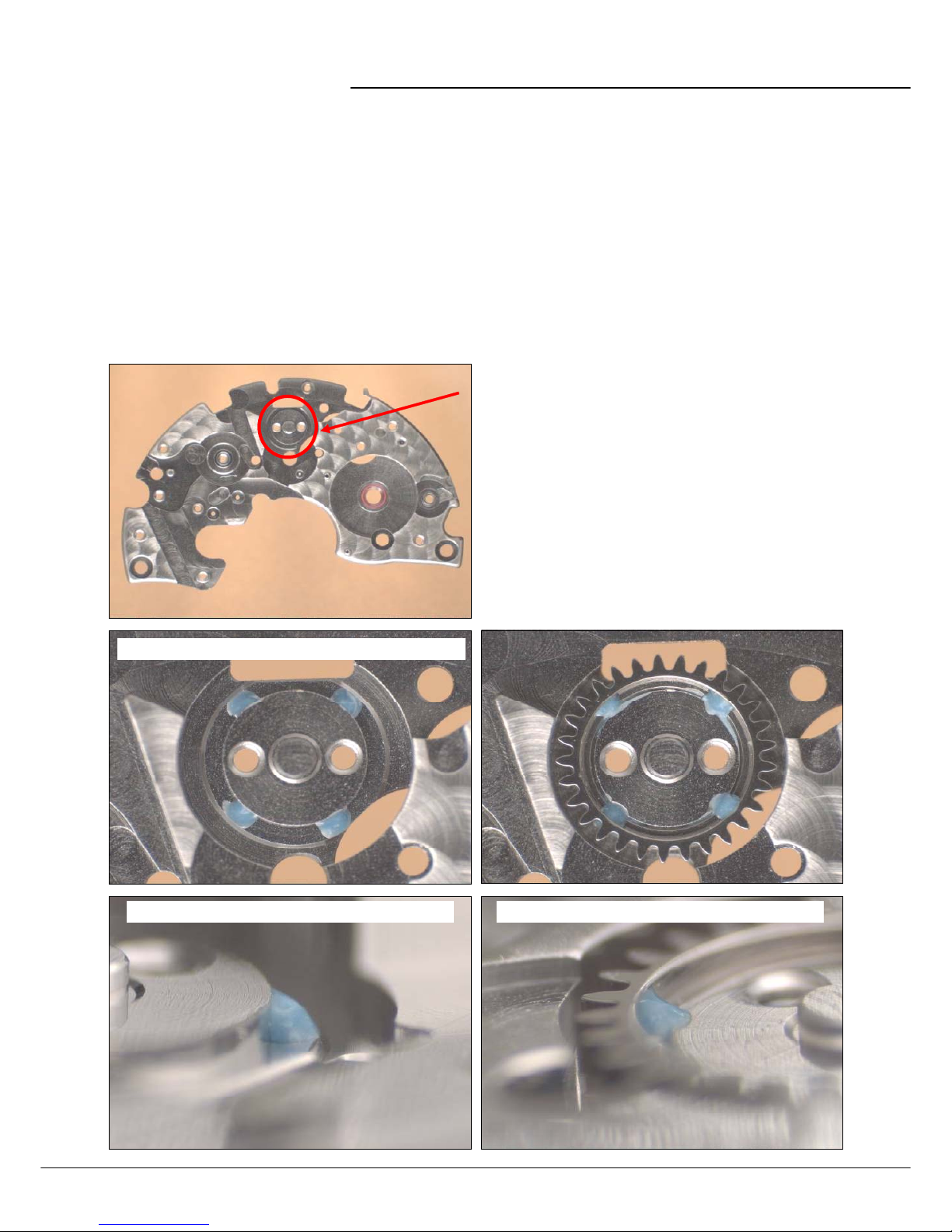

General information for calibre 3603

Customer Service lubrication of stud for crown wheel

(31.023) and the 3 intermediate driving wheels for

ratchet wheel (32.083):

With the aim of constantly improving the performances

and reliability of Omega products, the

lubrication in Customer Service has been updated.

Amount of lubricant to be applied:

- On the crown wheel stud and the stud for the

three ratchets intermediate driving wheels during a ser-

vice.

Lubrication of stud for crown wheel (Moebius 9504)

Stud for crown wheel

Lubrication point no.1: crown wheel support (4 points)

Side view of lubrication no.1 Side view of lubrication no.2

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

General information for calibre 3603

Lubrication of the 3 intermediate driving wheels for ratch-

tet wheel (HP 1300 Sans Colorant)

State before lubrication

Insufﬁcient lubrication Sufﬁcient lubrication = there is a ring around

the stud with lubricant, easily visible

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

Exploded views - Dial side for calibre 3603

3 points

Parts listed in order of assembly

1 = 10027

2 = 31121

3 = 31120

4 = 51010

5 = 51083

6 = 51050

7 = 61100

8 = 51052

9 = 33082

10 = 51090

11 = 7035 (2x)

12 = 6407 (1x)

Moebius SYNT HP-1300 Sans Colorant

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

Exploded views - Movement side for calibre 3603

See WI No 40

See page 4

See page 5

Parts listed in order of assembly

1 = 30012

2 = 30014

3 = 30025

4 = 10048

5 = 7031 (2x)

6 = 20015

7 = 35032

8 = 35030**

9 = 35033

10 = 56070

11 = 65040

12 = 6204 (1x)

13 = 10041

14 = 7031 (2x)

15 = 6011 (1x)

16 = 70200 (2x)

Moebius SYNT HP-1300 Sans Colorant

Moebius SYNT-A-LUBE 9010

Moebius 9504

Kluber P125

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

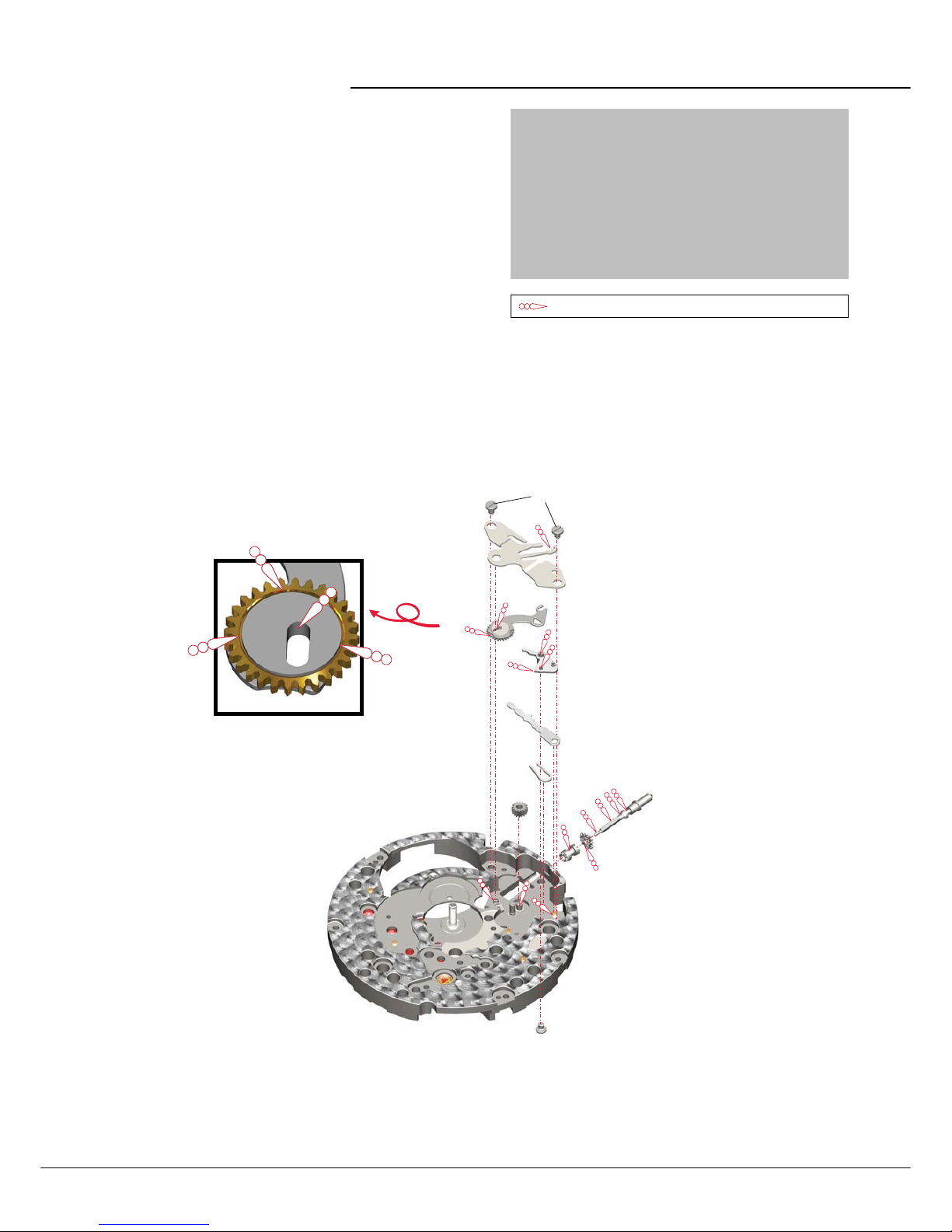

Exploded views - Movement side for calibre 3603Exploded views - Movement side for calibre 3603

310

Detail position 17

4 points

Attention:

See page 23

3 points

on column

4 points

on teeth

Do not clean. If the part is

very dirty or rusted, exchange

for, an original part which is

delivered prelubricated.

Parts listed in order of assembly

1 = 31023

2 = 81136

3 = 6204 (2x)

4 = 55180

5 = 10615

6 = 6034 (1x)

7 = 61080

8 = 51120

9 = 7008 (1x)

10 = 55040

11 = 6022 (1x)

12 = 55130

13 = 6004 (2x)

14 = 31022

15 = 6019 (1x)

16 = 35010**

17 = 30039

18 = 55100

19 = 6004 (1x)

20 = 55090

21 = 6004 (1x)

Moebius SYNT-A-LUBE 9010

Moebius SYNT HP-1300 Sans Colorant

Moebius 9504

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

Exploded views - Movement side for calibre 3603

Parts listed in order of assembly

1 = 55240

2 = 55048

3 = 6004 (1x)

4 = 30027**

5 = 35012**

6 = 35031

7 = 55248

8 = 15040

9 = 7031 (3x)

10 = 7033 (1x)

11 = 65047

12 = 6012 (2x)

13 = 55143

14 = 6004 (1x)

15 = 30037

16 = 40015

17 = 10056

18 = 8204 (2x)

19 = 40059

20 = 10058

21 = 7031 (1x)

Detail position 8

Detail position 4

Attention:

see page 23

Moebius SYNT-A-LUBE 9010

Moebius 9504

Moebius SYNT HP-1300 Sans Colorant

/10

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

Exploded views - Dial side for calibre 3603

Parts listed in order of assembly

1 = 31102

2 = 36031

3 = 31080**

4 = 31042

5 = 10062

6 = 6205 (2x)

Detail position 3

Moebius 9504

Moebius SYNT HP-1300 Sans Colorant
