1. Introduction

The Omega CL310 Multifunction Process Calibrator is a handheld,

battery-operated instrument that measures and sources electrical

and physical parameters. The calibrator has the following features

and functions:

• A dual display. The upper display is used for the measurement of

volts, current, and pressure. The lower display can be used to

measure volts, current, pressure, resistance temperature detectors

(RTDs), thermocouples, frequency, and resistance, and to source

pulse trains

• A thermocouple (TC) input/output terminal with automatic

reference-junction temperature compensation.

• Five setpoints in each range for increasing/decreasing output

• An interactive menu

• Complete RS232 interface for remote control

• Isolated read back for transmitter calibration.

• Documenting capability for up to 50 tags.

1.1 Customer Service

Omega Engineering

One Omega Drive

Box 4047

Stamford, CT 06907-0047

Tel: (203) 359-1660

Fax: (203) 359-7900

www.omega.com

email: [email protected]

1.2 Standard Equipment

Check to see if your calibrator is complete. It should include:

CL310 Calibrator, Instruction Manual, Test Leads, Rubber Boot, RS-

232 cable, USB adapter cable, NIST Certificate, software CD.

1.3 Safety information

Symbols Used

The following table lists the International Electrical Symbols. Some or

all of these symbols may be used on the instrument or in this

manual.

Symbol Description

AC (Alternating Current)

AC-DC

Battery

CE Complies with European Union Directives

Double Insulated

Electric Shock

Fuse

PE Ground

Hot Surface (Burn Hazard)

Read the User’s Manual (Important Information)

Off

The following definitions apply to the terms “Warning” and “Caution”.

• “Warning” identifies conditions and actions that may pose hazards

to the user.

• “Caution” identifies conditions and actions that may damage the

instrument being used.

Use the calibrator only as specified in this manual, otherwise injury

and damage to the calibrator may occur.

Warning

To avoid possible electric shock or personal injury:

• Do not apply more than the rated voltage. See specifications for

supported ranges.

• Follow all equipment safety procedures.

• Never touch the probe to a voltage source when the test leads are

plugged into the current terminals.

• Do not use the calibrator if it is damaged. Before you use the

calibrator, inspect the case. Look for cracks or missing plastic. Pay

particular attention to the insulation surrounding the connectors.

• Select the proper function and range for your measurement.

• Make sure the battery cover is closed and latched before you

operate the calibrator.

• Remove test leads from the calibrator before you open the battery

door.

• Inspect the test leads for damaged insulation or exposed metal.

Check test leads continuity. Replace damaged test leads before

you use the calibrator.

• When using the probes, keep your fingers away from the probe

contacts. Keep your fingers behind the finger guards on the

probes.

• Connect the common test lead before you connect the live test

lead. When you disconnect test leads, disconnect the live test lead

first.

• Do not use the calibrator if it operates abnormally. Protection may

be impaired. When in doubt, have the calibrator serviced.

• Do not operate the calibrator around explosive gas, vapor, or dust.

• When using a pressure module, make sure the process pressure

line is shut off and depressurized before you connect it or

disconnect it from the pressure module.

• Disconnect test leads before changing to another measure or

source function.

• When servicing the calibrator, use only specified replacement

parts.

• To avoid false readings, which could lead to possible electric shock

or personal injury, replace the battery as soon as the battery

indicator appears.

• To avoid a violent release of pressure in a pressurized system, shut

off the valve and slowly bleed off the pressure before you attach

the pressure module to the pressure line.

Caution

To avoid possible damage to calibrator or to equipment under test:

• Use the proper jacks, function, and range for your measurement or

sourcing application.

• To avoid mechanically damaging the pressure module, never apply

more than 10 ft-lb. of torque between the pressure module fittings, or

between the fittings an the body of the module.

• To avoid damaging the pressure module from overpressure, never

apply pressure above the rated maximum printed on the module.

• To avoid damaging the pressure module from corrosion, use it only

with specified materials. Refer to the pressure module

documentation for material compatibility.

2. Calibrator Interface

Figure 1 shows the location of the input and output connections on

the calibrator, while Table 1 describes their use.

Figure 1. Input/Output Terminals

Table 1: Input and Output Terminals

No. Name Description

1, 2 Measure Isolated V, Input terminals for measuring current, voltage,

mA terminals and supplying loop power.

3 TC input/output Terminal for measuring, or simulating thermo-

couples. Accepts miniature polarized thermo-

couple plugs with flat in-line blades spaced 7.9

mm (0.312 in) center to center.

4,5 Source/Measure Terminals for sourcing and measuring voltage,

V,RTD 2W, Hz, frequency, pulse train, and RTDs

6,7 Source/Measure Terminals for sourcing and measuring current,

mA terminals, 3W 4W and performing

RTD measurements with 3-wire or 4-wire

setups.

8 Pressure module Connects calibrator to a pressure module for

connector pressure measurements.

9 Serial port Connects calibrator to a PC for uploading data

or remote control or to a serial printer for print-

ing calibration certificates. 5

Figure 2 shows the location of the keys on the calibrator. Table 2 lists

the functions of each key.

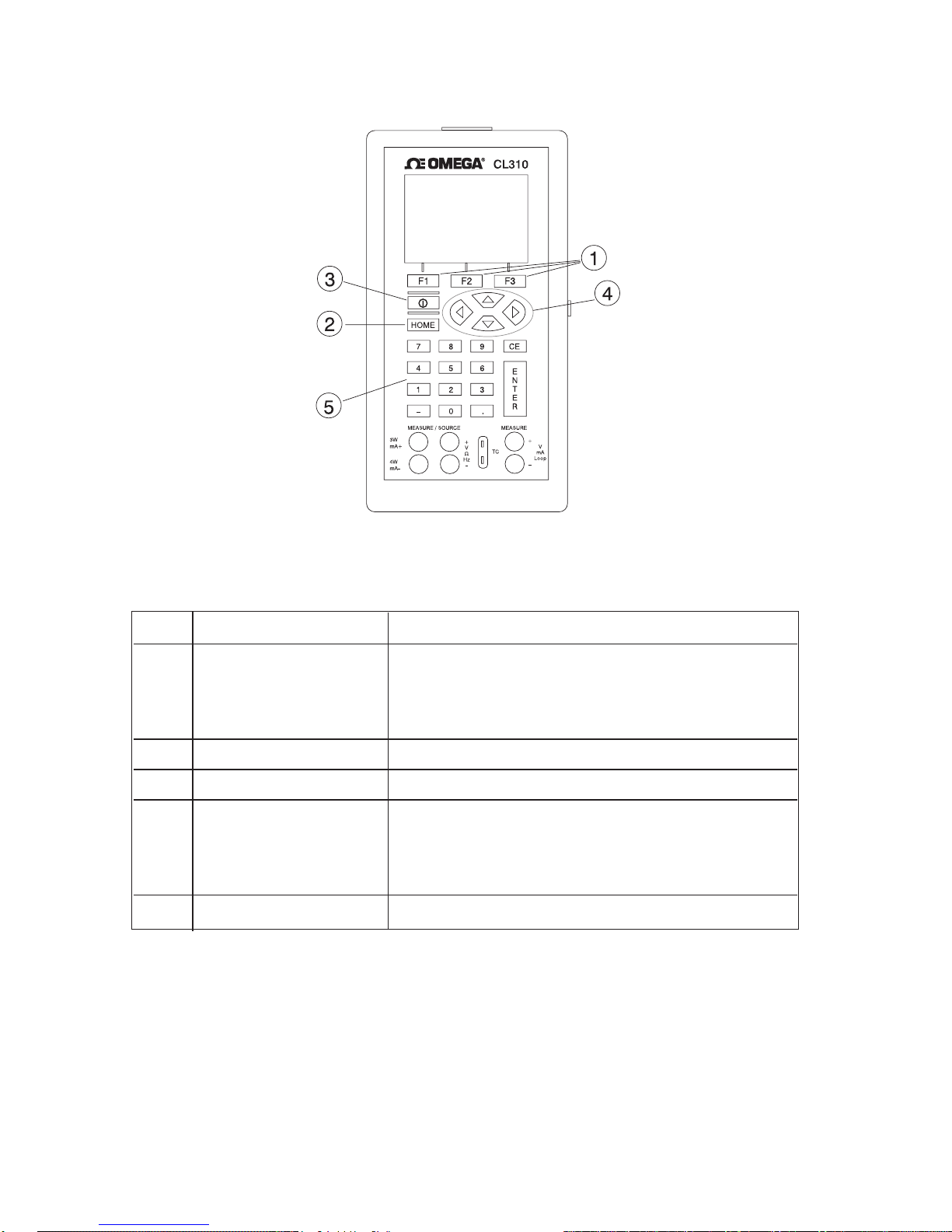

Figure 2. Keypad

Table 2. Key Functions

No. Name Function

1 Function Keys Used to operate the menu bar at the bottom of

F1, F2, F3 the calibrator display. F1 is used for selecting

options in the left box, F2 for the center box,

and F3 for the right box.

2 Home Returns to home menu on the menu bar.

3 Power Turns calibrator on and off.

4 Cursor Control Key Left and right arrow keys are used to select

which decade to be changed in output value.

Up and down arrow keys are used to increase,

decrease, or ramp output value.

5 Numeric Keypad Allows user to enter Numeric values.
