Product Introduction

The microcomputer ceramic cooker hob can meet different kinds of

cuisine demands because of resistance wire heating, micro-

computerized control and multi-power selection, really the optimal choice

for modern families.

The ceramic cooker hob centers on customers and adopts personalized

design. The hob has safe and reliable performances, making your life

comfortable and enabling to fully enjoy the pleasure from life.

This hob was specially designed for domestic use.

In its constant search to improve its products,we reserves the right to modify

any technical,programme or aesthetic aspects of the appliance at any time.

Safety

High temperature protection

The temperature sensor mounted on the heating element monitor the temp-

erature inside the cooker from time to time,When an excessive temperature

is detected,the heating element will be stop power output.

Residual heat warning

When the hob has been operating for some time,there will be some residual

heat.The leteer “H”appears to warn you to keep away from it.

Auto shutdown

Another safety feature of the hob is auto shutdown.This occurs whenever

you forget to switch off a cooking zone.The default shutdown times are shown

in the table below:

Power level

Default working

timer(hour)

8 8 8 4 4 4 2 2 2

2 3 4 5 6 7 8 9

Selection of installation equipment

Drill holes on the table surface according to the sizes shown in the

drawing. For the purpose of installation and use, a minimum of 5 cm

space shall be preserved around the hole.

Be sure the thickness of the table surface is at least 30mm. Please

select heat-resistant table material to avoid larger deformation caused by

the heat radiation from the hotplate.

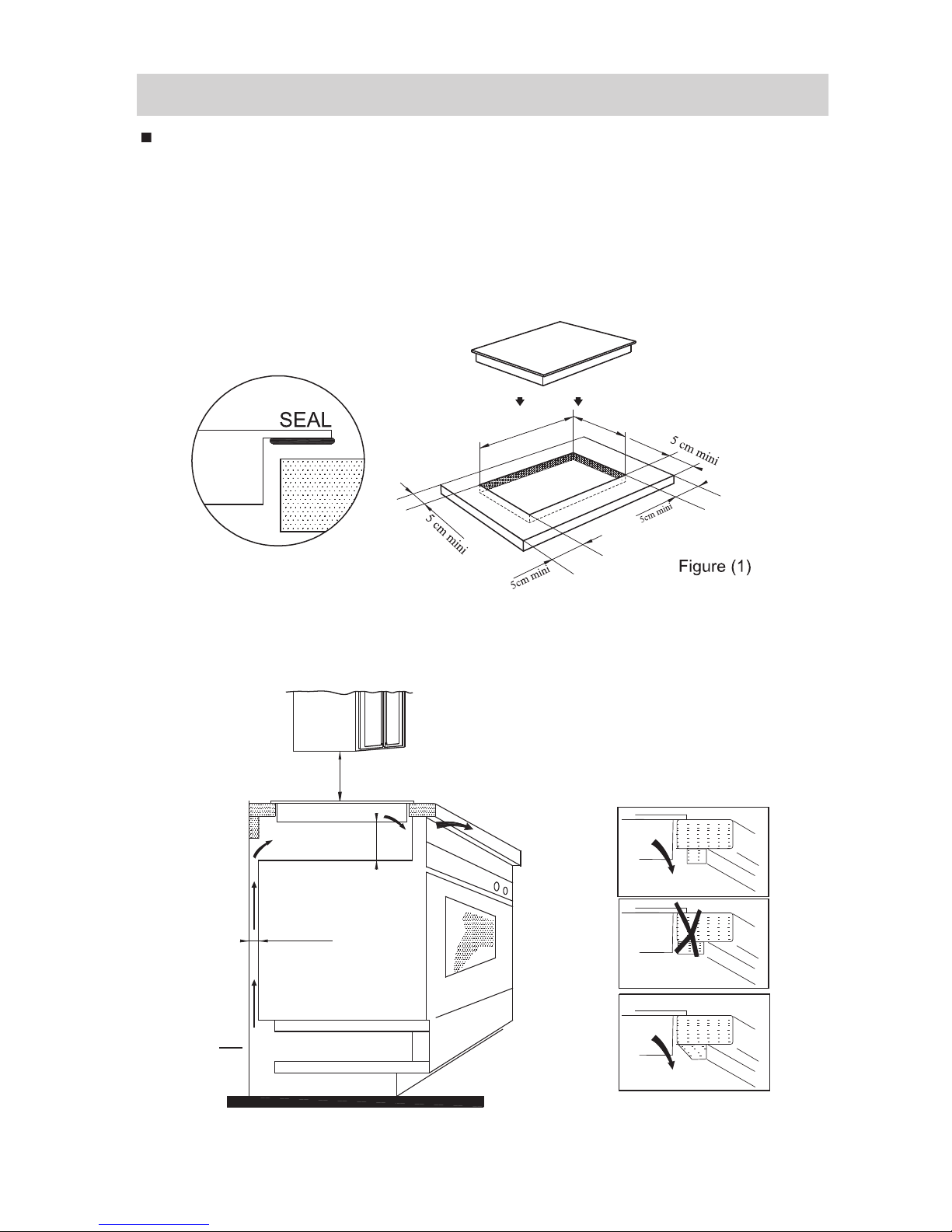

As shown in Figure (1)

Air intake

Figure (2)

mini 5 cm

mini 650mm

mini 2 cm

Under any circumstances, make sure the ceramic cooker hob is well

ventilated and the air inlet and outlet are not blocked.Ensure the ceramic

cooker hob is in good work state. As shown in Figure (2)

Air exit

mini 5 mm

56 cm 49 cm

+0.4

+0.1

+0.4

+0.1

Installation

Note: The exhaust fan should be at a minimum height of 650 mm from the

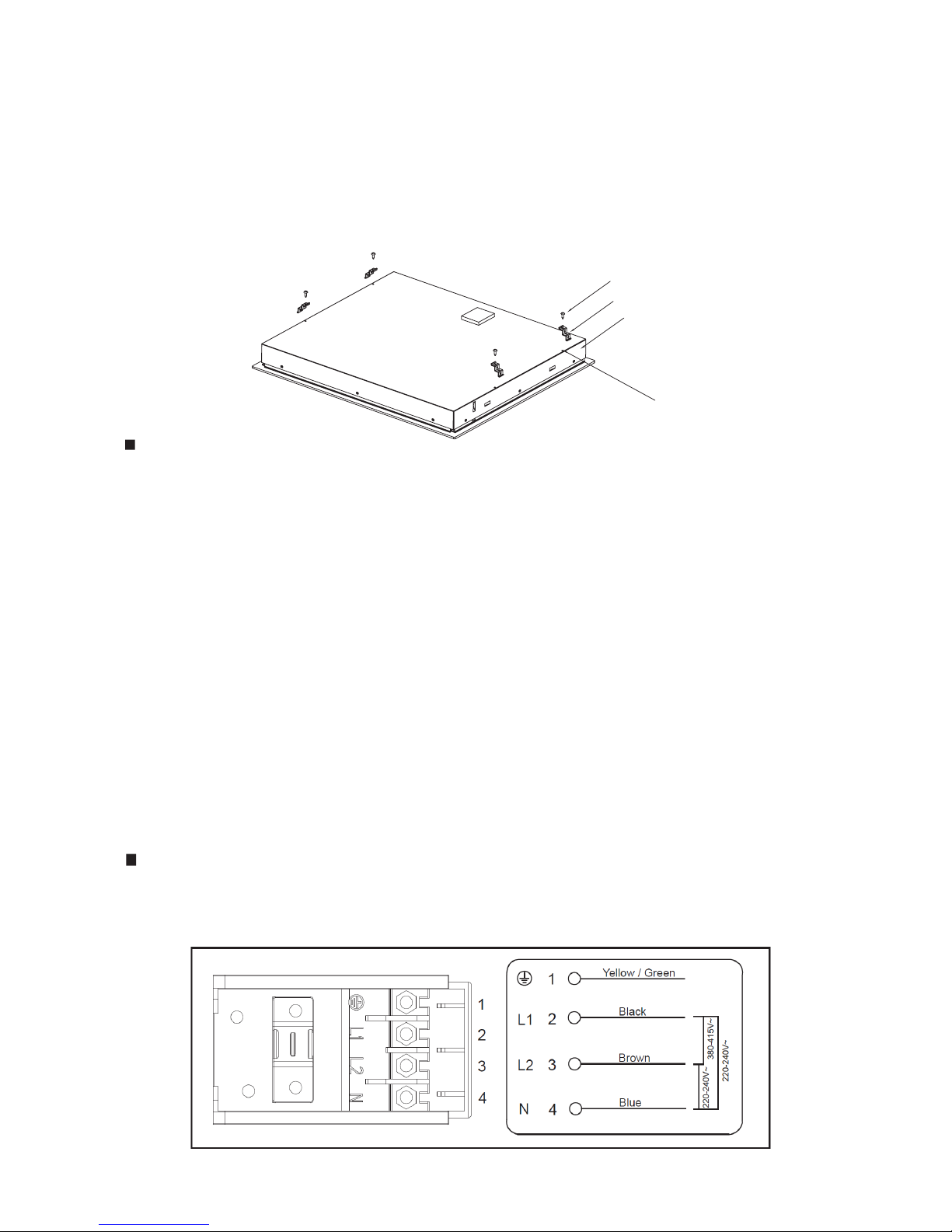

Fix the hob on the table by screw four brackets on the bottom of hob (see picture)

after installation. Adjust the bracket position to suit for different table top thickness.

wercs

tekcarb

esab

eloh wercs

Cautions

The socket should be connected in compliance with the relevant standard,or

a single-pole circuit breaker.the method of connection is shown in Figure (3)

1. The ceramic cooker hob must be installed by qualified personnel or

technicians. We have professionals at your service. Please never

conduct the operation by yourself.

2. The ceramic cooker hob shall not be mounted to cooling equipment,

dishwashers and rotary dryers.

3. The ceramic cooker hob shall be installed such that better heat radiation

can be ensured to enhance its reliability.

4. The wall and induced heating zone above the table surface shall

withstand heat.

5. To avoid any damage, the sandwich layer and adhesive must be

resistant to heat.

6. A steam cleaner is not to be used.

7. WARNING – The surface temperature of this appliance exceeds 95°C.

To avoid a hazard, under bench access must be restricted. A board must

be installed underneath the cooktop.

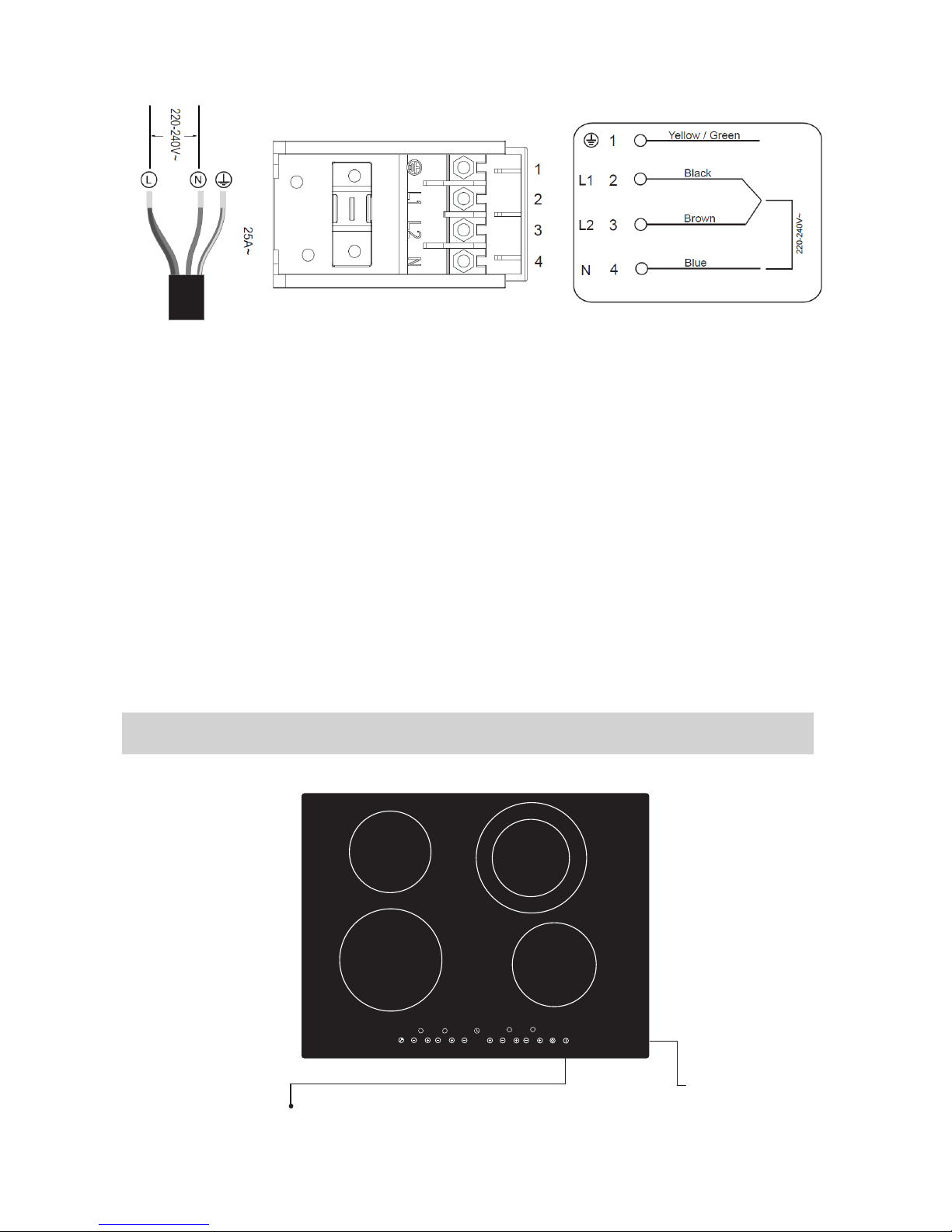

Connection to power supply

cooktop.

Figure (3)

1. If the cable is damaged or needs replacing, this should be done by an

after-sales technician using the proper tools, so as to avoid any accidents.

2. If the appliance is being connected directly to the mains supply, an omnipolar

circuit breaker must be installed with a minimum gap of 3mm between the

contacts.

3. The installer must ensure that the correct electrical connection has been made

and that it complies with safety regulations.

4. The cable must not be bent or compressed.

5. The cable must be checked regularly and only replaced by a properly qualified

person.

The ceramic cooker hob appearance

ON/OFF

Glass plate

Control panel

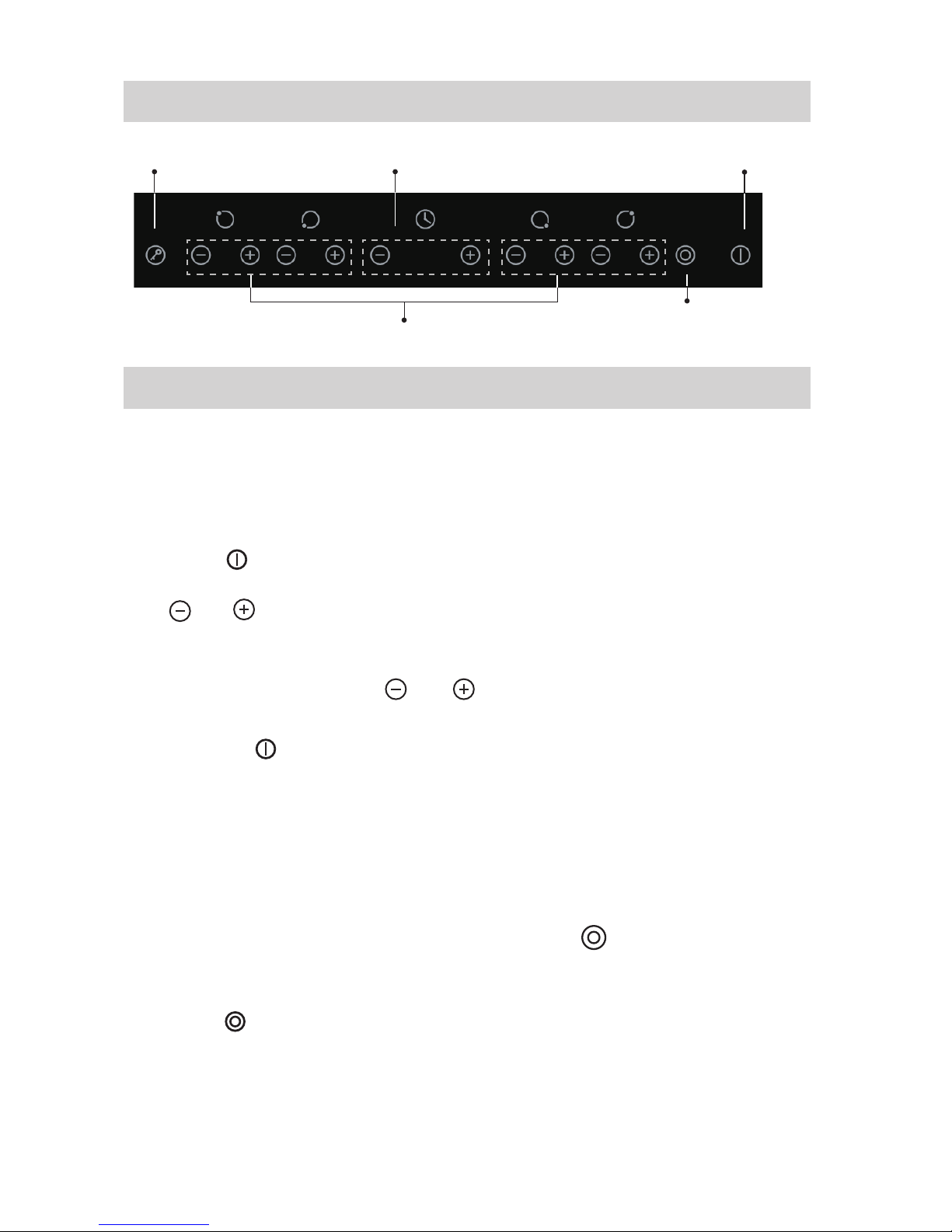

Schematic diagram of the control panel

Instructions for Use

Note:

1. When the “ ” key is pressed, the hob returns to standby mode if no other

Preparation before using

When the power is switched on, the buzzer will sound once and all the

indicators will come on for one second and go out. The hob is now in standby

mode. Place the pan in the centre of the cooking zone.

Press the “ ” key to turn on the hob,then the power indicators show “-” and

the timer indicators shows “--”,the hob is now ready for heating. Then press

the “ ”or “ ” key for the corresponding cooking zone where there is a pan on

it, the relevant hotplate will start heating. Its corresponding cooking zone

indicator flashes“5” five seconds,when the other indicators show “-”. Select the

power level by pressing the “ ” or “ ” key for the relevant hotplate.

operation is carried out within one minute.

2. Every cooking zone is independent of each other.

Double zone function

The hob is fitted with double zone

Activate the double zone

If you want to use larger heating zone, press the “ ” when the hob is

in working mode.

Deactivate the double zone

Press the “ ” when the hob is working with double zone.

Note:

1. This function is available only in the right rear heating zone.

2. You can select the function from level 1 to level 9.

Lock Timer regulating key On/Off

Double zone

Power regulating key

3. When the heating zone is in double loop working mode,the double loop

indicator shows ”P”.

4. You can select the size of the heating zone according to the size of the pot.

1 2

1200W 1800W 1000W 2200W

Heating zone

Power

Inner double

1200W

Timer function

Cooking timer

First select the cooking zone by press the “-” or “+” of the relevant heating zone;

the cooking zone display flashes. Then adjust the timer by pressing the “-” or “+”

of the timer. The timer is confirmed after the timer indicator flashes for 5

seconds. A red dot is displayed at the corresponding cooking zone indicator,

indicating a cooking timer has been set for the cooking zone. When a cooking

timer expires, the corresponding cooking zone will switch off automatically.

Note:Cooking timer only works for one cooking zone at the same time.

Minute Reminder

Timer can be used as a minute reminder.

Press the “+”or “-” of the timer and the timer indicator flashes “00”. Adjust the

timer by pressing the “+”or “-” of the timer. The timer is set when the timer

indicator stops flashing 5 seconds after the last action, and the minute reminder

starts. When the timer has finished, the buzzer will beep for 30 seconds and the

timer indicator shows “--”. The cooking zones are not affected by the minute

reminder.

Timer cancellation

Press the “+” and “-” of the timer simultaneously. The timer is canceled and the

timer indicator shows “--”.

Lock Function

To ensure the safety of children, the hob is fitted with a lock device

Activating the lock function

Press the “ ”,the hob then goes into lock mode, the timer shows “ ” and

the rest of the keys are disabled except the ON/OFF keys .

Deactivating the lock function

Hold down the “ ” for several seconds and the hob will return to normal

working.

The power of each cooking zone is as follows:

Never wash the induction

cooker with water directly to

avoid danger.

Keep electrical appliance out

of reach from children or

inform person. Do not let them

use the appliances without

supervision.

Safety Reminding and Maintenance

After being used for a long

time, the corresponding

heating zone of the ceramic

cooker hob is till hot. Never

touch the ceramic surface to

avoid burning.

If the supply cord is damaged

, it must be replaced by the

manufacturer, its service agent

or similarly qualified persons

in order to avoid a hazard.

Never have the ceramic

cooker hob to work without

food inside, otherwise its

operational performance may

be affected and danger may

happen.

A dedicated power protection

air swith protection air switch

must be incorporated in the

fixed wiring in accordance

with the wiring rules.

Never use the ceramic cooker

hob in high temperature

environments such as near a

gas stove or kerosene stove.

For sealed foods such as

canned goods, please do not

heat them before opening their

covers so as to avoid any

dangers of explosion due to

heating expansion.

If the surface is cracked, swith

off the appliance to avoid the

possibility of electric shock.

Do not place rough or uneven

appliances, which may

damage the ceramic surface.

Do not put any detergents or

flammable materials in the

equipment installed under the

ceramic cooker hob.

Metallic objects such as

knives, forks,spoons and lids

should not be placed on the

hotplate since they can get

hot.

DISPOSAL: Do not dispose this

product as unsorted municipal

waste. Collection of such waste

separately for special treatment

is necessary.

Clean the ceramic cooker hob

on a regular basis to prevent

foreign matters from entering

the fan thus influencing the

normal operation.

Indoor use only.

Thisapplianceisnotintendedforusebypersons(including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction,

concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

appliance.

Thisapplianceisintendedtobeusedinhouseholdandsimilar applications

such as: staff kitchen areas in shops, offices and other working

environments; farm houses; by clients in hotels, motels and other

residential type environments; bed and breakfast type environments.

The electrical connection must be accessible after installation. The appliance

must be electrically isolated before any maintenance can be performed.

The appliance is not intended to be operated by means of an external timer or

separate remote control system.

Cleaning may only be commenced on the appliance once it has cooled down

and is turned off. Do not use a steam jet or any other high pressure cleaning

equipment to clean the appliance.

WARNING - The cooktop will become hot during and directly after use. Do not

touch the surface during this time, as it may be hot and can cause burns. To

avoid burns, children should be kept away.

Where this appliance is installed in a caravan, it shall NOT be used as a space

heater.

Autres manuels pour OCC70TZ

Table des matières

Autres manuels Omega plaque de cuisson

Omega

Omega OC64BA Manuel utilisateur

Omega

Omega OG65XA Manuel utilisateur

Omega

Omega OCGG905COM Manuel utilisateur

Omega

Omega OC64XA Manuel utilisateur

Omega

Omega MC-HF645 Manuel utilisateur

Omega

Omega OG92XA Manuel utilisateur

Omega

Omega OG66XA Manuel utilisateur

Omega

Omega OC64KB Manuel utilisateur

Omega

Omega OCC64KZTGG Manuel utilisateur

Omega

Omega OC90TZ Fiche technique

Omega

Omega OCG62X Mode d’emploi

Omega

Omega OCGG64COM Manuel utilisateur

Omega

Omega OCC64TZTGG Manuel utilisateur

Omega

Omega OCC64TCOM Manuel utilisateur

Omega

Omega OG91XA Manuel utilisateur

Omega

Omega OCC64KZTGG Manuel utilisateur

Omega

Omega OG60XA Manuel utilisateur

Omega

Omega OCC90TZ Manuel utilisateur

Omega

Omega OC64TB Manuel utilisateur

Omega

Omega OC95TXA Manuel utilisateur

Omega

Omega OCC32KZ Manuel utilisateur

Omega

Omega OC74TXA Manuel utilisateur

Omega

Omega OCI64PP Manuel utilisateur

Omega

Omega OG70XA Manuel utilisateur

Manuels plaque de cuisson populaires d'autres marques

Bonnet

Bonnet OPTIMUM 700 Manuel du propriétaire

Jenn-Air

Jenn-Air JGCP430 Manuel utilisateur

Frigidaire

Frigidaire FES367FCC Guide de démarrage rapide

Ztove

Ztove EZ2 DUO Manuel utilisateur

Kleenmaid

Kleenmaid cooking GCTK9011 Guide d'installation

Casselin

Casselin CSASRE24 Manuel utilisateur

Jenn-Air

Jenn-Air JGC2536EB00 Manuel utilisateur

Waldorf

Waldorf RN8603E-B Mode d’emploi

Whirlpool

Whirlpool SMP658CNEIXL Manuel utilisateur

Wolf

Wolf CI243C/B Manuel utilisateur

Fulgor Milano

Fulgor Milano F5PGK305S1 Manuel utilisateur

GE JP389 Manuel utilisateur

Wells

Wells WV-2HFG Manuel utilisateur

IKEA

IKEA Lagan HGA4K Manuel utilisateur

Samsung

Samsung NA36N9755 Manuel utilisateur

Miele

Miele KM 404 Manuel utilisateur

Lacor

Lacor 69562 Fiche technique

Keating Of Chicago

Keating Of Chicago MG-2 Manuel utilisateur
