Preparation before use

The clip will automatically open as it extends from

the sheath. If you prefer to have the clip exit in a

closed position, apply slight pressure to the slider

of the handle as the yellow tube joint and handle

are connected.

1

MORE INSTRUCTIONS ON REVERSE

QuickClip Pro™Clip Fixing Device (HX-202LR, HX-202UR)

Quick Reference Guide

QuickClip Pro is designed for endoscopic clip placement within the gastrointestinal tract.

MR

MR Conditional

CAUTION: This guide is only a summary of the instructions for use for the HX-202LR and HX-202UR QuickClip Pro. Be sure to follow the Instruction

Manual included in the device packaging.

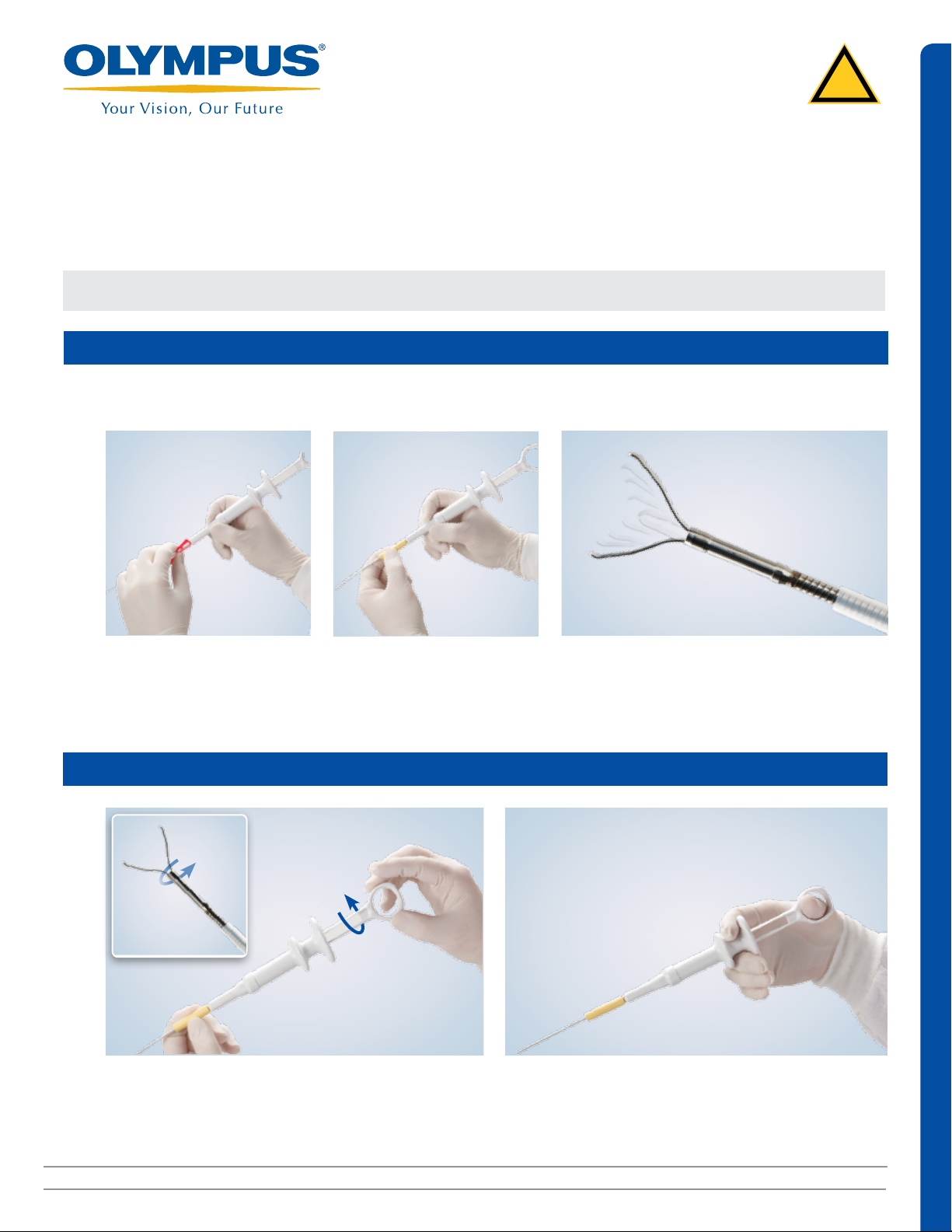

Align the clip with the target site

To align the clip with the target site, hold the yellow

cylinder with one hand and rotate the entire handle with

the other hand.

Remove the device from the package. Remove the black protective cap. Confirm the yellow tube joint, red stopper and

handle are connected without any gaps, and insert the device into the endoscopic channel.

Once the device extends from

the distal end of the endoscope,

remove the red stopper.

Connect the yellow tube joint

and the distal end of the handle.

When the clip is in the desired position, remove your hand

from the yellow stopper.

For more information, contact your Olympus

sales representative, or call 800-848-9024.

www.medical.olympusamerica.com

©2015 Olympus America Inc. All rights reserved.

Printed in the USA OAIET1015QRG17044

MR

MR Conditional

3500 Corporate Parkway, PO Box 610, Center Valley, PA 18034

To close: Pull the slider toward the thumb ring until you feel

resistance and see on the endoscopic view that the clip arms

are closed.

Deploying the clip at the target site

4

Operation and functionality

3

To reopen: Push the slider away from the thumb ring to reposition

the clip as needed before deployment.

Press the clip firmly against the target tissue and close the clip.

Deploy the clip by pulling the slider with both hands toward the

thumb ring. You will feel pressure and hear a noticeable click.

Push the slider completely away from the thumb ring to release

the clip. Visually confirm the clip has released prior to removing the

sheath from the scope.

QuickClip Pro™Clip Fixing Device (HX-202LR, HX-202UR)

Quick Reference Guide

QuickClip Pro is designed for endoscopic clip placement within the gastrointestinal tract.

CAUTION: This guide is only a summary of the instructions for use for the HX-202LR and HX-202UR QuickClip Pro. Be sure to follow the Instruction

Manual included in the device packaging.

Olympus and QuickClip Pro are trademarks or registered trademarks of Olympus Corporation, Olympus America Inc., and/or their afﬁliates.
