Olympus U-DPCAD Manuel utilisateur
INSTRUCTIONS
U-DPCAD
DOUBLE PORT ADAPTER
This instruction manual is for the Olympus Double Port Adapter Model U-DPCAD. To ensure the safety
and obtain optimum performance and to familiarize yourself full with the use of this equipment, we
recommend that you study this manual thoroughly before operating it. Retain this instruction manual in
an easily accessible place near the work desk for future reference.
A X 6 3 0 1
U-DPCAD
1
By installing this adapter on the trinocular observation tube of a BX, BX2, BX3 or IX2 series microscope using UIS optics (except for
the IX series microscopes) or on the side port of an IX2 series microscope, it will be possible to mount two video cameras on a
single microscope. The magnification of this adapter is 1X.
1Nomenclature
Transmitted light port
C-mount adapter
Detachable.
Light path selector lever
: Transmitted light port
: Reflected light port
Mount dovetail
Reflected light port
Mirror unit
replacement cover
Provided on both
sides.
Transmitted light port
Reflected light
port
C-mount adapter
Detachable.
2
2Getting Ready
1. When mounting a video camera with horizontal shooting direction, the video camera weight should be no more than 1 kg.
When mounting a video camera with vertical shooting direction, its weight should also be no more than 1 kg.
2. The image on the reflected light port is inverted (upside down) because of the mechanism structure.
3. When the adapter is attached to the side port of an IX2 series microscope, the video camera attached to the reflected light
port should not exceed 70 mm x 70 mm.
(Recommended video cameras: C2400-77A or C2400-79 by Hamamatsu Photonics, CS-220 by Sony, etc.)
4. When a fluorescence mirror unit is attached, ghosts or double images may be produced due to the dichroic mirror. As the
ghosts are particularly noticeable under high intensity in brightfield observation, do not use a fluorescence mirror unit in
brightfield observation.
With fluorescence and DIC observations, the fluorescence mirror unit will not pose practical problems.
5. This adapter does not comply with the IEC international standard for laser safety.
U-DPCAD
3
3Assembly
(Note) The image pickup fields of applicable C-mount video
cameras are as shown on the right.
Field number
22
Trinocular Observation Tube
C-mount video camera
Side port of IX2 series microscope
2/3-inch CCD video
camera
(FN 11)
1/2-inch CCD video
camera
(FN 8)
IX2 Side Port
Double port
adapter
U-DPCAD
C-mount video camera
Clamping
screw
UIS trinocular tube
C-mount
video
camera
C-mount video camera
Double port
adapter
U-DPCAD
Clamping
screw
4
Attaching the U-DPCAD (Previous Page)
1. Using the Allen screwdriver provided with the microscope frame, loosen
the clamping screw on the trinocular observation tube or side port.
2. Fit the mount dovetail of the U-DPCAD and lightly tighten the clamping
screw for temporary clamping.
Rotate the U-DPCAD to collect inclination, then tighten the clamping
screw firmly.
Attaching the C-Mount Adapters (Fig. 1)
1. Loosen the two clamping screws @ of the C-mount adapter for the
transmitted light port using the Allen screwdriver, then remove the
C-mount adapter ².
}The C-mount adapter for the transmitted light port has an identification
groove on the bottom side.
2. Screw the C-mount adapter firmly into the video camera to be used.
3. Place the C-mount adapter with video camera on the original position
and lightly tighten the clamping screws for temporary clamping. After
completing the parfocality adjustment, tighten the clamping screws firmly.
}Attach the C-mount adapter for the reflected light port in the same way
as above.
Fig. 1
²
@
U-DPCAD
5
(Example) U-MF2 Remove the barrier filter.
(When using a fluorescence mirror unit)

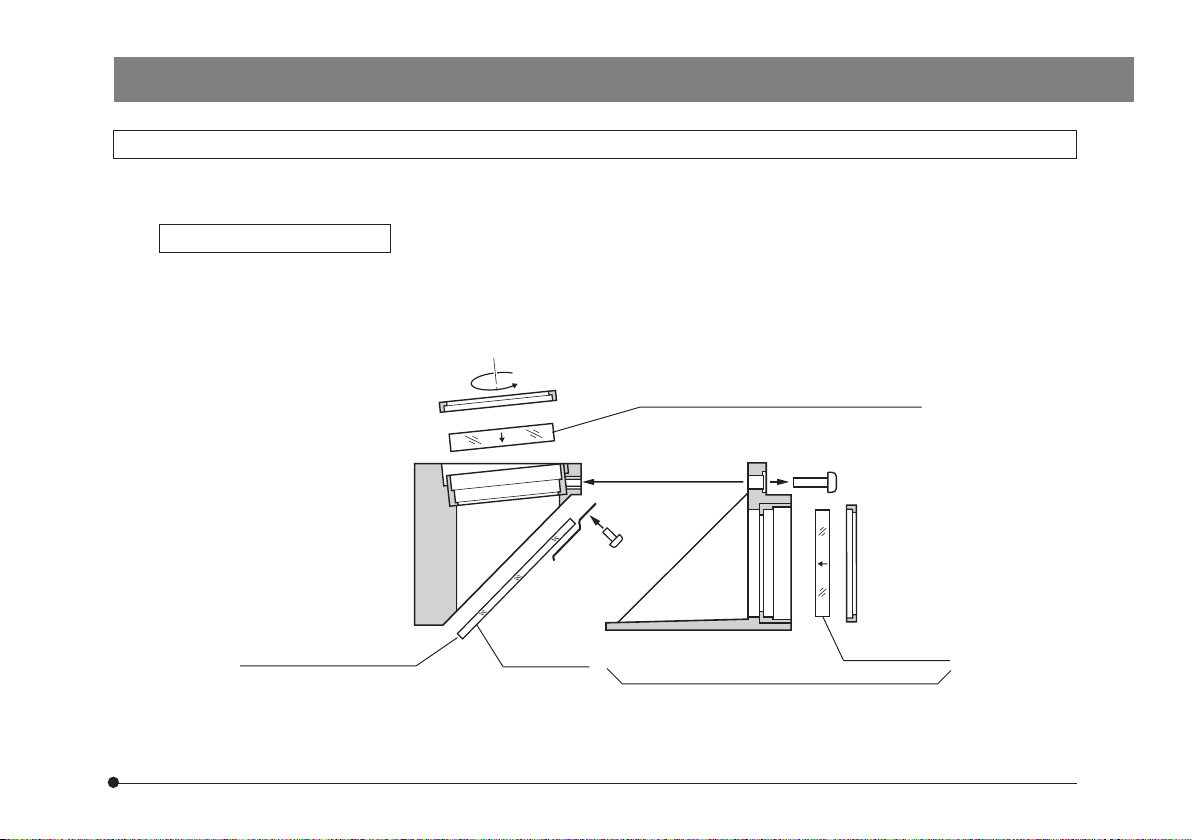

Dichroic mirror*
(Commercially available) Interference
film surface Excitation filter
Do not use these.
UIS Mirror Unit
}When the built-in full-reflection mirror unit is replaced with a mirror unit with dichroic mirror only, it is possible to lead the
light flux obtained by wavelength separation to the transmitted light and reflected light ports.
Applicable UIS Mirror Units
· UIS fluorescence mirror units for BX/BX2 series (Attachable by removing the excitation filter frame and barrier filter)
· UIS mirror unit frame U-MF/U-MF2 (Attach only a commercially available dichroic mirror and do not attach the excitation
filter frame.)
The fluorescence mirror unit for BX3 series can’t be attached.
*The size of the commercially purchased dichroic filter should be:
26 x 38 mm · Thickness 1 ±0.05 mm
When using a fluorescence mirror unit, use only a fixed filter.
–0.1
–0.3 –0.1
–0.3
6
Fig. 2
Fig. 3
Attaching the UIS Mirror Unit (Figs. 2 & 3)
1. Using the Allen screwdriver provided with the microscope frame, loosen
the clamping screw of the mirror unit replacement cover @ on the side
you want to attach the mirror unit.
2. Slide the light path selector lever ² to expose the mount dovetail ³.
3. Remove the light path selector lever ² by turning it in the counter-
clockwise direction, screw it into the threaded screw hole | on the
mount dovetail, and slide out the mount dovetail to expose the mirror
unit mount dovetail ƒ.
4. Slightly loosen the mirror unit clamping screw … using the Allen screw-
driver, fit the dovetail on the mirror unit † all the way into the mount
dovetail ƒ and tighten the clamping screw … firmly.
5. Return the mount dovetail ³ to the original position and remove the
light path selector lever ².
6. Attach the replacement cover @ and light path selector lever ² to the
original positions.
}Perform the same procedure when attaching a UIS mirror unit on the
other side of the U-DPCAD.
@ ²³|
ƒ
…
†
U-DPCAD
7
4Operation
Adjusting the Microscope
1. Turn on the microscope light source and adjust the parts of the microscope system to make it ready for observation.
2. Pull out the light path selector knob of the trinocular observation tube to select the photomicrography light path. If the side
port of an IX2 series microscope is in use, set the light path for the side port path.
Parfocality Adjustment
}This adjustment consists of allowing the visually observed image and monitored image to be focused simultaneously. It
is recommended to use an objective with as high magnification as possible for this adjustment.
1. Looking into the diopter-adjusted eyepieces, bring the specimen into focus as accurately as possible.
2. Using the Allen screwdriver, lightly loosen the clamping screw @ of the C-mount adapter for the transmitted light port.
Fig. 4
3. Turn on the video camera and monitor.
4. Slide the light path selector lever ² to select the light path for the trans-
mitted light port.
5. Now the observation image is displayed on the monitor. Lift the video
camera little by little, and clamp it temporarily by tightening only one of
the clamping screws @ at the position where the monitor image is
focused.
6. After performing fine adjustment and confirming that accurate focusing
is obtained, tighten both clamping screws @ firmly.
}Perform the same procedure when adjusting the parfocality on the re-
flected light port.
@
²
MEMO
