Contents

Important Notes and Safety Instructions 3

Features 4

Main Unit 5

Getting Started 6

Normal Standby 7-8

Demonstration Mode 9

Time and Date 9

Setting rime Mode 9

Setting Date Format 9

Setting Time and Date 9

Daylight Saving Time 10

Personal Messages H

Programming Personal Messages H

Setting Date ofMessage Display 12

Caller ID 12

Receiving Caller ID 13

Viewing Caller ID List 13-14

Timer ON/OFF 15

Troubleshooting 16

Consumer Information 17-18

Warranty 19

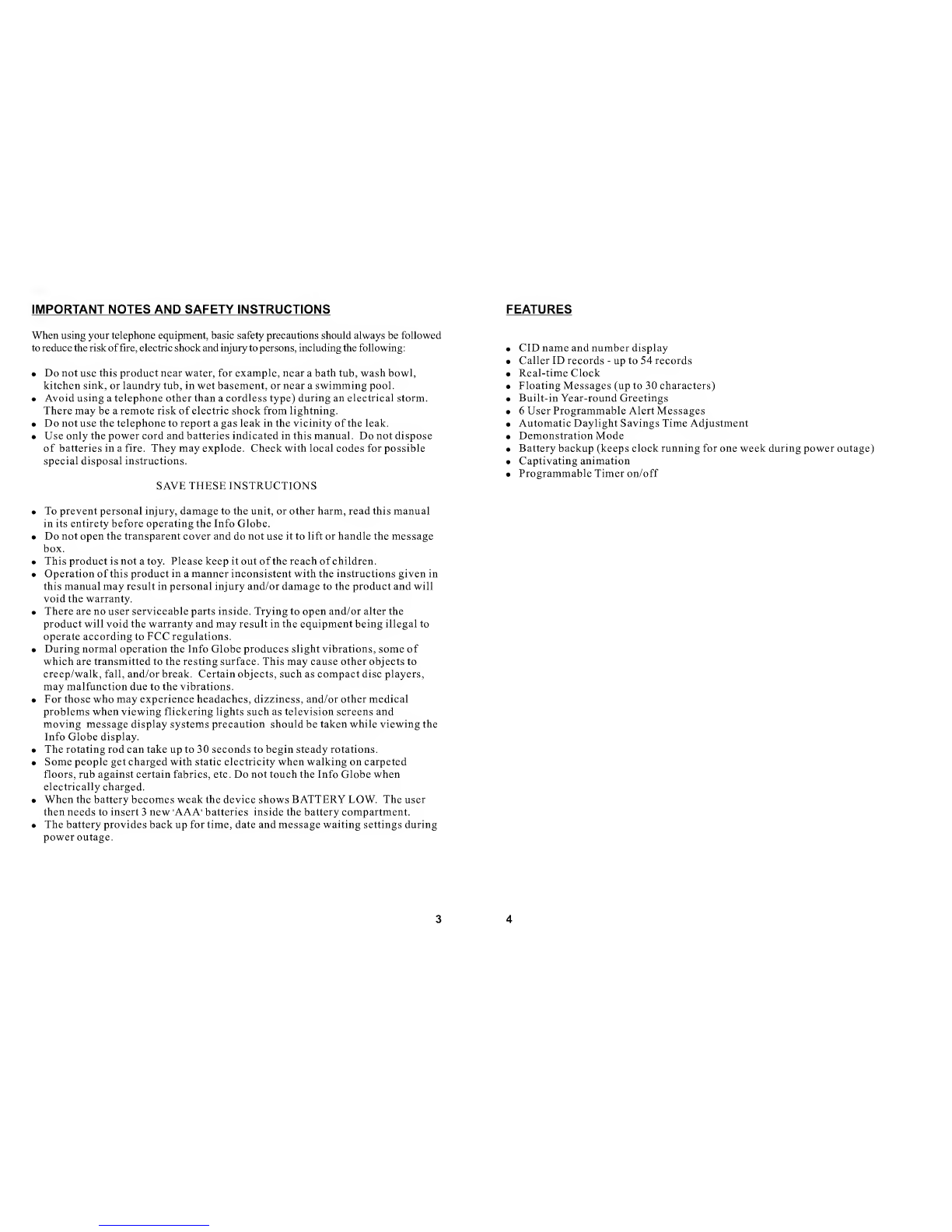

IMPORTANT NOTES AND SAFETY INSTRUCTIONS FEATURES

When using your telephone equipment, basic safety precautions should always be followed

to reduce the risk offire, electric shock and injury to persons, including the following:

•Do not use this product near water, for example, near abath tub, wash bowl,

kitchen sink, or laundry tub, in wet basement, or near aswimming pool.

•Avoid using atelephone other than acordless type) during an electrical storm.

There may be aremote risk of electric shock from lightning.

•Do not use the telephone to report agas leak in the vicinity of the leak.

•Use only the power cord and batteries indicated in this manual. Do not dispose

of batteries in afire. They may explode. Check with local codes for possible

special disposal instructions.

SAVE THESE INSTRUCTIONS

•To prevent personal injury, damage to the unit, or other harm, read this manual

in its entirety before operating the Info Globe.

•Do not open the transparent cover and do not use it to lift or handle the message

box.

•This product is not a toy. Please keep it out of the reach of children.

•Operation of this product in amanner inconsistent with the instructions given in

this manual may result in personal injury and/or damage to the product and will

void the warranty.

•There are no user serviceable parts inside. Trying to open and/or alter the

product will void the warranty and may result in the equipment being illegal to

operate according to FCC regulations.

•During normal operation the Info Globe produces slight vibrations, some of

which are transmitted to the resting surface. This may cause other objects to

creep/walk, fall, and/or break. Certain objects, such as compact disc players,

may malfunction due to the vibrations.

•For those who may experience headaches, dizziness, and/or other medical

problems when viewing flickering lights such as television screens and

moving message display systems precaution should be taken while viewing the

Info Globe display.

•The rotating rod can take up to 30 seconds to begin steady rotations.

•Some people get charged with static electricity when walking on carpeted

floors, rub against certain fabrics, etc. Do not touch the Info Globe when

electrically charged.

•When the battery becomes weak the device shows BATTERY LOW. The user

then needs to insert 3new 'AAA' batteries inside the battery compartment.

•The battery provides back up for time, date and message waiting settings during

power outage.

CID name and number display

Caller ID records -up to 54 records

Real-time Clock

Floating Messages (up to 30 characters)

Built-in Year-round Greetings

6User Programmable Alert Messages

Automatic Daylight Savings Time Adjustment

Demonstration Mode

Battery backup (keeps clock running for one week during power outage)

Captivating animation

Programmable Timer on/off

MAIN UNIT AND KEY CONTROLS

LEFT

•Power up /down

Press and hold key for at least 1seeond (real time is supported during power down).

•Press to go to left charaeter setting.

•Start/stop rotation in CID list view.

•Press to exit menu and back to standby.

RIGHT

•Press to start Demonstration Mode.

•Press to go to right character setting.

•Delete record(s) in CID list view.

•Press to exit menu and back to standby.

SELECT

•Press to enter into menu entries for menu selection. Use UP/DOWN keys to

locate desired setting.

•Press to confirm menu entry.

•Press again after confirmation to go back to main menu.

UP/DOWN

•Press to select previous /next page or character in setting.

GETTING STARTED

THE USER MUST MAKE SURE THAT AAA' QUALITY WORKABLE BATTERIES

ARE INSERTED INSIDE THE BATTERY COMPARTMENT BEFORE PLUGGING

INTO THE ELECTRICAL OUTLET.

1) Place the Info Globe on afirm and level surface.

2) To optimize the dramatic effect of the display, position the Info Globe against a

dark 3-D background, such as books, plants. This will enhance the floating effect and

display-contrast.

3) Put the batteries into the battery compartment

4) Connect the power adapter and telephone cord into matching jacks on the under side

of the base.

5) Plug the power adapter into the electrical outlet. Plug the telephone cord into the

telephone socket.

6) The Rod inside the device starts rotation.

7) Once rotation is steady, the LED turns on with the standby display.

8) The Info Globe is now in the normal standby mode.

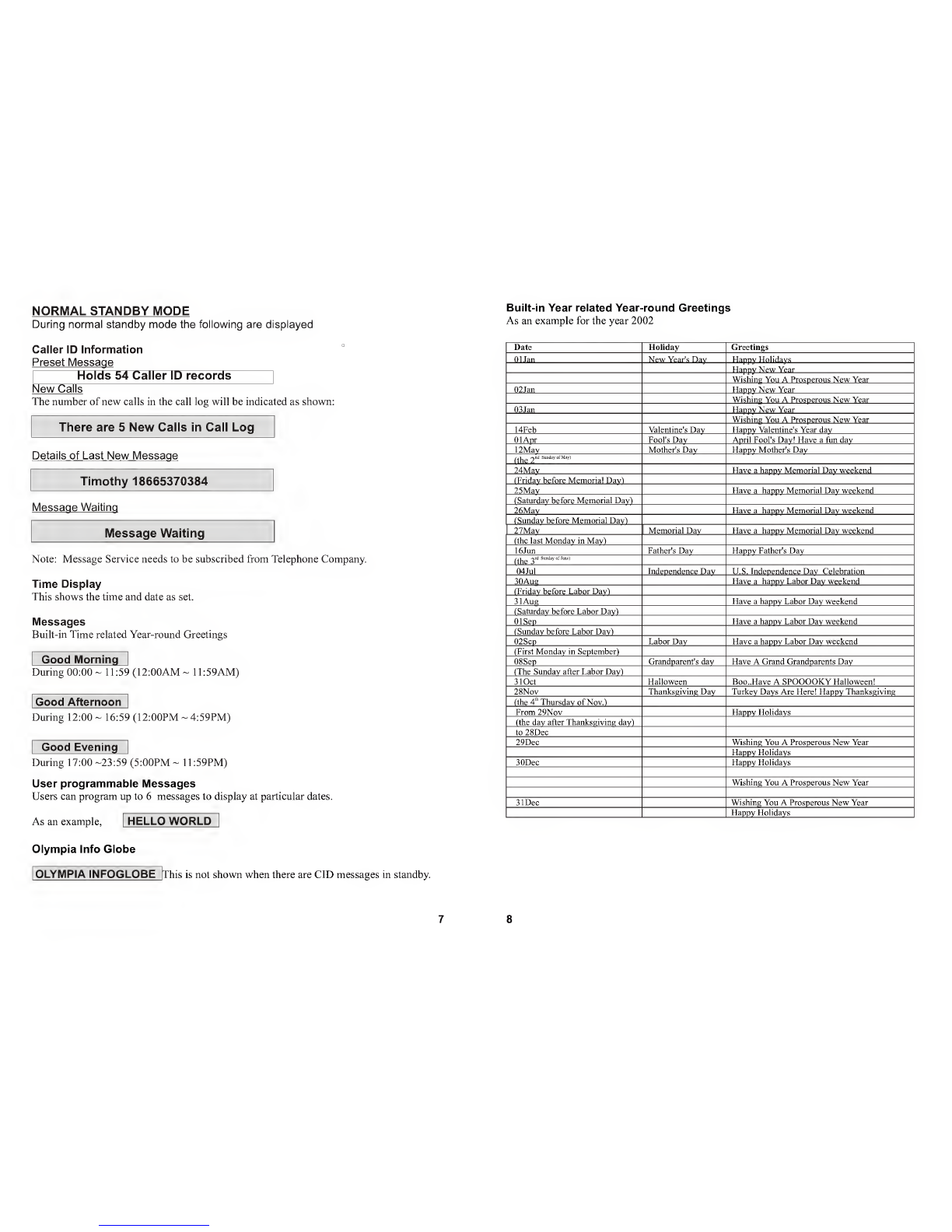

NORMAL STANDBY MODE

During normal standby mode the following are displayed

Caller ID Information

Preset Message

Holds 54 Caller ID records

New Calls

The number of new calls in the call log will be indicated as shown:

There are 5New Calls in Call Log

Details of Last New Message

Timothy 18665370384

Message Waiting

Note: Message Service needs to be subscribed from Telephone Company.

Time Display

This shows the time and date as set.

Messages

Built-in Time related Year-round Greetings

Good Morning

During 00:00 ~11:59 (12:00AM ~11:59AM)

Good Afternoon

During 12:00 ~16:59 (12:00PM ~4:59PM)

Good Evening

During 17:00 -23:59 (5:00PM ~11:59PM)

User programmable Messages

Users can program up to 6messages to display at particular dates.

As an example, HELLO WORLD

Olympia Info Globe

OLYMPIA INFOGLOBE This is not shown when there are CID messages in standby.

Built-in Year related Year-round Greetings

As an example for the year 2002

Date Holiday Greetings

01.Ian New Year's Day Happv Holidays

Happv New Year

Wishing You AProsperous New Year

n?..Tan Happv New Year

Wishing You A Prosnerous New Year

O'^.Tan Hannv New Year

Wishinp You A Prosnerous New Year

14Feb Valentine's Dav Hannv Valentine's Year dav

OlAnr Fool's Dav April Fool's Dav! Have afun dav

l2Mav Mother's Dav Hannv Mother's Dav

^nd Sunday ofMay)

24Mav Have ahaoov Memorial Dav weekend

("Fridav before Memorial Dav")

2.SMav Have ahanpv Memorial Dav weekend

fSaturday before Memorial Dav)

26Mav Have ahannv Memorial Dav weekend

fSunday before Memorial Dav)

27Mav Memorial Dav Have ahannv Memorial Dav weekend

tthc last Monday in Mavl

16Jun Father's Dav Happv Father's Dav

Sunday of June)

04.1ul Independence Dav U.S. Independence Dav Celebration

30Aus Have ahannv Labor Dav weekend

CFridav before Labor Dav)

31Aue Have ahannv Labor Dav weekend

("Saturday before Labor Dav)

01 Sen Have ahannv Labor Dav weekend

tSundav before Labor Dav)

02Sen Labor Dav Have ahaoov Labor Dav weekend

tFirst Monday in September)

08Seo Grandparent's dav Have AGrand Grandparents Dav

(The Sunday after Labor Dav)

31 Oct Halloween Boo..Have ASPOOOOKY Halloween!

28Nov Thankseivine Dav Turkey Days Are Here! Happv Thanksgiving

(the 4"' Thursday ofNov.)

From 29Nov Hannv Holidays

("the dav after Thankseivine dav)

to 28Dec

29Dec Wishing You AProsperous New Year

Haoov Holidays

30Dec Haoov Holidays

Wishing You AProsperous New Year

31 Dec Wishing You AProsperous New Year

Happv Holidays

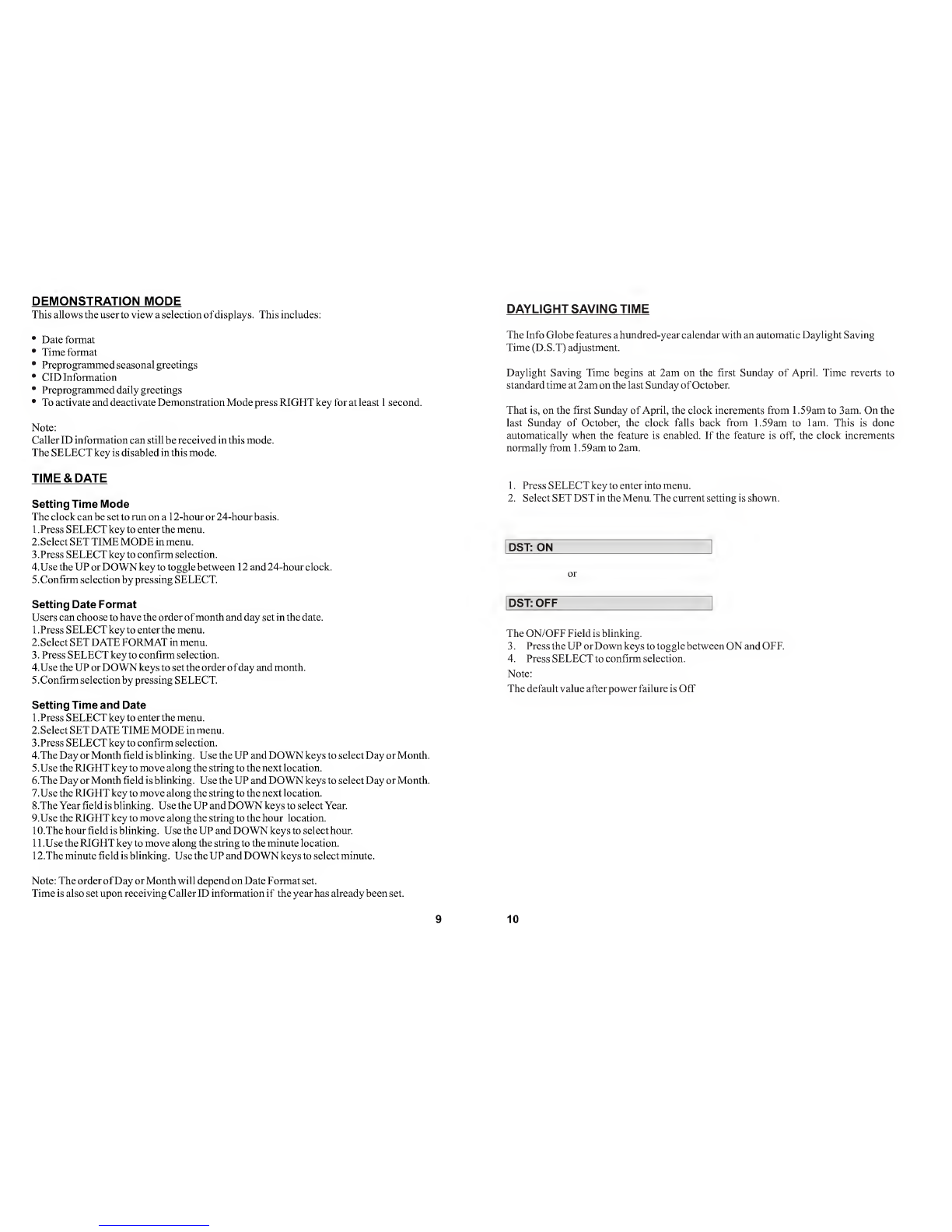

DEMONSTRATION MODE

This allows the user to view aselection ofdisplays. This includes:

•Date format

•Time format

•Preprogrammed seasonal greetings

•CID Information

•Preprogrammed daily greetings

•To activate and deactivate Demonstration Modepress RIGHT key for at least 1second.

Note:

Caller ID information can still be received in this mode.

The SELECT key is disabled in this mode.

TIME &DATE

Setting Time Mode

The clock can be set to run on a12-hour or 24-hour basis.

1.Press SELECT key to enter the menu.

2. Select SET TIME MODE in menu.

3.Press SELECT key to confirm selection.

Use the UP or DOWNkey to toggle between 12and 24-hour clock.

Confirm selection by pressing SELECT.

Setting Date Format

Users can choose to have the order ofmonth and day set in the date.

1.Press SELECTkey to enter the menu.

2.SelectSET DATEFORMATinmenu.

3. Press SELECT key to confirm selection.

Use the UP or DOWNkeys to set the order ofday and month.

5. Confirm selection by pressing SELECT.

Setting Time and Date

I.Press SELECT key to enter the menu.

Select SET DATE TIME MODE in menu.

3.Press SELECT key to confirm selection.

4. The Day or Month field is blinking. Use the UP and DOWNkeys to select Day or Month.

5.Use the RIGHT key to move along the string to the next location.

The Day or Month field is blinking. Use the UP and DOWNkeys to select Day or Month.

Use the RIGHT key to move along the string to the next location.

The Year field is blinking. Use the UP and DOWNkeys to select Year.

Use the RIGHT key to move along the string to the hour location.

10.The hour field is blinking. Use the UP and DOWNkeys to select hour.

I I .Use the RIGHT key to move along the string to the minute location.

12. The minute field is blinking. Use the UP and DOWNkeys to select minute.

Note: The order ofDay or Month will depend on Date Format set.

Time is also set upon receiving Caller ID information if the year has already been set.

DAYLIGHT SAVING TIME

The Info Globe features ahundred-year calendar with an automatic Daylight Saving

Time (D.S.T) adjustment.

Daylight Saving Time begins at 2am on the first Sunday of April. Time reverts to

standard time at 2am on the last Sunday ofOctober.

That is, on the first Sunday of April, the clock increments from 1.59am to 3am. On the

last Sunday of October, the clock falls back from 1.59am to lam. This is done

automatically when the feature is enabled. If the feature is off, the clock increments

normally from 1.59am to 2am.

1.Press SELECT key to enter into menu.

2. Select SET DST in the Menu. The current setting is shown.

DST: ON

DST: OFF

The ON/OFF Field is blinking.

3.Press the UP or Downkeys to toggle between ONand OFF.

4. Press SELECT to confirm selection.

Note:

The default value after power failure is Off

PERSONAL MESSAGES

Programming Personal Messages

Amaximum of 6messages may be set in the following way.

1. Press SELECT key to enter the menu.

2. Select SET MESSAGE in Menu.

3. Press SELECT to confirm.

4. The SI characters are blinking.

5. UsetheUPandDOWNkeystoswitchbetweenMSGl,MSG2to MSG6.

6. Press SELECT on the chosen message.

To Set Rate of Appearance of Message

The current rate of appearance of the message is indicated:

E.g. DAILY

S1: Daily

Displayed on Feb 2.

S1:Feb 2

Use the UP DOWN keys to toggle between either daily appearance and programmable

date of appearance.

7. To select daily appearance press SELECT key to confirm.

8. To set date use the LEFT and RIGHT keys to toggle between Month and Date.

9. The chosen field will blink and the UP and DOWN keys can be used to locate the

appropriate Month or Date.

10.

Press SELECT to confirm frequency of display and it will be ready for programming

message with the following display

El 1:

To Program Message

11. Use the UP and DOWN keys on the blinking field to scroll through the upper and lower

case letters ofthe alphabet and numbers 0-9.

12. Use the RIGHT key to move onto the next character. The LEFT and RIGHT keys may

also be used to find the desired location for reselecting, editing, or deletion.

13. Hold SELECT key to delete current character. If it is at the beginning of the line it

deletes all the characters.

Note:

At any time during programming. Timeout or an incoming call will put the device into

Standby mode. The setting is saved.

ERASE All MEMORIES

The following procedure erases the Caller ID list and user programmed messages. Date,

Time, Time Mode, Date Format, and DST are retained.

1.Select ERASE MEMORY in the Menu.

2. The words ERASE ALL? Appears.

3. Press SELECT key to confirm.

4. The word ERASED appears for 1second and then returns to Standby Mode.

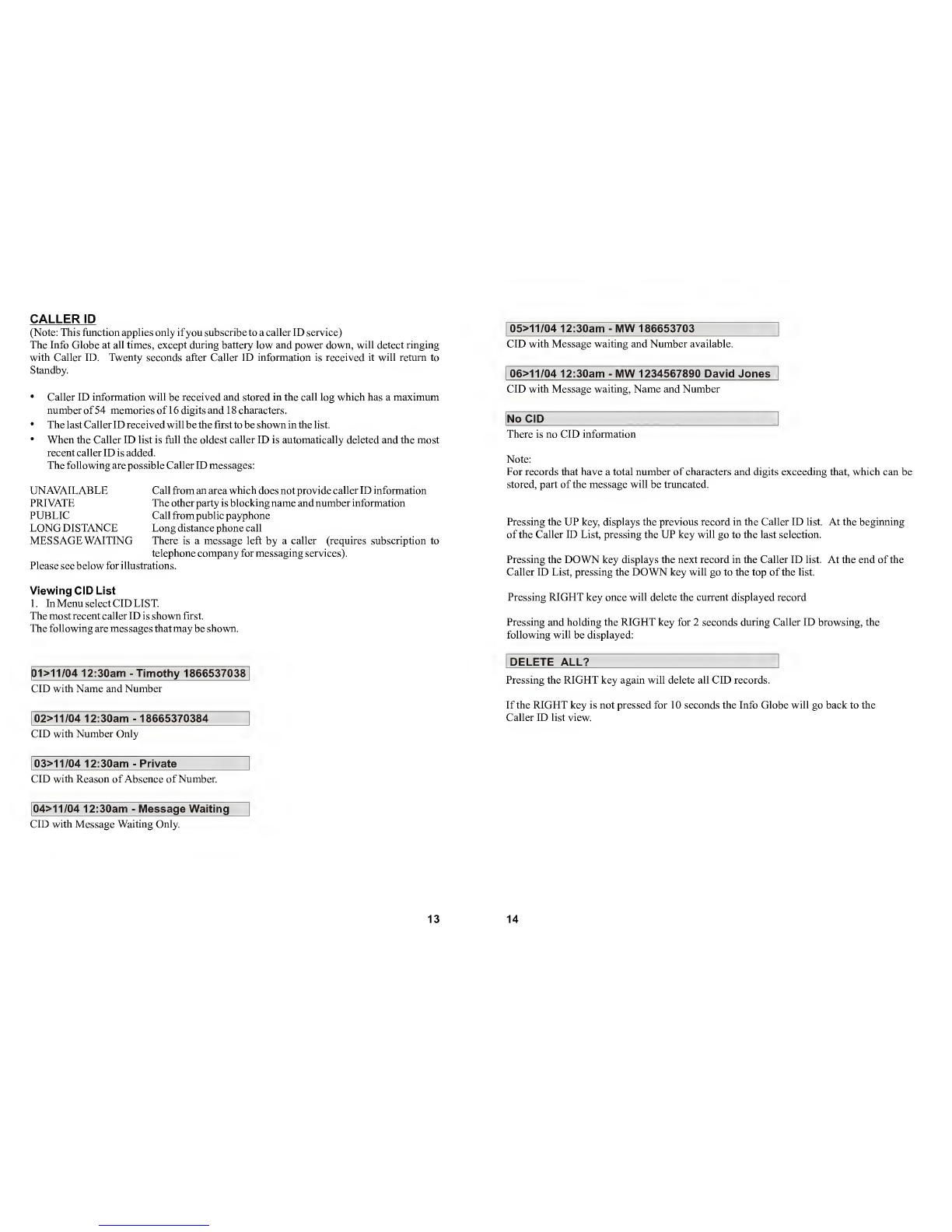

CALLER ID

(Note: This function applies only ifyou subscribe to acaller ID service)

The Info Globe at all times, except during battery low and power down, will detect ringing

with Caller ID. Twenty seconds after Caller ID information is received it will return to

Standby.

•Caller ID information will be received and stored in the call log which has amaximum

number of54 memories of 16digits and 18characters.

•The last Caller ID received will be the first to be shown in the list.

•When the Caller ID list is full the oldest caller ID is automatically deleted and the most

recent caller ID is added.

The following are possible Caller ID messages:

UNAVAILABLE

PRIVATE

PUBLIC

LONGDISTANCE

MESSAGEWAITING

Call from an area which does not provide caller ID information

The other party is blocking name and number information

Call from public payphone

Long distance phone call

There is amessage left by acaller (requires subscription to

telephone company for messaging services).

Please see below for illustrations.

Viewing CiD List

1. In Menu select CID LIST.

The most recent caller ID is shown first.

The following are messages that may be shown.

ai>11/04 12:30am -Timothy 1866537038

CID with Name and Number

02>11/04 12:30am -18665370384

CID with Number Only

03>11/04 12:30am -Private

CID with Reason of Absence of Number.

04>11/04 12:30am -Message Waiting

CID with Message Waiting Only.

05>11/04 12:30am -MW 186653703

CID with Message waiting and Number available.

06>11/04 12:30am -MW 1234567890 David Jones

CID with Message waiting. Name and Number

No CiD

There is no CID information

Note:

For records that have atotal number of characters and digits exceeding that, which can be

stored, part of the message will be truncated.

Pressing the UP key, displays the previous record in the Caller ID list. At the beginning

of the Caller ID List, pressing the UP key will go to the last selection.

Pressing the DOWN key displays the next record in the Caller ID list. At the end of the

Caller ID List, pressing the DOWN key will go to the top of the list.

Pressing RIGHT key once will delete the current displayed record

Pressing and holding the RIGHT key for 2seconds during Caller ID browsing, the

following will be displayed:

DELETE ALL?

Pressing the RIGHT key again will delete all CID records.

If the RIGHT key is not pressed for 10 seconds the Info Globe will go back to the

Caller ID list view.

SETTING TIMER ON/OFF

The unit can be programmed to turn on and off at aset time, e.g. turned off at 10:30pm

and turned on at 6:00am.

1.Press SELECT key to enter the menu.

2. Select SET ON/OFF TIME .The current setting will be shown, e.g.

ON:HH:MMTT OFF:HH:MMTT

3. The hour setting FlFt for the ON time will be blinking. Use the UP and DOWN keys

to select the hour.

4. Use the RIGHT key to move to the minute location MM.

5. Use the UP and DOWN keys to select the minutes.

6. Use the RIGHT key to move to the time format location TT. This is to set AM or PM.

If the 24- hour clock format has been chosen (see section on 'Setting Time Mode') the

TT will not be displayed.

Use the RIGHT key to move to the locations for setting the timer off time in the same

way.

7. Confirm the setting by pressing SELECT.

Note: Caller ID information will not be received when the unit is off.

TROUBLE SHOOTING

1.There is no rotation and display after plugging into an electrical outlet.

Ensure that the AC adaptor is plugged in properly and batteries are installed properly.

2. There is no Caller ID information being received.

Check that Caller ID service is subscribed from Telephone Company. Ensure that

telephone cord is plugged in correctly.

3. There are sounds of vibration coming from base.

Vibrations coming from the Info Globe are normal. However, check that the device is

standing firmly on alevel surface and that there are no other objects close to the Info

Globe that may be producing the sound.

4. Floating display looks faint

Check that AC adapter has been plugged in properly. Place Info Globe against adark

background to obtain maximum illumination from floating display.

5. Time and date are not retained during power outage.

Replace battery and install afresh one properly.

CONSUMER INFORMATION

This equipment complies with Part 68 of the FCC rules and the requirements

adopted by the ACTA. On the bottom of this equipment is alabel that contains,

among other information, aproduct identifier in the format US:

DDKNDO1BOL3200NNN.

An applicable certification jacks Universal Service Order Codes (USOC) for the

equipment is provided (i.e., RJl 1C) in the packaging with each piece of approved

terminal equipment.

Aplug and jack used to connect this equipment to the premises wiring and

telephone network must comply with the applicable FCC part 68 rules and

requirements adopted by the ACTA. Acompliant telephone cord and modular plug

is provided with this product. It is designed to be connected to acompatible

modular jack that is also compliant. See installation instructions for details.

The REN is used to determine the number of devices that may be connected to a

telephone line. Excessive RENs on atelephone line may result in the devices not

ringing in response to an incoming call. In most but not all areas, the sum of REN

should not exceed five (5.0). To be certain of the number of devices that may be

connected to aline, as determined by the total RENs, contact the local telephone

company. The REN for this product is part of the product identifier that has the

format US: DDKNDO1BOL3200NNN. The digits represented by 01 are the REN

without adecimal point (e.g., 03 is aREN of 0.3). The REN is separately shown on

the label too.

If this equipment OL3000 causes harm to the telephone network, the telephone

company will notify you in advance that temporary discontinuance of service may

be required. But if advance notice isn't practical, the telephone company will

notify the customer as soon as possible. Also, you will be advised of your right to

file acomplaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations

or procedures that could affect the operation of the equipment. If this happens the

telephone company will provide advance notice in order for you to make necessary

modifications to maintain uninterrupted service.

Please follow instructions for repairing if any (e.g. battery replacement section);

otherwise do not alternate or repair any parts of device except specified.

Connection to party line service is subject to state tariffs. Contact the state public

utility commission, public service commission or corporation commission for

information.

NOTICE: If your home has specially wired alarm equipment connected to the

telephone line, ensure the installation of this OL3000 does not disable your alarm

equipment. If you have questions about what will disable alarm equipment,

consult your telephone company or aqualified installer.

Should you experience trouble with this equipment, please contact US Returns

Center, Wave Industries, with the below information for warranty information. If

the equipment is causing harm to the telephone network, the telephone company

may request that you disconnect the equipment until the problem is resolved.

QUESTIONS?????? OUR HELP LINE IS

1-866-537-0384

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

WARNING: Changes or modifications to this unit not expressly approved by the

party responsible for compliance could void the user's authority to operate the

equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class Bdigital device, pursuant to Part 15of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in aparticular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

•Reorient or reloeate the receiving antenna.

•Inerease the separation between the equipment and receiver.

•Connect the equipment into an outlet on acircuit different from that to which the

receiver is needed.

•Consult the dealer or an experienced radio TV technician for help.

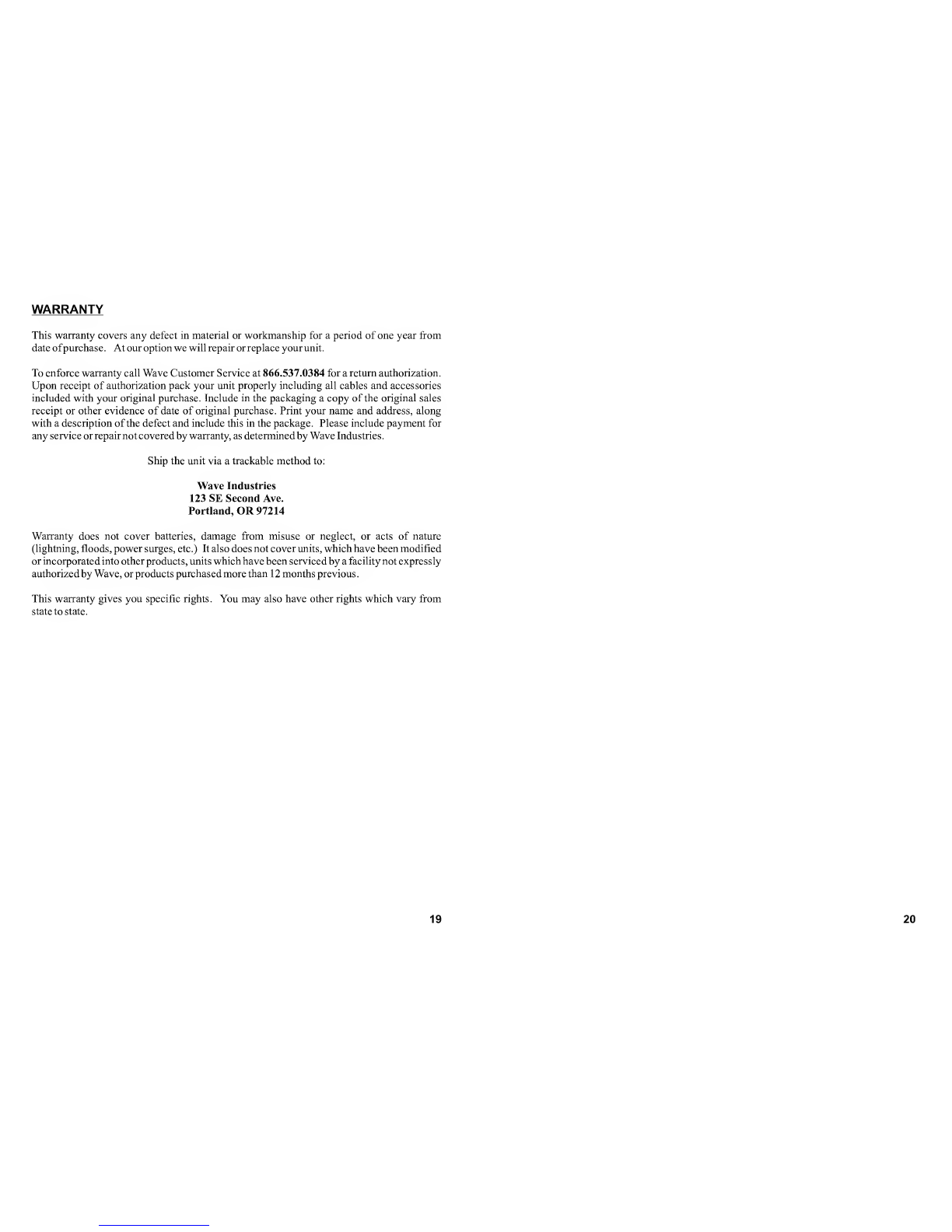

WARRANTY

This warranty covers any defect in material or workmanship for aperiod of one year from

date ofpurchase. At our option we will repair or replace your unit.

To enforce warranty call Wave Customer Service at 866.537.0384 for areturn authorization.

Upon receipt of authorization pack your unit properly including all cables and accessories

included with your original purchase. Include in the packaging acopy of the original sales

receipt or other evidence of date of original purchase. Print your name and address, along

with adescription of the defect and include this in the package. Please include payment for

any service or repair not covered by warranty, as determined by Wave Industries

Ship the unit via atrackable method to:

Wave Industries

123 SE Seeond Ave.

Portland, OR 97214

Warranty does not cover batteries, damage from misuse or neglect, or acts of nature

(lightning, floods, power surges, etc.) It also does not cover units, which have been modified

or incorporated into other products, units which have been serviced by afacility not expressly

authorized by Wave, or products purchased more than 12months previous.

This warranty gives you specific rights. You may also have other rights which vary from

state to state.

19 20

Table des matières

Autres manuels Olympia Boîte d'identification de l'appelant

Olympia

Olympia OL3022 Manuel utilisateur

Manuels Boîte d'identification de l'appelant populaires d'autres marques

ClassCo

ClassCo VoiceAnnounce 9900CW Manuel utilisateur

Radio Shack

Radio Shack System 420 Manuel utilisateur

GE 2-9030 Manuel utilisateur

GE 290961 - Call Waiting Caller ID Manuel utilisateur

Geemarc

Geemarc Clearview Cordless Caller Display Unit Manuel utilisateur

Radio Shack

Radio Shack 43-931 Manuel utilisateur

CallerID

CallerID WHOZZ CALLING 2 Manuel utilisateur

Profoon

Profoon PCI-27B Manuel utilisateur

Alpha Communications

Alpha Communications RCB2100 Series Manuel d'installation

Radio Shack

Radio Shack CID 2901 Manuel utilisateur

Sony

Sony TL-ID10 Manuel utilisateur

Aastra

Aastra AT-50LD Manuel utilisateur

ClassCo

ClassCo VoiceAnnounce 9900CW Manuel utilisateur

Panacom

Panacom PA-7018 Manuel utilisateur

Radio Shack

Radio Shack System 200 Manuel utilisateur

Radio Shack

Radio Shack SYSTEM 2100 Manuel utilisateur

CallerID

CallerID Whozz Calling? 4 POS Caller ID Manuel utilisateur

Radio Shack

Radio Shack CID-947 Manuel utilisateur
