Thank you for your trust in our products
Olympia Electronics - European manufacturer
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
BATTERY (Pb)
GRL-29/WL
220-240V AC/50-60Hz
12V/7Ah
12.6W/13.1VA
SELF-TESTING NON-MAINTAINED EMERGENCY LUMINAIRE WITH WIRELESS COMMUNICATION
TECHNICAL CHARACTERISTICS (for LED MODULE Specifications see page 4)
GENERAL
o
These luminaires are used indoors (ta 40 C)
where emergency light is needed. Each
luminaire must be connected permanently to
the mains power supply.
OPERATION DESCRIPTION
When the unit is connected to the mains power
supply (after connecting the battery) the
indicator LAMP FAULT – BATT. FAULT remains
OFF whereas the indicator POWER CHARGE
blinks to indicate that the batteries are charging.
When the batteries are fully charged this
indicator will light permanently. If this indicator
does not light then probably the battery has not
been connected. If the batteries are connected
and the indicator does not light then contact a
qualified service technician for assistance. The
charging procedure is monitored by a
microprocessor and is based on a 3 stage cycle
thus ensuring a fast and full charge of the
battery. The charge current is supplied by a high
efficiency switch mode power supply which
ensures perfect charging even during the
fluctuations of the mains power supply.
BATTERY CUTOFF
The unit enters this state during the power
supply failure and when the battery has been
fully discharged. In this state the luminaire
draws the least power from the battery in order
to prevent deep discharge.
MANUAL TESTING
Is accomplished by briefly (<1 sec.) pressing the
TEST button. This permits the user to test the
good operation of the luminaire’s emergency
circuit. The unit simulates a power failure and
the lamps are lit using the batteries. This manual
test does not affect the automatic test.
DIMMING OPTION
When the luminaire is in emergency mode, with
corresponding pressings of the button, we can
choose the illumination of 100%, 50%, 33% or
turned off, either to increase the autonomy time
or not to consume the battery power
unnecessarily. This option is canceled when the
network is restored.
WIRELESS COMMUNICATION
The WL luminaire models have the ability to
communicate over the air with Olympia’s
ABS/PC, PC
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
EXTERNAL DIMENSIONS
CONSTRUCTION MATERIALS
TYPICAL WEIGHT
GUARANTEE
CHARGING TIME
INDICATIONS - CONTROLS
BATTERY PROTECTION
MINIMUM AUTONOMOUS DURATION
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
EMERGENCY ILLUMINATION
LIGHT SOURCE
24h
From overcharge and deep discharge
IP42
o
5 to 40 C
Up to 95%
3 years (1 year for the battery)
180 min
1760lm
White LEDs
3463gr.
EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3
302 x 94 x 345 mm
POWER-CHARGE indicator, LAMP FAULT–BATT. FAULT indicator, TEST button
Tx power
Tx/Rx frequency range
11dBm
868 - 870MHz
Page 2 from 6
control panels for wireless emergency
luminaires. The luminaires can also
communicate with a PC/laptop through a
gateway (Ethernet, Wi-Fi, USB). For more
information, please refer to Wireless
Emergency Lighting guides, available on the
company’s website.
LAMP TESTING
The luminaire tests the good condition of the
lamps in emergency mode and warns the user
for probable malfunction. If a lamp is found faulty
then the LAMP FAULT indicator starts to blink.
To verify which lamp is faulty use the TEST
button. If the faulty lamp is replaced then the
error is automatically restored and the indicator
is turned OFF.
AUTOMATIC EMERGENCY CIRCUIT TEST
The unit automatically tests the emergency
circuit every 15 days (if the battery and mains
power are connected). During this test the
lamps are turned ON for 3 seconds using the
batteries. In some cases this function might not
be acceptable (i.e in cases this function might
not be acceptable (i.e in cinema theaters) so the
installer must take this into account during the
installation.
AUTOMATIC DURATION TEST
This test is conducted every 6 months by
simulating a power failure, if the battery and
mains power supply are connected. The unit
lights the lamps using the charged battery and
counts the time until the stated duration. If the
lamps are ON during the end of the test then the
unit is restored to its normal operation (lamps
OFF and battery charging). If the lamps go OFF
before the end of the test then the unit is
restored to its normal operation but the LAMP
FAULT / BATT. FAULT indicator is lit to show that
there is a problem with the battery and that the
battery must be replaced. Let it be noted that this
duration test is also done during every long
power failure. If the power failure lasts for a long
time and the luminaire has entered the
BATTERY CUTOFF mode and the duration
measured is not correct then the fault indicator
will light when the power is restored.
ERASING ERRORS
Erasing errors is accomplished with a prolonged
pressing of the TEST button (>5 sec) when the
unit is connected to the mains power supply. The
fault indicated with the indicator LAMP FAULT /
BATT. FAULT will be erased. If the cause of the
fault has not been restored (i.e burned lamp)
then the indicator will light again. If the fault was
caused by a low emergency duration and you
erase the error then this will be indicated again
during the next duration test after 6 months. In
this case (for duration errors) it is vital to replace
the battery before erasing the error (the error is
automatically erased if the mains power and the
battery are disconnected).
WARNING !!!
1. Every test, installation or maintenance
procedure must be done only by qualified
personnel.
2. The unit must be connected to the mains
power supply using a line fuse rated
accordingly.
3. The replacement of the battery and the
light source must be done using parts of
the same type, by the manufacturer or by a
competent person.
4. If the luminaire must be isolated from the
mains power supply for more than 2
mon ths th en t he bat te rie s m ust be
disconnected by removing the battery
connectors.
5. I s not allowed to discard batteries in to t i
common trash bins, they must be
discarded only in battery recycling
points. Do not incinerate.
BATTERY REPLACEMENT
It can be done only by a competent person
and after the mains interruption.
1. Follow the step 2 of the installation
procedure.
2. Disconnect the cables and remove the old
battery.
3. Connect the new battery with the same
type (step 3 of the installation procedure)
and place it in the position of the old one.
4. Follow the step 5 of the installation
procedure and power the device.
923029014_09_001
Page 3 from 6
Button functionality:
The on-board button has the two following
functions:
1. Short press (<2"): a status message will
be sent to the Gateway device of the
wireless network.
2. Long press (>2"): Loads factory default
settings to the module.
Button
LD3
LD2
LD1
Antenna
Default settings:
• SID: 00000001
• RF Channel: 13 ( 869.525MHz )
Wireless Communication LED
indications (interior)
The top LED (LD3-green) indicates the
network connection status.
This LED may blink according to the
following patterns:
1. Steady ON: The device has established
direct connection to a Gateway device, and
at least one more Gateway device is
available for alternate routing
(false condition).
2. Rapid flash [5 times/s]: The device has
established direct connection to a single
Gateway device.
3. Fast flash [2 times/s]: The device has
established connection to a Router device
and at least one more Router device is
available on the same hop level, as an
alternate route (redundant connection).
4. Moderate flash [1 second ON / 1 second
OFF]: The device has established
connection to a single Router device, and
no alternatives exist on the same hop level.
5. No light: The device is disconnected.
The middle LED (LD2-green) indicates the
received signal strength (RSSI) of the router
module.
This LED may blink according to the
following patterns:
1. Very fast flash [5 times/s]: received signal
strength is excellent.
2. Fast flash [2 times/s]: received signal
strength is good.
3. Moderate flash [1 second ON / 1 second
OFF]: received signal strength is acceptable
for reliable communication.
4. Very slow [2 seconds ON / 2 seconds
OFF]: received signal strength is not
acceptable for reliable communication, or
no signal.
The bottom LED (LD1-red) indicates
operation status.
This LED may blink according to the
following patterns:
1. Very fast blink [5 times/s]: the module is
not initialized correctly. In this case you
have to press for more than 2 seconds the
push button, in order to reset the module
(loads default settings).
2. Moderate flash [2 times/s]: The module
is properly operating.
923029014_09_001
Page 4 from 6
(*) Non Maintained operation: The luminaire lights its illumination source, only in power supply’s
failure.
Maintained operation: The luminaire lights its illumination source, when it is powered by the mains
power supply or not.
The light source contained in this luminaire shall only be replaced by the manufacturer, or
his agent, or a similar qualified person.
NOTE! The light source is non-user replaceable.
LED MODULE CHARACTERISTICS
Olympia Electronics S.A.
60 °C max. across the board
Cable connection between main pcb and led module
19-23V
4.9W
2002163
Manufacturer
Voltage Range
Connections
Nominal Power
Temperature (tc)
GRL-29/WL
X0108
ABCF
INDICATION LED STATUS (with the mains power supply connected)
POWER / CHARGE LAMP FAULT / BATT. FAULT
Disconnected battery / not charging Normal operation mode
Charged battery Low emergency duration (replace battery)
Battery under charge Lamp fault (Check lamps and replace if needed)
Indicator ON Indicator Blinking
Indicator OFF
NOTE: LED= Light Emitting Diode
LABELING EXPLANATION:
X: Self contained
0: Non Maintained (*)
A: Including test device
B: Including remote test mode
C: Including inhibiting mode
F: Automatic test gear complying with IEC 61347-2-7 denoted EL-T
180: 3 hours duration
Model Number
923029014_09_001
Page 5 from 6

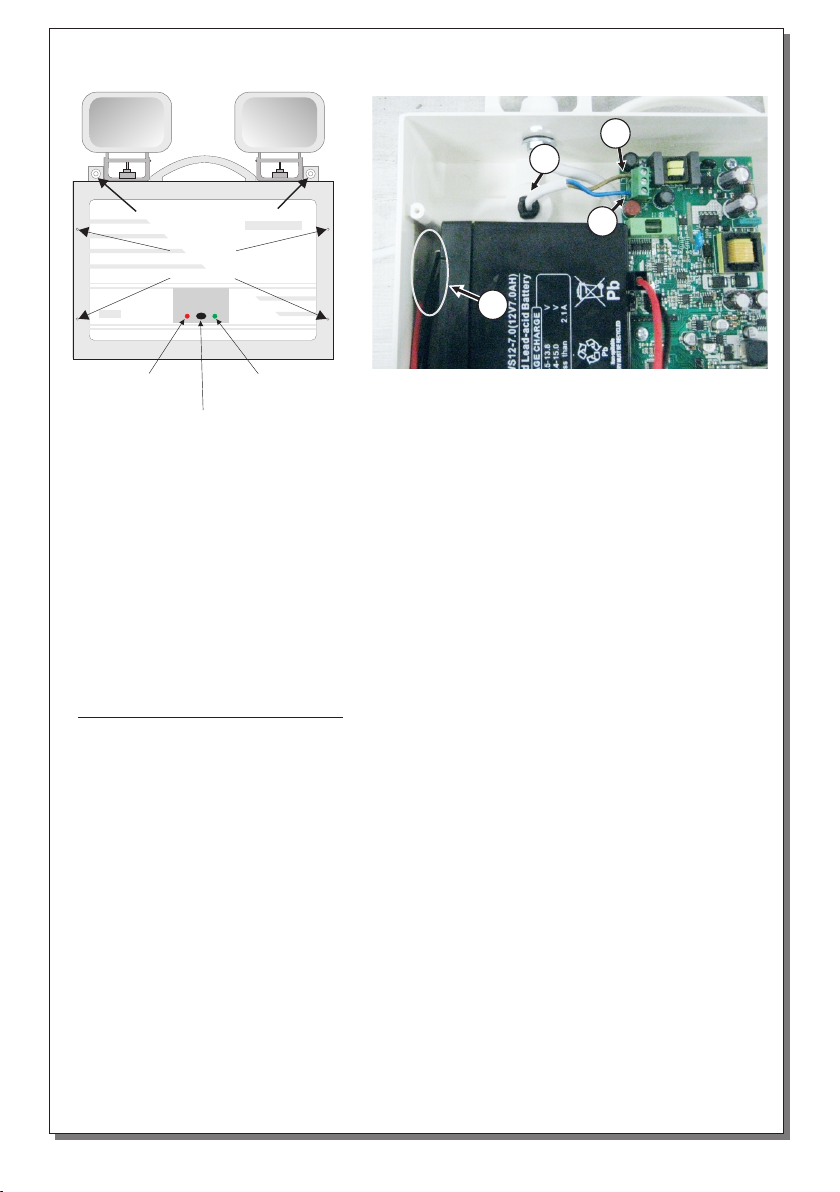

1. Use the supplied mounting accessories to mount the device.
2. Remove the four cover retaining screws.
3. Always use in any case round mains cable, with external diameter of 6-9mm (H05RN-F
type 2x1mm² or any other type, at least equal to it’s mechanical and electrical
properties). ATTENTION!! The cable must not be deformed in any way. Install the cable
grommet, pass the round cable through and tighten it all the way.
4. Connect the cables to the respective positions in the terminal block L for phase and N for
neutral.
5. Install the battery cable connectors to the batteries taking care of the polarity, black cable (-) and
red cable (+).
6. Reinstall the front cover and fasten the retaining screws. (Tightening torque 1Nm).
Pay attention to the 4 sealing o-rings.
WARNING!!
After the installation has finished, charge the batteries for at least 24 hours so as to obtain
the rated autonomous duration.
INSTALLATION PROCEDURE (wall installation only)
TEST
button
Cover
retaining
screws
Mounting holes
LAMP FAULT
BATT. FAULT
indicator
POWER
CHARGE
indicator
923029014_09_001
N
L
4
5
Page 6 from 6
WARRANTY
Olympia Electronics guarantees the quality, condition and operation of the goods. The period of warranty
is specified in the official catalogue of Olympia Electronics and also in the technical leaflet, which
accompanies each product. This warranty ceases to exist if the buyer does not follow the technical
instructions included in official documents given by Olympia Electronics or if the buyer modifies the goods
provided or has any repairs or re-setting done by a third party, unless Olympia Electronics has fully
agreed to them in writing. Products that have been damaged can be returned to the premises of our
company for repair or replacement, as long as the warranty period is valid.
Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge the
buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or not the
buyer the transportation cost.
HEAD OFFICE
72nd km. O.N.R. Thessaloniki-Katerini
P.C. 60300 P.O. Box 06 Εginio Pierias Greece
www.olympia-electronics.gr
923029014_09_001
Table des matières
Autres manuels olympia electronics Équipement d'éclairage
olympia electronics
olympia electronics KLD-22/ST Manuel utilisateur
olympia electronics
olympia electronics GR-939/15L/MAR Manuel utilisateur
olympia electronics
olympia electronics ZLD-28/EM Manuel utilisateur
olympia electronics
olympia electronics MLD-28D/w/MAR Manuel utilisateur
olympia electronics
olympia electronics GR-938/30L Manuel utilisateur
olympia electronics
olympia electronics RT-15 Manuel utilisateur
olympia electronics
olympia electronics KLD-30/CBS/24V/ADR Manuel utilisateur
olympia electronics
olympia electronics GR-316/15L/MAR Manuel utilisateur
olympia electronics
olympia electronics ZLD-28/EM/MAR Manuel utilisateur
olympia electronics
olympia electronics POWER LIGHT Series Manuel utilisateur
olympia electronics
olympia electronics LLB-26/CBS/24V/ADR Manuel utilisateur
olympia electronics
olympia electronics SLD-28/SP Manuel utilisateur
olympia electronics
olympia electronics GRL-21/H/90 Manuel utilisateur
olympia electronics
olympia electronics GR-315/15L Manuel utilisateur
olympia electronics
olympia electronics GR-423/12L/MAR Manuel utilisateur
olympia electronics
olympia electronics GR-60 Manuel utilisateur
olympia electronics
olympia electronics SLL-1001/WP Manuel utilisateur
olympia electronics
olympia electronics GR-2100 Manuel de l'opérateur
olympia electronics
olympia electronics GR-460/WP Manuel utilisateur
olympia electronics
olympia electronics WEATHER LIGHT Series Manuel utilisateur
Manuels Équipement d'éclairage populaires d'autres marques
Qazqa
Qazqa Suplux SL 3 Black 103062 Manuel utilisateur
Commercial Electric
Commercial Electric 54568141 Manuel utilisateur
CREE LIGHTING
CREE LIGHTING 304 Series Manuel utilisateur
Goobay
Goobay 49867 Manuel utilisateur
ECOMAN ITALIA
ECOMAN ITALIA LED T8 Manuel utilisateur
Alkalite
Alkalite Krypton KT-81 Manuel utilisateur
