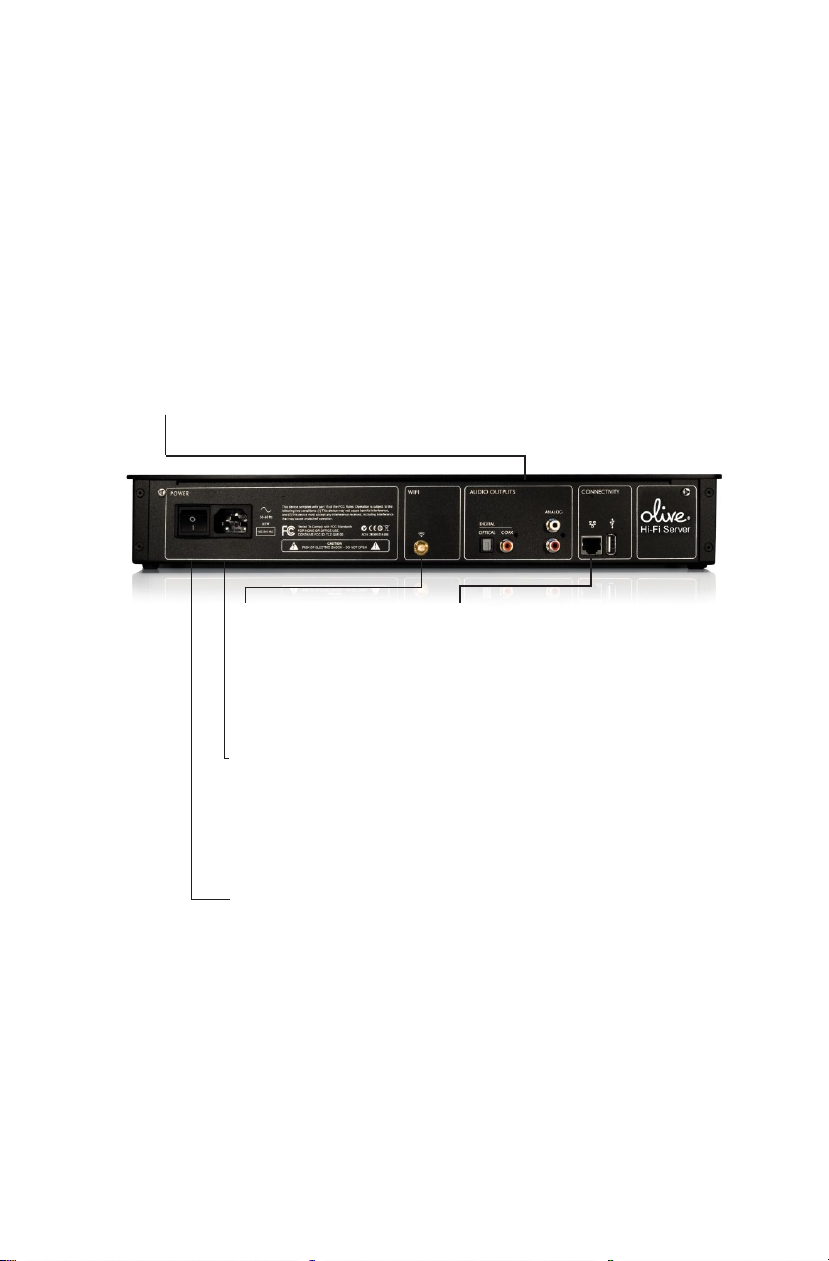

SETUP Connect Olive 4HD
9
O L I V E 4 & 4 H D | O L I V E 2 U S E R G U I D E
6. Master Power
Switch on your Olive 4HD using
the Master Power Switch and
press the Wake/Sleep Button
on the front to activate the
Touchscreen.

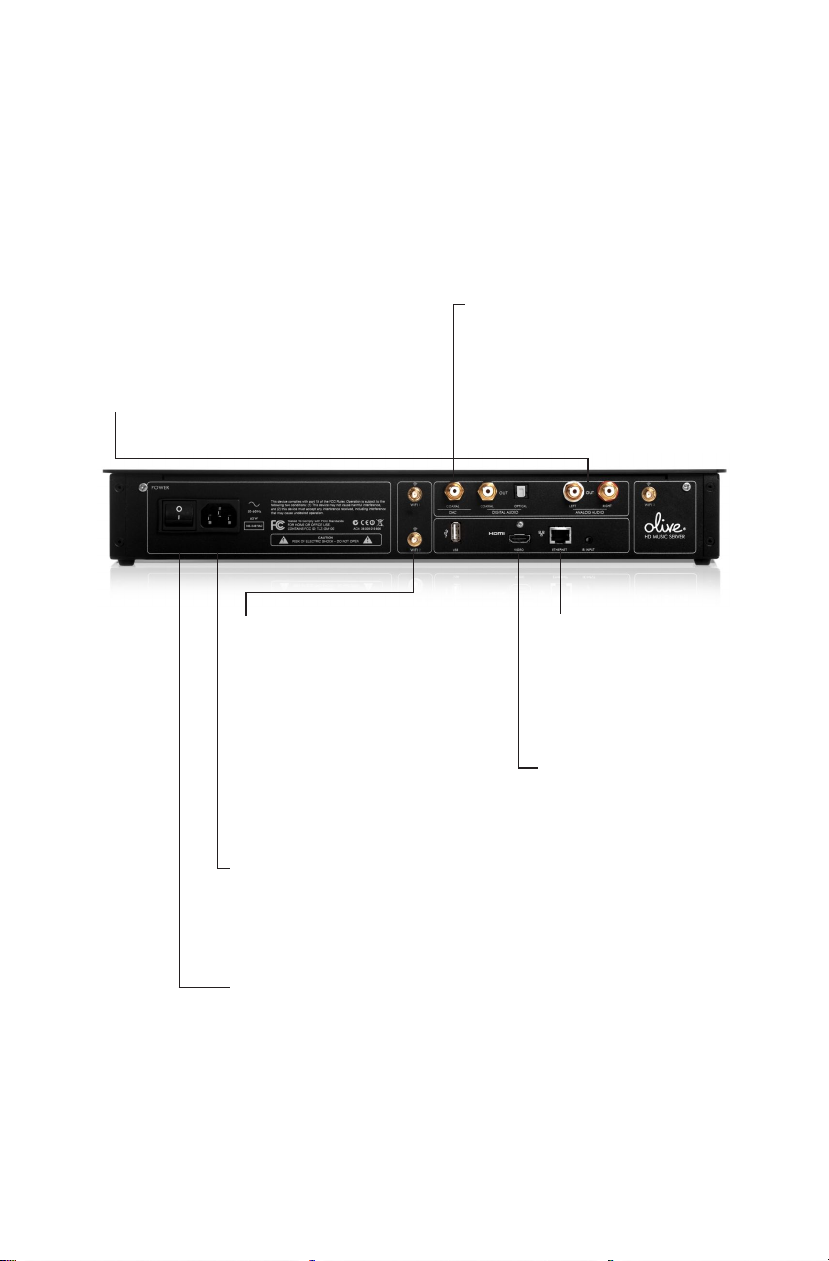

1. Audio Output
Connect cables from your amp/receiver
or speakers to the appropriate audio
output jacks. The analog connectors (for
RCA cables) are most commonly used.
2. Outboard DAC
By connecting to Digital IN,
use the Olive 4HD as an
outboard DAC for any digital
music source. From the
SOURCES menu, select
DIGITAL INPUT.
5. Power Cable
Attach the Power Cable to
the Power Port and then to a
wall socket.
3a. Wireless Antenna
For wireless connectivity, attach
the enclosed antenna to the
top
WiFi port. For a stronger signal,
you may attach a secondary
antenna (not included) to the
lower WiFi port. Please ensure
that the two antennas are at
a 90º angle (e.g. 12 and 3
o-clock).
3b. Ethernet Outlet
For wired connectivity,
attach your ethernet
cable here.

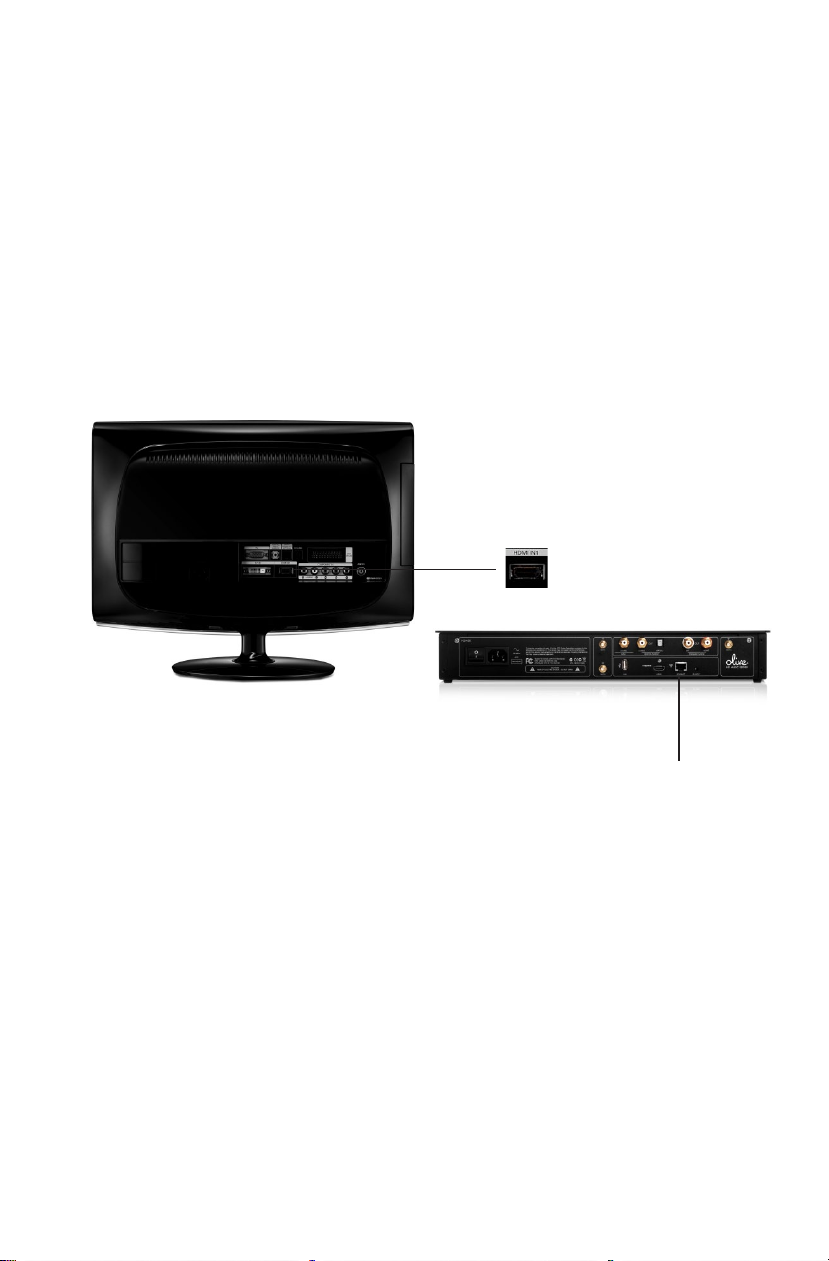

4. HDMI
Connect an HDMI cable
from your TV to your
Olive 4HD to see the
color display with all of
your music details on
your big screen. Simply
press the LEFT and
RIGHT arrow button on
your Olive 4HD and the
navigation interface will
appear on your TV.
(see page 10)
Follow these easy steps and you’ll set up your Olive 4HD in no time.
