OLIGHT M20 Warrior Premium Manuel utilisateur
Operator s Manual'
TM
M20 Warrior T
actical LED Flashlight
Olight M20 Warrior Premium (Uses Cree R2 LED)
Olight M20 Warrior (Uses Cree Q5 LED)
Model Name
.1.
Tough. Versatile. Multi-functional. Easy
to operate.
Like the soldiers it's made for the Olight
M20 Warrior is acarefully honed combat
gear.The M20's rugged body structure,
stainless steel striking bezel, blindingly
bright strobe light and multiple functions
give it a strength and versatility never
seen before in the hand-held lighting
mark et. The M20 Warrior is all the
lighting tool you need in the battlefield
or on the job. Bright, rugged, and flexible
the M20's multiple output levels and
modes lend it a versatility and durability
that make it the ideal tool for any task.
The M20 Warrior is a great choice for
personal protection; the blinding
light and crenellated striking bezel on
both ends give added effectiveness
when used for self-defense.
Versions
1)
Utilizes Cree 7090 XR-E R2 LED, lifetime 50,000 hours
Olight M20 Warrior Premium:
2)
Utilizes Cree 7090 XR-E Q5 LED, lifetime 50,000 hours
Olight M20 Warrior:Olight M20 Warrior:
2xCR123A,2xRCR123A, 16340
18650, 17670
L140mm (5.5 ,
33.5mm(1.3”);
Body Diameter: 24.80 mm (0.98”)
120.5g without batteries
Includes one holster, one lanyard, two
spare O-rings, one spare fluorescent tail cap rubber
boot and one battery magazine
Two color choices: black or olive green
Batteries:
Dimensions: :”
Weight:
Accessories:
Color
2x
1x 1x
ength )
Bezel Diameter :
：
Batteries:
Dimensions: : ”
Weight:
Accessories:
Color：
Output & RuntimeOutput &Runtime
Olight M20 Warrior Premium
Olight M20 Warrior Premium
Olight M20 Warrior
Olight M20 Warrior
7lm (150hrs)-90 lm (12hrs)-
250 lm (4hrs); Strobe
6lm(150hrs)-80 lm (12hrs)-
230 lm (4hrs), Strobe
.2.
Note: High level for 4hours is with 2500mAh 18650
World-class super bright Cree XR-E R2 (Premium) or Q5 LED
Max 250 meters/ 273 yards/ 820 feet long throw
Max 250 lumens for Premium edition
Max 150 hours long runtime
Tactical momentary-on forward switch, protruding switch
for easy momentary or click tolock on
Auto memorization of specific function for instant access
Linear functional adjustment for easy change of functions
Front removable stainless steel striking bezel and rear striking
bezel, removed for daily use, installed for close quarter combat
Superior heat sink that disperses heat to protect LED and
electrical components
Ergonomic design with solid structure for easy operation
Full orange peel reflector, perfectly centered light source,
for flawless beam with the longest shot
Rugged indestructible aluminum body with anti-scratching
type hard anodizationⅢ
Features
.3.
.4.
Features
Advanced low battery indication, blink three times every
20 seconds when battery power is low
Cutting-edge reverse polarity protection, with the right
batteries, you can leave them in long direction for
extended period, it will not burn the circuit
Strong / quick to release lanyard to prevent loss and
easy access
Mil-spec: MIL-STD-810F
Highly Water resistant
Lock-out function toprevent accidental activation
Metal 'cigar hold' ring optimally positioned offer additional
Engineered anti-slip body texture that give you a firm
tight grip
Built-in steel pocket clip
Advanced digital power management system for best
smooth and even brightness during battery life time
Anti-shattering ultra clear lens, anti-scratching and anti-slip
Anti-roll properties and is pre-installed but removable for
Smoother body hold
Multi-choices for black or olive green finish

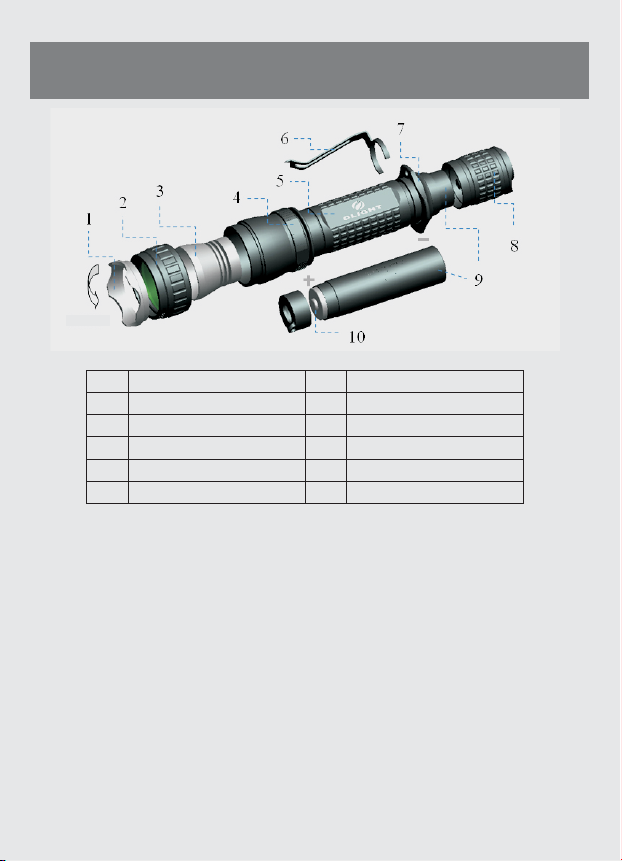

Operation Introduction
No Name No Name
1 Striking Bezel 6 Clip
2 Head(Upside) 7 Tactical Ring
3Reflector 8T
ailcap
49Battery Magazine
5 Battery Tube 10 Battery
For momentary light, gently press (no click) the tailcap pushbutton switch.
For constant light, fully press (click) the tailcap pushbutton switch.
To switch functions, click on the light, loosen the head
(see figure 4) by 1/8 of a circle and then tighten it down, the light
will move to the next function. Repeat the same operation
for further functions.
Lockout Mode:To lock out the switch, rotate the tailcap(see figure 8)
180 counter-clockwise. The lock-out positionApproximately
accidental activation during storage or transport.prevents
.5.
Head(Downside)
Loosen
.6.
Usage and Maintenance
Battery installation should be performed as shown in figure 9.
The flashlight will not turn on if batteries are installed
incorrectly but the circuit is protected against damage from
reverse polarity.The stainless steel strike bezel is removable,
see figure 1. Rotate bezel (front) of flashlight counter-
clockwisetoremovethereflector,seefigures2&3.Caution:
be sure not to touch, handle or contact in any way the inner
surface of the reflector as it will be irrevocably damaged by
handling. Replace bezel and re-install by screwing in
clockwise. Pocket clip is removable byrotating the 'cigar hold'
ring counter-clockwise, see figure 6.
Use quality batteries so as not to damage the light due to
leaks orother self-destructive possibilities. Remove batteries
when light will not beused for an extended period orif
batteries are discharged. When using Li-Ion batteries Olight
only recommends the use of 'protected' batteries that limit
charge and disharge.
Clean contacts, threads and O-rings of the flashlight with
clean cloth from time to time when necessary.Should flickers
or doesn't light up this is the most likely cause. Ifflashlight is
used in wet environment, lubricate O-rings frequently to
maintain watertight seal. After prolonged exposure to
moisture, the bezel, lamp, and batteries should be removed,
inspected, and cleaned ifnecessary.
Optional Accessories
Reflectors Battery Magazine
Remote Pressure
Switch
.7.
Lanyard Pocket Clip
Weapon Mount
Holster
Warranty
No Hassle Lifetime Guarantee: Batteries will deplete,
switches will wear out, electronics will burn out, rubber
boots and O-rings will age. Everything else is covered
by our lifetime no-hassle guarantee: if it breaks, we fix it!
Olight warrants its products to be free from defects in
materials and workmanship. Olight will repair or replace,
at its option and without charge, any product or part
which isfound to be defective under normal use and
service with proof of purchase. Such repair or
replacement shall bethe purchaser ssole and
exclusive remedy under this warranty. This warranty
does not cover normal maintenance and service and
does not apply to any products or parts which have
been subject to modification, misuse, negligence,
accident, improper maintenance or repair by anyone
other than Olight.
’
WarrantyLimitation:
There is no other express warranty. Olight hereby
disclaims any and all implied warranties, including
but not limited to fitness for a particular purpose.
Olight shall not be liable for incidental, consequential,
or special damages arising out of, or connection
with, product use or performance.
.8.
Olight T
echnology Co., Limited
www.olightworld.com
T
el: +86-755-26409372
Fax: +86-755-26411547
Email: [email protected]
Olight T
echnology Co., Limited
TM
www.DrMemory.com/Olight
