OLI High vision Manuel utilisateur
USER MANUAL
00_112020
original instructions IT
High vision
© Copyright Oli eBike Systems · revision 00_112020 ·Graphics and layout studioimmagina.com
03 GENERAL INFORMATION
03 Purpose of the manual
03 Conservation of the manual
03 Reading the manual
04 Manufacturer
04 Certification
05 Warranty
05 Returns
05 Safety rules
06 DESCRIPTION
06 General description
07 Technical data
07 Sizes and overall dimensions
08 INSTALLATION
08 Display installation
10 Keypad installation
11 Transport, packaging and storage
12 USE
12 Commands
13 Navigation diagram
14 Power on
14 Power off
15 Home
16 General screen layout
17 Distance screen
17 Time screen
17 Pace screen
17 Energy screen
18 “Race” screen
19 Summary screen
20 Assistance level
21 Walk mode
22 eBike light adjustment
23 Menu
24 Reset trip
24 System info
25 Advanced
26 Screen brightness
27 Language
28 Unit of measure
29 Weight
30 Gender
31 Night mode
32 TROUBLESHOOTING
32 Error codes
35 Technical assistance
36 Cleaning and maintenance
36 Disposal
35 MAINTENANCE AND ASSISTANCE
35 Technical assistance
36 Cleaning and maintenance
INDEX
OLI eBike Systems | High Vision
DESCRIPTION
INSTALLATION
USE
TROUBLESHOOTING
MAINTENANCE AND
ASSISTANCE
OLI eBike Systems | High Vision
studioimmagina.com 00_102020 03
GENERAL
INFORMATION
PURPOSE OF THE MANUAL
This manual is an integral part of the HMI
unitHIGH VISION and has been drawn up by the
manufacturer in its original language (Italian) to
provide all the information necessary for an adequate
and safe use of the unit throughout its life cycle: from
transport to delivery, use and maintenance, up until
disposal .
Before carrying out any operation, users and
technicians must carefully read the instructions and
strictly comply with them.
In the case of doubts in correctly interpreting them,
contact the manufacturer to obtain the necessary
clarifications. The regular operation of the unit over
time will be ensured and the occurrence of dangerous
situations for people and things will be avoided only
by observing what is reported below.
The manual provides warnings and instructions
relating to safety regulations for the prevention
of accidents. In any case, operators must observe
the safety regulations imposed on them by the
regulations in force with the utmost attention. Any
changes to the safety regulations that may take place
over time must be acknowledged and implemented.
It is recommended to read this manual carefully
before putting the unit into operation.
With a view to continual improvement, OLI eBike
Systems may change some characteristics of the
components used without prior notice. This does not
affect the validity of the information contained in this
document. If inconsistencies are found between what
is described in the manual and the use of the unit,
please notify the manufacturer.
The updated copy of this manual is available on
the website www.oli-ebike.com.
CONSERVATION OF THE MANUAL
The manual must accompany the unit throughout its
lifecycle and must be available to all the operators
and technicians who may need it.
The manual must follow the unit if it is transferred to
a new user or owner.
READING THE MANUAL
To consult the manual you can use:
› the initial index;
› the menu on the left side of each page;
› the references indicated with
see “chapter name” on
page.00
.
GENERAL INFORMATION
If using a digital format, to make the most of the
interactive navigation functions, we recommend
opening it with the free Adobe reader software
(https://get.adobe.com/it/reader/).
The icon indicates additional interactive areas
other than those listed above.
GENERAL
INFORMATION
DESCRIPTION
INSTALLATION
USE
TROUBLESHOOTING
MAINTENANCE AND
ASSISTANCE
OLI eBike Systems | High Vision
MANUFACTURER
OLI eBike System is at your disposal for any problem
or information.
Communications and requests can be sent to:
OLI eBike Systems
contact details
Tel +39 0547 318322
site
For any need concerning the use, maintenance or
request for spare parts, please specify the unit
identification data shown on the manufacturer's
plate.
CERTIFICATION
The unitHIGH VISION was made in compliance with
the relevant Community Directives applicable at the
time of its being placed on the market, and therefore
it meets the safety requirements of the machinery
directive 2006/42 / EC and the UNI EN 15194: 2018
standard.
The unit complies with the laws in force.
Being a product undergoing significant technical
and regulatory development, OLI eBike Systems
reserves the right to update it as quickly as possible
to the latest technological knowhow and the official
applicable standards (UNI, EN, ISO) that become
available from time to time.
All the products described in this manual have been
manufactured according to the operating procedures
defined by the Quality System of OLI eBike Systems,
a division of OLI®spa. The company’s Quality System,
certified in accordance with the UNI EN ISO 9001
Standard, is able to ensure that the entire production
process, from the formulation of the order to
technical assistance following delivery, is carried
out in a controlled and adequate manner in order to
guarantee the quality standards of the product.
www.oli-ebike.com
Via delle pesche, 891
47522 Cesena (FC) ITALY
info@oli-ebike.com
studioimmagina.com 00_102020
04
DESCRIPTION
INSTALLATION
USE
TROUBLESHOOTING
MAINTENANCE AND
ASSISTANCE
OLI eBike Systems | High Vision
studioimmagina.com 00_102020 05
GENERAL
INFORMATION
WARRANTY
The unit is covered by a warranty on materials for
a period of 36 months from the date shown on the
shipping document. The buyer loses the right to the
warranty in the case of incorrect use or when he
or she has made changes or repairs to the supplies
without the manufacturer's authorization.
Upon receipt of the product, the recipient must check
that there are no defects or damages resulting from
transport and / or incompleteness in the supplies.
Any complaints must be reported immediately to the
manufacturer by means of a written communication
countersigned by the carrier.
Labour services, such as sending a technician, are
excluded from the warranty.
In no case can compensation for damages be
demanded.
For further information on the conditions of
assistance under warranty, please refer to the sales
contract.
Products shipped for repair under warranty
must be returned carriage paid to the
manufacturer's factory.
RETURNS
In case of return, if you have kept the original
packaging, reuse it for shipping.
Otherwise, place the unit in a box trying to protect it
as well as possible from any impacts resulting from
transport.
SAFETY RULES
In order to minimize the causes that can create
dangerous situations for users and others, we invite
you to adopt appropriate rules of conduct.
In particular, the following points should be observed
when using the eBike:
› consult your doctor before starting an exercise
program;
› observe the traffic regulations relating to pedal-
assisted bicycles;
› do not get distracted by looking at the display when
riding the bicycle;
› do not use the display as a handle;
› exclusively use the HMI unit and the supplied
keypad;
› remove the battery before carrying out any type
of intervention.
The manufacturer declines all responsibility in
case of damage to persons or things deriving
from improper use of the unit or failure to observe
the instructions given in the manual.
INSTALLATION
USE
TROUBLESHOOTING
MAINTENANCE AND
ASSISTANCE
OLI eBike Systems | High Vision
DESCRIPTION
GENERAL
INFORMATION
GENERAL DESCRIPTION
HIGH VISION is an HMI unit that allows you to analyse
and view data relating to the eBike and the training
in progress.
The unit consists of a sturdy, injection-moulded ABS
body housing the LCD display and a keypad containing
the keys that allow for control and navigation.
The unitHIGH VISION is exclusively intended
for use as an HMI on an eBike. Uses other than
those foreseen and not compliant with what is
described in this manual, as well as being considered
improper and prohibited, can create dangerous
conditions for people and things.
The manufacturer declines all responsibility for
improper use of the product.
The unit consists of the following components:
display
keypad
up
down
power
DESCRIPTION
studioimmagina.com 00_102020
06
INSTALLATION
USE
TROUBLESHOOTING
MAINTENANCE AND
ASSISTANCE
OLI eBike Systems | High Vision
studioimmagina.com 00_102020 07
DESCRIPTION
GENERAL
INFORMATION
TECHNICAL DATA
Display type Dot matrix LCD
Operating temperature -5°C / 40°C
Storage temperature -20°C / 60°C
Degree of protection IP 67

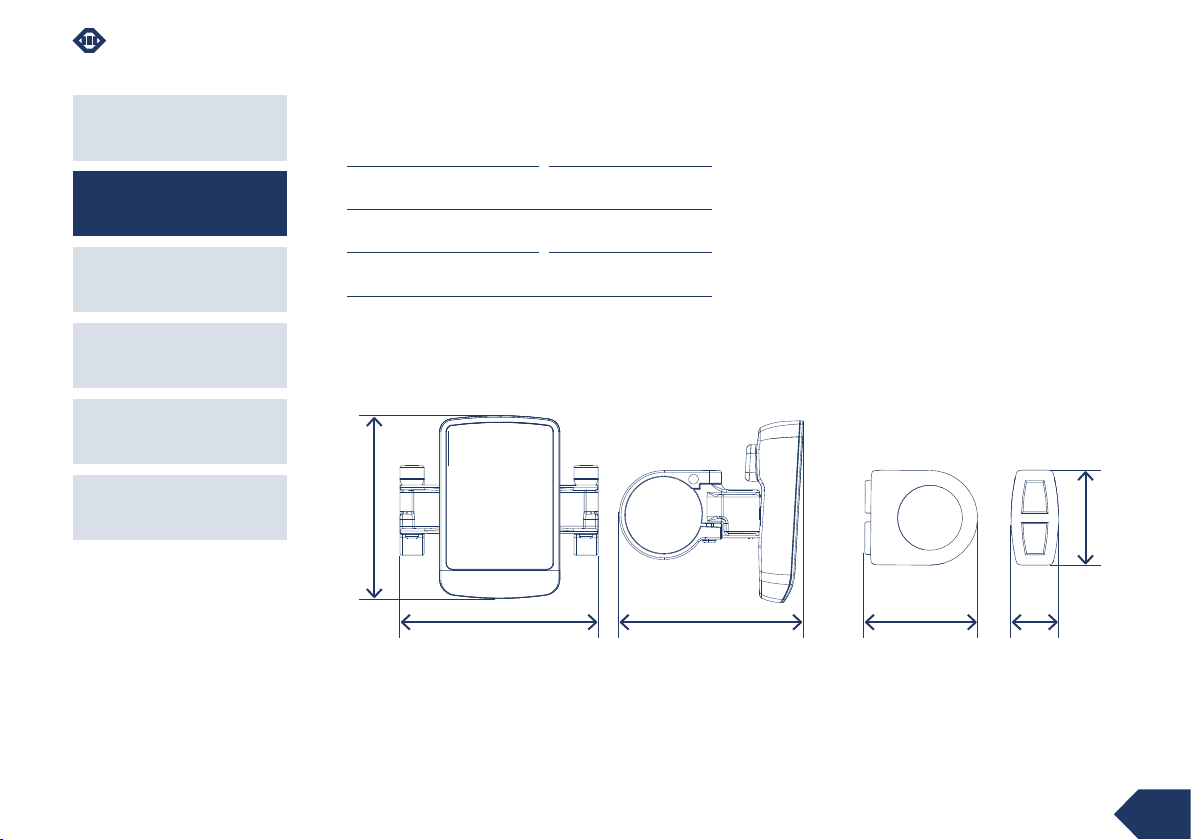

SIZES AND OVERALL DIMENSIONS
82mm 54mm 13mm
73mm
32mm
75mm
DESCRIPTION
USE
TROUBLESHOOTING
MAINTENANCE AND
ASSISTANCE
OLI eBike Systems | High Vision
INSTALLATION
GENERAL
INFORMATION
DISPLAY INSTALLATION
1 > Insert the display holder rings on the handlebar.
2 > Install the display on the support, tightening the
M4 fixing screws.
1.5 - 3 Nm
INSTALLATION
studioimmagina.com 00_102020
08
DESCRIPTION
USE
TROUBLESHOOTING
MAINTENANCE AND
ASSISTANCE
OLI eBike Systems | High Vision
studioimmagina.com 00_102020 09
INSTALLATION
GENERAL
INFORMATION 3 > Position the display on the supports paying
attention to the angle (15 ° - 35 ° with respect to the
horizontal plane) and tighten the fixing screws with
the nuts.
1.5 - 3 Nm
2.5
DESCRIPTION
USE
TROUBLESHOOTING
MAINTENANCE AND
ASSISTANCE
OLI eBike Systems | High Vision
INSTALLATION
GENERAL
INFORMATION
KEYPAD INSTALLATION
1 > Position the keypad while paying attention to the
angle (15 ° - 35 ° with respect to the horizontal plane),
so as to allow the user to operate it comfortably while
moving.
2 > Tighten the fixing screws.
1.5 - 3 Nm
3
3 > Insert the display cable into the frame to be able
to connect it to the power unit.
studioimmagina.com 00_102020
10
