Okolab H201-UP Manuel utilisateur
H201-UP User Manual
April 2015
www.oko-lab.com
Page1
H201-UP
Compatible with the following XY stages
Compatible with the following Okolab Controllers
XY stage model and serial number must be
specified in purchase order.
H201-T-UNIT-BL
H201-UP User Manual
April 2015
www.oko-lab.com
Page2
Index
1. Components and dimensions................................................................................................... 3
2. Sample Holders................................................................................................................... 4
2.1 Available Sample Holders....................................................................................................... 4
3. Insertion of the Sample Feedback Temperature Sensor.................................................................. 5
4. Insertion of Sample Holder into Chamber ................................................................................... 5
5. Magnetic Locks ................................................................................................................... 7
6. Working with 1x3’’ and 1x2’’ chamber slides - magnetic locks......................................................... 9
7. Connection of the Gas Supply ................................................................................................10
8. Working with Perfusion ........................................................................................................10
9. Connection of the Chamber with stage .....................................................................................11
H201-UP User Manual
April 2015
www.oko-lab.com
Page3
1. Components and dimensions
H301-UP includes the following components:
Chamber base
Chamber body, it owns 12 holes for the insertion of perfusion tubing up to 2.0 mm
Objective adapter, the dimension and type of objective in use must be specified in the purchase order.
Holder, the type of stage on which the chamber will fit must be specified in the purchase order.
Lid, it features a hinge system allowing to open and close the Lid surrounding the objective.
Side View
Chamber top view
Lid
Objective adapter
Holder
Chamber base
Chamber Body
Sample Holder-Order Separately
Figure 1. H201 UP Components and Dimensions.
H201-UP User Manual
April 2015
www.oko-lab.com
Page4
2. Sample Holders
2.1 Available Sample Holders
The following sample holders are available.
NOTE: Please contact [email protected] if you cannot find the sample holder you are looking for. We are constantly
adding new inserts to the list.
UP-1x35-M
#1 35mm Petri-dish
UP-14xGS-M
#1 1x3in. chamber slide
UP-1xLABTEK-M
#1 Lab-Tek 1in.x2in. chambered cover glass
UP-1xLABTEK-II-M
#1 Lab-Tek II 1in.x2in. chambered cover glass
UP-1x60-M
#1 60mm Petri-dish
UP-1x35-M
For #1 35mm Petri-dish holder
UP-1x60-M
For #1 60mm Petri-dish holder
UP-1xGS-M
For #1 1”x3” chamber slide holders
UP-1xLABTEK-M
For #1 1”x2” Labtek
chambered cover glass holder
UP-1xLABTEK-II-M
For #1 1”x3”chamber slide and
#2 35mm petri dishes
Figure 2.Available sample holders.
H201-UP User Manual
April 2015
www.oko-lab.com
Page5
3. Insertion of the Sample Feedback Temperature Sensor
Insert the Sample Feedback Temperature Sensor through the dedicated opening located in the H201-UP main body
(see Figure 3, Frontal and 3D views).
1.Frontal view 2.3D view
Temperature Sensor dedicated opening
Temperature Sensor dedicated opening
Figure 3. Insertion of the temperature sensor inside the chamber.
4. Insertion of Sample Holder into Chamber
Sample holders fit into the chamber base and are held in place by magnets embedded within both on the chamber and
on the holder. To introduce a sample holder with the proper orientation, match the red dot on the holder to the one
on the chamber base, as illustrated in Figure 4.
Insert the adapter by
superimposing the red dots
Figure 4. Introduction of the Specimen Holder inside the Chamber Base.
If you want to change the sample holder follow the steps shown in the images of Figure 5 and listed below:
1. Open the lock spring, as shown in Figure 5 Image 2
2. Open the chamber lid as shown in Figure 5 Image 3
3. Remove the chamber lid by lifting it from the workspace, as shown in Figure 5 Image 4
H201-UP User Manual
April 2015
www.oko-lab.com
Page6
4. Remove the chamber by lifting it from workspace, as shown in Figure 5 Images 5 and 6
5. Lift and replace the sample holder, as shown in Figure 5 Image 8
4
1
3
6
5
2
Insert the adapter by
superimposing the red dots
A
7
Figure 5. Introduction of the Specimen Holder inside the Chamber Base.
H201-UP User Manual
April 2015
www.oko-lab.com
Page7
5. Magnetic Locks
Magnetic locks prevent movement of 35 and 60 mm dishes inside the sample holder.
Figure 6 illustrates the available magnetic locks for 35 and 60 mm dishes. Threaded magnetic posts allow adjusting
holder’s height.
Magnetic Locks for 35 and 60 mm petri dishes.
Included in the corresponding sample holder
Figure 6.Magnetic locks for 35 and 60 mm dish
NOTE: Magnetic locks are included with sample holder.

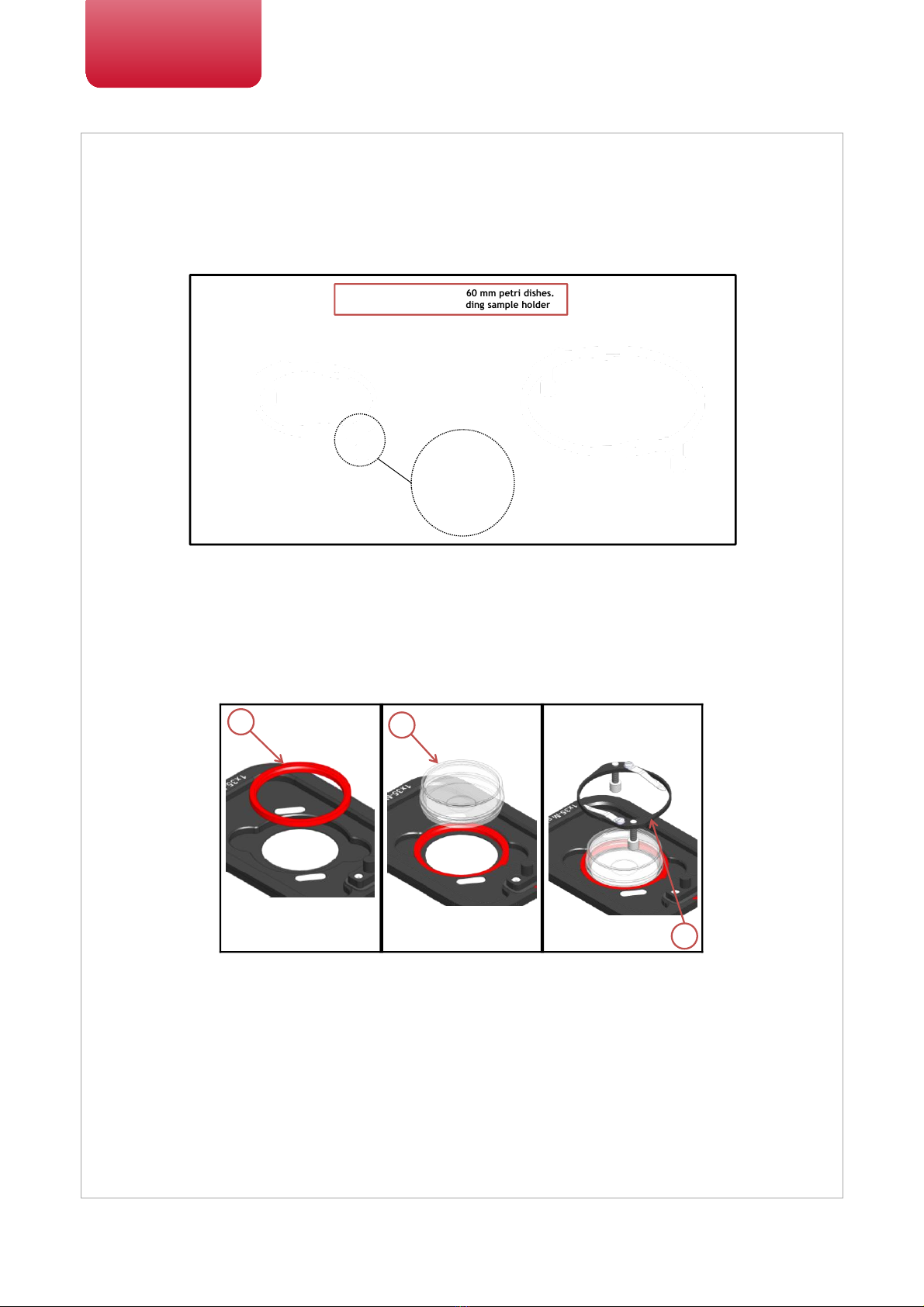

Spacing rings with variable diameter are also included in according to the needs of the user. Figure 7 shows how to
position the ring inside the sample holder. Ring selection guide diagrams: rings for 35 and 60 mm dishes -Figure 8 and
Figure 9, respectively.
1
3
2
Figure 7. 1) Insertion of the ring, 2) insertion of the 35 mm dish, 3) insertion of the magnetic lock.
NOTE: Spacing rings are included with sample holder.
H201-UP User Manual
April 2015
www.oko-lab.com
Page8
Grainer-Petri35x10 Ibidi μ-Dish35mm-low
Corning-35x10mm MatTek-P35G-X-14-X
Willco-35x10BD Falcon-35x10
Figure 8. Ring selection scheme for 35 mm dish.
MatTek-P50G-X-30-X
Grainer - Petri 60x15
Willco60x15
BD Falcon 60x15
Ibidi μ-dish 50mm-low
Corning-60x15mm
Figure 9. Ring selection scheme for 60 mm dish.
H201-UP User Manual
April 2015
www.oko-lab.com
Page9
6. Working with 1x3’’ and 1x2’’ chamber slides - magnetic locks
Magnetic locks prevent movement of 1’’x 3’’ and 1’’x 2’’ chamber slides inside of the sample holder.
NOTE: Magnetic locks are included with sample holder.
1
2
Figure 10. Magnetic lock for 1'' x 3'' chamber slide.
13
2
Figure 11. Magnetic lock for 1'' x 2'' chamber slide. To lock the slide, push simultaneously the buttons indicated with (3).
H201-UP User Manual
April 2015
www.oko-lab.com
Page10
7. Connection of the Gas Supply

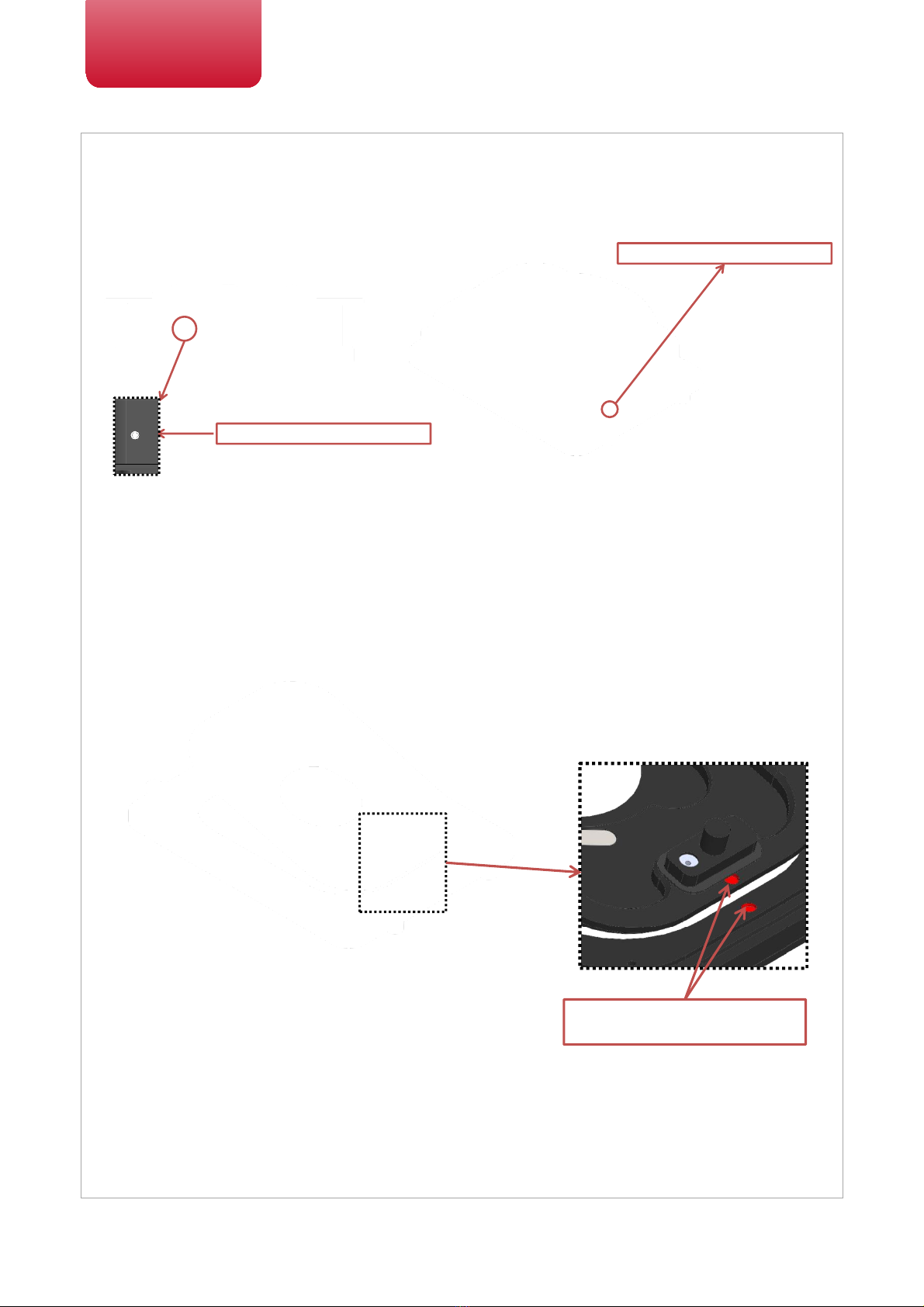

A single silicon tubing carries output gas from the Okolab Gas Controller to the H201-UP. Silicon tubing connects to a
gas input - brass opening - located on a corner of the H201-UP. See Figure 12. Connect by gently pushing silicon tubing
onto brass opening.
Gas Input
Figure 12.Connection with gas supply.
8. Working with Perfusion
The H201-UP features 12 perfusion holes on the sides for the insertion of perfusion tubing up to 2.0 mm in outer di-
ameter. Small screws plug the perfusion holes when not in use. (Grub screws M3x6). Remove small screws as necessary
before introducing perfusion tubing.
Figure 13 shows the location of perfusion holes.
1.Frontal view 2.3D view
Perfusion dedicated opening
Figure 13. Perfusion
