Okina WDSDX-M56AI Guide de démarrage rapide

OPERATIONAL MANUAL

Wide Dynamic Range Dome Camera

with OSD Multi-function

1/3” Sony Vertical Double-density Interline CCD

3D DNR Function

This is a high resolution, multi-functional and super low illuminated WDR dome camera.

It adopts the new WDR DSP and can display the foreground and background with clarity

even under high-contrast circumstances.

Please read the Operational Manual before attempting to use this product.

WDSDX-M56AI

WDSDX-M56AIP

www.okinausa.com WDSDX-M56AI_D-224

CONTENTS

1. Features ………………………………………………….…….………….…… 2

2. Dimension ……………………………………………………………………… 2

3. WDR Function …………………………………………………….…………… 3

4. Installation …………………………………………………………….…..…… 4

5. Menu Operation ………………………………………………………….…… 5-8

6. Specification ………………………………………………………….……..… 9

7. Package Contents …….…………………………………………...………… 10

8. Caution ………………………………………………………………………… 10-11

9. Warranty ……………………………………………………………….……… 11

1. FEATURES

z1/3” Sony Vertical Double-density Interline CCD

z560 TV Lines – Color / 620 TV Lines – B&W

z3.7mm~12.0mm Aspherical Vari-focal Auto Iris Lens / F1.4

Made by Tamron

zIR Cut Filter

z3D DNR Function

zSuper Low Illumination

zSens-up Function: improve the effect under low illumination at night

z0.2 lux @ F1.2 – Color Mode

0.05 Lux @ F1.2 – B/W Mode

0.0002 Lux @ F1.2 – Sens-up Mode

zParameters for high light area and dark area can be adjusted separately

zOSD Menu

zPrivacy Zone Masking Function

zShutter Speed Adjustable from 1/50 to 1/90000 sec

z12V DC

2. DIMENSION

www.okinausa.com WDSDX-M56AI_D-224

3. WDR FUNCION

WDR FUNCTION SETTINGS

Enter the menu (EXPOSURE→ALC→WDR SETUP)

WDR →SETUP

WDR LONG 0……｜……PRESS "LEFT" OR "RIGHT" FOR OPTION 0~+100

SHORT 0……｜……PRESS "LEFT" OR "RIGHT" FOR OPTION 0~+100

EXIT RET TOP /END

1. 12V DC Power Input

2. Video Output Port

3. OSD Control

www.okinausa.com WDSDX-M56AI_D-224

LONG (Adjust to enhance brightness in dark area)

SHORT (Adjust to reduce brightness in high light area)

Displayed image can reach its best effect through adjusting WDR menu options according to

various circumstances.

4. INSTALLATION

Step 1: Fix the ceiling plate to the ceiling

with screws provided.

Step 2: Pull the cable through the center

hole on the installation board.

Step 3: Twist and lock the vandal

resistant dome on the ceiling.

Step 4: A) Adjust lens angle and focus.

Camera board mounted in 3-Axis

Gymbal. B) Locking the fixed screw in

case it dismount easily.

Step 5: Attach bubble cover.

，

www.okinausa.com WDSDX-M56AI_D-224

5. MENU OPERATION

CAMERA ID OFF PRESS "LEFT" OR "RIGHT" FOR OPTION 1~255 ID

EXPOSURE ALC PRESS "LEFT" OR "RIGHT" FOR OPTION ALC & ELC

WHITE BAL ATW PRESS "LEFT" OR "RIGHT" FOR OPTION AWC & MANUAL

DAY/NIGHT AUTO PRESS "LEFT" OR "RIGHT" FOR OPTION EXT&DAY&NIGHT

MOTION DET OFF PRESS "LEFT" OR "RIGHT" FOR OPTION ON

3D-DNR MIDDLE PRESS "LEFT" OR "RIGHT" FOR OPTION HIGH&LOW&OFF

PRIVACY OFF PRESS "LEFT" OR "RIGHT" FOR OPTION ON

SPECIAL

RESET

EXIT

EXPOSURE-ALC/ELC

WDR/BLC/HSBLC OFF PRESS "LEFT" OR "RIGHT" FOR OPTION

BRIGHTNESS 50……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 0~100

AGC MIDDLE PRESS "LEFT" OR "RIGHT" FOR OPTION

HIGH&LOW&OFF

SHUTTER AUTO PRESS "LEFT" OR "RIGHT" FOR OPTION OFF

A.FLK & 1/60~1/90000

SENS-UP AUTO PRESS"LEFT" OR "RIGHT" FOR OPTION OFF& X2~X128

EXIT RET TOP /END

www.okinausa.com WDSDX-M56AI_D-224

EXPOSURE-WDR/BLC/HSBLC

WDR LONG 0……｜……PRESS "LEFT" OR "RIGHT" FOR OPTION

0~+100

SHORT 0……｜……PRESS "LEFT" OR "RIGHT" FOR OPTION

0~+100

BLC LIMIT PRESS "LEFT" OR "RIGHT" FOR OPTION

HIGH&LOW&MIDDLE

HSBLC AREA SETTING

OFF OFF OFF OFF

GRAY SCALE GRAY PRESS "LEFT" OR "RIGHT" FOR OPTION D.GRAY&BLACK

USE SCALE 0……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 0~5

MASK OFF PRESS "LEFT" OR "RIGHT" FOR OPTION ON

EXIT RET TOP /END

WHITE BAL

COLOR TEMP INDOOR PRESS "LEFT" OR "RIGHT" FOR OPTION OUTDOOR

RED 0……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION -100~+100

BLUE 0……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION -100~+100

EXIT RET TOP /END

DAY/NIGHT

LEVEL MIDDLE PRESS "LEFT" OR "RIGHT" FOR OPTION LOW/MIDDLE/HIGH

DWELL TIME 5SEC PRESS "LEFT" OR "RIGHT" FOR OPTION

10SEC/15SEC/30SEC/60SEC

www.okinausa.com WDSDX-M56AI_D-224

EXIT RET TOP /END

MOTION DET

ZONE NUMER AREA1 PRESS "LEFT" OR "RIGHT" FOR OPTION AREA2/AREA3/AREA4

ZONE STATE OFF PRESS "LEFT" OR "RIGHT" FOR OPTION ON

HEIGHT 40……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 12~100

WIDTH 40……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 16~100

MOVE Y 50……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 6~94

MOVE X 50……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 8~92

SENSITIVITY 50……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 0~100

EXIT RET TOP /END

PRIVACY

ZONE NUMER AREA1 PRESS "LEFT" OR "RIGHT" FOR OPTION AREA1~8

DISPLAY OFF PRESS "LEFT" OR "RIGHT" FOR OPTION ON

COLOR GRAY PRESS "LEFT" OR "RIGHT" FOR OPTION BLACK/WHITE

HEIGHT 40……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 20~80

WIDTH 40……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 20~80

MOVE Y 50……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 20~80

MOVE X 50……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 2~98

EXIT RET TOP /END

SPECIAL

D-ZOOM OFF PRESS "LEFT" OR "RIGHT" FOR OPTION ON

D-EFFECT OFF PRESS "LEFT" OR "RIGHT" FOR OPTION

V-FLIP/MIRROR/ROTATE

SHARPNESS 34……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION 0~68

STABILIZER OFF PRESS "LEFT" OR "RIGHT" FOR OPTION ON

COLOR ON PRESS "LEFT" OR "RIGHT" FOR OPTION OFF(B/W)

SYNC INT

USER TITLE OFF PRESS "LEFT" OR "RIGHT" FOR OPTION ON

www.okinausa.com WDSDX-M56AI_D-224

LANGUAGE ENG PRESS "LEFT" OR "RIGHT" FOR OPTION ENG/中文

EXIT RET TOP /END

SPECIAL →DIGITAL ZOOM

ZOOM x1.1……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION x1.1~x8.0

PAN 0……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION -100~+100

TILT 0……｜…… PRESS "LEFT" OR "RIGHT" FOR OPTION -100~+100

EXIT RET TOP /END

SPECIAL →USER TITLE

ABCDEFGHIJKLM

NOPQRSTUVWXYZ

abcdefghijklm

nopqrstuvwxyz CLR: END：POS:

-.0123456789

←→CLR POS END POS：←→↑↓ MOVE&PRESS SET KEY

RESET

CAMERA REBOOT

FACTORY RESET

COMMUNICATION

EXIT RET TOP /END

www.okinausa.com WDSDX-M56AI_D-224

6. SPECIFICATION

Model WDSDX-M56AI WDSDX-M56AIP

Sensor 1/3” Sony Vertical Double-density Interline CCD

Resolution 560 TV Lines – Color / 620 TV Lines – B&W, signal enhancement

Line Scan Frequency 15.734 kHz 15.625 kHz

Filed Scan

Frequency 59.95 Hz 50 Hz

Effective Pixels 768(H) x 494(V) 752(H) x 582(V)

Electronic Shutter 1/60~1/90,000 sec 1/50~1/90,000 sec

Scan Mode 2:1 Interlace

Video Signal 1.0Vp-p 75 Ω, Video 0.714Vp-p / Composite 0.286Vp-p

Illumination

0.2 lux @ F1.2 – Color Mode

0.05 Lux @ F1.2 – B&W Mode

0.0002 Lux @ F1.2 – Sens-up Mode

S/N Ratio 54dB min. (AGC Off)

Iris Control DC Auto Iris (shutter speed 1/50~1/90,000) / ELC

AWB Indoor / Outdoor / Manual Modes

WDR On / Off

Sync Mode Int. / Ext. 2 modes

Privacy Masking On / Off (8 areas for option)

Motion Detect On / Off (4 areas for option)

Mirror Off / H-Mirror / V-Mirror / Rotation for option

AGC Off / Low / Middle / High Optional

www.okinausa.com WDSDX-M56AI_D-224

Sens-up Off / 1x~128x

D/N Mode Auto / Day / Night / Ext. Control for option

D-Zoom 1x ~ 8x

Lens 3.7mm~12.0mm Aspherical Vari-focal Auto Iris Lens / F1.4

Made by Tamron

Power Supply 12V DC

Power Consumption 183mA / 2.2W

Operation

Temperature 14°F ~ 122°F / -10°C ~ 50°C

Storage Temperature -40°F ~ 140°F / -40°C ~ 60°C

Humidity 20% ~ 90% RH

Dimension 5.43”(D) x 3.94”(H) / 138mm(D) x 100mm(H)

Weight 0.79 lbs / 360g

*Specifications are subject to change without notice.

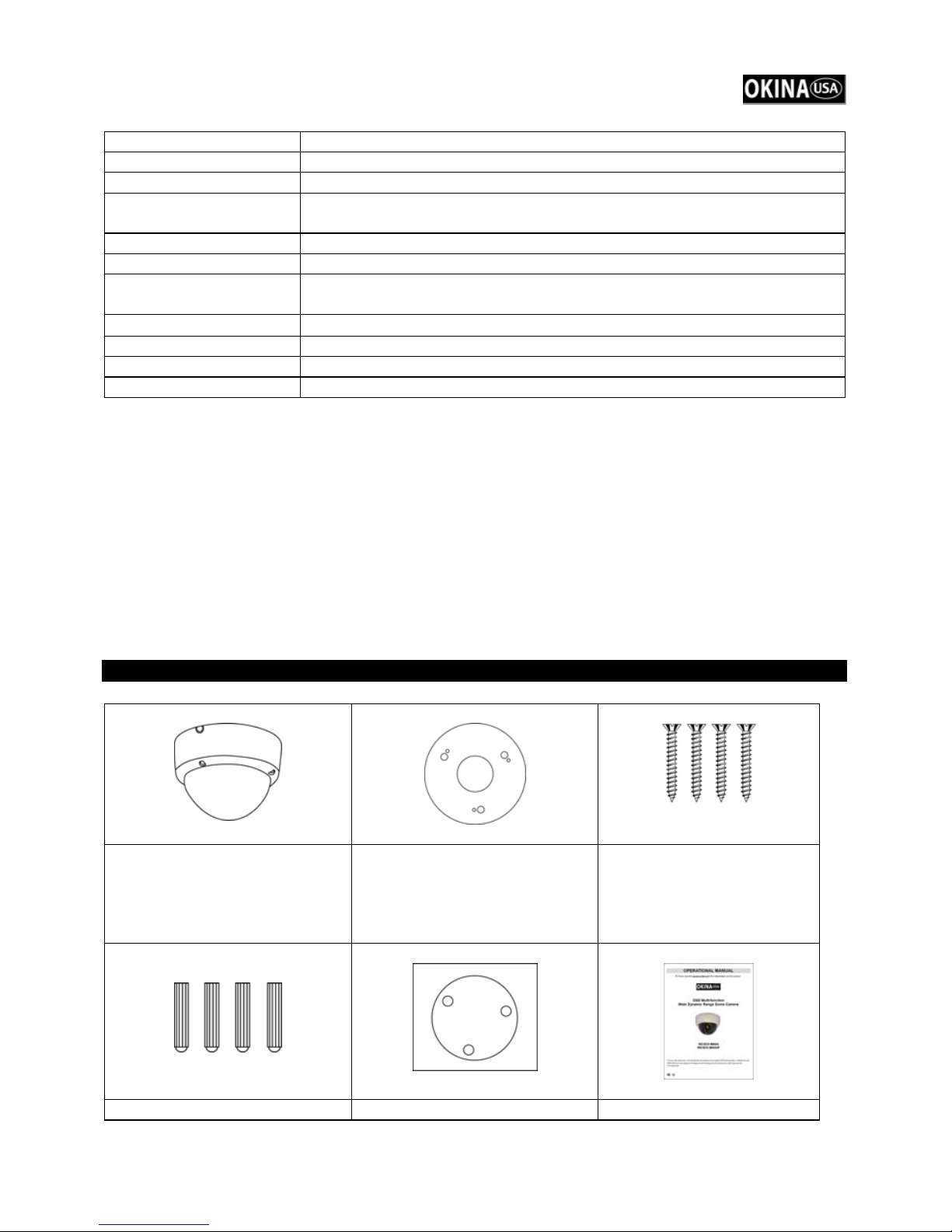

7. PACKAGE CONTENTS

One (1)

WDSDX-M56AI or

WDSDX-M56AIP Camera

One (1) Mounting Plate

Four (4) Mounting Screws
