Finisher Unit Installation Guide
Components
1
Finisher Unit
7
Inverter Stand
2
Finisher stand
8
Clear Band
3
Finisher Stacker
9
Band Stopper, Small
4
Finisher Cover
10
Band Stopper, Large
5
Power Cord
11
Metal Brackets
6
Inverter Unit
12
Cable (inverter to printer)
Not illustrated: Screws
Step 1: Prepare the Printer
1. Turn the printer off (
!
) and disconnect the
power cord (
"
) and interface cable (
#
).
2. Using a screwdriver, remove the breakout
panels on the side of the printer.
2
3. Install the metal brackets where the
breakout panels were.
4. Open the face-up stacker (
!
), then open
the flap and press it onto the stacker surface
(
"
).
5. Close the stacker.
Step 2: Prepare the Inverter
Before assembling the finisher, you must adjust the
height of the inverter unit to match the finisher:
!
Inverter as supplied
"
Inverter changed for use with 4-tray
finisher.
1. Unpack the inverter and remove any packing
materials.
3
2. Remove the two bottom caps:
a. Turn the inverter over.
b. Remove the two screws securing the bottom
caps on either side of the inverter.
c. Remove the end caps and store them along
with the four screws in case you ever need
to convert the unit back.
3. Turn the inverter around and remove the
screws holding the metal brackets in place.
Keep the screws and brackets handy: they are
used to help secure the extension plate once it
is repositioned.
4. Turn the inverter around and remove the
two screws holding the extension plate.
Keep them handy to reattach the plate once
it is repositioned.
4
5. Pull forward on the extension plate to
disengage the pins from the top channel stops,
then slide it down into the inverter and push
back to engage the pins on the bottom channel
stops.
6. Reattach the extension plate using the
screws you removed earlier.
7. Turn the inverter around and reinstall the
brackets.
Step 3: Assemble the Inverter
1. Place the hooks on the bottom of the
inverter into the slots on the inverter stand,
then slide the inverter to lock the hooks in
place.
5
2. Attach the front of the inverter to the stand
using two screws on either side.
3. Attach the back of the inverter to the stand
using one screw on either side.
4. Attach the guard rail on the inverter stand to
the printer using 2 screws.
Step 4: Assemble the Finisher
1. Hook the finisher stand onto the inverter.
2. Attach the finisher stand to the inverter with
2 screws.
6
3. Place the finisher cover near the back of the
finisher. Locate the tab (
!
) on the right side of
the cover.
4. Hold the clear band perpendicular to the cover
and slip one end over the tab (
!
), then pivot
the band 90 degrees (
"
) so that it is aimed
toward the finisher:
5. Slip the other end of the band (
!
) through
the retainer on the finisher and secure it
with the small stopper (
"
).
6. Place the large stopper over the tab on the
cover and turn it to lock it in position.
7. Attach the cover to the finisher and close it.
7
8. Pull the finisher platform about half way out,
then loosen the screw on the locking piece (
!
:
viewed from the opposite direction) so that it
drops through the slot below it. This keeps the
platform from moving while you attach the
finisher to it.

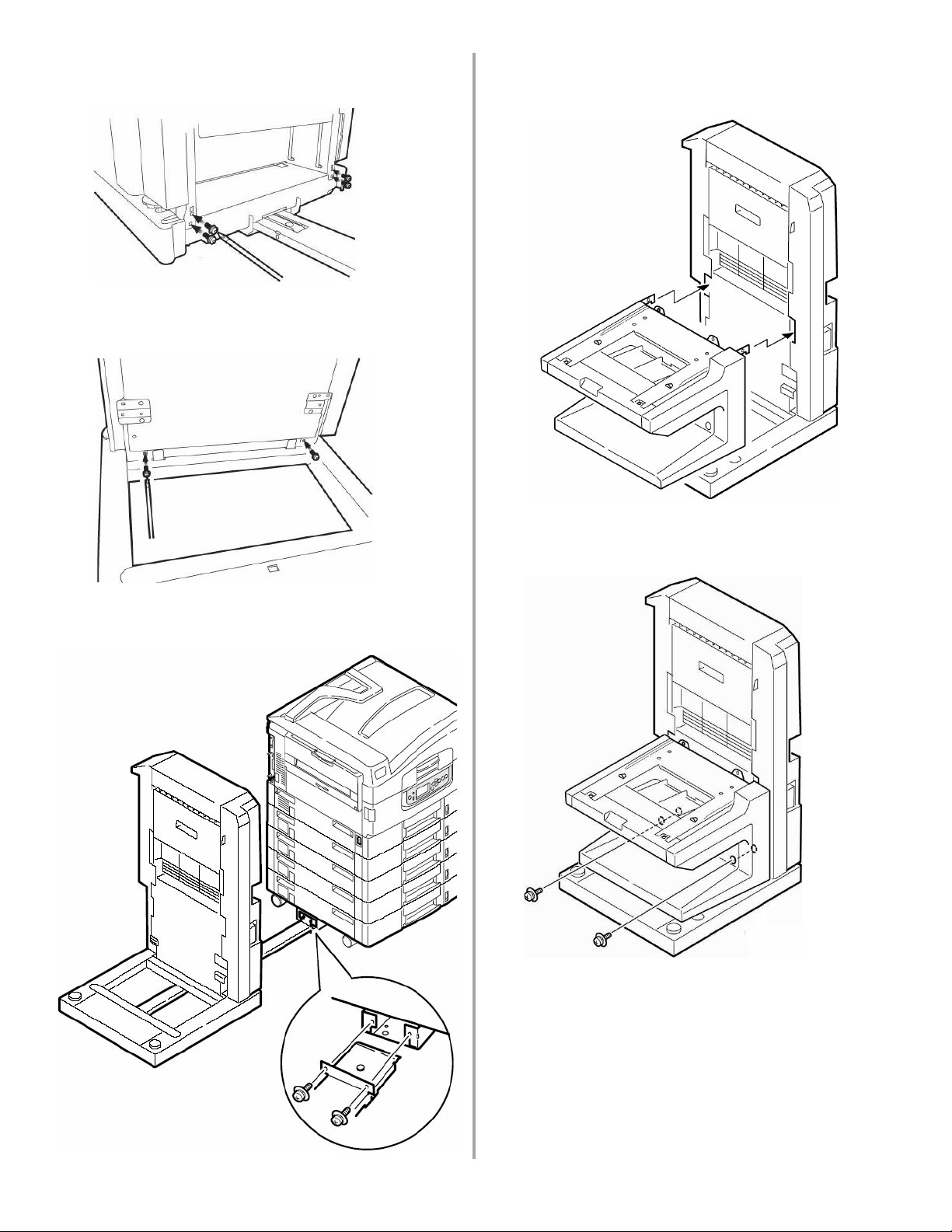

9. Position the finisher on the stand and attach
it with two screws from the back.
10. Lift the locking piece back up and tighten the
screw firmly. Be sure it’s out of the way and
the screw is tight—otherwise the platform
will not move freely.
11. Install the stacker, making sure the hooks
are firmly engaged and that the lever on the
finisher is positioned above the stacker (
!
).
12. Secure the stacker with four screws.
13. Push the finisher against the printer until the
prongs on the printer brackets fit into the
holes in the finisher.
Note:
If you need to, turn the levellers (
!
) on
either side of the finisher to raise or
lower it so the holes and prongs align
properly. Make sure the finisher is level.
Step 5: Make Connections
1. Connect the finisher’s cable to the inverter
(
!
). Use the cable supplied to connect the
inverter to the printer (
"
).
2. Plug the power cord supplied into the
inverter, then connect it to a suitable
grounded outlet.
3. Reconnect the printer’s interface cable.
4. Plug in the printer’s power cord and turn on
the printer.
Note:
When the printer is turned on, power
is supplied to both the printer and the
finisher.
58374501
