Memory DIMM

Installation Instructions

DIMM PART NUMBERS

C5100

64 MB: 70042801

256 MB: 70042901

C5300

64 MB: 70043001

128 MB: 70043101

256 MB: 70043201

Every effort has been made to ensure that the information in this document is

complete, accurate, and up-to-date. Oki Data assumes no responsibility for the

results of errors beyond its control. Oki Data also cannot guarantee that

changes in software and equipment made by other manufacturers and referred

to in this guide will not affect the applicability of the information in it. Mention

of software products manufactured by other companies does not necessarily

constitute endorsement by Oki Data.

© 2003 by Oki Data Americas, Inc. All rights reserved.

Written and produced by the Oki Data Training & Publications Department.

Please address any comments on this publication:

by mail to:

Training & Publications Dept.

Oki Data Americas, Inc.

2000 Bishops Gate Blvd.

Mt. Laurel, NJ 08054-4620

or by email to: [email protected]

For the latest product information, printer drivers, manuals, special offers, etc.,

go to http://my.okidata.com.

OKI is a registered trademark/marque déposée/marca registrada Oki Electric Industry

Company, Ltd. Macintosh is a trademark of Apple Computer, Inc., registered in the

U.S. and other countries. Windows and Windows NT are either registered trademarks

or trademarks of Microsoft Corporation in the United States and other countries.

1

Getting Started

The printers have one socket for an optional memory DIMM board.

You can expand the printer's memory by adding up to 256 additional memory.

Caution!

To avoid damage by static electricity or rough handling, keep the DIMM

board in its packaging until you're ready to install it

Model Memory Provided Maximum Memory

C5100 32 Mb 288 Mb

C5300 64 Mb 320 Mb

2

Prepare the Printer

1. Turn off the printer and unplug the power cord.

2. Detach the interface cable from the printer.

3. Open the top cover.

3

4. Loosen the thumbscrew holding the printer side cover in place.

4

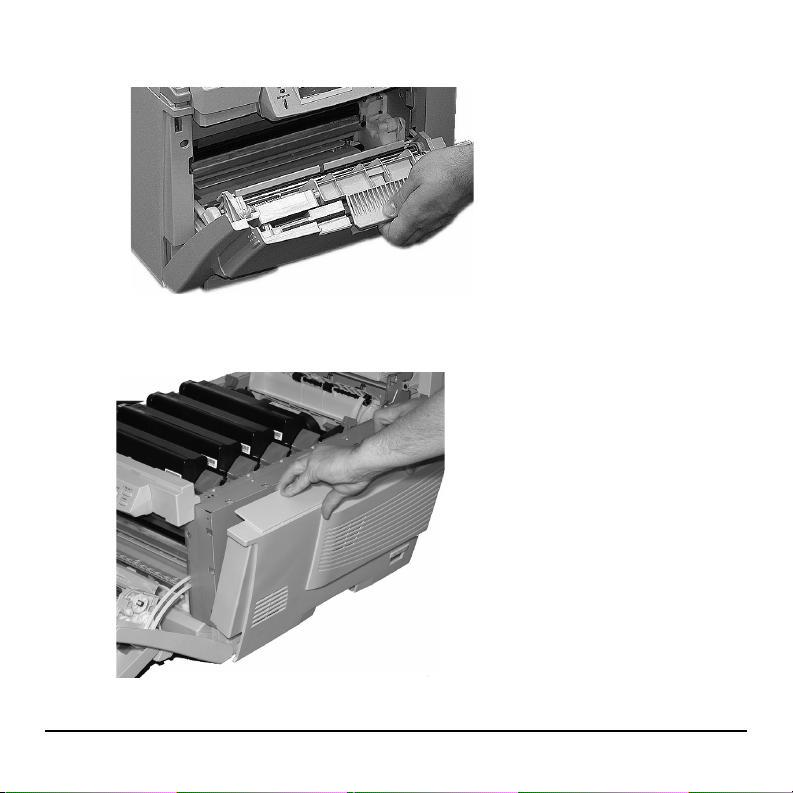

5. Open the front cover.

6. Remove the side panel from the printer.

5

Install the DIMM

Caution!

Circuit boards can be damaged by static electricity and rough handling. Keep

the board in its packaging until you're ready to install it.

1. Locate the DIMM socket.

C5100 C5300

6

2. Push out the lock tabs at either end of the DIMM socket.

Caution!

To avoid damage, ground yourself (touch metal) before handling DIMMs.

3. Remove the DIMM from its shipping package.

C5100 C5300

7

4. Hold the DIMM with the narrower metallic contact edge (1)

• C5100: vertical, narrower edge at the bottom

• C5300: horizontal, narrower edge to the right

then carefully insert the DIMM in the socket. Press firmly, until you feel the

tabs snap to lock the DIMM in place.

Note: You may need to push the tabs in manually to secure the DIMM.

C5100 C5300

8

Complete the Installation

1. Replace the side panel on the printer and secure it in place with the

thumbscrew.
