Oki 4336822A Manuel d'utilisation et d'entretien



RFID(4336821A)installationprocedure.

Plate-Inner

Plate-Shield-RFID

1. To assemble Board-RFID to Plate-Shield-RFID

with two screws.

※RFID Assy – PCB

2. To assemble RFID Assy-PCB to Plate-Inner with

two screws.

Film

Board-RFID

after assembly

※Plate Assy – Inner (4336821A)

A toner cartridge is equipped with RF-ID TAG.

If toner cartridges are set to a printer, communication of RF-ID TAG and a RFID read writer module will be attained.

The function of this system is the following: Management of the existence detection and toner residual quantity of a toner cartridge.

4336822A are attached printer base unit according to the following figure.

RFID (4336822A) installation procedure

1

(4336822A)





Plate Assy-Inner

(4336821A)

Cover-Top(Sub)

To assemble Head-Cable, Holder-Head,

Cover–Top(Sub) and etc to Plate Assy

–

Inner (4336821A) with 8 screws.

※Cover Assy - Top

2

(4336822A)

(4336822A)

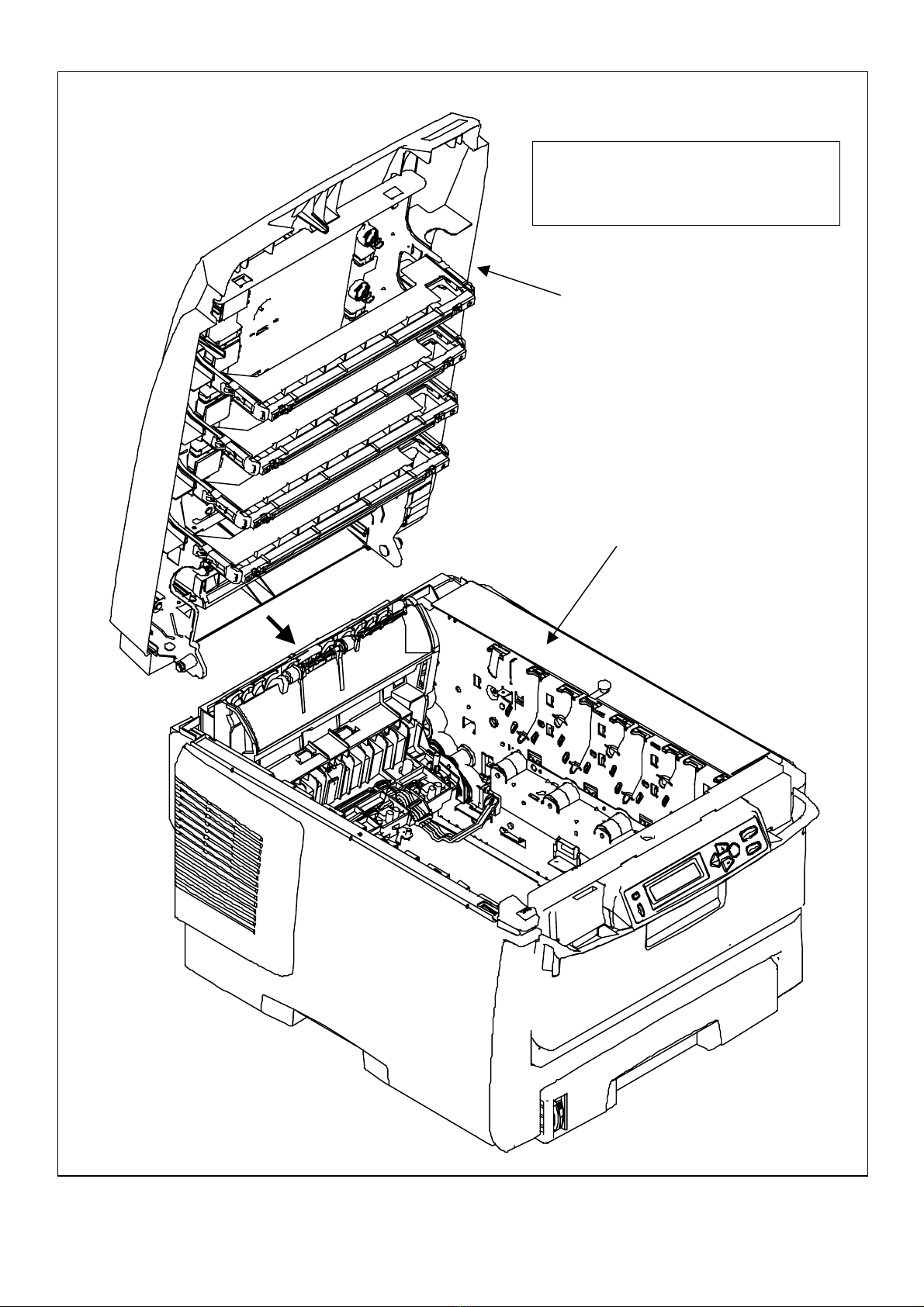

Printer-Unit

Cover Assy - Top

To assemble Cover Assy –Top to

Printer-Unit.

3

FCC WARNING

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the

following measures:

-Reorient or relocate the receiving antenna

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.
