This document describes how to set up network servers and user computers to use the

CX3641MFP so that users can print to it as a high-performance networked printer. For

general information about using the copier/printer, your computer, your software, or your

network, see the documentation that accompanies those products.

Setting up the network environment correctly requires the presence and active cooperation

of the network administrator. Detailed instructions for configuring networks is beyond the

scope of this document. For information, see your network documentation.

Terminology and conventions

This document uses the following terminology and conventions.

Term or convention Refers to

Mac OS Apple Mac OS X

Titles in italics Other documents in this set

Windows Microsoft Windows 2000, Windows XP, Windows Server 2003

Topics for which additional information is available by starting

Help in the software

Tips and information

Important information

Important information about issues that can result in physical

harm to you or others

INTRODUCTION 7

About this document

This document covers the following topics:

• Network connectors on the CX3641MFP

• Information specific to the CX3641MFP about setting up network servers

NOTE:For information about network servers, see your network documentation.

• System security through access levels and passwords

• Setup of the CX3641MFP from the copier/printer touch panel

• Setup of the CX3641MFP from a network computer

• Setup of the CX3641MFP to allow users to use WebTools

• Administration of the CX3641MFP

• Troubleshooting

Administrator functions described in other documentation are summarized on page 28.

CONNECTING TO THE NETWORK 8

CONNECTING TO THE NETWORK

This chapter summarizes the stages in setting up the CX3641MFP.

CX3641MFP on the network

When the CX3641MFP is connected to a network, it behaves as a networked printer.

The CX3641MFP supports the following network protocols (rules that enable computers

on a network to communicate with each other):

• AppleTalk, Bonjour

• TCP/IP, which also includes the BOOTP, DHCP, FTP, HTTP, IMAP, IPP, IPv4,

IPv6, LDAP, LPD, NBT, POP3, Port 9100, SMB, SMTP, SNMP, SNTP, and

SSL/TLS protocols

These protocols can run concurrently on the same cable. Computers that use other

protocols can print through a server that uses one of the supported protocols. The

CX3641MFP is auto-sensing, and handles all connections simultaneously.

CONNECTING TO THE NETWORK 9

Stages of installation on the network

Installation can be performed by a network or printing administrator. The stages of a

successful installation are:

1 Configuring the network environment

Configure network servers to provide users with access to the CX3641MFP as a

networked printer. For information about configuring network servers in Windows

environments as they relate specifically to the CX3641MFP, see page 11. For information

about using your network, see your network documentation.

2 Physically connecting the CX3641MFP to a functioning network

Prepare a network node for the CX3641MFP. Obtain cable, route it to the location where

the CX3641MFP is to be installed, and attach the cable to the network connector of the

CX3641MFP. For details, see page 18.

3 Setting up the CX3641MFP

Configure the CX3641MFP for your printing and network environment (see page 21).

4 Preparing user computers for printing

Install the files needed for printing, install user software, and connect the user computers

to the network. The software installation is described in Printing from Windows and

Printing from Mac OS.

5 Administering the CX3641MFP

Monitor and maintain system performance and troubleshoot problems that may arise

(see “Administering the CX3641MFP” on page 28).

CONNECTING TO THE NETWORK 10

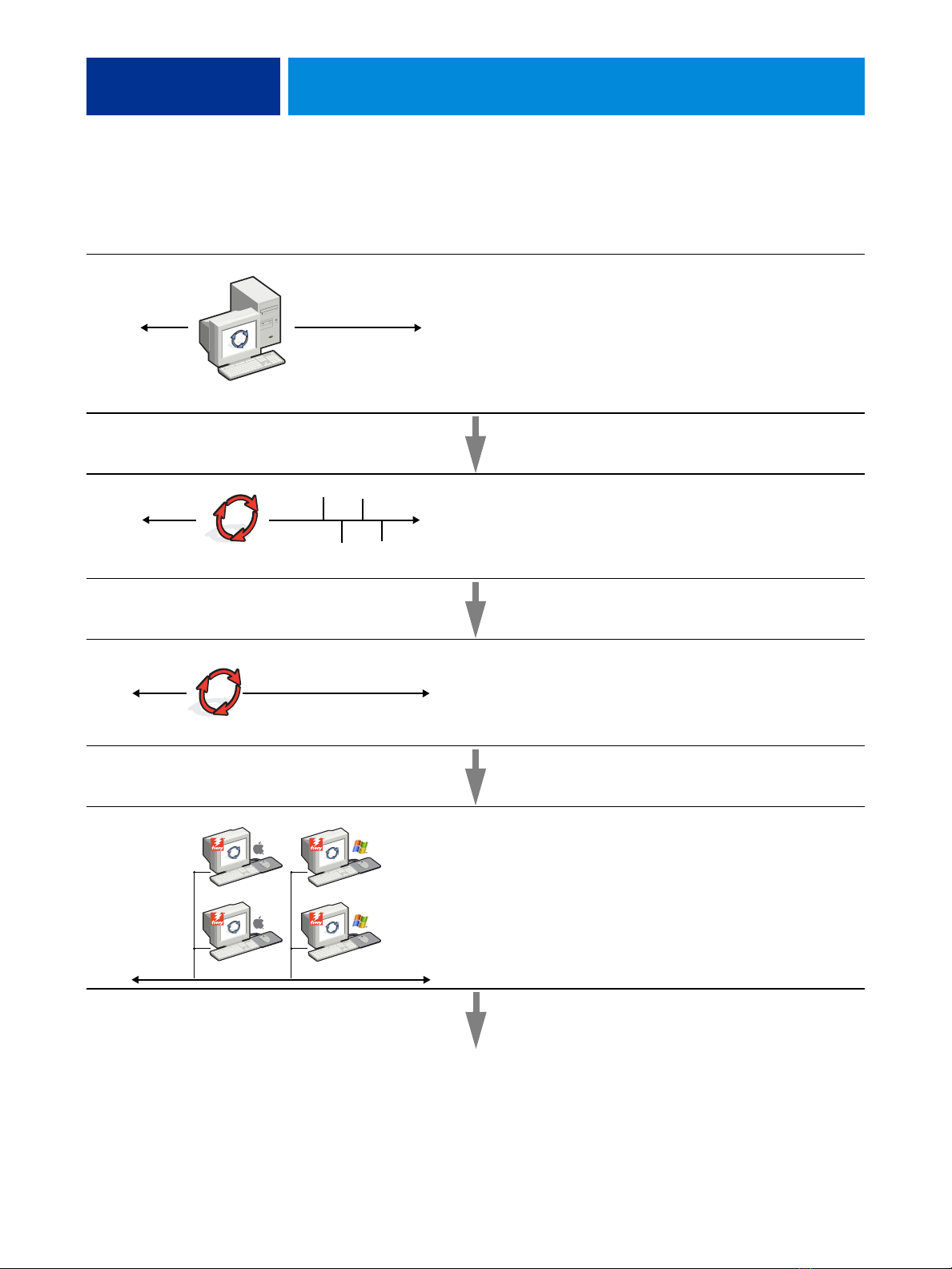

Summary of CX3641MFP network installation

CX3641MFP available on the network

Network server configuration

Network server

Configure network servers to specify CX3641MFP print

queues and CX3641MFP users.

Connection

CX3641MFP

Prepare a network node. Connect the CX3641MFP to the

network.

CX3641MFP Setup

Configure default settings for the options in the Setup

menus.

Client computer Setup

At computers where users print to the CX3641MFP:

• Install the appropriate printer files and connect to one

or more print connections.

• Install utilities and an Internet browser on computers

where users will use them.

• Verify the CX3641MFP in the list of printers.
