C5510 MFP

Setup and Installation Guide

Installation Overview

Notes, Cautions, and Warnings . . . . . . 4

Select Location . . . . . . . . . . . . . . . . . . 4

Checking Package Contents . . . . . . . . 4

Setting Up the Printing Unit . . . . . . . . . 5

Setting up the Scanning Unit . . . . . . . . 6

Unlock the Scan Mechanism . . . . . . . . 6

Connecting the Cables . . . . . . . . . . . . 7

Preparing the Image Drum/Toner

Cartridges . . . . . . . . . . . . . . . . . . . . . . 9

Preparing the Fuser . . . . . . . . . . . . . 10

Loading Paper . . . . . . . . . . . . . . . . . . 11

Turning Power On . . . . . . . . . . . . . . . 12

Network Installation: Windows®

Minimum Configuration Requirements 13

Pre Installation Information . . . . . . . . 13

Internet Communication Features . . . 13

Setting the IP Address . . . . . . . . . . . 13

Installing Drivers and

Network Software . . . . . . . . . . . . . . . 14

Configuring Your MFP

Configuring from the OKI Management

Utility (OKI MFP Network Setup Tool) 15

Configurating from the Web Page . . . 15

Configurating from the Control Panel. 15

Additional Network Software . . . . . . . .16

Faxing . . . . . . . . . . . . . . . . . . . . . . . . .16

Profiles. . . . . . . . . . . . . . . . . . . . . . . . 16

Address Book. . . . . . . . . . . . . . . . . . . 16

Operating Your MFP

Placing Document(s) in the ADF . . . . 17

Placing Document(s) on the Glass . . 17

Loading the Paper Cassette Tray . . . 17

For Additional Information . . . . . . . . . 19

For Assistance . . . . . . . . . . . . . . . . . . 19

NOTES, CAUTIONS, AND WARNINGS

Only use genuine OKI original consumables to ensure the best

quality and performance from your hardware. Non-OKI original

products may damage your printing unit’s performance and

invalidate your warranty. Specifications subject to change

without notice. All trademarks acknowledged.

Thank you for purchasing this Multi-Function product.

SELECT LOCATION

Select a location where you have sufficient access space.

Dimensions: 17.48" (444mm) x 22.09" (561mm) x 26.26"

(667mm) (W x D x H)

CHECKING PACKAGE CONTENTS

Unpack the box and check to see that all components are

included. If any item is missing, contact your dealer

immediately.

NOTE!

A note provides important information to supplement

the main text.

CAUTION!

A caution provides additional information which, if

ignored, may result in equipment malfunction or

damage.

WARNING!

A warning provides additional information which, if

ignored, may result in a risk of personal injury.

NOTE!

In order to send faxes on this MFP, you must have a fax

modem installed in your computer.

Scanning Unit

Main unit

Paper Feed Tray and

Paper Support

Software CD/Electronic

User’s Manual

USB cables (2)*

Power Adapter and cord

Paper stopper

ADF pad (extra

replacement pad)

*Network cable is not

supplied.

Printing Unit

Main unit

Support bracket

Power cord

Toner/Image Drum

cartridges (4) factory

installed

SETTING UP THE PRINTING UNIT

1. Remove the transport tape from front and back of printing

unit.

1. Place the printing unit on the surface you have chosen. Place

the support bracket (1) near where the back of the printing

unit will be.

2. Carefully lift the back of the printing unit and align the wells

under the back of the printing unit with the plugs on the

support bracket. Lower the printing unit on top of the

bracket. This will provide stability for the MFP when the

scanning unit is attached.

3. Make sure the printing unit and the support bracket are

aligned and firmly in place.

4. Remove the orange transport restraints from the scanning

unit mounts. To do this, first release the tape. Then, turn the

locking knob counterclockwise to release the restraint and

pull it out.

NOTE!

Do not remove the orange paper band extending from

inside the printing unit on the right side. This band

provides instructions for preparing the fusing unit.

WARNING!

The support bracket prevents the unit from tipping over

when in use. Using the unit without installing the

support bracket may cause damage or personal injury.

SETTING UP THE SCANNING UNIT

1. Attach the paper support to the paper feed tray.

2. Attach the paper feed tray to the machine.

3. Install the Paper Stopper (1). If using letter size paper, pull

the lever (2) up to stop paper from falling.

4. Position the scanning unit on the mounting posts on top of

the printing unit.

5. Turn the locking knobs clockwise to lock the scanning unit

in place.

Unlock the Scan Mechanism

6. Locate the scan lock switch on the left side of the machine.

7. Lower the cover and move the lock switch to the unlocked

position. Close the cover.

CAUTION!

The scan mechanism is locked during transport to

prevent damage. Be sure to unlock it before using the

machine.

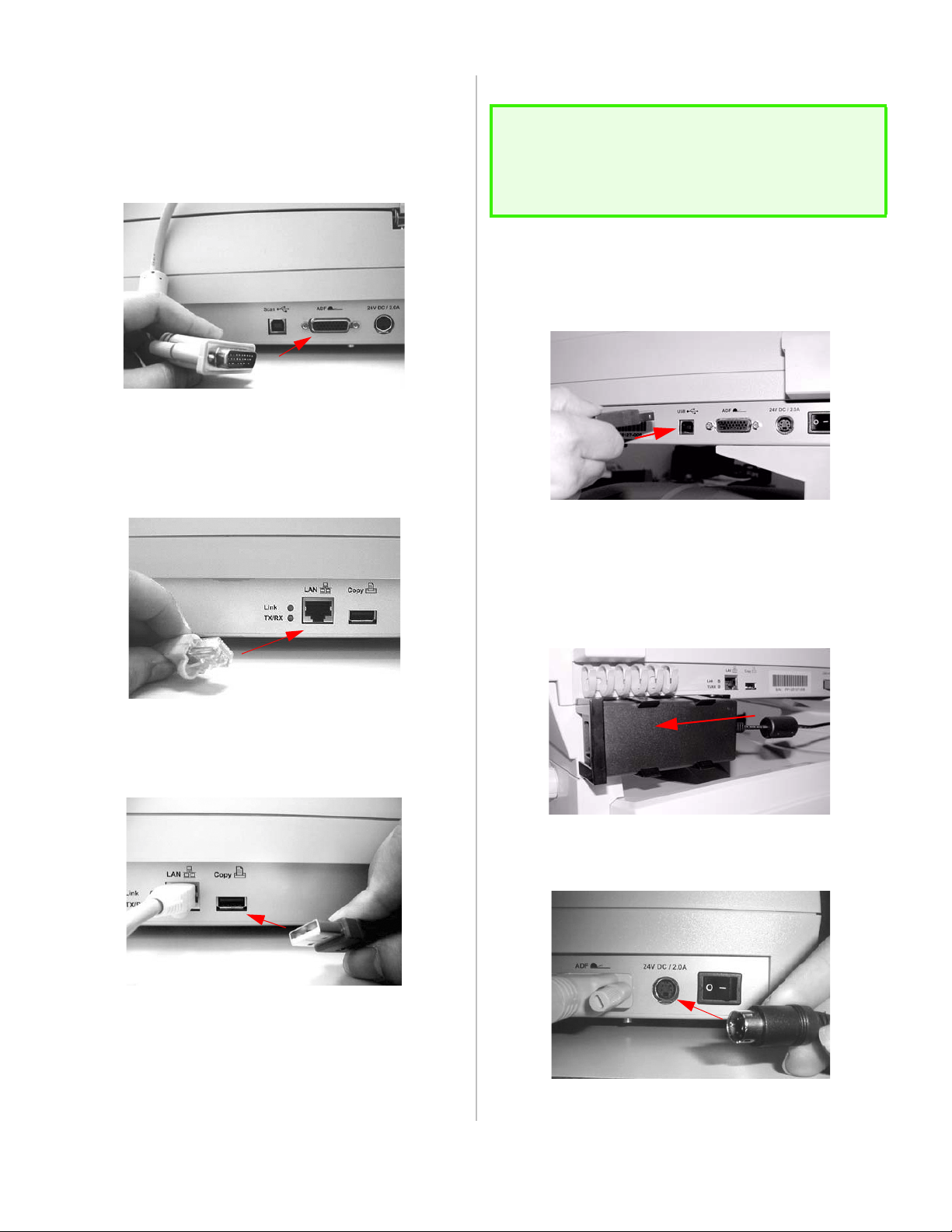

CONNECTING THE CABLES

Connect the ADF cable

Connect the ADF cable (attached to the documents cover), to the

ADF port on the scan unit.

Connect The Ethernet cable

Connect one end of your Ethernet LAN cable to an available port

of your Ethernet hub. Connect the other end to the LAN port at

the back of the scan unit.

Connect the printing unit cable

Connect one end of the USB cable (short cable) to the printing

unit. Connect the other end to the Copy port of the scanning unit.

Connect the computer cable

Connect one end of the USB cable (long cable) to the USB port

on the scanning unit. DO NOT connect the other end to your

computer. Complete the connection only after installing the

driver.

Connect the scanning unit power adapter

1. To mount the power adapter box to the back of the scanning

unit, position the clip on the back of the box on the scanning

unit frame as shown, then slide the box to the left until it

locks in place.

2. Be sure the power switch is in the "O" position. Connect the

power adapter cable to the power port.

IMPORTANT NOTE!

To ensure the scan function works properly, install the

Scanning Unit Driver before connecting the USB cable

to your computer.

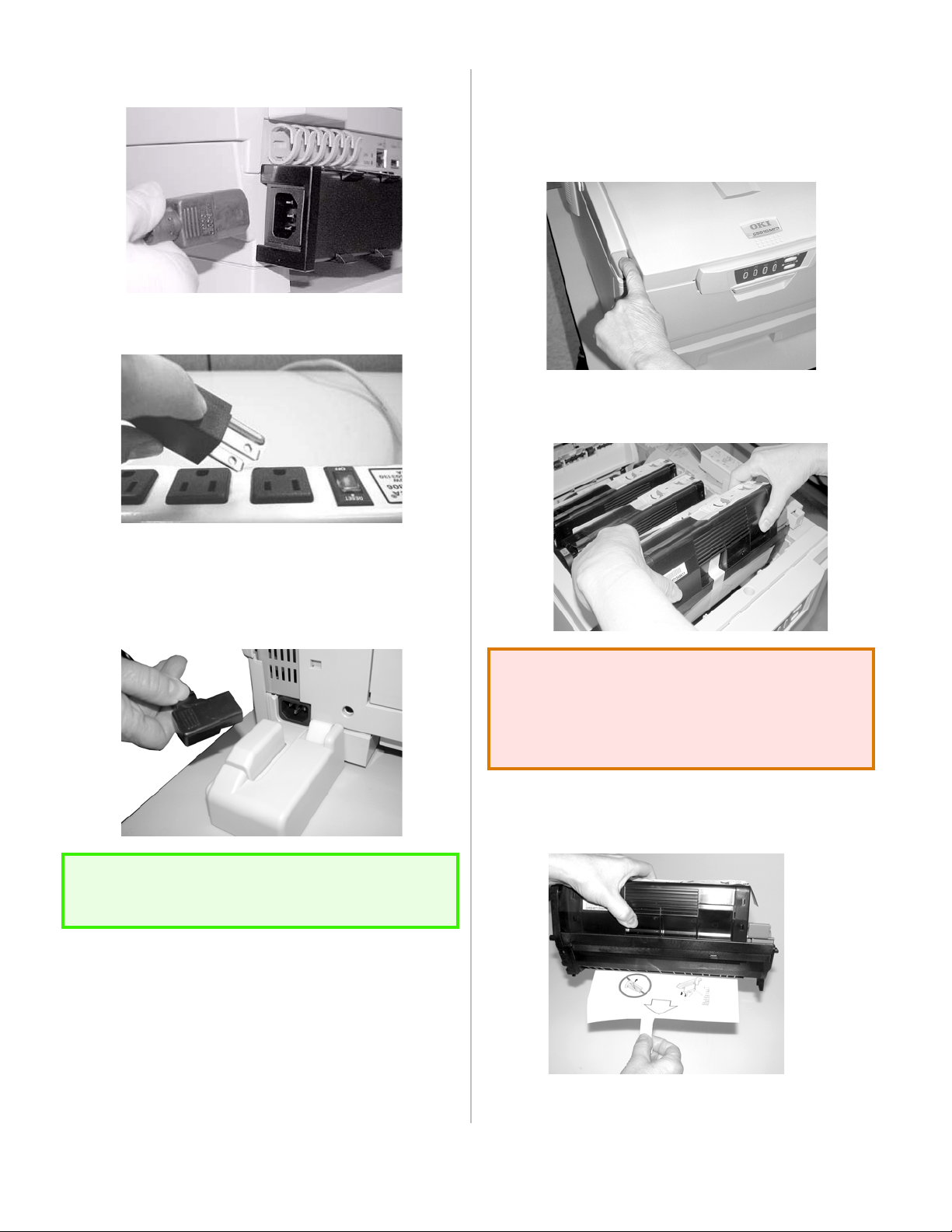

3. Connect the power cord to the power adapter.

4. Connect the other end of power cord to a power outlet.

Connect the printing unit power cable

Be sure the printing unit power switch is in the "O" position.

Connect printing unit power cable to printing unit. Connect the

other end to a power outlet.

PREPARING THE IMAGE DRUM/TONER

CARTRIDGES

1. Press the cover release button and lift the top cover.

2. Carefully lift the black toner/drum cartridge out of the

printing unit.

3. Unwrap the protective sheet and place the cartridge on a flat

work surface.

IMPORTANT NOTE!

Do not turn power on scanning unit or printing unit!

CAUTION!

The green image drum surface at the base of the

cartridge is very delicate and light sensitive. Do not

touch it and do not expose it to normal room light for

more than 5 minutes.

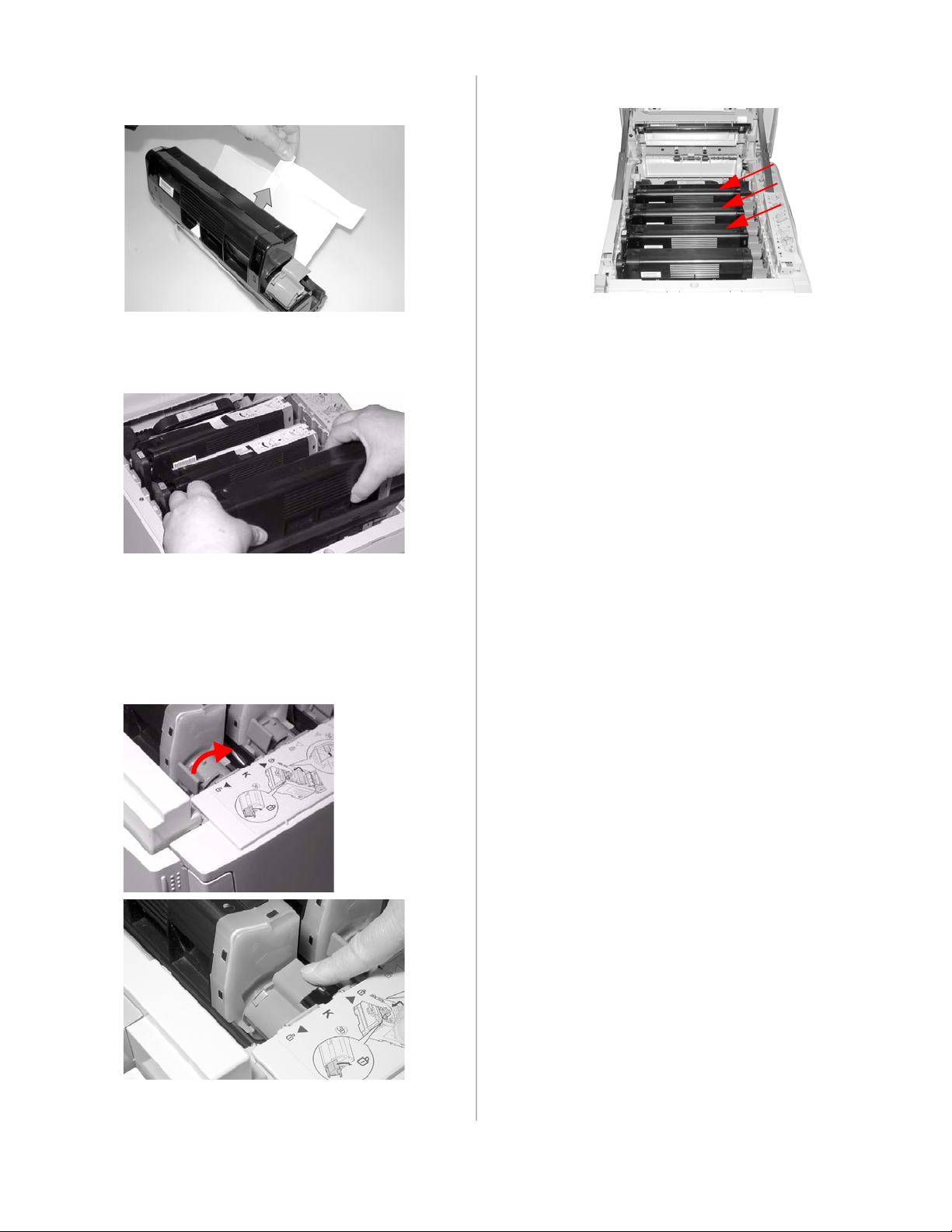

4. Pull out both the protective sheet and the plastic sheet in the

direction of arrow.

5. Carefully place the toner/drum cartridge back into the

printing unit.

6. Push the blue lock lever towards the back of the unit as far

as it will go. This unlocks the toner cartridge to release toner

into the image drum.

7. Repeat steps 2 to 6 with remaining toner/ drum cartridges.

PREPARING THE FUSER

1. Observe the instructions printed on the orange band.

2. Remove the orange band. Press firmly on the blue lock (1)

to release the orange transport restraint (2). Pull the restraint

out in the direction of the arrow.

3. Press firmly on both sides of the cover to close it.
