Premium Digital Locker Lock
LF23-HL
User Guide
LF23-HL
User Guide
2 / 22
Strong Points 3
Safety Instructions 4
Package included & Specification 5
Part Names 6
3 Management Levels 7
Function Table 8
Register, Change Owner Card 11
Register, Change Master Card 12
Page
Table of Contents
Using Master Card/Code 13
Register, Change User Card/Code 14,15
Using Public Mode User Code 16
Using Private Mode User Code 17
Using User Card 18
Register & Using User Card+Code 19
Register & Using Cleaner Card 20
Emergency Opening by Force 21
Reset, Change Battery,
Emergency Power Supply
22
Functional Settings 9,10

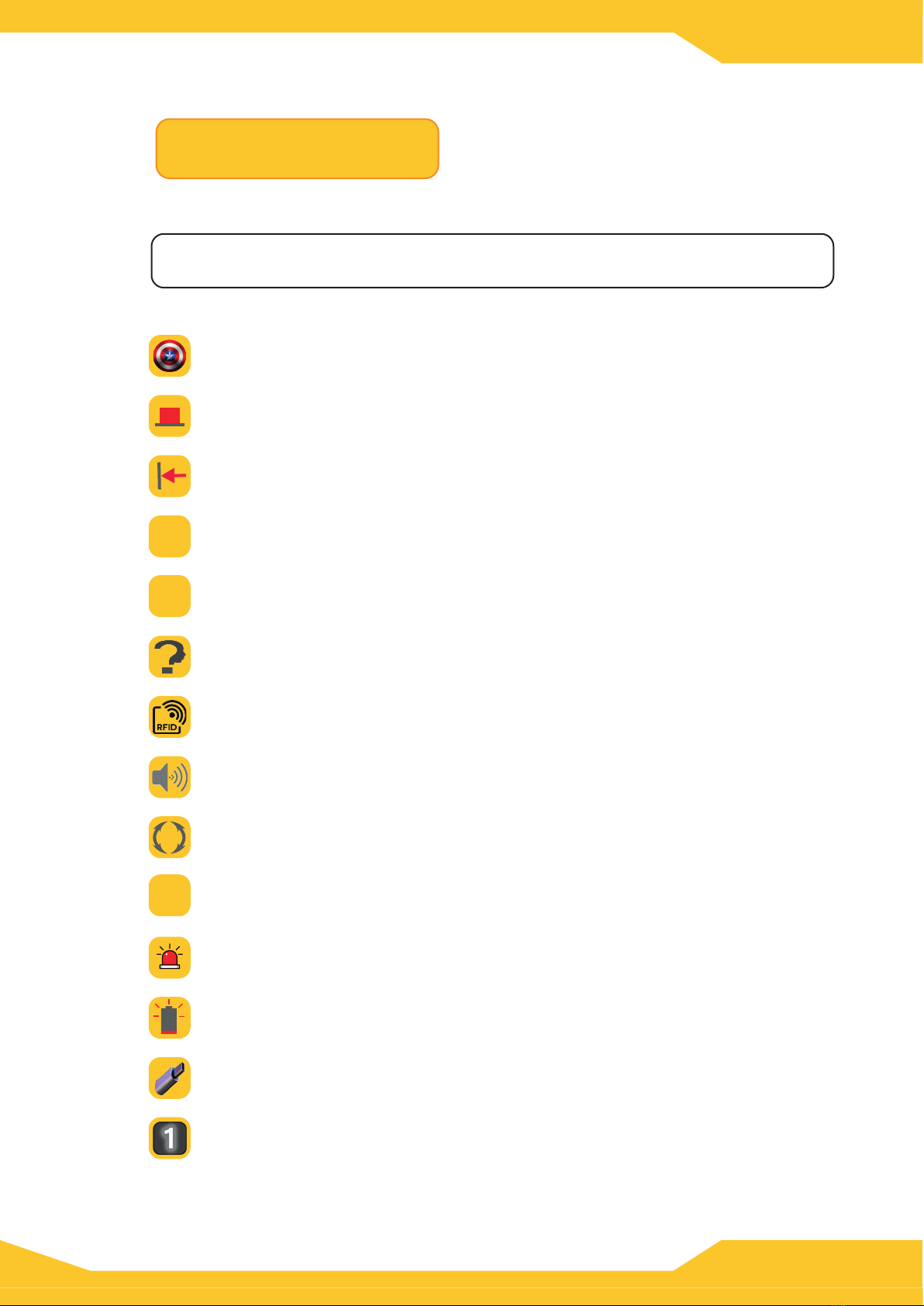

Strong Points
PW
3 management levels
1/0
Public mode, private mode for password
Durable diecasting front
Auto locking, manual locking
Lock freezed 30 seconds after 5 times wrong entry
5
X
Strong warning alarm when froced opening
Intuitive pop-up in-use indicator (patented)
Pickproof deadlatch mechanism (patented)
Low battery alarm (”little star” melody)
USB-C emergency power port
Password + RFID Digital Locker Lock LF23-HL
Imaginary number function
5 level volume control
Keypad backlight (except white front)
Enhanced security with 13.56 MHz RFID
LF23-HL
User Guide
3 / 22
Do not disassemble or modify the product.
Do not wipe with flammable liquid such as
alcohol, benzene, thinner.
Do not give excessive impact to the keypad.
Be careful not to let water or liquid into
the product.
Keep away from flame or excessive heat.
Replace the battery if there is a leak.
Safety Instructions
Do not mix new and used battery.
Administrator card & password should be
managed carefully for security.
LF23-HL
User Guide
4 / 22
제품의 구성

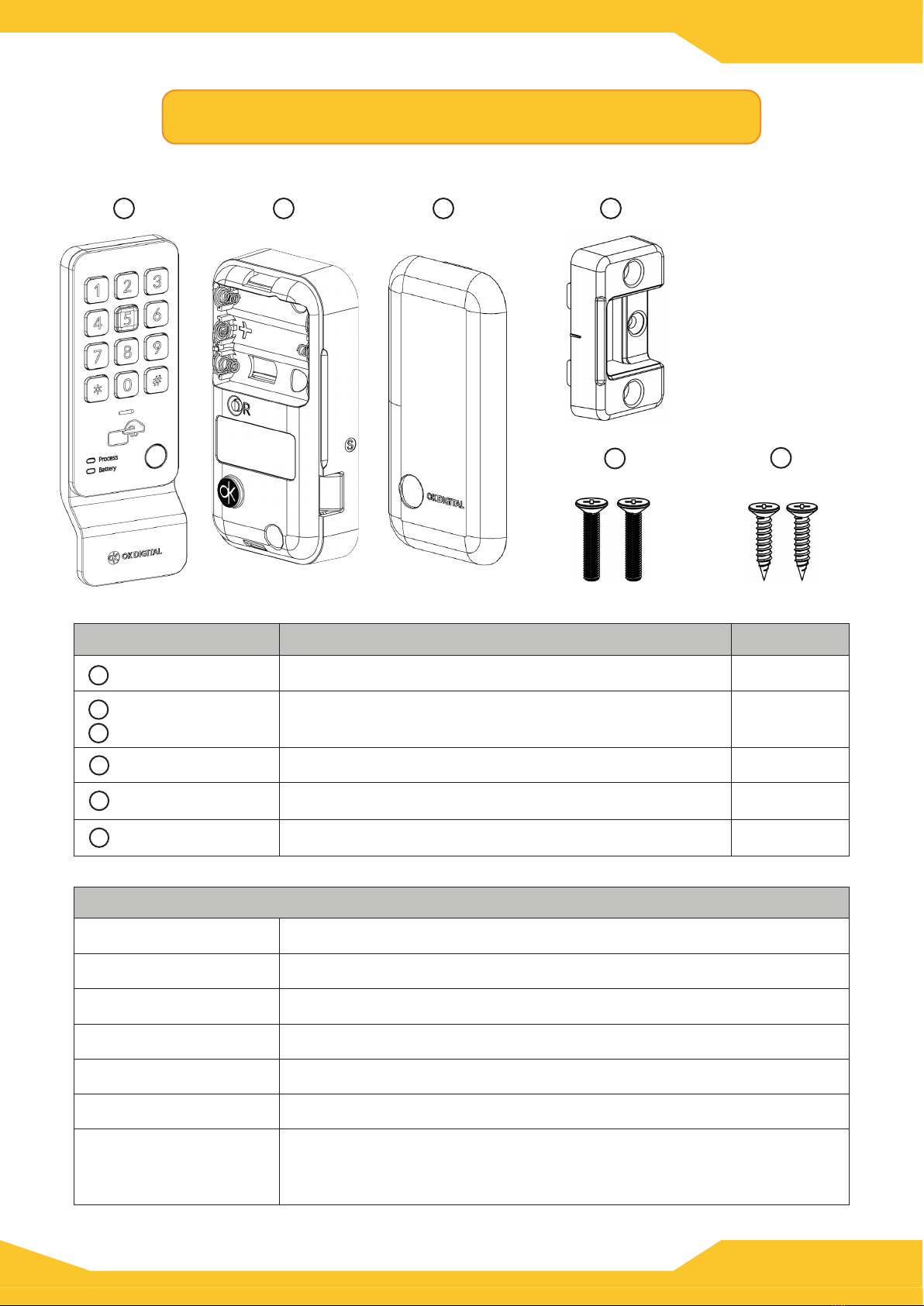

Package included & Specification
12 3 4
56
Model No.
Power Source
Authentication
Color
Safety Approved
Material
LF23-HL
AA 1.5V Battery 3 pcs
13.56 MHz RFID Card & Password
Front : Black, White Rear : Black
KC, CE, RoHS
Diecasting, PC, ABS
Installable Door
Thickness
Product Specification
Q’tyDescription
Front
Rear
Strike
1 pc
1 pc
1 pc
Item
Battery Cover
2
3
1
4
2 pcsBolt
6
Screw 2 pcs
57.3 x 160.7 x 20 mm
66 x 125 x 30 mm
35 x 65 x 15 mm
M4 for assemble front & rear
M4 x 20 for Strike (*3 pcs for left hand door)
7
LF23-HL
User Guide
5 / 22
15 mm (M4 x 16mm bolts)
18 - 20 mm (M4 x 20mm bolts, included)
25 mm (M4 x 25mm bolts)
Part Names
(FRONT)
(REAR)
Battery
Opening
Button
Reset
Button
Deadlatch
Battery
Cover
Battery LED
Process Status LED
Handle
Keypad
Punching hole location
for emergency opening
by force
In-use indicator
USB-C Emergency
Power Port
RFID Card
Sensing Area
LF23-HL
User Guide
6 / 22
Management Levels
OWNER (Top level Management RFID Card)
13.56 MHz RFID Card, 1 pc
First used card registered as Owner
Register or delete Master & Cleaner
Setting all functions
Does not have lock or unlock function
Please keep in safe place for security
MASTER (Mid-level Management RFID Card or Password)
Up to five 13.56 MHz RFID card, One 4-12 digit code
Register or delete User
Unlock the lock if loose user card/code, but cannot lock
there will be warning alarm and the user card/code deleted right
after using the master
Please keep in safe place for security. Re-rigister all masters if loose
any one of the master card/code
USER (User RFID Card or Password)
CLEANER (Cleaning Purpose RFID Card)
Up to five 13.56 MHz RFID card
Lock or unlock the lock
Re-register all cleaner cards if lost any one of the cleaner card.
or
or
Master
Code
(4-12 digit, imaginary)
User
Code
(4-12 digit, imaginary)
Keep in safe place and the owner and master
Cleaner card can unlock and lock anytime and cannot trace of the use.
OK Digital Co., Ltd. is not responsible for any theft caused by the illegal use of the master
and cleaner card.
Owner and master must be registered first before using the lock.
Up to five 13.56 MHz RFID card, One 4-12 digit code
Lock or unlock the lock
Re-register all users if loose any one of user card/code
Lock will be freezed 30 seconds after 5 times wrong entry.
LF23-HL
User Guide
7 / 22
LF23-HL
User Guide
8 / 22
Function Table
Factory
Setting
+
Beep Volume
(1-5 levels) Up : Down : 4th levels
(Press the button
& touch owner card)
Beep
Functions Key No. LED
(Process)
Private Mode
Card/Code B- 4 times
Public Mode
Code Public
BB 2
Beep
On/Off On
Off : BB
On : B- 2
2
AND, OR
Mode AND : BB
OR : B-
2
2
OR Mode
Use : BB
Not Use : B-
2
2
Cleaner Card
Use / Not Use
Imaginary
Function
Use / Not Use
Not Use
Use : BB
Not Use : B-
2
2
Self / Auto
Locking Auto : BB
Self : B- 2
2
Master Code
Use / Not Use Use : BB
Not use : B-
2
2
Deletes All
except Owner 6
BBBB
Not Use
Self Locking
Not Use
press 4 seconds
No need Owner
Functional Settings
Setting Private Mode Card/Code
Press button & touch
owner card.
Locked and the setting
is completed.
Default user code is
“1111”. Change it for
security.
Setting Public Mode Code
Press button & touch
owner card.
Public mode settign is
completed .
On/Off Beep Sound
Press button & touch
owner card.
Setting will be completed
to off or on.
Warning alarm will remain
active even if “off”
the beep sound.
AND/OR Mode
Press button & touch
Owner card.
Setting will be completed
to “AND” or “OR” mode.
Setting Cleaner Card Use/Not Use
Press button & touch
owner card.
Setting will be completed
to use or not use.
The cleaner card does not
leave any traces of use.
Please take care of it.
Setting Imaginary Function Use/Not Use
Press button & touch
owner card.
Setting will be completed
to use or not use.
LF23-HL
User Guide
9 / 22
LF23-HL
User Guide
10 / 22
Setting self/auto locking
Press button & touch
owner card.
Setting will be completed
to self or auto locking.
In auto locking mode, it
will be locked automati-
cally when close the door.
Setting master code use/not use
Press button & touch
owner card.
Setting will be completed
to use or not use.
Factory default code is
“5351” when use master
code.
Change it for security.
Delete all except Owner card
Press button & touch
owner card.
All master, user and
cleaner cards will be
deleted.
Need to set the master
card to use the lock.
All functions and settings
are still remain.
Adjust volume of the beep sound
Press and button at
After a beep, press to
increase, press to
decrease the volume
for five levels.
No need to use owner key
for volume control.
Available auto locking
mode only for password.
the same time for 4 seconds.
