Valor 3000 Series Scales EN-1

1. INTRODUCTION

This manual contains installation, operation and maintenance instructions for the

ValorTM 3000 Series Scales. Please read the manual completely before using the

scale.

1.1 Safety Precautions

Please follow these safety precautions:

• Verify that the AC Adapter input voltage matches the local AC power supply.

• Use the scale only in dry locations.

• Do not operate the scale in hostile environments.

• Do not drop loads on the platform.

• Do not place the scale upside down on the pan.

• Service should be performed only by authorized personnel.

1.2. Controls

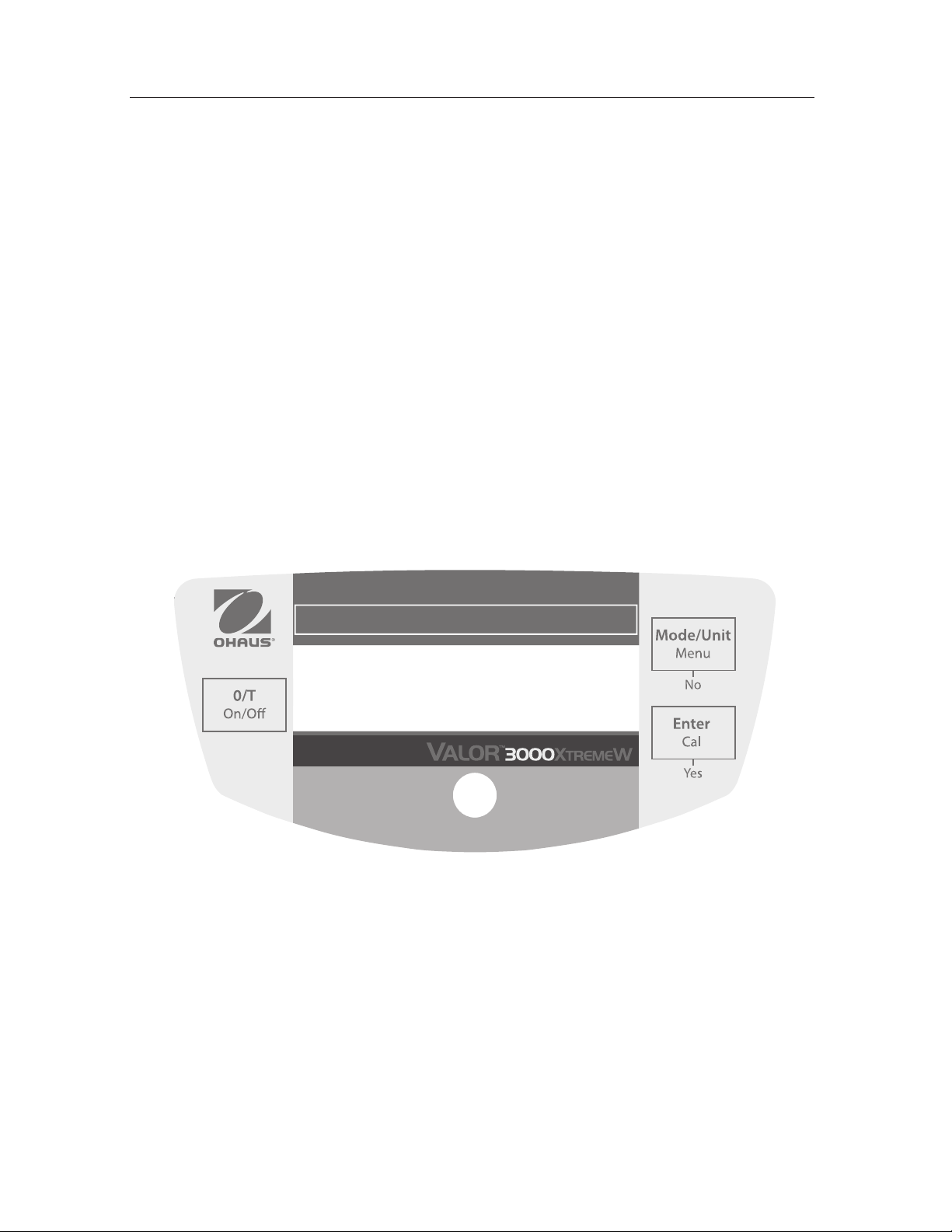

Figure 1-1. Controls.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EN-2 Valor 3000 Series Scales

TABLE 1-1. CONTROL FUNCTIONS.

Button

Functions

O/T On/Off

Short Press: (when off) Turns scale on

(when on) Sets display to zero

Tares weight of item on pan

Long Press:

Turns the scale off

MODE/UNIT

Short Press Steps through active units and modes

Long Press: Enters menu

Short Press (Menu)

“No” (toggles through available settings)

ENTER Cal

Short Press: Stores 100% reference in % mode

Stores reference sample in SG mode

Long Press Initiates span calibration process

Short Press(Menu)

Yes” (selects/accepts displayed setting)

2. INSTALLATION

2.1 Package Contents

• Scale

• Pan

• Power Adapter

• Instruction Manual

• Warranty Card

2.2. Location

Use the scale on a firm, steady surface. Avoid locations with excessive air current,

vibrations, heat sources, or rapid temperature changes. Adjust the leveling feet so

the bubble is centered in the circle.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Valor 3000 Series Scales EN-3

Figure 2-1. Leveling the Scale.

2.3. Transport lock

Open the battery cover. Move the transport lock switch to “Unlock” position. Install

4 C (LR14) batteries, if desired. Reinstall the battery cover

Figure 2-2. Battery Installation.

2.4 Power

The AC adapter (included) may be used to power the scale when battery power is

not available. Remove the rubber seal in the bottom. Store it in the location

provided. Connect the AC adaptor plug to the input jack.

NOTE: To prevent water ingress during cleaning, insert back rubber seal into the

input jack recess.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EN-4 Valor 3000 Series Scales

Figure 2-3. Power Connection and Sealing.

2.5 Initial Calibration

When the scale is first installed, it should be calibrated to ensure accurate weighing

results.

Press and hold the ENTER/Cal button until CAL is displayed. When the button is

again pressed and released, the display shows -C- while zero reading is stored.

Next, the display shows the calibration weight value in grams. Place the specified

calibration weight (sold separately) on the pan. See Table 2-1 for appropriate

weights. The display shows -C- while the reading is stored. The display returns to

the previous application mode and scale is ready for use.

TABLE 2-1. CALIBRATION WEIGHTS.

MODELS

V31XH202

V31XH402

V31XH2

V31XH4

V31X501

Calibration

Weights

200g 400 g 2 kg 4 kg 500 g

MODELS

V31X3

V31X6

V31XW301

V31XW3 / V31X3N

V31XW6 / V31X6N

Calibration

Weights

3 kg 6 kg 300 g 3 kg 6 kg

3. OPERATION

3.1 Weighing Mode

Use this mode to measure the weight of a sample in the selected unit of measure.

1. Press MODE/UNIT/Menu until the desired unit icon is displayed.

2. Put an empty container on the pan, then press O/T/On/Off to tare the container

weight.

3. Add material to the container. The display shows the weight of the material.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Valor 3000 Series Scales EN-5

3.2 Percent Mode

Use this mode to measure the weight of a sample as a percentage of a reference

weight.

1. Press MODE/UNIT/Menu until Set.rEF and the % icon are displayed.

2. Press No to use the reference weight in memory and proceed to step 6.

3. Press Yes to establish a new reference. Scale display will now blink until

reference is stored.

4. Put an empty container on the pan, then press O/T/On/Off to tare the container

weight.

5. Add the desired amount of material to the container, then press ENTER/Cal to

store the displayed weight. The display shows 100%.

6. Replace the reference material with new material. The display shows the

percentage of the sample compared to reference weight.

3.3 Specific Gravity Mode

Use this mode to measure the specific gravity of a sample.

1. Press MODE/UNIT/Menu until Set.rEF and the S icon are displayed.

2. Press No to use the reference weight in memory and proceed to step 6.

3. Press Yes to establish a new reference weight. Scale display will now blink until

reference is stored.

4. Put an empty container on the pan, then press O/T/On/Off to tare the

container weight.

5. Fill the container with water, then press ENTER/Cal to store the displayed

weight. The display shows the water weight with the S icon blinking.

6. Replace the water with the same volume of sample material, then press

ENTER/Cal. The display shows the specific gravity of the sample.

3.4 Fluid Ounce Mode

Use this mode to measure the fluid ounce volume of a sample.

1. Press MODE/UNIT/Menu until the FL icon is displayed.

2. Put an empty container on the pan, then press O/T/On/Off to tare the

container weight.

3. Fill the container with sample material. The display shows the volume of the

sample.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EN-6 Valor 3000 Series Scales

4. SETTINGS

The Menu allows the user to customize scale settings.

4.1 Menu Navigation

Press and hold MODE/UNIT/Menu button until SEtUP is displayed, then release it.

Press Yes to enter the displayed menu. or press No to advance to the next menu.

Once in the menu, press Yes to view the menu item setting or press No to move to

the next menu item. When viewing the setting, press Yes to accept the setting, or

press No to change the setting. When End is displayed, press Yes to advance to the

next menu or No to return to the top of the current menu.

4.2 Setup Menu

STABILITY RANGE

Set the stability range to 0.5d, 1d, 2d or 5d (divisions).

AUTO ZERO TRACKING RANGE

Set the automatic zero tracking range to OFF, 0.5d

, 1d, 3d

(divisions).

FILTER LEVEL

Set the filter level to LO (low), ME (medium), or HI (high).

BACK LIGHT

Set the back light functionality to OFF (always

off), ON (always on) or Auto (turns on when a

key is pressed or the displayed weight changes).

AUTO OFF

Set the automatic shut off functionality to ON (shut off after

5 minutes) or OFF (stays on).

POWER ON UNIT

Set the unit of measure displayed at startup to g, kg, lb, oz

or lb:oz.

GLOBAL RESET

Select YES (reset menus to factory defaults) or NO (do not

reset). Units will be set to factory defaults.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Valor 3000 Series Scales EN-7

Default

Stability Range

Auto zero

Tracking

0.5d

Filter Level

Back Light

Auto

Auto off

LEGAL FOR TRADE

This menu item is only included in models V31XW301,

V31XW3, V31XW6, V31X3N and V31X6N. Refer to

Section 5 for details.

Set the legal for trade operation to ON or OFF.

NOTE

:When Legal For Trade is set to ON, the Menu settings are affected as follows:

• Calibration is disabled and hidden.

• The Stability range setting is locked at the 1d setting and hidden.

• The Auto Zero Tracking range setting is locked at the 0.5d setting and hidden.

• The Power On Unit is locked at its current setting and hidden.

• The Filter setting is locked at its current setting and hidden.

• The Backlight setting is unlocked and visible.

• The Auto Off setting is unlocked and visible.

• The Global reset setting is locked at the NO setting and hidden.

• The Kilogram, Gram, Pound and Ounce units are locked at their current setting

(ON or OFF) and hidden.

• The Pound:Ounce and Fluid Ounce units are locked at the OFF setting and hidden.

• The Percent mode is locked at its current setting (ON or OFF) and hidden.

• The Specific Gravity mode is locked at the OFF setting and hidden.

NOTE: When Legal for Trade is set to ON, it is necessary to set the security switch to

ON before exiting the menu. If the security switch is not set to ON, the message

“SW.OFF” is displayed and the indicator returns to the menu.

END

Advance to the Unit/Mode menu (Yes) or back to Setup (No).

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EN-8 Valor 3000 Series Scales

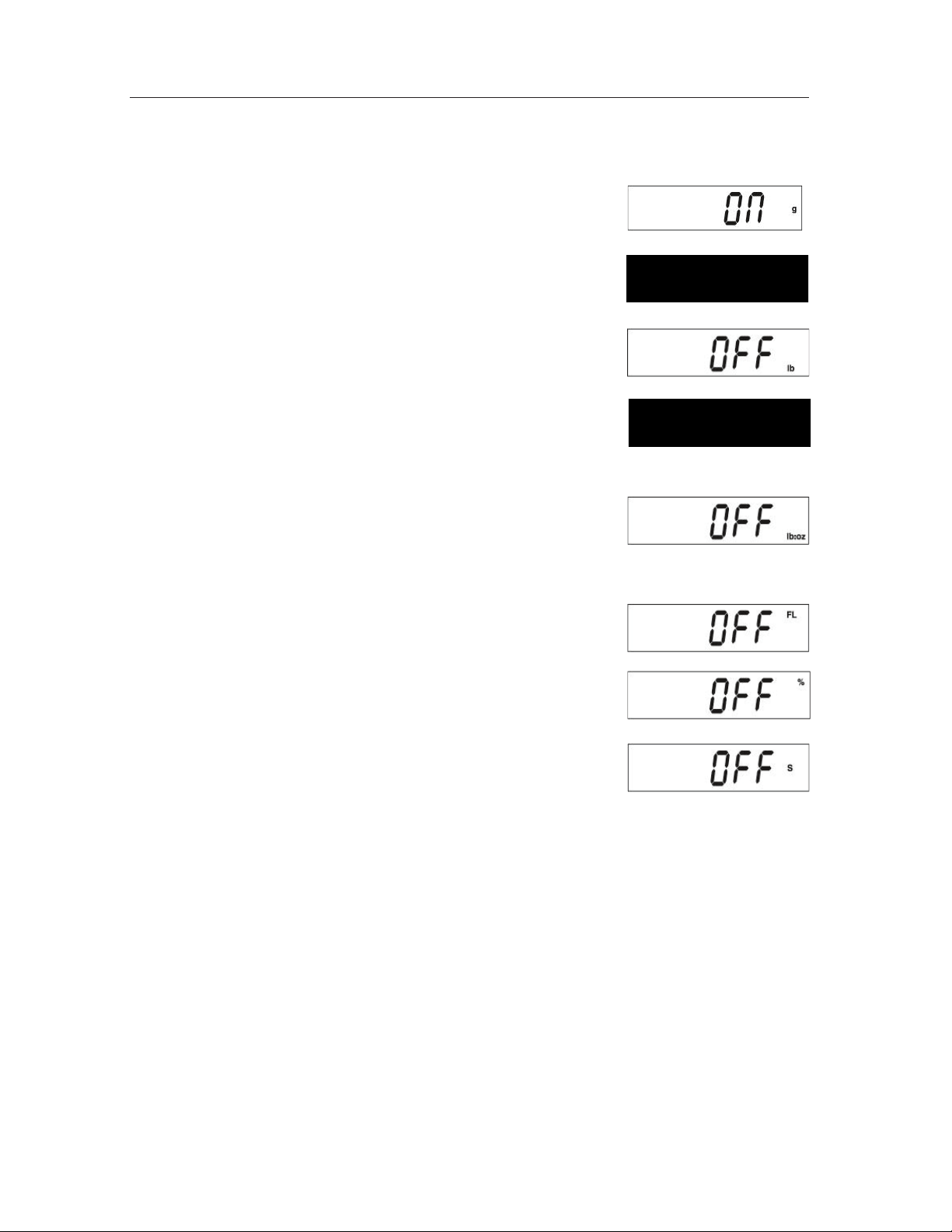

4.3 Unit/Mode Menu

GRAM UNIT

Set grams ON or OFF.

KILOGRAM UNIT

Set kilograms ON or OFF.

POUND UNIT

Set pounds ON or OFF.

OUNCE UNIT

Set ounces ON or OFF. If ON is selected, set DEC

(decimal ounces) or FrA (fractional ounces)

POUND OUNCE UNIT

Set pound ounces ON or OFF. If On is selected, set DEC

(decimal ounces) or FrA (fractional ounces)

FLUID OUNCE MODE

Set fluid ounces ON or OFF.

PERCENT MODE

Set percent ON or OFF.

SPECIFIC GRAVITY MODE

Set specific gravity ON or OFF.

END

Exit to the previous Unit/Mode (Yes) or g (No).

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Valor 3000 Series Scales EN-9

5. LEGAL FOR TRADE

When model V31XW301, V31XW3, V31XW6, V31X3N or V31X6N is used in trade

or a legally controlled application it must be set up, verified and sealed in

accordance with local weights and measures regulations. It is the responsibility of

the purchaser to ensure that all pertinent legal requirements are met.

5.1 Settings

Before verification and sealing, perform the following steps:

• Set the Security Switch to the OFF position.

• Set LFT to OFF under Setup menu.

• Calibrate the scale.

• Enter the Units menu.

• Set the desired units of measure to ON.

• Exit the Units menu.

• Enter the Setup menu.

• Set the desired Filter level.

• Set the desired Power On Unit.

• Set LFT to ON.

• Set the Security Switch to ON.

• Exit the Setup menu.

Figure 5-1. Security Switch Settings

5.2 Verification

The local weights and measures official or authorized service agent must perform the

verification procedure.

OFF

Switch

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels OHAUS Échelle

OHAUS

OHAUS 1200-00 Manuel utilisateur

OHAUS

OHAUS RE-C series Manuel utilisateur

OHAUS

OHAUS Ranger 3000 Series Manuel utilisateur

OHAUS

OHAUS 4000W Series Manuel utilisateur

OHAUS

OHAUS Navigator Manuel d'utilisation et d'entretien

OHAUS

OHAUS SPJ Carat Manuel utilisateur

OHAUS

OHAUS RA Series Manuel utilisateur

OHAUS

OHAUS RC31P1502-M Manuel utilisateur

OHAUS

OHAUS Ranger 3000 Series Manuel utilisateur

OHAUS

OHAUS Adventurer Pro AV811 Series Manuel utilisateur

OHAUS

OHAUS Compass CX Series Manuel utilisateur

OHAUS

OHAUS SD35 Manuel utilisateur

OHAUS

OHAUS Valor 7000 series Manuel utilisateur

OHAUS

OHAUS Defender 2200 Manuel utilisateur

OHAUS

OHAUS Adventurer Pro Balances Manuel utilisateur

OHAUS

OHAUS DISCOVERY BALANCE Manuel utilisateur

OHAUS

OHAUS 700 Series Guide de démarrage rapide

OHAUS

OHAUS Defender 3000 Series Manuel utilisateur

OHAUS

OHAUS Ranger Manuel utilisateur

OHAUS

OHAUS Compass CX221P Manuel utilisateur

OHAUS

OHAUS Defender 2000 Series Manuel utilisateur

OHAUS

OHAUS PS Series Manuel utilisateur

OHAUS

OHAUS Ranger 3000 Series Manuel utilisateur

OHAUS

OHAUS Ranger Count 2000 Series Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
