OHAUS SCOUT PRO Manuel utilisateur

ScoutTM Pro Balance

Instruction Manual

Balanza ScoutTM Pro

Manual de instrucciones

Balance ScoutTM Pro

Manuel dinstruction

1 Scout Pro English cover 71160417.p65 3/6/2003, 10:59 AM1

All manuals and user guides at all-guides.com

all-guides.com

Marking Directive Standard

73/23/EEC EN60950: 1992 + A1: 1993 + A2: 1993

Electrical e uipment for use + A3: 1995 + A4: 1997

within specified voltage limits

89/336/EEC EN61326: 1997 + A1: 1998

Electomagnetic compatibility Electrical e uipment for measurement, control

and laboratory use

Ted Xia

President

Ohaus Corporation

Pine Brook, NJ USA

Date: March 6, 2003

Ohaus Corporation

19A Chapin Road

P.O. Box 2033

Pine Brook, NJ 07058

USA

hereby declares that the following products are in conformity with the EEC directives

listed below (including any and all modifications).

Balance models: SP202, SP401, SP402, SP601, SP2001, SP2001N, SP4001,

SP6000, SPE123, SPE202, SPE402, SPE401, SPE601, SPE2001, SPE4001,

SPE6000, SPU123, SPU202, SPU402, SPU401, SPU601, SPU2001, SPU4001

SPU6000, SPG202F, SPG402F, SPG401F, SPG601F, SPG2001F, SPG4001F,

SPG6000F, SPS202F, SPS402F, SPS401F, SPS601F, SPS2001F, SPS4001F,

SPS6000F, JS40, JS500, JS1200

Declaration of Conformity

The undersigned, representing the following manufacturer

ISO 9001 Certificate for Ohaus Corporation  Ohaus Corporation, USA was examined and evaluated in

1994 by the Bureau Veritus Quality International (BVQI) and was awarded the ISO 9001 certificate. This

certifies that Ohaus Corporation, USA, has a uality system that conforms to the international standards

for uality management and uality assurance (ISO 9000 series). Repeat audits are carried out by BVQI

at intervals to check that the uality system is operated in the proper manner.

Johan Dierbach

General Manager

Ohaus Europe

Greifensee, Switzerland

Date: March 6, 2003

Last two digits of the year which the CE marking was affixed: 03

1 Scout Pro English cover 71160417.p65 3/6/2003, 10:59 AM3

All manuals and user guides at all-guides.com

CC NOTE: This e uipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This e uipment generates, uses and can radiate radio

fre uency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this e uipment

does cause harmful interference to radio or television reception, which can be

determined by turning the e uipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the e uipment and receiver.

 Connect the e uipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

This class B digital apparatus complies with Canadian ICES-003.

Cet appariel numéri ue de la classe B est conforme à la norme NMB-003 du

Canada.

AS/NZS4251.1 AS/NZS4252.1 Emission and Immunity

315

1 Scout Pro English cover 71160417.p65 3/6/2003, 10:59 AM4

All manuals and user guides at all-guides.com

SCOUT PRO EN-1

TABLE OF CONTENTS

1. INTRODUCTION ................................................................................ EN-3

Safety Precautions ............................................................................ EN-3

2. INSTALLATION .................................................................................. EN-3

Unpacking ...................................................................................... EN-3

Installing Components ...................................................................... EN-4

Releasing the Shipping Lock ......................................................... EN-4

Platform Installation ..................................................................... EN-4

Security Bracket ........................................................................... EN-4

Selecting the Location....................................................................... EN-4

Balances with Level Adjustment ....................................................... EN-4

Connecting Power ............................................................................ EN-5

Battery Installation ....................................................................... EN-5

AC Adapter Installation .................................................................. EN-5

3. OPERATION..................................................................................... EN-5

Overview of Controls and Display Functions ........................................ EN-5

Button Functions .......................................................................... EN-7

Symbols Used for Operation of the Balance ..................................... EN-8

Turning the Balance On ................................................................ EN-8

Turning the Balance OFF ............................................................... EN-8

Navigating the Menus....................................................................... EN-9

Menu Structure ............................................................................ EN-9

Entering the Menus .................................................................... EN-10

Accepting/Bypassing an Individual Menu Item ............................... EN-10

Entering the .S.E.T.U.P. Menu ...................................................... EN-11

Turning Display Hold or Totalize Mode On..................................... EN-11

Exiting the .S.E.T.U.P. Menu ........................................................ EN-12

Entering the .U.N.I.T. Menu.......................................................... EN-12

Parts Counting .......................................................................... EN-13

2 Scout Pro English T of C 71160417.p65 3/6/2003, 10:59 AM1

All manuals and user guides at all-guides.com

EN-2 SCOUT PRO

TABLE OF CONTENTS (Cont.)

Calibration .................................................................................... EN-13

Span Calibration ......................................................................... EN-13

Linearity Calibration .................................................................... EN-14

Applications .................................................................................. EN-15

Weighing ................................................................................... EN-15

Weighing with Tare .................................................................. EN-15

Parts Counting ........................................................................... EN-16

Percent Weighing ....................................................................... EN-17

Establishing a New Reference Weight ......................................... EN-18

Exiting Percent Weighing .......................................................... EN-18

Display Hold .............................................................................. EN-18

Exiting Display Hold .................................................................... EN-19

Totalize ..................................................................................... EN-19

Clear Exit Totalize .................................................................... EN-20

Additional Features ......................................................................... EN-20

Weigh Below.............................................................................. EN-20

LFT (Legal for Trade on certain balances) ..................................... EN-20

Lock Switch ............................................................................... EN-21

Sealing the Balance .................................................................... EN-21

4. MAINTENANCE ................................................................................ EN-22

Cleaning ....................................................................................... EN-22

Troubleshooting ............................................................................. EN-22

Error Codes List ............................................................................. EN-23

Accessories................................................................................... EN-24

5. TECHNICAL DATA ............................................................................. EN-25

Specifications ................................................................................ EN-25

Warranty ...................................................................................... EN-27

2 Scout Pro English T of C 71160417.p65 3/6/2003, 10:59 AM2

All manuals and user guides at all-guides.com

SCOUT PRO EN-3

1. INTRODUCTION

The Scout Pro offers, parts counting with auto optimization, display hold, totalize and

% weighing. Models are available with ranges from 200g to 6000g.

Scout Pro standard features include:

 Battery or AC operation (AC adapter included)

 Integral security bracket

 Programmable auto shut-off

 Span calibration masses included on certain models.

 Optional USB or RS232 interface available.

Safety Precautions

Please follow the safety precautions as listed.

CAUTION:

 Do not operate the balance around corrosive fumes.

 Use only the adapter provided with the balance.

 Do not try to service the Scout Pro balance.

 Before plugging in the Balance, make sure that the voltage of the power

adapter and plug match.

2. INSTALLATION

Unpacking

Check the completeness of the delivery. Inform your Ohaus dealer if parts are missing.

Your Scout Pro package contains:

 Scout Pro Balance  Warranty card  AC Power Adapter  Platform

 Instruction Manual  Calibration Masses ( on certain models)

Store the packaging material for future transport.

3 Scout Pro English Intro 71160417.p65 3/6/2003, 10:59 AM3

All manuals and user guides at all-guides.com

all-guides.com

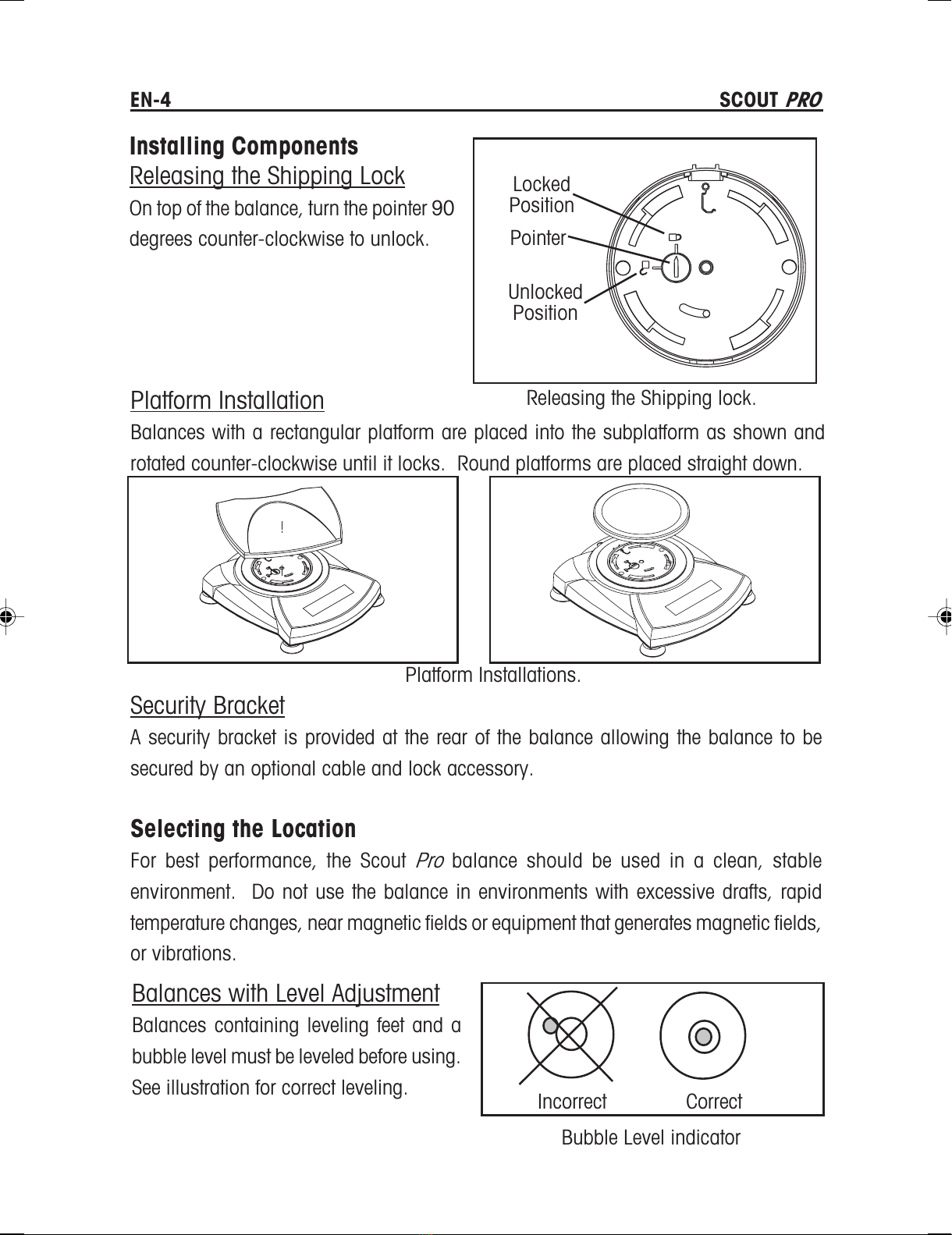

EN-4 SCOUT PRO

Platform Installation

Balances with a rectangular platform are placed into the subplatform as shown and

rotated counter-clockwise until it locks. Round platforms are placed straight down.

Releasing the Shipping lock.

Unlocked

Position

Locked

Position

Installing Components

Releasing the Shipping Lock

On top of the balance, turn the pointer 90

degrees counter-clockwise to unlock.

Platform Installations.

Pointer

Security Bracket

A security bracket is provided at the rear of the balance allowing the balance to be

secured by an optional cable and lock accessory.

Selecting the Location

For best performance, the Scout Pro balance should be used in a clean, stable

environment. Do not use the balance in environments with excessive drafts, rapid

temperature changes, near magnetic fields or e uipment that generates magnetic fields,

or vibrations.

Incorrect Correct

Bubble Level indicator

Balances with Level Adjustment

Balances containing leveling feet and a

bubble level must be leveled before using.

See illustration for correct leveling.

3 Scout Pro English Intro 71160417.p65 3/6/2003, 10:59 AM4

All manuals and user guides at all-guides.com

SCOUT PRO EN-5

Battery and AC Power Connections

Battery

Compartment

Cover

AC Adapter Input Jack

Connecting Power

Battery Installation

Install the Four AA batteries with polarity

as shown in the battery compartment.

AC Adapter Installation

Plug the AC adapter into the jack at the

rear of balance.

3. OPERATION

Overview of Controls and Display unctions

8910

11 12 1314 15 16

Balance

Rear of Balance

Display

2122

2324

3 Scout Pro English Intro 71160417.p65 3/6/2003, 11:00 AM5

All manuals and user guides at all-guides.com

EN-6 SCOUT PRO

No. Designation Function

1. Feet1Provides leveling for certain models.

2. Spirt Level1Provides level indication.

3. Platform Weighing platform, either round or rectangular.

4. PRINT Unit button Prints data, scrolls through units, steps through units.

5. Display LCD display with ICONS.

6. Lockswitch Locks certain menu functions, located under balance.

7. ON/ZERO Off button On/Off, Zero, enters menu, accepts menu settings.

8. USB or RS232 port Optional kit for either RS232 operation or USB.

9. Security Bracket Part of balance for optional external cable and lock.

10. Power Input Jack Connector for AC adapter.

11. 7-segment LCD Part of 6-digit LCD display.

12. Brackets Auxilliary indication.

13. G (not used)

14. N (not used)

15. % Indicates percent weighing.

16. PC Indicates pieces during parts counting.

17. kg Indicates weight in kilograms.

18. dwt Indicates weight in pennyweights.

19. g Indicates weight in grams.

20/22. oz t Indicates weight in troy ounces.

21. t Indicates weight in taels or totalize mode.

22. oz Indicates weight in ounces.

23/22. lb:oz Indicates weight in pound:ounces.

23. lb Indicates weight in pounds.

24. Decimal point.

25 Stability indicator, indicates stable weight.

26. Negative sign.

27. (not used)

28. Battery indicator flashes when battery is down to

approximately 20 minutes of power remaining.



NOTES: 1. Certain models are provided with leveling feet and spirit level.

2. Unit measurement varies by model.

4 Scout Pro English Operation 1 71160417.p65 3/6/2003, 11:00 AM6

All manuals and user guides at all-guides.com

SCOUT PRO EN-7

Button Functions

Two switches provide the necessary functions to access a given menu, select a function

and to turn it on or off. Functions are listed as follows:

ON/ZERO Off Button

Primary unction (On-Zero)- Turns on balance. If balance is on, zeros the

display.

Secondary unction (Off)- Turns balance off, O will be displayed after button is

held for 3 seconds. In Display Hold or Totalize mode, a long press exits the mode

without turning the balance off.

Menu unction- An extended long press (>5 seconds) during power up will cause

the balance to enter the Menu mode. A short press is used to accept a setting on a

display.

PRINT Unit Button

Primary unction (PRINT)- Sends print command to interface port. If Display Hold

or Totalize mode is active, a short press will enter that mode.

Secondary unction (unit)- Press and hold scrolls through units. Release on

desired unit.

Menu unction- Will bypass setting shown on display.

4 Scout Pro English Operation 1 71160417.p65 3/6/2003, 11:00 AM7

All manuals and user guides at all-guides.com

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels OHAUS Échelle

OHAUS

OHAUS ranger 7000 Manuel utilisateur

OHAUS

OHAUS Adventurer Pro Manuel d'utilisation et d'entretien

OHAUS

OHAUS defender 7000 Manuel utilisateur

OHAUS

OHAUS Adventurer Pro Series Manuel utilisateur

OHAUS

OHAUS ES series Manuel utilisateur

OHAUS

OHAUS D31P75SD Manuel utilisateur

OHAUS

OHAUS Pioneer PX Series Manuel utilisateur

OHAUS

OHAUS Valor 1000 Manuel utilisateur

OHAUS

OHAUS TROOPER SCALE Manuel utilisateur

OHAUS

OHAUS Scout Pro 202 Manuel utilisateur

OHAUS

OHAUS EX224 Manuel utilisateur

OHAUS

OHAUS HP-120 Manuel utilisateur

OHAUS

OHAUS Navigator Manuel utilisateur

OHAUS

OHAUS Valor 1000 Manuel utilisateur

OHAUS

OHAUS SKIPPER 6000 Guide rapide

OHAUS

OHAUS Ranger Count 2000 Series Manuel utilisateur

OHAUS

OHAUS Valor 6000G X 1G Manuel utilisateur

OHAUS

OHAUS CS 200 Manuel utilisateur

OHAUS

OHAUS Adventurer series Manuel utilisateur

OHAUS

OHAUS Courier 1000 Manuel utilisateur

OHAUS

OHAUS Ranger Count 3000 Series Manuel utilisateur

OHAUS

OHAUS Valor 1000 Manuel utilisateur

OHAUS

OHAUS PS Series Manuel utilisateur

OHAUS

OHAUS Ranger 3000 Series Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
